Alarm Wiring Diagram - Commando -PRO Operating Instructions Manual

GREEN/BLACK
DOME LIGHT (-)
RED
HORN OUTPUT ( -)
YELLOW
3RD CHANNEL OUTPUT
(+) PARKING LIGHTS
1
WHITE
(+) POWER
RED
2
(+) SIREN OUTPUT
BROWN
3
(-) GROUND
BLACK
4
(-) OUTPUT
ORANGE
5
(-) 2nd CHANNEL
6
GRAY
7 (-) DOOR TRIGGER
GREEN
8
(-) TRIGGER
BLUE
9
(
VIOLET
10
IGNITION 12V.+
YELLOW
WHITE
11 Lock Switch (87a)
GREEN
12 Lock Motor (30)
BLUE
13
Unlock Motor (30)
BROWN
14
Unlock Switch (87a)
VIOLET
15
Polarity Select (87)
STARTER
5

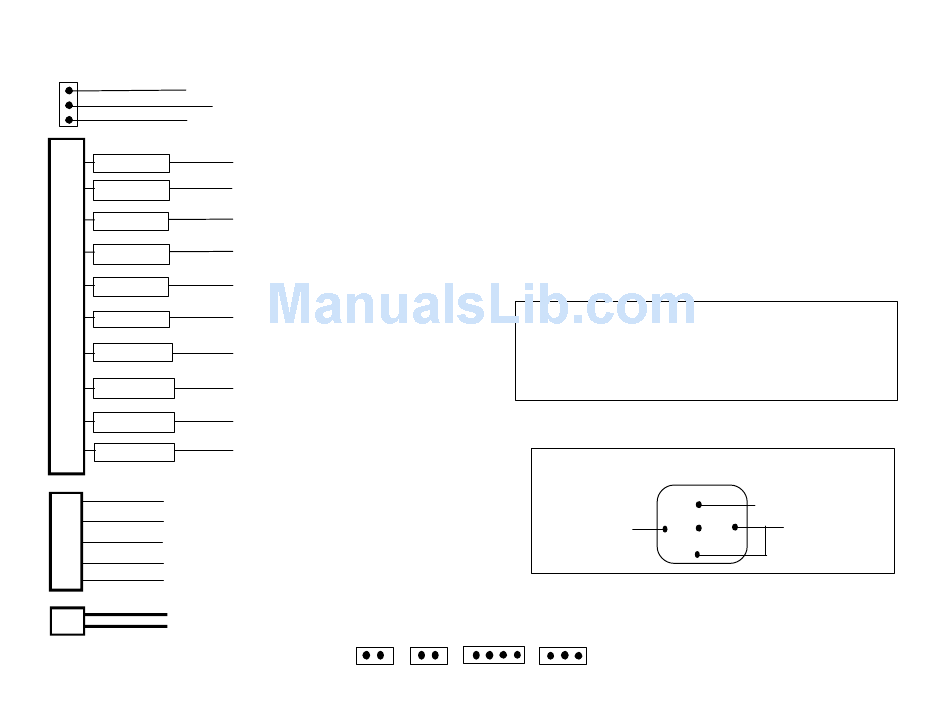

ALARM WIRING DIAGRAM

+) DOOR TRIGGER
L.E.D.
Valet Switch
Plug
RED
BLUE
1- ON= 1 Sec. Door lock Pulse
2- ON= Anti Car Jack Is Disabled
3- ON= Door Lock in Passive Mode
4- ON=
1 Pulse for Unlock
BROWN WIRE
OF ALARM
Dual Shock
Single Shock
Sensor Plug
Plug Sensor Plug
WHITE RED
Dip Switch Settings:
OFF= 3.5 Sec. Lock Pulse
OFF= Enabled
OFF= Disabled
OFF= 2 Pulse for Unlock
TRUNK RELASE RELAY
87
TRUNK SWITCH
85
86 87A
30
6
12V(+)POWER
