PROGRAMMING THE UNIT

Remote Programmable Features:
To enter program mode:
1- Turn Ignition key ON
2- Within 10 seconds press OVERRIDE switch 5 times. Siren will Sound with
Long Chirp then Release switch. Now in program mode.
To access feature change:
1.- Press program switch the number of times that corresponds with the
feature you desire to change.
Example: If you whant to turn feature #4 off, then press program switch 4
times.
2- Siren and LED will flash each time switch is pushed.
3- Press button #1 on remote to turn feature ON - SIREN will chrip 1 time.
4- Press button #2 on remote to turn feature OFF - SIREN will chrip 2 times.
5- System will automatically exit program mode.
6- Once a programmable feature has been entered, the LED will flash the
number of times corresponding with the program feature that was chosen.
BUTTON # 1=O N
BUTTON # 3
RESET TO FACTORY DEFAULT SETTING:
ENTER PROGRAM MODE (SEE ABOVE)
PRESS AND RELEASE CHANNEL 3 FOR 5
SECONDS LIGHT WILL FLASH 3 TIMES .AND
ALL PROGRAMMABLE FEATURES BACK TO
FACTORY DEFAULT SETTINGS. (WHICH IS
ALL ON)
BUTTON # 2 =OFF
*
BUTTON # 4
PTX-4
7

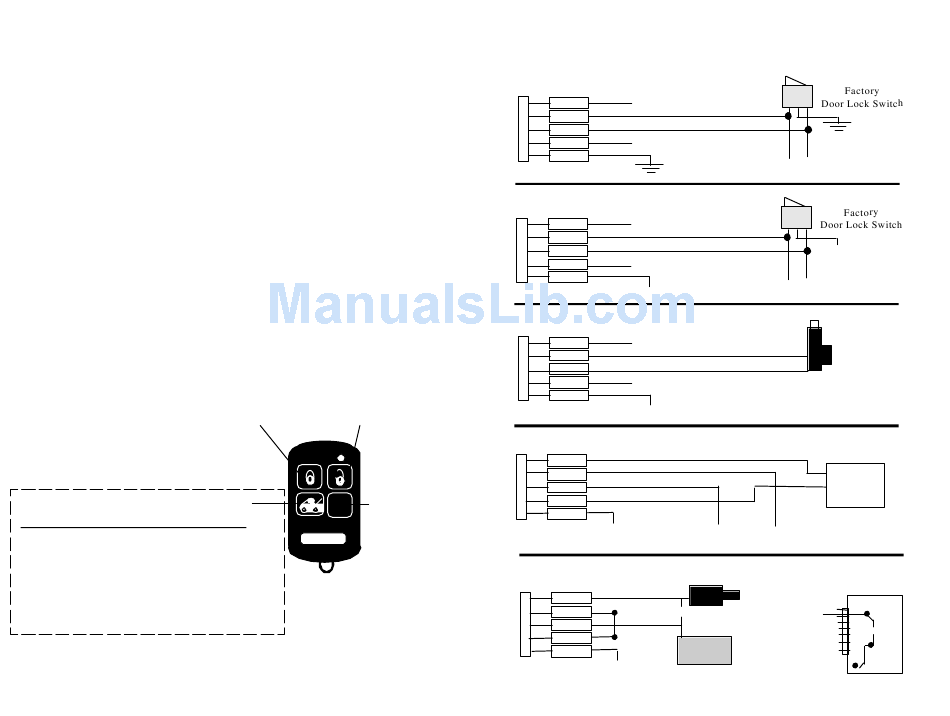

DOOR LOCK WIRING DIAGRAM
3 Wire Negative Door Lock System
X
WHITE
Door Lock Wire
GREEN
BLUE
Door Unlock Wire
BROWN X
VIOLET
3 Wire Positive Door Lock System
X
WHITE
Door Lock Wire
GREEN
BLUE
Door Unlock Wire
BROWN X
VIOLET
12V Power (+)
Aftermarket Power door lock Actuator
GROUND
WHITE
GREEN
BLUE
BROWN
GROUND
VIOLET
12V Power (+)
5 Wire "Ground at rest" Door Lock System
WHITE
GREEN
BLUE
BROWN
VIOLET Unlock
12V Power (+)
MERCEDES Vacuum Door Lock System
WHITE
x
CUT
GREEN
BLUE
BROWN
VIOLET
12V Power (+)
Existing Power door lock system
12V Power (+)
Existing Power door lock system
DOOR LOCK
ACTUATOR
X
5 WIRE
CUT FACTORY
X
SWITCH
CUT
Lock
DRIVER SIDE
ACTUATOR
GENESIS-PRO
Door actuator
GROUND
pump
4
x
CUT
