LIMITED WARRANTY
This vehicle security systems is warranted to the original consumer purchaser, to
be free from defects in material and workmanship. The manufacturer will repair or
replace, at it's option, and free of charge during the first 12 months of the warranty
period, any part which prove defective in material or workmanship under normal
installation, use and service, provided the product is returned to our factory,
transportation charges prepaid. Products returned to our factory must be accom-
panied by copy of purchase receipt. Warranty is limited to defective parts and/or
replacement parts only and excludes any incidental and consequential damages
connected therewith. The manufacturer, of this theft deterrent systems makes no
warranty against the theft of vehicle or its content. This warranty is not to be construed
as an insurance policy against loss.
After the first 12 months of the warranty period there will be a charge. ( required) for
repairing and/or replacing any defective parts.
WARRANTY ON INSTALLATION LABOR, REINSTALLATION AND REMOVAL CHARGES
ARE NOT THE RESPONSIBILITY OF THE MANUFACTURER.
OPTIONAL ACCESSORIES
Glass Break Sensor
Interior Radar Sensor
Window Roll-Up Module
Trunk Release Solenoid
Rechargeable Back-Up Battery Siren
Thank You For Choosing
COMMANDO VEHICLE SECURITY
GNU Industries INC.
Technical Support (954)741-5191
SUPPORT@auto-starter.com
info@auto-starter.com
c 12-2000
COMMANDO
Vehicle Security Systems
COMMANDO-COMBO
REMOTE AUTO ALARM STARTER
&
PAGER SYSTEM
2-WAY TRANSCEIVER WITH LCD MONITOR
INSTALLATION MANUAL

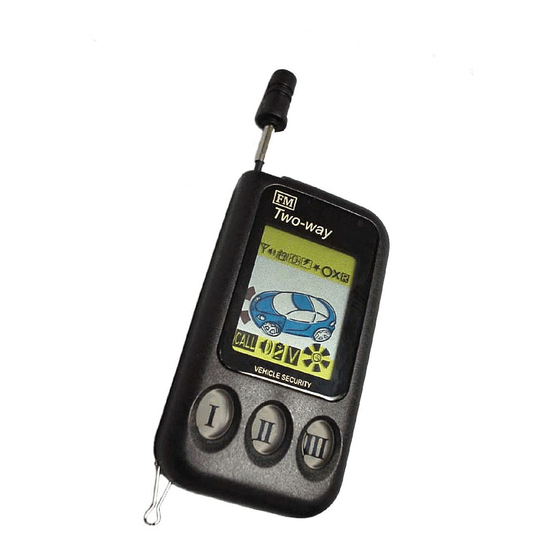

* One 3 Channel (FM LCD) Transmitter
* 2nd Channel Output for Trunk release
* Door Entry Protection
* Personal Panic Feature
* Shock Sensor / Dual Zone Dual Adjust
* Remote Trigger Disable
* Dome Light Supervision
* Five Function LED Plug-In
* 120dB 6 Tone Siren
* Last Door Automatic Arming
* Remote Start
* Vacuum System Sense (Optional )
* Factory Alarm Disarm
* Double Pulse Unlock
* 2nd Ignition Relay On Board
* Tach & Spark Plug Sense
* Flashing Parking Lights
* Valet Override Switch Plug-In
* Door Locking & Unlocking w/ Ign. Key
* Remote Door Lock/Unlock Plug-In
MADE IN USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commando COMMANDO-COMBO
Summary of Contents for Commando COMMANDO-COMBO
-
Page 1: Limited Warranty
* Last Door Automatic Arming * Remote Start * Vacuum System Sense (Optional ) Thank You For Choosing * Factory Alarm Disarm COMMANDO VEHICLE SECURITY * Double Pulse Unlock * 2nd Ignition Relay On Board GNU Industries INC. * Tach & Spark Plug Sense... -
Page 2: System Contents
SYSTEM CONTENTS TROUBLE SHOOTING Each system contains the following components: Problem Probable Cause Suggestions 1- Brain Module 1- 3 Button Transmitter ( L.C.D SCREEN ) Main inputs heavy gauge All power inputs are not Unit will not operate red wires and red fused 1- External Receiver W/ harness connected to 12V+ wire on main harness... -
Page 3: Transmitter Button Operation
PASSKEY & P.A.T.S. BYPASS REMOTE ALARM FUNCTIONS The GM PASSKEY 3 AND FORD P.A.T.S.. Antitheft system works with a glass tube called a transponder located in the ignition key that sends and receives data via a coil on the ignition TRANSMITTER BUTTON OPERATION: switch. -
Page 4: Before Installation
BEFORE INSTALLATION PROGRAMMING THE UNIT 1- Before you start installation: BEFORE PROGRAMING ANY TRANSMITTERS OR TESTING THE UNIT MAKE SURE THE Verify that the vehicle is equipped with an electronic fuel injection and automatic transmission. ANTENNA - RECEIVER IS PLUGED IN TO THE UNIT. !!!!!!!! Verify that the vehicle starts and idles properly and inform the customer where the location of 1- CODE TEACHING: the program/service switch will be. -
Page 5: Remote Start Features
DOOR LOCK WIRING DIAGRAM REMOTE START FEATURES 3 Wire Negative Door Lock System 3 Wire Positive Door Lock System REMOTE START FUNCTIONS: 1.- Press button #2, Siren will chirp3 times parking lights will turn on solid, Alarm Door Unlock Wire Alarm Door Lock Wire Alarm Door Lock Wire LED will begin to flash rapidly to verify that the vehicle is about to start... - Page 6 REMOTE ALARM & STARTER WIRING Blue - Unlock Green/Black -Trunk WHITE:----------- Connect to the (+) side of parking lights. RED:-------------- Connect to Battery constant 12V.+ power. Red -12V+ Out Red - Factory Disarm BROWN:--------- Connect to the red wire of Siren (+) Output. Green - Lock Yellow - Vacuum Sys.
