Summary of Contents for ICS 880 Hydraulic Saw

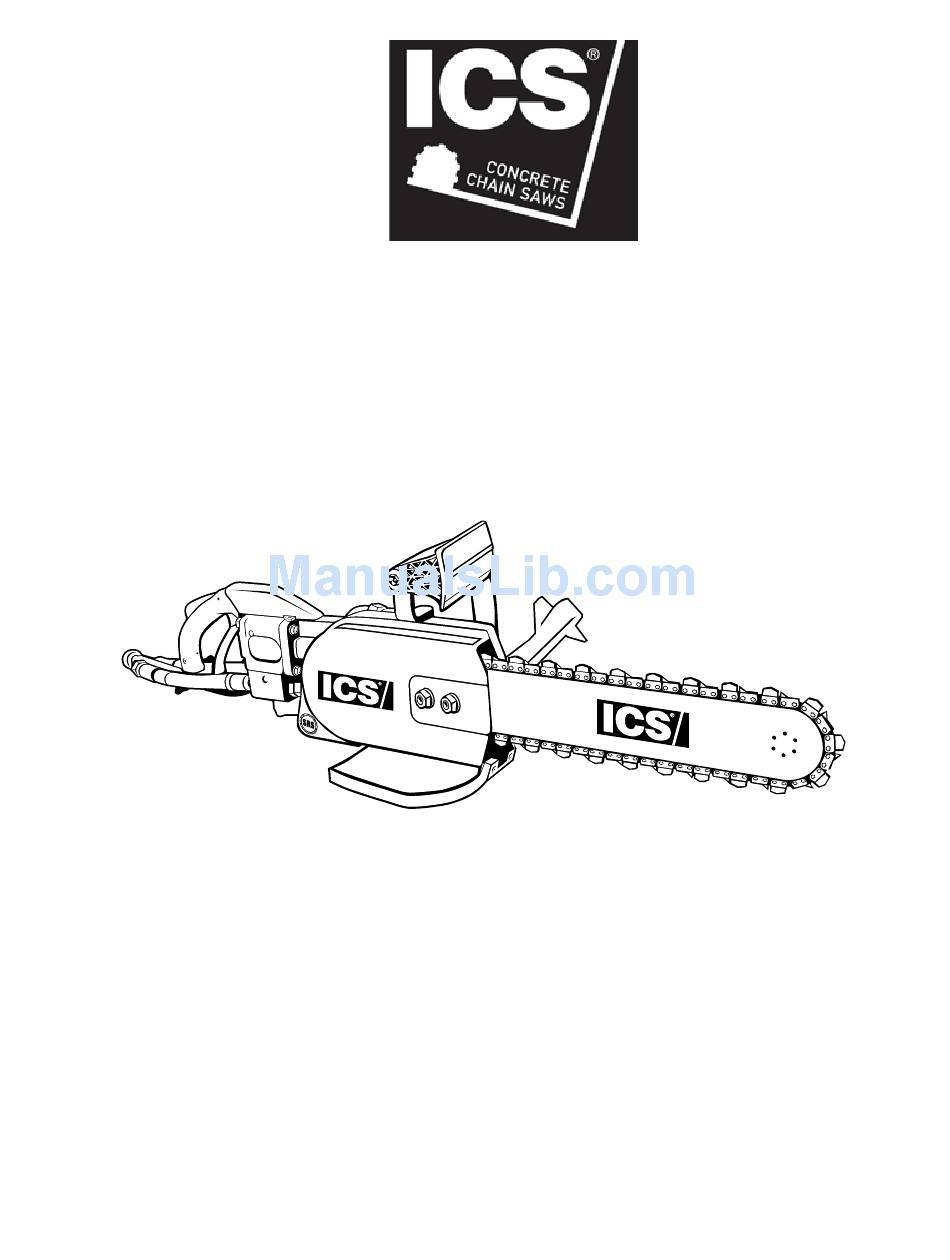

- Page 1 880 Hydraulic Saw OPERATOR’S MANUAL © 2007 ICS, Blount Inc. F/N 525665 Oct 07...
-
Page 3: Table Of Contents
880 OPERATOR’S MANUAL TABLE OF CONTENTS TITLE SYMBOLS & LABELS SAFETY TECHNICAL SPECIFICATIONS SET-UP OPERATION MAINTENANCE TROUBLESHOOTING REFERENCE F/N 525665 Oct 07 © 2007 ICS, Blount Inc. -
Page 4: Symbols & Labels
• Contact at a hydraulic leak or burst can cause oil injection into the body READ OPERATIONS & MAINTENANCE MANUAL BEFORE USE OF TOOL. FAILURE TO OBSERVE THESE PRECAUTIONS CAN RESULT IN SERIOUS PERSONAL INJURY © 2007 ICS, Blount Inc. F/N 525665 Oct 07... -
Page 5: Safety
• DO NOT use your hands to search for hydrualic leaks. Hydraulic fluid escaping under pressure can penetrate skin. If any hydraulic flud is injected into skin seek medical attention immediately. F/N 525665 Oct 07 © 2007 ICS, Blount Inc. - Page 6 Set up a well-marked safety zone with a roped boundary and clear signs. • Provide adequate ventilation when working in an enclosed area. Breathing exhaust gases is dangerous. • To avoid electrocution, check for live electrical wiring near cutting area. © 2007 ICS, Blount Inc. F/N 525665 Oct 07...
-
Page 7: Technical Specifications
7,00 rpm (avg. free running) Noise Level 88 dB @ 1 M ( ft) m/sec² (front handle) Vibration 8 m/sec² (rear handle) Ref. ISO standard no. 7505 Torque 150 in-lbs Horsepower 15 hp F/N 525665 Oct 07 © 2007 ICS, Blount Inc. -
Page 8: Set-Up
Make sure all of the drive links are Turn chain-tensioning screw CCW until the bar comes into contact with inside the bar groove then pre- the drive sprocket. tension the chain. © 2007 ICS, Blount Inc. F/N 525665 Oct 07... - Page 9 The diamond chain should be snug but be able to be pulled around the guide bar by hand. Note 2: To prevent chain tensioner breakage, be sure the side cover nuts are tightened to approximately 20 ft-lbs (27Nm). F/N 525665 Oct 07 © 2007 ICS, Blount Inc.
-
Page 10: Operation
= 12”x12”x12” = 150 lbs. (0cm x 0cm x 0cm = 68kg). • Check for live electrical wiring near the cutting area or in the concrete to avoid electrocution. © 2007 ICS, Blount Inc. F/N 525665 Oct 07... - Page 11 • When using a new diamond chain, you can increase the cutting speed by “opening up the diamonds”. Make a few cuts in an abrasive material such as a cinder block. F/N 525665 Oct 07 © 2007 ICS, Blount Inc.
-
Page 12: Maintenance
After cleaning the saw, spray the entire saw body, diamond chain, guide bar, and drive sprocket with lightweight oil. Using lightweight oil on the saw will minimize rust and help reduce slurry build up. © 2007 ICS, Blount Inc. F/N 525665 Oct 07... - Page 13 Note: Do not turn around or reverse the direction of the drive sprocket to extend sprocket tooth life. Damage to chain or drive links may occur. F/N 525665 Oct 07 © 2007 ICS, Blount Inc.
-
Page 14: Troubleshooting
WATER NOT FLOWING - Water hose is kinked or supply is not turned on. • MOTOR WON'T TURN – Hydraulics are hookep up backwards or powerpack is set on reverse flow. Further questions? Call 1-800-321-1240 visit our website at: icsbestway.com © 2007 ICS, Blount Inc. F/N 525665 Oct 07... -
Page 15: Reference
1. Determine the depth of the cut in inches. For this example, 8 inches. 2. Determine the length of the cut in feet. +7++7=20 feet . Multiply the two numbers 8 in x 20 ft = 160 in-ft F/N 525665 Oct 07 © 2007 ICS, Blount Inc. - Page 16 PERFORMANCE LOSS VS. HYDRAULIC HOSE LENGTH ASSUMPTIONS: • 12 gpm (5 l/min) flow and 2,500 psi (172 bar) • Zero elevation change • 2 pairs of flush-face fittings per hose . © 2007 ICS, Blount Inc. F/N 525665 Oct 07...
- Page 18 880 OPERATOR’S MANUAL 4909 SE International Way Portland, OR 97222 Tel 800-321-1240 Fax 503-653-4393 icsbestway.com © 2007 ICS, Blount Inc. F/N 525665 Oct 07...
