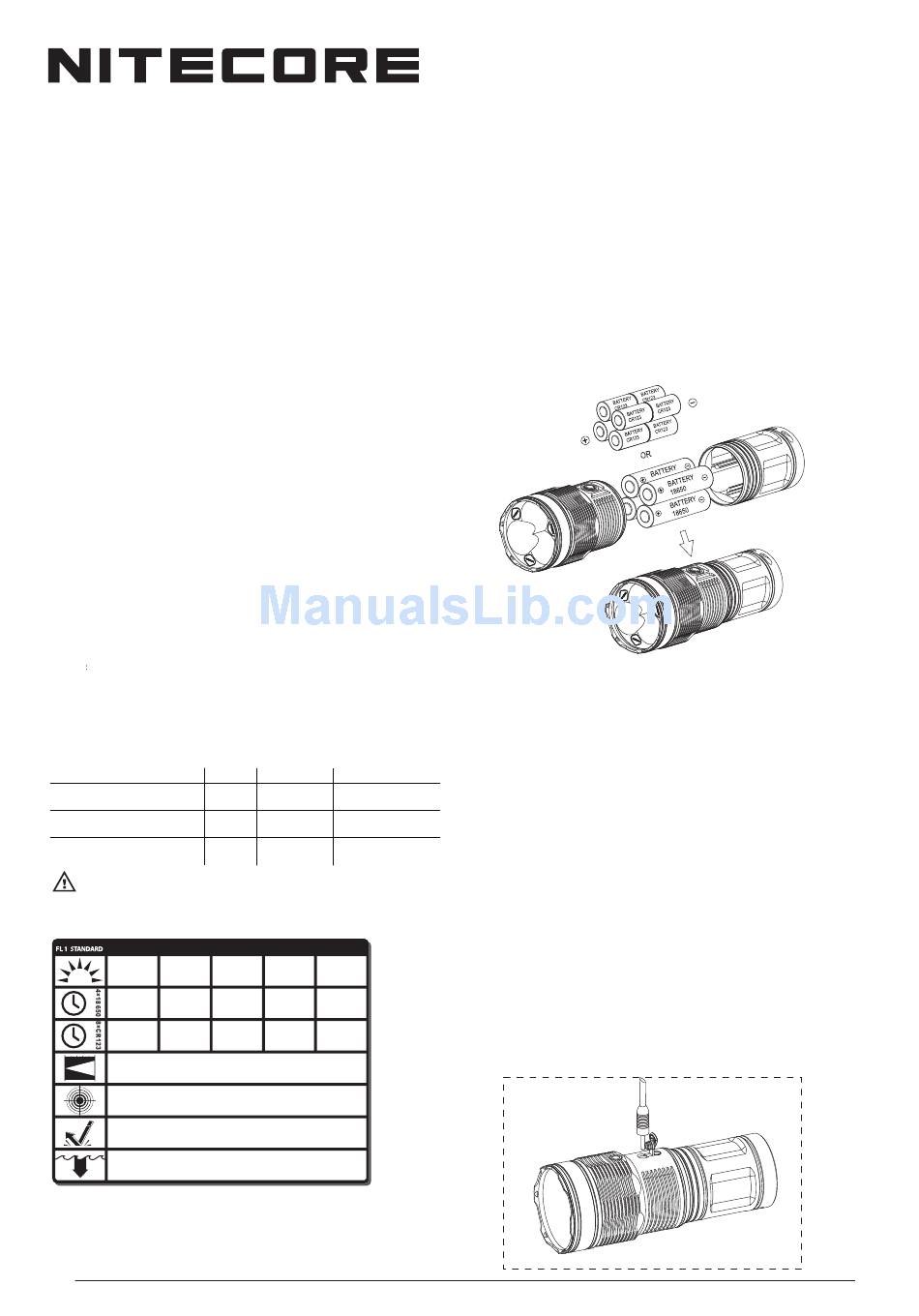

Nitecore tm 15 User Manual

ALL-ROUND Flashlight Expert
Features
At 2450 lumens the TM15 is world's smallest and brightest
·
rechargeable searchlight
Utilizes 3 x CREE XM-L LEDs
·
Thermal protection circuit prevents overheating
·
Compatible with both 18650 Li-ion and CR123 batteries
·
Intelligent charging circuit with status detection. Recharge easily, safely
·
and quickly
Exceptionally long runtimes using 4 × 18650 Li-ion or 8 × CR123
·
batteries
Capable of using 1 × 18650 or 2 x CR123 batteries in emergency
·
situations
Innovative single button two-stage switch provides a user-friendly
·
interface (Patented)
Integrated power indicator light displays remaining battery power
·
(Patented)
Power indicator secondary function displays battery voltage (accurate
·
to 0.1V)
Coated mineral glass resists scratches
·
Aluminum reflector ensures a consistent and powerful beam
·
Stainless steel retaining ring protects the core components from
·
damage
Constructed from aircraft grade aluminum alloy
·
HA III Military grade hard-anodized
·
IPX-8 standard waterproof (two meters)
·
Dimensions
Length: 158mm
Head diameter: 60 mm
Tube diameter: 50mm
Weight 447g (without battery)
Accessories
Charger, quality holster, lanyard, spare O-ring
Battery Options
SIZE
18650 Rechargeable Li-ion battery 18650
Primary Lithium battery * CR123
Rechargeable Li-ion battery * RCR123
*Warning: Charge 18650 rechargeable Li-ion batteries only, do not attempt to
charge non-rechargeable batteries, CR123 or RCR123 batteries.
Output & Runtime
TURBO HIGH
2450 1300
LUMENS LUMENS
1 3 10 8
h min
h
1 10 3 6
h min h
363m
33000cd
(Peak Beam Intensity)
1.5m
(Impact Resistant)
IPX-8, 2m
(Waterproof AND Submersible)
NOTICE
Stated data has been measured according to the international flashlight testing
standards ANSI/NEMA FL1 using four quality NITECORE 18650 (3.7V 2600mAh)
battery or eight SYSMAX CR123 (3V 1550mAh) batteries under laboratory
conditions. The data may vary due to individual usage habits and environmental
conditions.
Compatible
Nominal voltage
Yes (Recommended and
3.7V
can be recharged)
Yes (Compatible but can
3V
NOT be recharged)
Yes (Compatible but can
3.7V
NOT be recharged)
MID LOW LOWER
570 300 95
LUMENS LUMENS LUMENS
20 16 30 52
h min h min
h
20 13 36
h min h h
(Beam Distance)
Thanks for purchasing NITECORE!
®
TM 15
NITECORE (SYSMAX) is a member of PLA
to develop the ANSI FL1 standard of measurement. Product testing data
is in accordance with these internationally recognized scientific
standards.

Operation instructions

Battery installation
Insert 4 × 18650 Li-ion or 8 × CR123 batteries with the positive (+) end
pointing toward the flashlight head. In special circumstances, such as
emergency situations, between one and three 18650 Li-ion or two and six
CR123 batteries may be used. After loading the batteries, the power
indicator light will blink to indicate the battery voltage. Please refer to the
"Power Tips" section of this manual for details.
Note: The potential risks of over-discharging batteries can include
leakage and explosion so caution must be exercised when using
less than 4 x 18650 or 8 x CR123. Ensure you know your batteries'
limits and use the TM15's emergency functionality sparingly.
Furthermore, maximum output may be reduced when using less
than the maximum amount of batteries.
WARNING
1. Insert batteries with the positive (+) end pointing toward the flashlight
head.
2. Do not mix rechargeable and non-rechargeable batteries.
3. Do not mix batteries of different types/brands.
4. Do not mix batteries of different charge levels.
5. Do not use lithium batteries without a protected circuit board.
6. This product does not support 18650 rechargeable Li-ion batteries
without a protection circuit board as these batteries are too short for
the TM15's battery compartment.
Charging the TM15
1. Connect the charging cable to the flashlight and the A/C power adapter
to the wall outlet as shown in the adjacent image. Fully charging four
depleted 18650 batteries takes approximately 7 hours.
2. Under normal charging conditions, the blue indicator light on the on/off
switch will blink twice every second.
3. If a problem is detected while charging the TM15 will stop charging and
the blue indicator will blink rapidly. This can be caused by faulty or
incorrectly inserted batteries.
4. When charging is complete, the blue indicator will remain on.
