Features
- Utilizes 4 x high performance LEDs
- Available with IR light (wavelength 940nm) and green light of totally 4 modes
- Powered by the built-in Li-ion battery with a max runtime of 20 hours
- Built-in Li-ion battery charging circuit with a Micro-USB port
- Single switch design allows for one-handed operation
- A power indicator within the body indicates the remaining battery power (Patent No. ZL201220057767.4)

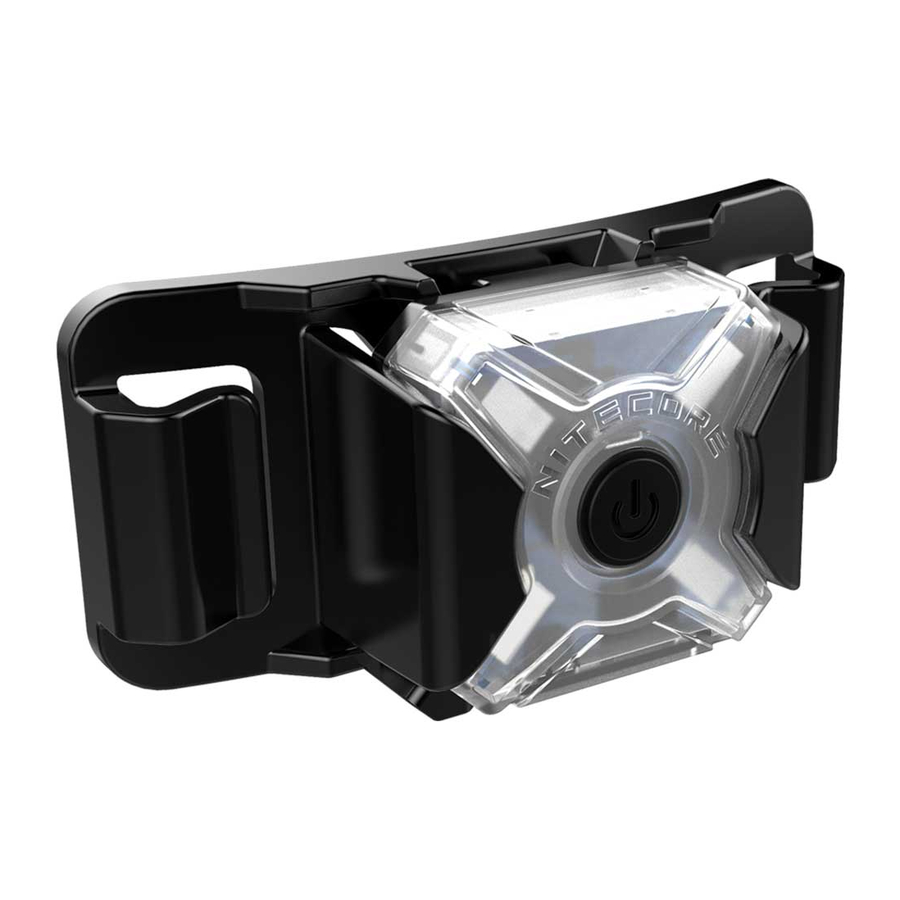

- Lightweight bracket included with hook-and-loop attachment on the back
- Made from durable PC materials
- Ultra light and compact design
- Impact resistant to 1 meter
Accessories
Bracket, USB Charging Cable
Specifications
| Dimensions: | 67.33mm×34mm×25.9mm (2.65"×1.34"×1.02") (Bracket Included) |
| Weight: | 22g (0.78oz) (Bracket Included) 10.5g (0.37oz) (Bracket Not Included) |
Technical Data
| IR Flashing | IR Beam | Green Flashing | Green Beam | |
| Output | ─ | ─ | 5Lumens | 5Lumens |
| Runtime | 18h | 3h15min | 20h | 6h |
| Impact Resistance | 1m | |||
| Water Resistance | IP66 | |||
Note: The stated data is measured using the built-in Liion battery (120mAh) under laboratory conditions. The data may vary in real world use due to different battery usage or environmental conditions.
Charging Function
NU05 MI is equipped with an intelligent charging system.
Please charge the battery before the first use.
Connecting to the External Power: As illustrated, uncap the charging port and use the USB cable to connect an external power supply (e.g. a USB adapter, a computer or other USB charging device) to the MicroUSB port to begin the charging process.
Charging Indicator: While charging, the built-in charging indicator will be steadily glowing red. The battery is fully charged when the charging indicator turns green.
- The charging time is approx. 1.5h.
- The standby time is up to 12 months if the battery has been fully charged.
- During the charging process, the NU05 MI can still be turned on. (The indicator will keep constantly on and will not indicate the selected mode.)
Mode Indication
The NU05 MI is available with 4 modes including IR Flashing, IR Beam, Green Flashing and Green Beam. The access of IR modes is indicated by the red indicator as IR light is invisible to the naked eyes.
| Working Status of the NU05 MI | Status of the Red Indicator |
| Turning on the IR Flashing Mode | Quickly and continuously flashes for 3 seconds before going off (Short pressing the Power Button can indicate the working status again) |
| Turning off the IR Flashing Mode | Flashes once |
| Turning on the IR Beam Mode | Constantly turned on for 3 seconds before going off (Short pressing the Power Button can indicate the working status again) |
| Turning off the IR Beam Mode | Flashes once |
| Turning on/off the Green Flashing/Beam Mode | No indication |
Operating Instructions
On / Off
On: When the light is off, long press the Power Button to turn it on and access the IR Flashing Mode.
Off: When the light is on, long press the Power Button to turn it off.
Mode Switching
When the light is on, short press the Power Button to cycle through "IR Flashing - IR Beam - Green Flashing - Green Beam".
(Please proceed with the mode switching before the indicator goes off when in the IR modes)
Power Indication
When the light is off, short press the Power Button and the power indicator will flash slowly to indicate the remaining power of the battery:
- Flashing three times indicates that the power is above 50%;
- Flashing twice indicates that the power is below 50%;
- Flashing once indicates that the power is below 10% and near depletion.
Cautions
- Please charge the battery before the first use.
- Please recharge the product every 3 months when left unused for a prolonged time.
- DO NOT direct the beam to the naked eyes.
- The product contains small assembly parts. Please keep it away from children to avoid danger of choking or suffocation.
- DO NOT disassemble, modify or reconstruct the product, otherwise the warranty will be nullified, and the product might be damaged.
Q&A
Q: How can we tell whether the IR modes of the NU05 MI is turned on without night vision devices?
A: Short press the Power Button.
- If the red indicator slowly flashes 1-3 times (Power Indication), it indicates that the NU05 MI is off.
- If the red indicator quickly and continuously flashes for 3 seconds before going off, it indicates that the NU05 MI is in the IR Flashing Mode.
- If the red indicator is constantly turned on for 3 seconds before going off, it indicates that the NU05 MI is in the IR Beam Mode.
Worldwide Warranty Service
Model number:
Date of purchase:
Serial number:
Store Stamp:
This is the certificate of authenticity if this itemand we confirm that it has been subjected to the most exacting quality controls by SYSMAX Innovations Co., Ltd.
NOTE: Please ensure this warranty card is fully completed by the distributor or retailer after purchasing the product. Should the product fail to operate correctly during the warranty period, it may be returned with the completed warranty card and original sales receipt to the retailer or local distributor for replacement or repair.
Customer Service Email: service@nitecore.com
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address: Rm 2601-06, Central Tower,
No.5 Xiancun Road, Tianhe District,
Guangzhou, 510623, Guangdong, China
Please find us on facebook: NITECORE Flashlight
