Nitecore FLS360 Instructions

Features

• 360° Illumination Field Lighting System
• Utilizes CREE XM-L2 LEDs
• Ultra-high output up to 22000 lumens
• A peak beam intensity of 201,200cd and
a throw distance up to 897 meters
• Suitable for outdoor, construction site,
square or other areas requiring wide
range illumination
• Crystal Coating Technology combined
with "Precision Digital Optics
Technology" for extreme reflector
performance
• Integrated high efficient constant circuit
provides max runtime of 40 hours
• 4 brightness levels available
• The support includes tripod and
telescopic poles
• Max extendable height up to 3.8 meters,
meets the demands in various scenarios
• Built-in OLED screen displays brightness
levels, battery voltage, runtime and
more
• Aerospace aluminum alloy
Accessories
AC adaptor, high quality and portable nylon bag, 3×diffuser lens

Specifications

Dimensions φ0.22m（0.72ft） x 1.02m（3.35ft）
13kg（28.66lbs）
Weight
Turbo 200W
High 75W
Brightness
Middle 33W
Low 15W
Battery
600Wh（48×18650 Li-ion, 3400mAh）
capacity
Charging time 8h
AC input 100 ～ 240V
charger
DC output 15V/19A
NOTE: The data may vary in real-world use due to different environmental conditions.

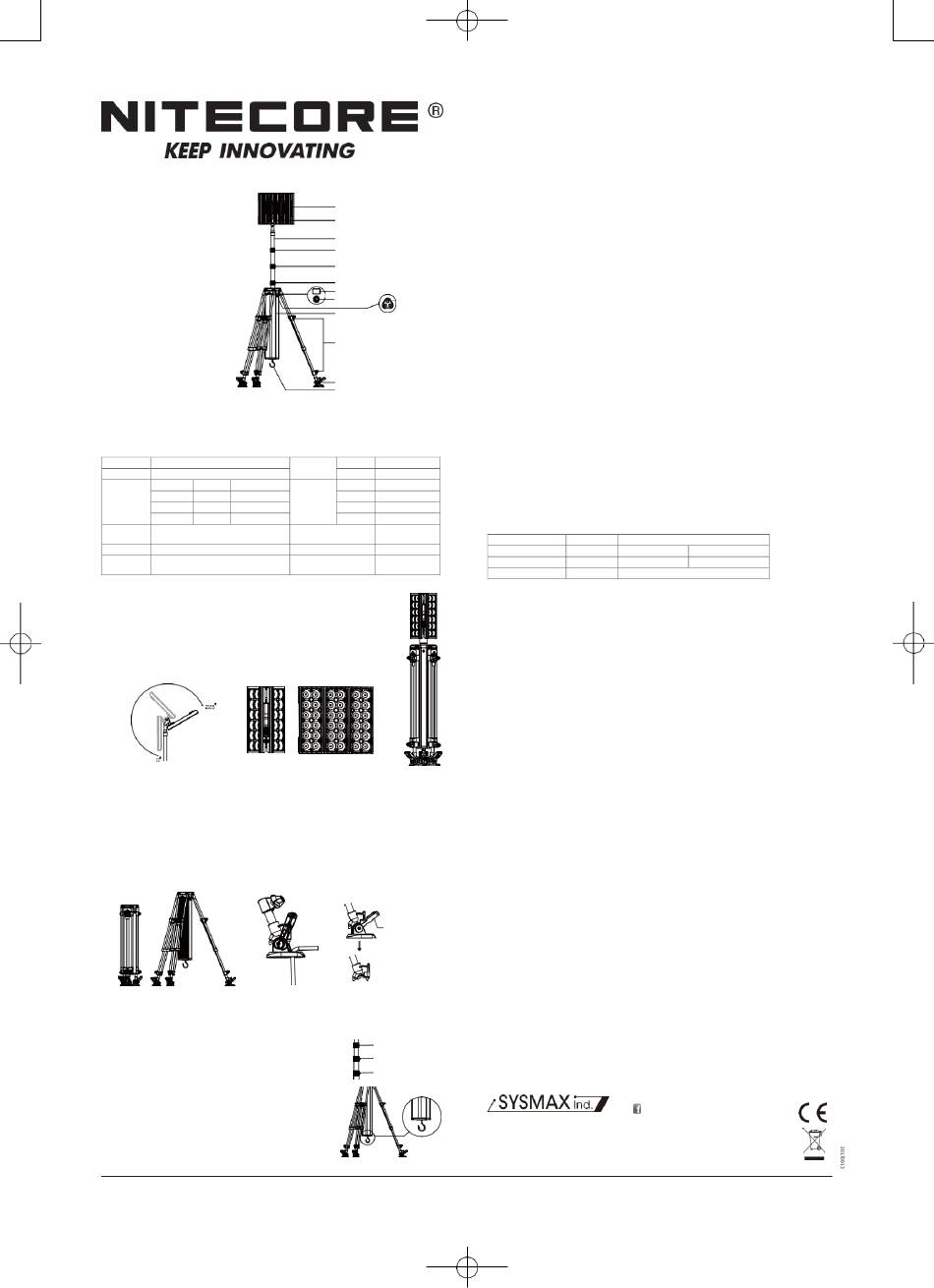

Deploying the FLS360
1. Set the FLS360 down vertically on a flat surface, and open the nylon bag as shown in
diagram (1).
2. Adjust the light head which is constructed by 3 light panels. The light panels are flexible and
adjustable (for directional or 360°configuration) as shown in diagram (2). The angle can be
adjusted by the Tiltable Connection as shown in diagram (3).
（3）
3. Then, based on preference or need, mount the diffuser lens to the light panels through magnetic
absorption.
4. Unfold the tripod, there is an Leg Lock on both ends of each tripod. Extend the tripod based on preference
by loosening the Leg Locks in anti-clockwise direction, and when the desired length is displayed, screw
the Leg Locks clockwise. After unfolding, use the tent peg to fix the FLS360 on the ground as shown in
diagram (4) and (5).
There is a detachable Leveling Pad on the end of each leg, which can be adjusted according to the terrain.
After disassembly, one can plug the pipe into the sand or the ground of soft soil as shown in diagram (6).
Folded Unfolded
（4）
5. Adjust the telescopic pole. There are 3 Adjustment Knobs on the telescopic
pole, loosen Knob 1 counter-clockwise to extend the pole and tighten the
knob clockwise. To extend further, loosen the Knob 2 and Knob 3
successively, and then tighten them.
6. An anchor strap is below the battery compartment. In case of heavy
wind, attach a sand bag (or equivalent weight under 5kg) to the anchor
strap to reinforce stability.
FLS360-中英-说明书.indd
Light Head
Tiltable Connection
Telescopic Pole
Adjustment Knob 1
Adjustment Knob 2
Adjustment Knob 3
OLED Screen
Power Switch
Charging Port
(at the backside)
Battery Compartment
Leg Locks
Leveling Pad
Anchor Strap
MAX 3.8m（12.47ft）
Height
1.02m（3.35ft）
MIN
22000 lumens Turbo 3h
10000 lumens High 8h
Battery life
5500 lumens Middle 18h
2000 lumens Low 40h
Battery voltage 11.1V
FLS360 rating IP66
Charger rating IP67
360°configuration Directional
（2）
silicone fixed collar
（6）
Use tent peg
（5）
( Pull up the silicone fixed
collar and remove the pipe.)
Adjustment Knob 1
Adjustment Knob 2
Adjustment Knob 3
Thanks for purchasing NITECORE!
360° Illumination Field Lighting System
ON/OFF
Turn on: When the FLS360 is off, tap the power switch to enter low mode. At this time, the OLED screen
displays the current mode and output, after about 2 seconds, it will display the battery voltage, runtime and
remaining power level. The blue power indicator will lit.
Turn off: When the FLS360 is on, press and hold the power switch to turn off the light. At this time, the
OLED screen displays battery voltage and remaining power level and then goes out after about 10 seconds.
The blue power indicator will blink slowly.
Warning:
1. Application temperature: -20℃ ~60℃ , when the temperature of the operating environment is below
-20℃ , please place it in a normal temperature environment for half an hour before use.
2. When the FLS360 is on, the light head will generate heat. Please keep at least 0.5 meter away from it.
3. When the FLS360 is used for extended periods of time, DO NOT touch the light head in case of scalding.
After use, MUST wait for cooling down before storing.
4. Avoid direct eye exposure.
5. Children under 18 years old must be supervised by an adult when using the FLS360.
Adjusting Brightness
The FLS360 will enter the Low mode when it is turned on, tap the power switch repeatedly to cycle through
"Low-Mid-High-Turbo".
Lockout and Unlock
When the light is off, press and hold the power switch for over 2 seconds to lockout, and the blue indicator
will go out. In lockout status, it prevents accidental activation and hardly consumes power. If the power
switch is tapped while in lockout, the blue indicator will illuminate and go out after 2 seconds. To unlock,
press and hold the power switch for over 2 seconds.

Charging

• Insert one end of AC adaptor into the charging port and the other end into a power socket (dedicated car
adaptors is optional).
• When the FLS360 is turned off while charging, the maximum charging current is 10A.
• When the FLS360 is turned on while charging, the charging current is 3A.
• If charging via a car adaptor, the charging current is 3A. If using the light while charging, Turbo and High
are not accessible.
NOTE: One must start the car before charging the FLS360 via a car adaptor.
Charging Tips
Indicator
Charging Blink
Charging completed Constant on
ERROR Fast blink
NOTE:
1. When the FLS360 is switched off while charging, it takes about 8 hours to refill the battery. (it may vary
due to different environments and battery health status)
2. Please recharge the battery in the temperature between 0℃ ~45℃ .
Protection
• The built-in battery has protective circuit to prevent the battery from overcharging, over-discharging, over
current and short circuit.
• When the battery voltage is low, the FLS360 automatically lowers its output to protect battery.
• If one light panel turns off due to malfunction in Turbo mode, the FLS360 will automatically lower its
output to High Mode; if two light panels turns off due to malfunction in Turbo or High mode, the FLS360
will automatically lower its output to Middle Mode.
Storing the FLS360
• Turn off the FLS360.
• After the FLS360 is turned off, please wait for 10-20 minutes and fold until the temperature of the light
heads drops in case of scalding.
• Retract the telescopic pole. Hold the pole above the Adjustment Knob 3 and then loosen it, retract the
poles and then tighten the Adjustment Knob 3. Adjust the length of other poles via the Adjustment Knob 2
and Knob 1 by the same way.
• Put the light heads back into the Stored Position. Adjust the light heads to 0° as shown in diagram (3);
（1）
Adjust 3 light panels to 360° configuration.
• Fold the tripod. Pull out the tent peg, hold the tripod and loosen the Adjustment Knob of the tripod.
Retract the tripod and then tighten and fold the tripod.
• Put it into the nylon portable bag.

Maintenance

1. If the FLS360 is stored for a long time, charge it for 5 hours semiannually.
2. Keep the light head clean for fear that affecting the heat dissipation of the light panels and light
transmittance of the lens.
3. Regularly check the Tiltable Connection between the light head and telescopic poles, if it is too loose, use
wrench to screw up the spindle nut.
Caution
1. Watch your hands when folding the light heads, telescopic poles and tripod.
2. The FLS360 is high after it is deployed, please assess the use environment and take protection measures
to avoid roll over.
3. The Tiltable Connection between the light head and the telescopic poles is fragile, please focus on the
support part when carrying and DO NOT catch the light head only.
4. Lockout the FLS360 by long pressing the switch before storing it to avoid accidental activation.
5. It can be used in raining or even rainstorm environments.
6. DO NOT immerse the part above battery compartment into water.

Warranty Service

All NITECORE products are warranted for quality. All defective / malfunctioning NITECORE
®
be repaired free of charge for a period of 12 months from the date of purchase. After 12 months, a limited
warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement
parts. The warranty is nullified in all of the following situations:
1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. The product(s) is/are damaged through improper use.
For the latest information on NITECORE
distributor or send an email to service@nitecore.com
※ The Nitecore official website shall prevail in case of any product data changes.
SYSMAX Industry Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address: Rm 2601-06, Central Tower, No.5 Xiancun Road, Tianhe District,
Guangzhou,510623, Guangdong, China
FLS360
OLED screen
Battery Voltage Power Level
Battery Voltage Full Power Level
ERROR
products will
®
products and services, please contact your national NITECORE
®
Please find us on facebook: Nitecore Flashlight
®
2017-09-13
