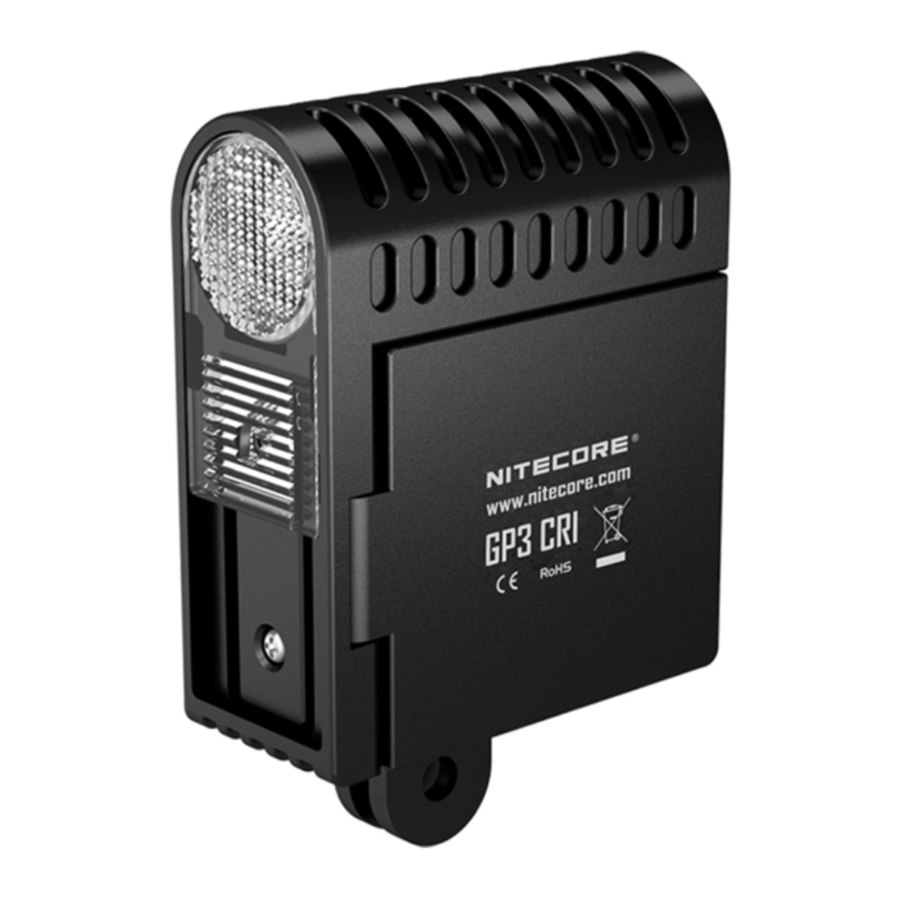

Features

Action camera light
Onboard sliding diffuser
Utilises a NICHIA 219B LED(Colour Temperature 5000K,CRI>=90)
Max output up to 270 lumens
5 available brightness levels
Max runtime up to 235 hours
Compatible with GoPro AHDBT-302 battery, also comes with a 1180mAh battery as standard accessory
Micro-USB reachrageable with onboard charging circuit
Universal mounting rings ro secure the GP3 CRI onto action camera mount
Housing made of durable PC materials
Waterproof in accordance with IPX8, 10 meters submersible
Impact resistant to 1 meter

Dimensions

Length: 2.26ʺ(57.5mm)
Width: 1ʺ(25.4mm)
Depth: 3.38ʺ(85.8 mm)
Weight: 2.89oz(82g) (without mount)

Accessories

1×NLGP3 battery (1180mAh), USB charging cord, 2×fastening bolts, mount (can be used to mount both the action camera and the GP3 CRI)

Brightness & Runtime

FL1 STANDARD	TURBO	HIGH	MID	LOW	ULTRALOW
	270 LUMENS	175 LUMENS	70 LUMENS	20 LUMENS	1 LUMEN
	*45min	1h45min	4h45min	11h	235h
	70m	52m	34m	19m	3m
	1200cd	670cd	290cd	89cd	2.4cd
	1m (Impact Resistant)
	IPX8,10m (Waterproof AND Submersible)

NOTICE: The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1, using 1×NLGP3 battery (3.7V, 1180mAh) under laboratory conditions. The data may vary slightly during real-world use due to battery types, individual usage habits and environmental factors.
*Runtime for turbo mode is calculated based on the oretical arithmetic. * The runtime for Turbo mode is the testing result before starting temperature regulation.

OPERATING INSTRUCTION

Battery Installation

Open the battery compartment and insert a Li-ion battery as illustrated in the diagram.
Battery Installation

Mounting

Place the GP3 CRI onto the mount as illustrated, insert both fastening bolts and screw tight to secure the light.
Mounting

ON/OFF

With the light turned off, hold down the power button to turn the light on. When the light is on, hold down the power button to turn it off.

Brightness Adjustment

With the light turned on, click the power button to cycle through "ultralow-low-mid-high-turbo"
Note: The GP3 CRI comes with memory feature. It will resume the brightness level last used when reactivated.

Power Tips

The built-in power indicator located inside the battery compartment will blink in various patterns to indicate battery level when the power button is pressed:

3 blinks represent battery level above 50%
2 blinks represent battery level below 50%
1 blink represents battery level below 10%

Charging

With the light turned off, connect the micro USB port with the included cord to a power supply (adaptor, PC) to initiate the charging process. Fully charges the battery will take approximately 3 hours.
The blue LED indicator inside the battery compartment will blink slowly to indicate charging in progress, and will blink rapidly when there is any anomaly; it will stay lit upon charging completion.
Note: The GP3 CRI will not turn on during charging.

Precautions

Ensure to use quality battery only, remove battery from the GP3 CRI when the product will be left unattended for extensive period to avoid battery leakage or explosion arising from inferior batteries.
Avoid direct eye exposure.
Keep away from children to avoid danger of suffocation.
Do not disassemble, modify the GP3 CRI, doing so nullifies the product warranty.

Warranty Details

Our authorized dealers and distributors are responsible for warranty service. Should any problem covered under warranty occurs, customers can contact their dealers or distributors in regards to their warranty claims, as long as the product was purchased from an authorized dealer or distributor. NITECORE's warranty is provided only for products purchased from an authorized source. This applies to all NITECORE® products. Any DOA / defective product can be exchanged for a replacement through a local distributor/ dealer within the 15 days of purchase. After 15 days, all defective / malfunctioning NITECORE® products can be repaired free of charge for a period of 60 months (5 years) from the date of purchase. Beyond 60 months (5 years), a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified if the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties, or damaged by batteries leakage. For the latest information on NITECORE® products and services, please contact a local NITECORE® distributor or send an email to service@nitecore.com.
※ All images, text and statements specified herein this user manual are for reference purpose only. Should any discrepancy occurs between this manual and information specified on www.nitecore.com. SYSMAX Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.
