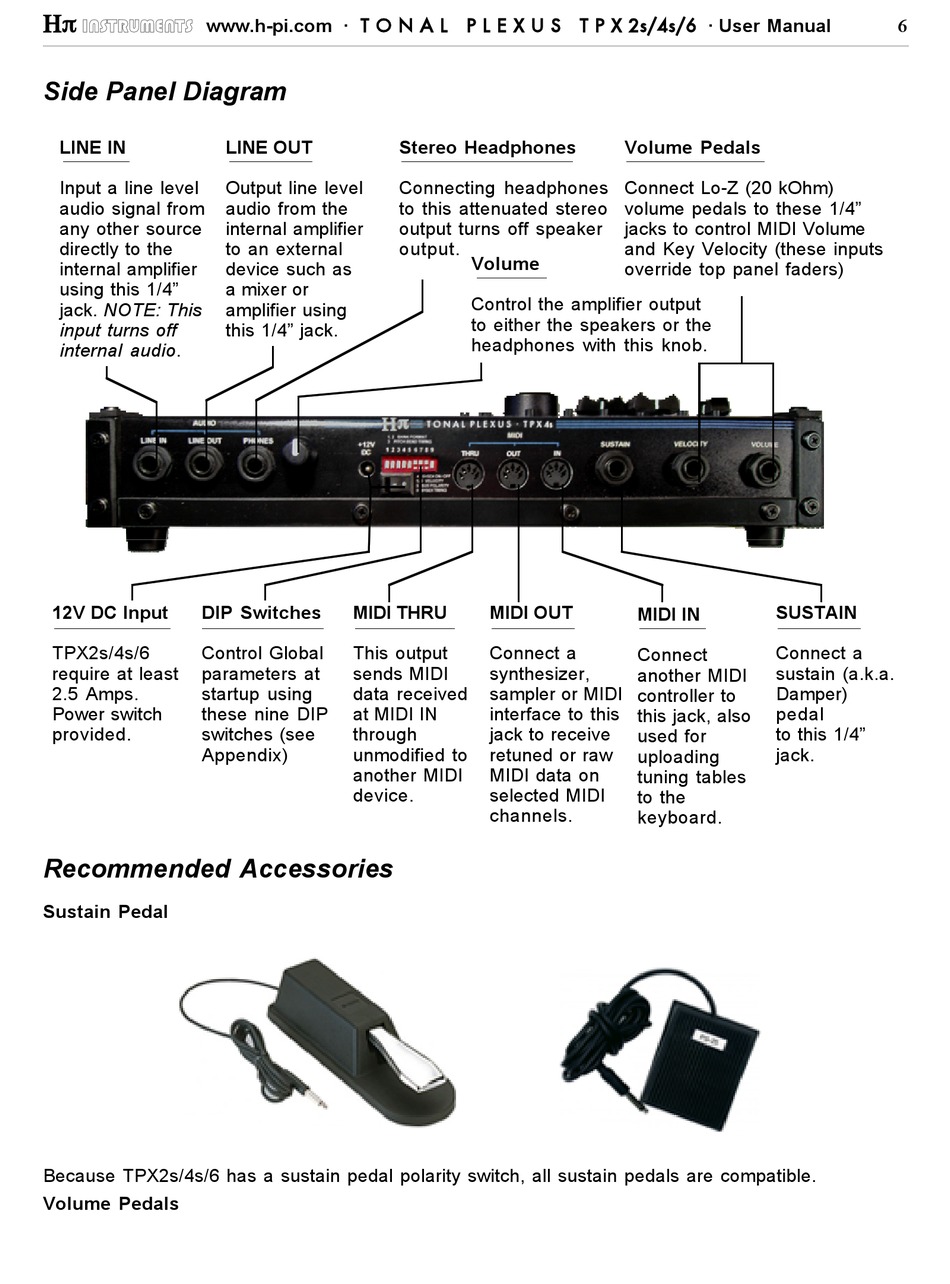

Side Panel Diagram

LINE IN
Input a line level
audio signal from
any other source
directly to the
internal amplifier
using this 1/4"
jack. NOTE: This
input turns off
internal audio.
12V DC Input DIP Switches
TPX2s/4s/6 Control Global
require at least parameters at
2.5 Amps. startup using
Power switch these nine DIP
provided. switches (see
Appendix)

Recommended Accessories

Sustain Pedal
Because TPX2s/4s/6 has a sustain pedal polarity switch, all sustain pedals are compatible.
Volume Pedals
LINE OUT Stereo Headphones
Output line level Connecting headphones
audio from the to this attenuated stereo
internal amplifier output turns off speaker
to an external output.
device such as
a mixer or
amplifier using
this 1/4" jack.
MIDI THRU
This output
sends MIDI
data received
at MIDI IN
through
unmodified to
another MIDI
device.
Volume Pedals
Connect Lo-Z (20 kOhm)
volume pedals to these 1/4"
jacks to control MIDI Volume
and Key Velocity (these inputs
Volume
override top panel faders)
Control the amplifier output
to either the speakers or the
headphones with this knob.
MIDI OUT
MIDI IN
Connect a
Connect
synthesizer,
another MIDI
sampler or MIDI
controller to
interface to this
this jack, also
jack to receive
used for
retuned or raw
uploading
MIDI data on
tuning tables
selected MIDI
to the
channels.
keyboard.
6
SUSTAIN
Connect a
sustain (a.k.a.
Damper)
pedal
to this 1/4"
jack.
