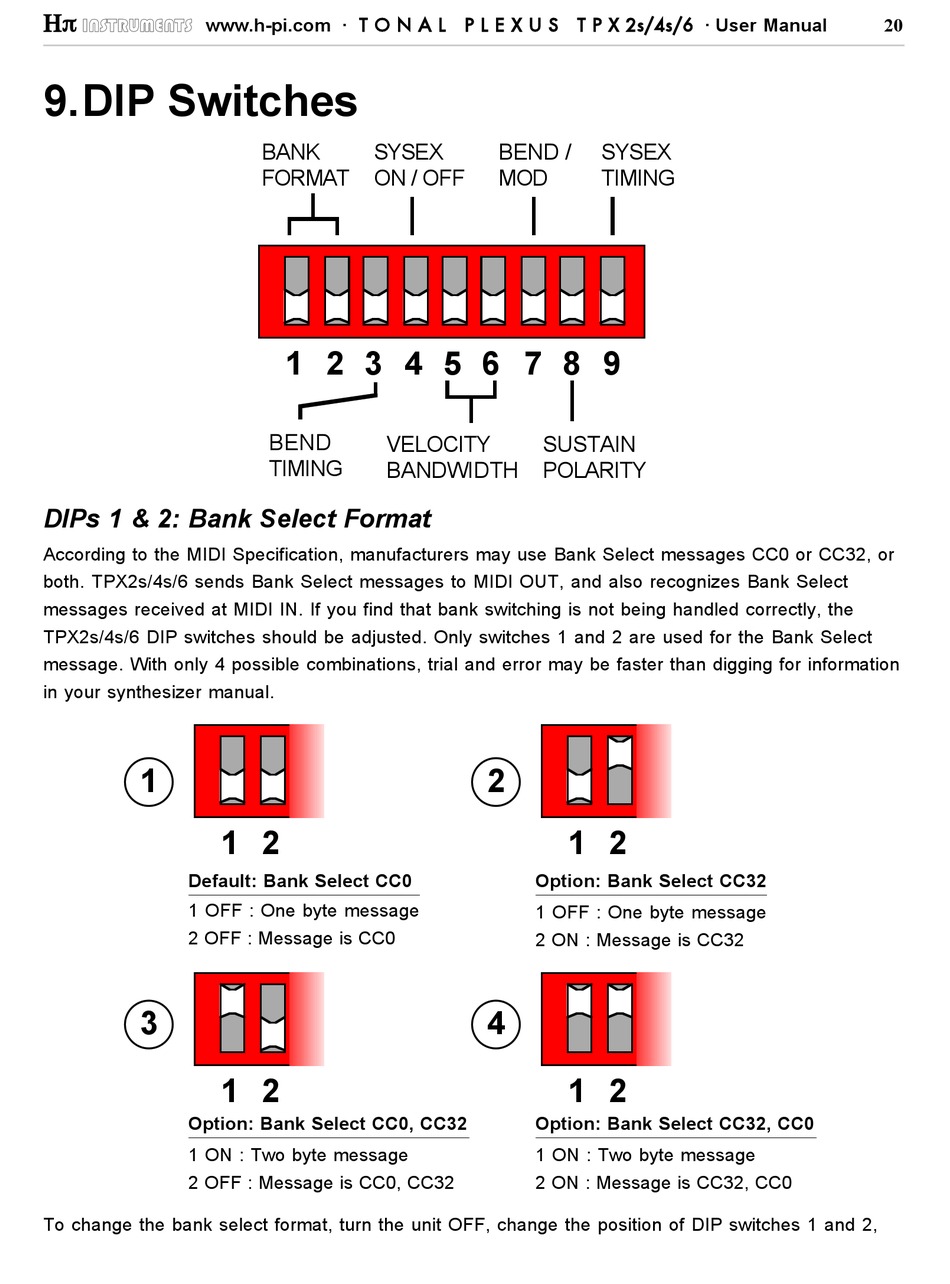

9. DIP Switches

DIPs 1 & 2: Bank Select Format
According to the MIDI Specification, manufacturers may use Bank Select messages CC0 or CC32, or
both. TPX2s/4s/6 sends Bank Select messages to MIDI OUT, and also recognizes Bank Select
messages received at MIDI IN. If you find that bank switching is not being handled correctly, the
TPX2s/4s/6 DIP switches should be adjusted. Only switches 1 and 2 are used for the Bank Select
message. With only 4 possible combinations, trial and error may be faster than digging for information
in your synthesizer manual.
1
1
Default: Bank Select CC0
1 OFF : One byte message
2 OFF : Message is CC0
3
1
Option: Bank Select CC0, CC32
1 ON : Two byte message
2 OFF : Message is CC0, CC32
To change the bank select format, turn the unit OFF, change the position of DIP switches 1 and 2,
BANK SYSEX
FORMAT ON / OFF
1 2 3 4
BEND
VELOCITY
TIMING
BANDWIDTH
2
2
BEND / SYSEX
MOD TIMING
5 6 7 8 9
SUSTAIN
POLARITY
2
1 2
Option: Bank Select CC32
1 OFF : One byte message
2 ON : Message is CC32
4
1 2
Option: Bank Select CC32, CC0
1 ON : Two byte message
2 ON : Message is CC32, CC0
