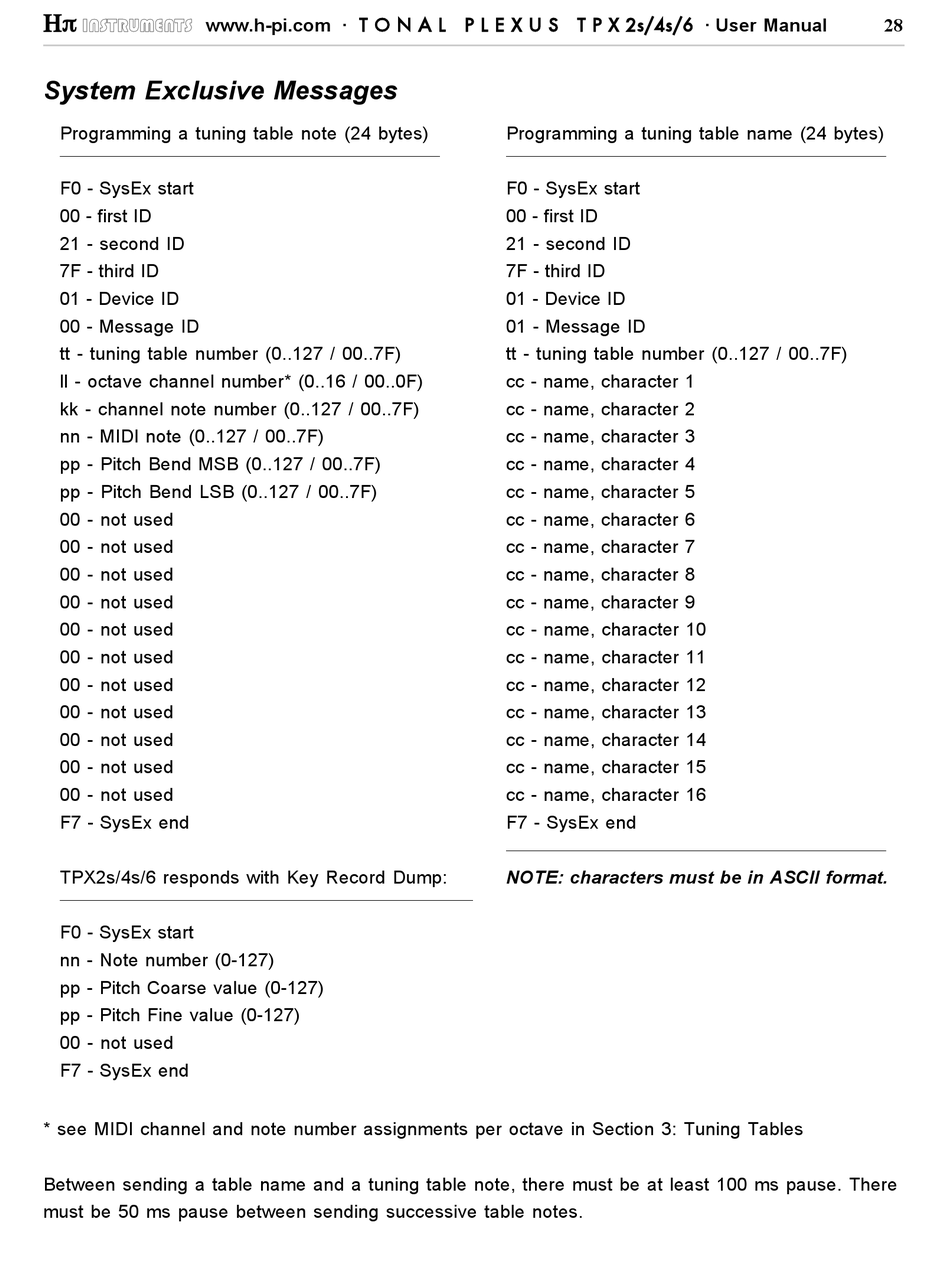

System Exclusive Messages

Programming a tuning table note (24 bytes)
F0 - SysEx start
00 - first ID
21 - second ID
7F - third ID
01 - Device ID
00 - Message ID
tt - tuning table number (0..127 / 00..7F)
ll - octave channel number* (0..16 / 00..0F)
kk - channel note number (0..127 / 00..7F)
nn - MIDI note (0..127 / 00..7F)
pp - Pitch Bend MSB (0..127 / 00..7F)
pp - Pitch Bend LSB (0..127 / 00..7F)
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
00 - not used
F7 - SysEx end
TPX2s/4s/6 responds with Key Record Dump:
F0 - SysEx start
nn - Note number (0-127)
pp - Pitch Coarse value (0-127)
pp - Pitch Fine value (0-127)
00 - not used
F7 - SysEx end
* see MIDI channel and note number assignments per octave in Section 3: Tuning Tables
Between sending a table name and a tuning table note, there must be at least 100 ms pause. There
must be 50 ms pause between sending successive table notes.
Programming a tuning table name (24 bytes)
F0 - SysEx start
00 - first ID
21 - second ID
7F - third ID
01 - Device ID
01 - Message ID
tt - tuning table number (0..127 / 00..7F)
cc - name, character 1
cc - name, character 2
cc - name, character 3
cc - name, character 4
cc - name, character 5
cc - name, character 6
cc - name, character 7
cc - name, character 8
cc - name, character 9
cc - name, character 10
cc - name, character 11
cc - name, character 12
cc - name, character 13
cc - name, character 14
cc - name, character 15
cc - name, character 16
F7 - SysEx end
NOTE: characters must be in ASCII format.
