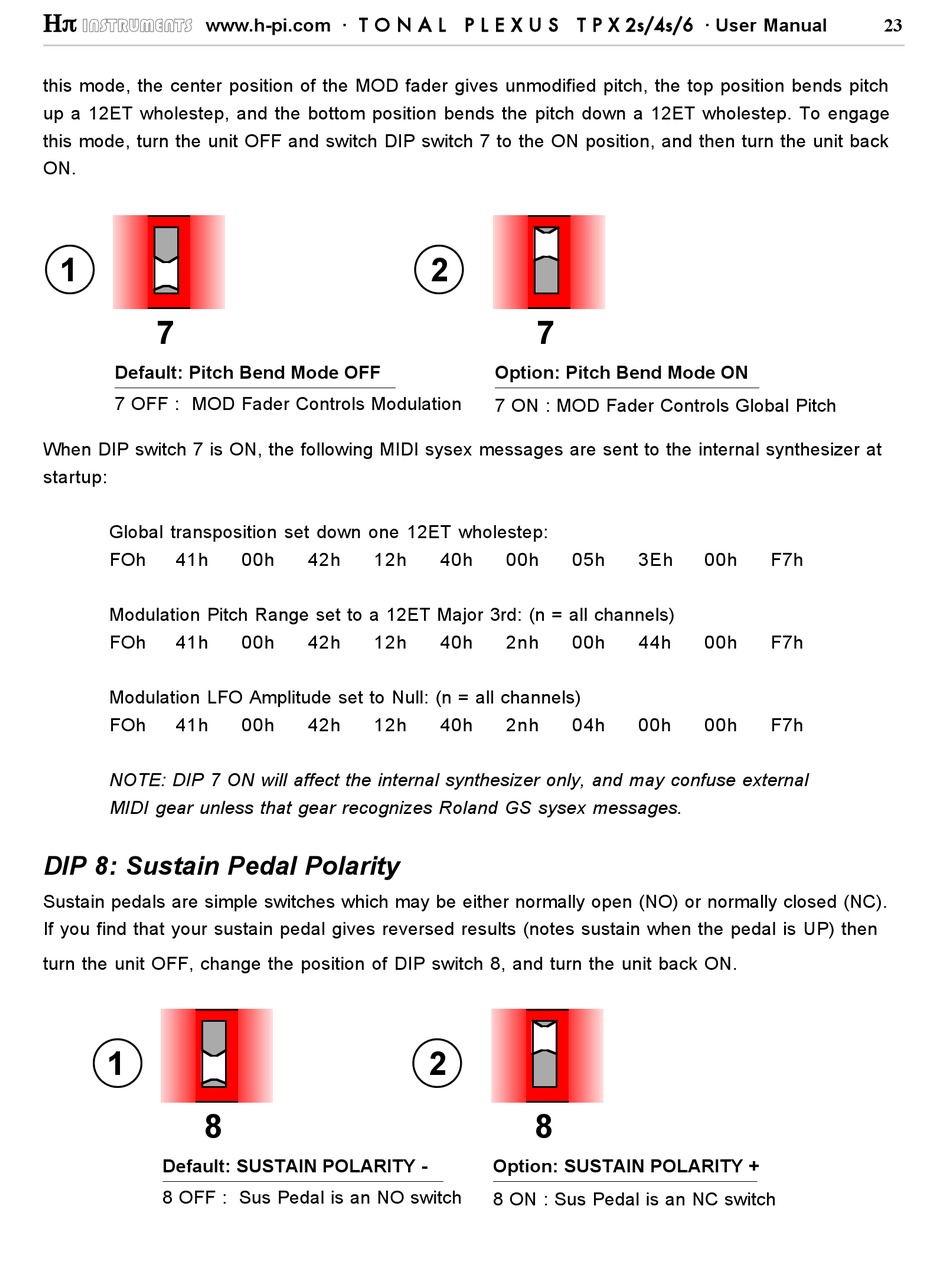

INSTRUMENTS www.h-pi.com · T O N A L P L E X U S T P X 2s/4s/6 · User Manual
!"
this mode, the center position of the MOD fader gives unmodified pitch, the top position bends pitch
up a 12ET wholestep, and the bottom position bends the pitch down a 12ET wholestep. To engage
this mode, turn the unit OFF and switch DIP switch 7 to the ON position, and then turn the unit back
ON.
1
7
Default: Pitch Bend Mode OFF
7 OFF : MOD Fader Controls Modulation
When DIP switch 7 is ON, the following MIDI sysex messages are sent to the internal synthesizer at
startup:
Global transposition set down one 12ET wholestep:
FOh 41h
Modulation Pitch Range set to a 12ET Major 3rd: (n = all channels)
FOh 41h
Modulation LFO Amplitude set to Null: (n = all channels)
FOh 41h
NOTE: DIP 7 ON will affect the internal synthesizer only, and may confuse external
MIDI gear unless that gear recognizes Roland GS sysex messages.
DIP 8: Sustain Pedal Polarity
Sustain pedals are simple switches which may be either normally open (NO) or normally closed (NC).
If you find that your sustain pedal gives reversed results (notes sustain when the pedal is UP) then
turn the unit OFF, change the position of DIP switch 8, and turn the unit back ON.
1
8
Default: SUSTAIN POLARITY -
8 OFF : Sus Pedal is an NO switch
00h 42h 12h
00h 42h 12h
00h 42h 12h
2 2
7
Option: Pitch Bend Mode ON
7 ON : MOD Fader Controls Global Pitch
40h 00h 05h
40h 2nh 00h
40h 2nh 04h
2 2
8
Option: SUSTAIN POLARITY +
8 ON : Sus Pedal is an NC switch
3Eh 00h F7h
44h 00h F7h
00h 00h F7h
23
