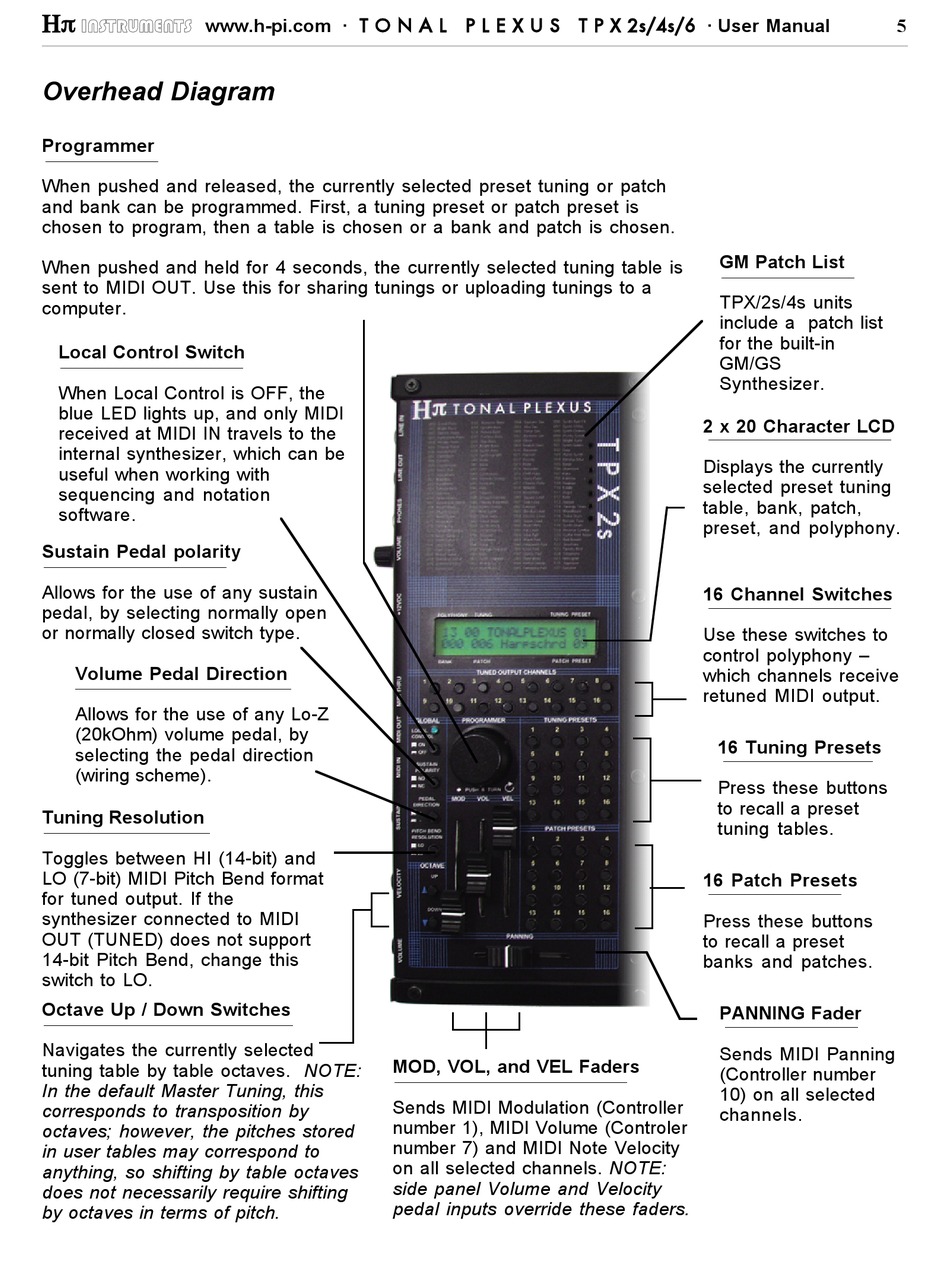

Overhead Diagram

Programmer
When pushed and released, the currently selected preset tuning or patch
and bank can be programmed. First, a tuning preset or patch preset is
chosen to program, then a table is chosen or a bank and patch is chosen.
When pushed and held for 4 seconds, the currently selected tuning table is
sent to MIDI OUT. Use this for sharing tunings or uploading tunings to a
computer.
Local Control Switch
When Local Control is OFF, the
blue LED lights up, and only MIDI
received at MIDI IN travels to the
internal synthesizer, which can be
useful when working with
sequencing and notation
software.
Sustain Pedal polarity
Allows for the use of any sustain
pedal, by selecting normally open
or normally closed switch type.
Volume Pedal Direction
Allows for the use of any Lo-Z
(20kOhm) volume pedal, by
selecting the pedal direction
(wiring scheme).
Tuning Resolution
Toggles between HI (14-bit) and
LO (7-bit) MIDI Pitch Bend format
for tuned output. If the
synthesizer connected to MIDI
OUT (TUNED) does not support
14-bit Pitch Bend, change this
switch to LO.
Octave Up / Down Switches
Navigates the currently selected
tuning table by table octaves. NOTE:
In the default Master Tuning, this
corresponds to transposition by
octaves; however, the pitches stored
in user tables may correspond to
anything, so shifting by table octaves
does not necessarily require shifting
by octaves in terms of pitch.
MOD, VOL, and VEL Faders
Sends MIDI Modulation (Controller
number 1), MIDI Volume (Controler
number 7) and MIDI Note Velocity
on all selected channels. NOTE:
side panel Volume and Velocity
pedal inputs override these faders.
GM Patch List
TPX/2s/4s units
include a patch list
for the built-in
GM/GS
Synthesizer.
2 x 20 Character LCD
Displays the currently
selected preset tuning
table, bank, patch,
preset, and polyphony.
16 Channel Switches
Use these switches to
control polyphony –
which channels receive
retuned MIDI output.
16 Tuning Presets
Press these buttons
to recall a preset
tuning tables.
16 Patch Presets
Press these buttons
to recall a preset
banks and patches.
PANNING Fader
Sends MIDI Panning
(Controller number
10) on all selected
channels.
