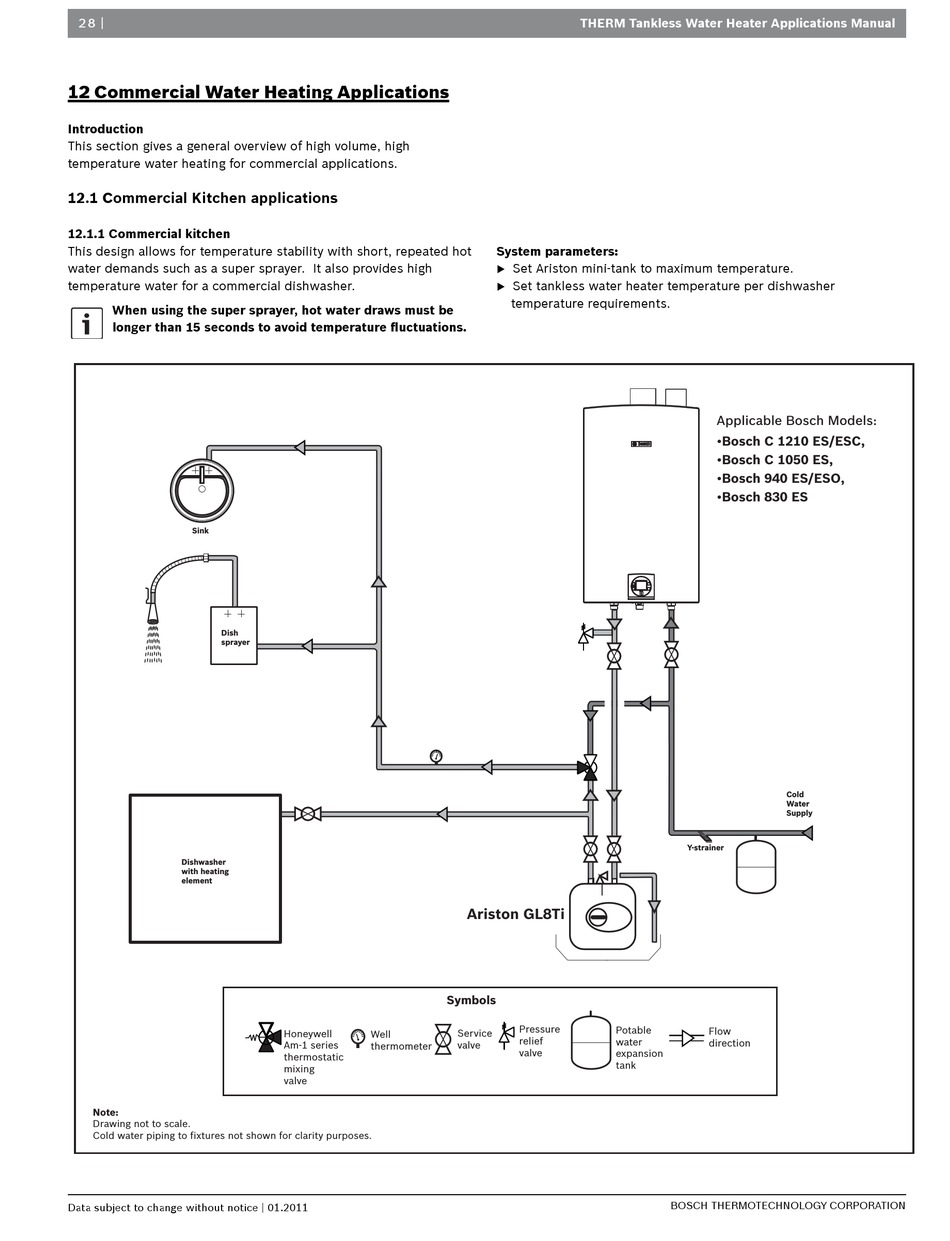

12 Commercial Water Heating Applications

Introduction
This section gives a general overview of high volume, high
temperature water heating for commercial applications.

12.1 Commercial Kitchen applications

12.1.1 Commercial kitchen
This design allows for temperature stability with short, repeated hot
water demands such as a super sprayer. It also provides high
temperature water for a commercial dishwasher.
When using the super sprayer, hot water draws must be
longer than 15 seconds to avoid temperature fl uctuations.
Sink
Dish
sprayer
Dishwasher
with heating
element
Note:
Drawing not to scale.
Cold water piping to fixtures not shown for clarity purposes.
Data subject to change without notice | 01.2011
Symbols
Service
Honeywell
Well
Am-1 series
valve
thermometer
thermostatic
mixing
valve
THERM Tankless Water Heater Applications Manual
System parameters:
Set Ariston mini-tank to maximum temperature.
Set tankless water heater temperature per dishwasher
temperature requirements.
Ariston GL8Ti
Pressure
Potable
relief
water
valve
expansion
tank
Applicable Bosch Models:
•Bosch C 1210 ES/ESC,
•Bosch C 1050 ES,
•Bosch 940 ES/ESO,
•Bosch 830 ES
Cold
Water
Supply
Y-strainer
Flow
direction
