8.1 Low volume applications

Low volume applications cover the small applications in which a
large water heater would be ineffi cient. Common applications for
these appliances include cottages, cabins, and summer camps. The
Bosch THERM 330 PN gas tankless water heater offers a compact
and lightweight design for easy installation in these applications.
Note:

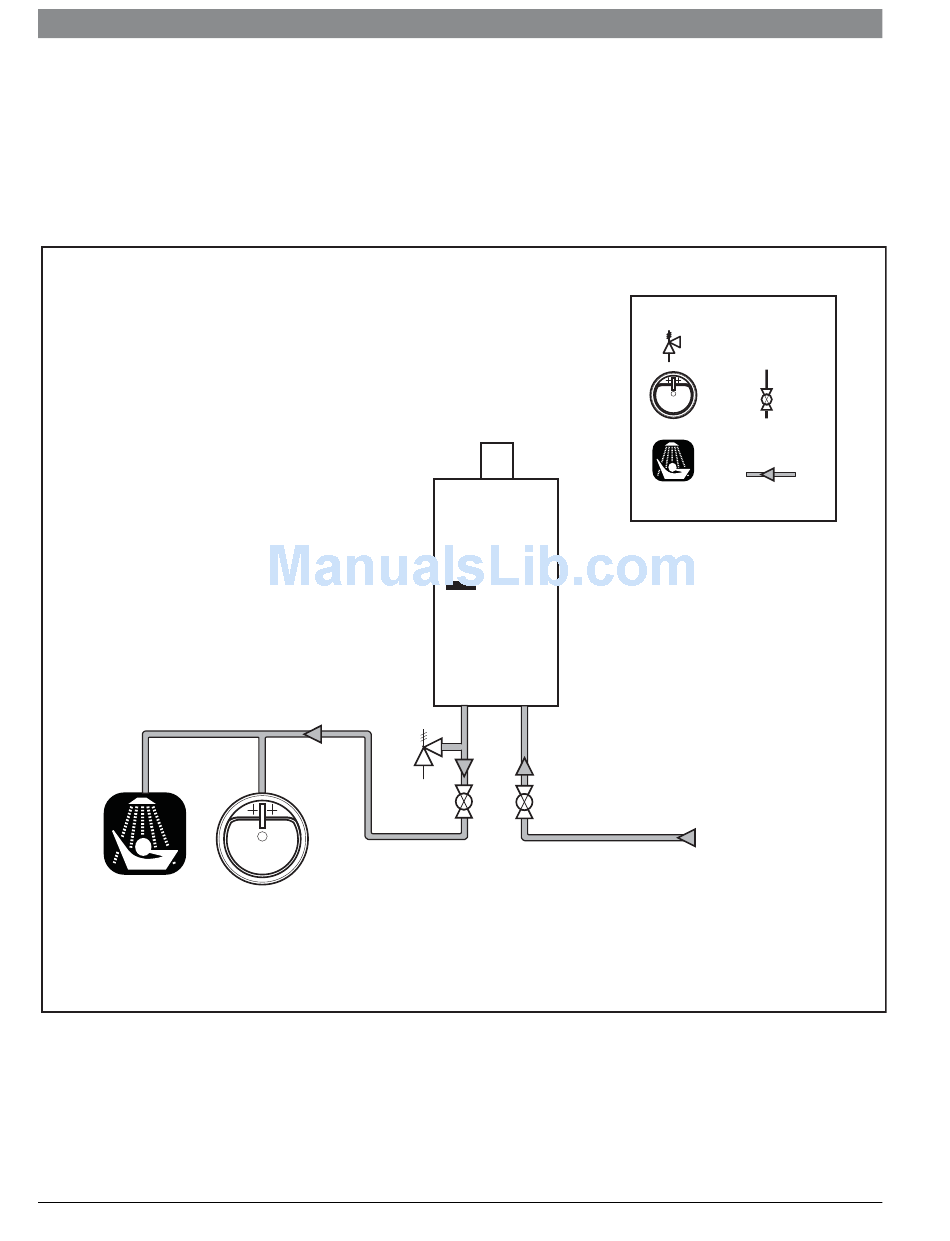

Drawing is not to scale.
Cold water piping to fixtures not shown for clarity purposes.
BOSCH THERMOTECHNOLOGY CORPORATION
Bosch 330 PN
BOSCH
hot
Symbols
Pressure
relief valve
Sink
Low flow
shower
cold
Data subject to change without notice | 01.2011
| 15
Service valves
Flow direction
