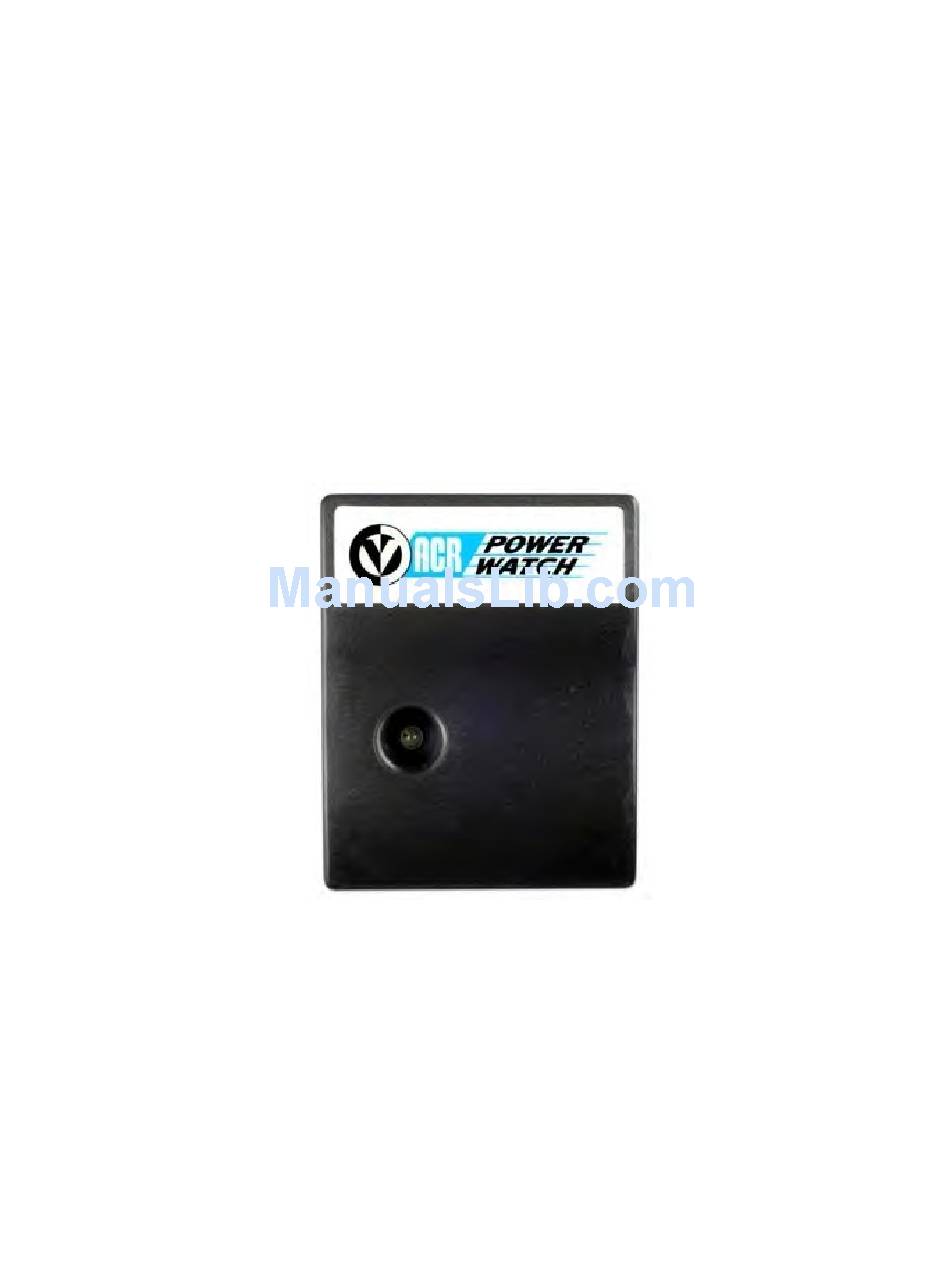

IMPORTANT!
PowerWatch©
Reference Guide
2007 ACR Systems Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerWatch and is the answer not in the manual?

Questions and answers

Related Manuals for ACR Electronics PowerWatch

Summary of Contents for ACR Electronics PowerWatch

  • Page 1 IMPORTANT! PowerWatch© Reference Guide 2007 ACR Systems Inc.
  • Page 2 For more information regarding trademarks, see the "Trademark Notices" section of this manual. ACR Systems Inc. assumes no responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it.
  • Page 3 TRADEMARK NOTICES PowerWatch is a Registered Trademark of ACR Systems Inc.

  • Page 4: Table Of Contents

    Section I ACR Systems Inc. 1 About ACR Systems Inc............................. 1 2 ACR and the World Wide Web ............................3 Section II The PowerWatch Voltage Disturbance Recorder 1 About PowerWatch ............................5 ................................9 2 Hardware Warranty ............................10 3 Software Disclaimer ............................
  • Page 5 ..............................59 Viewing Events as an Event Distribution Graph ..............................60 Graph Styles/Control Dialog Box Printing events ................................61 3 Communicating with a Remote PowerWatch ............................63 ................................63 Modem, equipment needed Modem overview ................................64 Remote modem DIP switch settings (for configuration) ................................
  • Page 6 PowerWatch© Section VI Troubleshooting 1 Lite-Link Interface Cable ............................73 2 Printers ............................75 3 Voltage Disturbance Recorder ............................76 4 Technical Support ............................77 Index 2007 ACR Systems Inc.
  • Page 7 For important information on how all PowerWatch data loggers work and how to use them, read the About PowerWatch chapter. It will give you an overview of how the loggers work and how to configure them for your application. Next, read the chapter that...

  • Page 8: Section I Acr Systems Inc

    Indy drivers, driven with truckers and have even been into outer space. ACR Loggers sit on top, under and in buildings; they operate in tropical and sub-zero temperatures, in and out of water and in just about any place imaginable.
  • Page 9 ACR Systems Inc. Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 10: Acr And The World Wide Web

    PowerWatch© ACR and the World Wide Web ACR and the World Wide Web Visit the ACR Web Page by clicking here or using your installed links in the ACR default file folder. From here, it's easy to search products, learn what's new, order a catalog, or even see when our tradeshows will take us to your area.

  • Page 11: Section Ii The Powerwatch Voltage Disturbance Recorder

    Recorder Reference Guide Copyright 2007 ACR Systems Inc. The contents of this manual and the associated PowerWatch software are copyrighted. Any reproduction, in whole or in part, is strictly prohibited. ACR POWERWATCH is a registered trademark of ACR Systems Inc.

  • Page 12: About Powerwatch

    PowerWatch© About PowerWatch About PowerWatch Thank you for choosing another world-class Event Logger from ACR Systems Inc. The PowerWatch Voltage Disturbance Recorder (VDR) is an easy-to- use, low-cost power quality analysis tool that troubleshoots power line disturbances. The PowerWatch Voltage Disturbance Recorder: ·...
  • Page 13 VDR, unplug it from the outlet and wipe it with a dry, clean cloth. Product Service The PowerWatch VDR has no user-serviceable parts inside. The fuse inside the VDR is NOT OPERATOR-REPLACEABLE. Opening the case, or attempting to do so, will void the warranty and safety certification. If you require service, please contact your local dealer or factory representative.
  • Page 14 Humidity maximum 80% RH for temperatures up to 31°C decreasing linearly to 50% RH at 40°C Altitude 2000m Battery: 3.6V Lithium Battery Life: 10 years projected Fuse: 1/16A Fast-blow (NON-REPLACEABLE) Note: ACR reserves the right to change its specifications at any time, without notice. 2007 ACR Systems Inc.
  • Page 15 The PowerWatch Voltage Disturbance Recorder Surge, Sag & Outage Measurement Model number: PWV-001 Hot to Neutral Range: 0 to 200Vrms Accuracy: ±2Vrms* Resolution: 1Vrms Neutral to ground Range: 3 to 150Vrms Accuracy: ±2Vrms Resolution: 1Vrms Model number: PWV-002 Hot to Neutral...

  • Page 16: Vdr

    ** Neutral to Ground surges have 1 cycle resolution up to approximately 10 minutes after which the resolution becomes 8 seconds. Clock accuracy ±2 sec./day Specifications subject to change without notice. Ó 2007, ACR Systems Inc. 2.1.1 Voltage Disturbance Recorder 2007 ACR Systems Inc.

  • Page 17: Hardware Warranty

    RMA number. You shall bear all costs of delivering the defective data logger to the ACR facility and ACR shall bear all costs of delivering the repaired or replacement data logger back to you.
  • Page 18 This warranty sets out your sole remedies in connection with or arising out of your purchase of a data logger. Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 19: Software Disclaimer

    ACR Data Loggers, if applicable, ACR or ACR's reseller (depending on who supplied the executable copy of the software to you) will refund these monies to you upon return of the Software, the ACR Data Loggers, and all accompanying documentation (the "Documentation") and proof of purchase. ACR can be reached at: ACR Systems Inc.,...
  • Page 20 There are severe penalties, both civil and criminal, for copyright infringement. Any breach of this Agreement could cause ACR irreparable harm. If you fail to comply with any of the terms of this Agreement, all licenses granted hereunder shall automatically terminate without notice, and ACR may...
  • Page 21 You further agree that we may provide this information to other persons as required to satisfy any legal requirements and to any person that purchases all or a substantial portion of ACR's assets provided that they agree to use this information only for the purposes set out in this Agreement. If you wish to gain access to any personally identifiable information you have provided to ACR or to make any changes to that information please contact ACR directly.

  • Page 22: Section Iii Installing Powerwatch Software

    · One 9- to 25-pin adapter · This reference guide Installing PowerWatch 1. Before installing the PowerWatch program, restart Windows. 2. For Windows 3.1, open Program Manager, select File from the menu bar and choose Run... Windows 95, 98 and NT users select Start from the Taskbar on the desktop and choose Run...
  • Page 23 Installing PowerWatch Software running the PowerWatch program. When retrieving data from the VDR the PowerWatch program uses the PC's internal clock for time and date reference. · With Windows running, set the time from the Control Panel in Program Manager.

  • Page 24: Section Iv Menu Options

    PowerWatch© SECTION 4 Menu Options ACR PowerWatch Main Menu Overview File Menu · Edit Menu · View Menu · Communicate Menu · Options Menu · Window Menu · · Help Menu Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 25: Powerwatch Main Window

    Menu Options PowerWatch Main Window PowerWatch Main Window At the top of this window is a menu bar listing various menu selections; below that is a toolbar; and at the bottom of the window is a status bar. The Menu Bar consists of the following items:...

  • Page 26: File Menu

    Open COM Port Toggle Scanning Stop Backup Help The Status Bar displays messages indicating the current status of PowerWatch. At the far right is a backup gauge which displays percent completed when downloading data. Ó 2007, ACR Systems Inc. 4.1.1...

  • Page 27: Edit Menu

    Paste - pastes the contents of the clipboard to the active control In addition, PowerWatch has the following additional functions: Font ... - change the font of the current text PhoneBook... - calls up the modem window to allow changes to the list of phone numbers.

  • Page 28: Quick Summary

    Exporting Files Exporting Files Data is typically saved in a binary file format (PWV) but can be exported to other applications as ASCII in tab separated format (ASC), comma separated format (CSV) or in plain text (TXT). 2007 ACR Systems Inc.

  • Page 29: Graph Control Dialog Box

    3D effects, and saving a graph in different formats. Open this dialog box by right-clicking anywhere in a graph. Click the dialog box's Help button for explanation of the various features. 4.1.3.2 Single Impulse Graph Single Impulse Graph 2007 ACR Systems Inc.

  • Page 30: Event Distribution Graph

    Important To graph an impulse you must choose an event that contains only one impulse; it is not possible to graph an event consisting of multiple impulses. See also: Impulse events Printing events Ó 2007, ACR Systems Inc. 4.1.3.3 Event Distribution Graph Event Distribution Graph 2007 ACR Systems Inc.

  • Page 31: Message Log

    For example, a single random event may not be as significant as a cluster of recurring events. This information can be interpreted using the CBEMA Curve found in Appendix B, Power Quality Issues, in the PowerWatch Reference Guide. Since the impulses have a duration that is unknown, they are represented as having a width of 10 microseconds.

  • Page 32: Communicate Menu

    If a modem has been detected, it will be listed on the menu (for example, Open COM1: Modem). When PowerWatch is run, it first attempts to find all available COM ports and list them on the Communicate menu. Ports that it cannot find either don't exist or are in use.

  • Page 33: Options Menu

    Show Hot to Neutral Events - Check this box to display all hot to neutral events. Show Neutral to Ground Events - Check this box to display all neutral to ground events. 2007 ACR Systems Inc.

  • Page 34: Toolbar

    The ToolBar is a quick way to access some of the more common functions of the PowerWatch program. All the buttons on the Toolbar have menu equivalents on the menu bar. If you do not wish to display the toolbar...

  • Page 35: Tooltips

    AC source. Use the Calibration window to adjust the calibration settings of the PowerWatch. An illustration of the calibration window is displayed below: Enter the voltage displayed by the multimeter into the Measured Voltage text box.

  • Page 36: Window Menu

    Click the No button to cancel the calibration process. No changes are made to the PowerWatch logger. Click the CANCEL button at anytime to stop the calibration. The application then displays the following dialog: Cancelling the calibration process restores the previous calibration settings of the PowerWatch.

  • Page 37: Help Menu

    Displays the search dialog box to find entries in the Help File. Overview... Opens the Help File at the main topic " PowerWatch Overview" In addition, pressing F1 at anytime will bring up context sensitive help. Ó 2007, ACR Systems Inc. 4.1.7.1 About Window About Window 2007 ACR Systems Inc.
  • Page 38 The main purpose of the About window is to display version and copyright information. In addition, it shows current memory available. The Last Modified date indicates the date and time this particular program was compiled. Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 39: Section V Powerwatch Operating Overview

    PowerWatch Operating Overview SECTION 5 PowerWatch Operating Overview Overview The PowerWatch software program enables the set up of a PowerWatch Voltage Disturbance Recorder to detect, measure and record variations in power quality. Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 40: Powerwatch Setup

    Connecting the Lite-Link Interface Cable Connecting the Lite-Link Interface Cable The PowerWatch program communicates with a VDR via the Lite-Link interface cable. · Plug this cable into an available 9-pin serial port in your computer. If the computer has only a 25-pin serial port, plug the 25- to 9-pin adapter (included with your interface package) into the computer, and plug the interface cable into the adapter.

  • Page 41: Starting The Program

    5.1.2 Starting the Program Starting the Program · Windows 3.1 users double-click the PowerWatch program icon under the ACR Info Loggers group window. · Windows 95, 98, NT users click Start on the Taskbar, and choose Programs, ACR Info Loggers and then PowerWatch.

  • Page 42: Opening The Site Report

    Opening the Site Report Opening the Site Report Window 1. With the main PowerWatch window open, the Lite-Link interface cable connected to a COM port, and the red scan button flashing, point the Lite-Link wand at the optical port of the VDR (from 12mm (0.5") away or closer) or plug the wand directly into the VDR's recessed optical port.

  • Page 43: Threshold Settings

    PowerWatch Operating Overview The Site Report window displays the VDR's settings and its recorded events. 2. Remove the Lite-Link wand from the VDR. Ó 2007, ACR Systems Inc. 5.1.2.3 Threshold Settings Threshold Settings Setting Thresholds on the Status Tab The thresholds are divided into three categories on the Status tab of the Site report window: Hot to Neutral, Neutral to Ground, and Frequency.

  • Page 44: Default Threshold Settings

    5.1.2.5 Changing default threshold settings Changing Default Threshold Settings If PowerWatch's default template threshold settings do not suit your application, you may choose new settings and designate them as the default settings. 1. Make your changes to the settings (on the Status tab of the Site Report window).

  • Page 45: Operating Options

    5.1.2.6 Operating options Operating Options PowerWatch can store 4,000 events and can be programmed to either stop recording events when it is full or continue recording over the oldest events in its memory. Choose either Stop Recording When Full or Overwrite Oldest Events When Full.

  • Page 46: Realtime Readings

    · Line frequency readings (the frequency between the hot and neutral lines). These readings appear under the "RealTime" heading. Note that if PowerWatch is not plugged into an outlet while the wand is in the optical port, real time monitoring will stop after about 25 seconds to conserve battery life.

  • Page 47: Sending The Setup To A Vdr

    ACR Systems Inc. 5.1.2.10 Sending the setup to a VDR Sending the setup to a PowerWatch 1. Place the wand into the optical port of the VDR. 2. If you have changed threshold settings or you are leaving the settings the way they are, click Send Setup/Clear Logger button.

  • Page 48: Retrieving And Saving Events

    Retrieving events from a VDR Retrieving events from a VDR 1. With the Main PowerWatch window open, and with the Lite-Link connected to your computer, ensure that the wand is blinking. If it is not, choose Scan from the Communicate menu (or, on the ToolBar, click the red scan button so that it flashes).

  • Page 49: Saving Events

    PowerWatch Operating Overview 5.1.3.2 Saving Events Saving Events To save the events that you have downloaded from a VDR, choose Save from the File menu or click the Save button on the Toolbar. The Save As dialog box will appear with the current file name highlighted in the File Name box.
  • Page 50 The Site report window will open at the Status tab. On the Status tab, notice that the items that cannot be changed are "greyed out". Only the site description and the file name can be changed. See also: Exporting Files 2007 ACR Systems Inc.

  • Page 51: Site Report Window

    Threshold Settings on the Status Tab and events that have occurred on the Events Tab. A Site Report window is used to show data from saved PowerWatch files as well as "live" data from a that is connected to your computer.

  • Page 52: Dynamic Data Exchange (Dde)

    Dynamic Data Exchange (DDE) Dynamic Data Exchange (DDE) PowerWatch can be used as a DDE source. The Site Report has a number of fields to which links may be made. To access these fields, you must specify the Application name (PWV), the Window (PWVSite) and the field in which you are interested.
  • Page 53 PowerWatch Operating Overview Here is a list of some of the fields you can access through DDE: HNSurgeBox - Surge Threshold between Hot and Neutral HNSagBox - Sag Threshold between Hot and Neutral HNImpBox - Impulse Threshold between Hot and...

  • Page 54: Displaying And Printing Events

    Events Tab Having downloaded a VDR's events, and with the Events tab still open, you can view and analyze the data that the has gathered since it was last cleared. A VDR can store 4,000 events. 2007 ACR Systems Inc.
  • Page 55 PowerWatch Operating Overview Event # Column The Events column displays the number sequence of each event, with the most recent events displayed first. By using the scroll bar on the right of the window, all the events that the VDR has recorded can be viewed. The number...
  • Page 56 If an event was still in progress when data was downloaded from the VDR, the event will be designated as an open event in this column. PowerWatch can display one each of three open event types simultaneously. Open events are assigned the number zero in the Event # column.

  • Page 57: Open Event

    If an impulse is less than one microsecond in length, PowerWatch will measure the magnitude of the impulse but may be unable to determine the polarity. In this case, PowerWatch will show the sign of the impulse as "+" (firmware version 4 or greater).

  • Page 58: Sag Events

    Typically, a sag will range from a few volts to tens of volts below normal. If the voltage drops below the sag threshold, a sag event will be recorded. If it drops below 70V, the event will be recorded by PowerWatch as an outage. See also: Events...

  • Page 59: Outage Events

    Outage events Outage Events When PowerWatch records a sag of below 70Vrms for longer than a second it displays the event as an outage. The VDR will go into self-powered mode (battery) and will sample the voltage every eight seconds. As a result, the shortest outage it will record will be eight seconds.

  • Page 60: Loss Of Synchronization Event

    The factory default nominal frequency is 60Hz for 110V models and 50Hz for 220V models. However, PowerWatch can be user configured to record at 50Hz and 60Hz for either 110V or 240V models. See also:...
  • Page 61 Loss of Synchronization event will change to an Outage event (while keeping the original start time and duration). PowerWatch has a resolution of 8 seconds, so events shorter than this duration will have a time stamp of "< 8 seconds". See also:...

  • Page 62: Line Frequency Variations

    · Viewing a Single Impulse as a Graph · Viewing Events as an Event Distribution Graph · Changing Graph Styles Ó 2007, ACR Systems Inc. 5.2.2.1 Viewing Events as a Bar Graph (Quick Summary) Bar Graph (Quick Summary) 2007 ACR Systems Inc.
  • Page 63 PowerWatch Operating Overview Quick Summary displays the number of surge, sag, impulse, and frequency events as bars on a graph. Outages are included with sags . The horizontal axis displays time; the vertical axis displays the number of events that occurred in each time period. In the Quick Summary above, the time periods are sorted by date.

  • Page 64: Viewing A Single Impulse As A Graph

    To Edit the graph, right-click anywhere in the graph to open the Graph Control dialog box. See also: Printing events ACR Systems Inc. Ó 2007, 5.2.2.2 Viewing a Single Impulse as a Graph Single Impulse as a Graph 2007 ACR Systems Inc.
  • Page 65 PowerWatch Operating Overview A single impulse event between hot and neutral or neutral and ground can be displayed as a graph, enabling you to see if the impulse is causing zero crossings. An impulse graph is produced using the amplitude, direction and position (in degrees) of the event.

  • Page 66: Viewing Events As An Event Distribution Graph

    This information can be interpreted using the CBEMA Curve found in Appendix B, Power Quality Issues, in the PowerWatch Reference Guide. With the Site Report window open at the Events tab, choose Event Distribution Graph from the View menu (or click the Event Distribution button on the Toolbar).

  • Page 67: Graph Styles/Control Dialog Box

    PowerWatch Operating Overview Bar Graph (above). Ó 2007, ACR Systems Inc. 5.2.2.4 Graph Styles/Control Dialog Box Graph Styles/Control Dialog Box The Graph Control dialog box contains a number of edit features that enable you to change the way a graph is displayed. These features include naming and placing titles, using 3D effects, and saving a graph in different formats.

  • Page 68: Printing Events

    When printing a Quick Summary or Event Distribution Graph with a color printer, PowerWatch generates different colors to better distinguish event types. If a color printer is not used, PowerWatch assigns patterns instead of colors to different event types. 2007 ACR Systems Inc.
  • Page 69 PowerWatch Operating Overview Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 70: Communicating With A Remote Powerwatch

    4. An LIC-101 Lite-Link interface cable at the remote site. 5. A 9- to 25-pin adapter. This connects with the Lite-Link interface cable. 6. An MA-100 (a null modem adapter available from your PowerWatch dealer). This connects the 9- to 25-pin adapter to the 2007 ACR Systems Inc.

  • Page 71: Modem Overview

    PowerWatch Operating Overview remote modem. See also: Modem overview Remote modem connection Ó 2007, ACR Systems Inc. 5.3.2 Modem overview Modem Overview Communication with a remote is possible over a telephone line via two modems: a modem connected to your computer and a modem connected to the VDR at the remote site.

  • Page 72: Remote Modem Dip Switch Settings (For Configuration)

    If you have a make of modem other than US Robotics check the manual to see if the DIP switch settings are different for the modes listed in the table above. Next step: Remote modem setup string See also: Remote modem DIP switch settings (for operation) 2007 ACR Systems Inc.

  • Page 73: Remote Modem Setup String

    1. Connect the remote modem to your computer using a standard modem cable. 2. Open the PowerWatch program and from the menu bar choose the COM port that the modem is connected to. The Modem dialog box will apear. Choose the Setup tab.

  • Page 74: Remote Modem Dip Switch Settings (For Operation)

    If you have a make of modem other than US Robotics, check to see if the DIP switch settings are different for the powerup modes listed in the table above. The modem is now ready to be installed at the remote site. Next step: Configuring the computer station modem 2007 ACR Systems Inc.

  • Page 75: Computer Modem Dip Switch Settings

    PowerWatch Operating Overview ACR Systems Inc. Ó 2007, 5.3.6 Computer modem DIP switch settings Computer modem DIP switch settings Set the DIP switches to the computer station settings. If you have a US Robotics modem, set the DIP switches to the settings in the table below. If your computer station modem has no DIP switches you can skip this step.

  • Page 76: Computer Modem Dial Command & Timeout

    PowerWatch© 2. Open the PowerWatch program and from the menu bar choose the COM port that the modem is connected to. Modem dialog box will appear. Choose the Setup tab. 3. To choose a setup string click the down arrow to the right of the Setup String box.

  • Page 77: Remote Modem Connection

    Setting the Timeout Timeout enables you to set the number of seconds that the PowerWatch program will wait to connect with the remote station before hanging up. Leave the default setting at forty-five seconds unless you are placing an international call, in which case you may need to choose a longer timeout.

  • Page 78: Phonebook

    1. From the Communicate menu choose the COM port that is connected to the computer station modem to open the Modem dialog box. 2. Select the phone number from the pulldown list and click the Dial button. See also; Modem overview ACR Systems Inc. Ó 2007, 2007 ACR Systems Inc.

  • Page 79: Section Vi Troubleshooting

    Troubleshooting SECTION 6 Troubleshooting Overview Lite-Link Interface Cable · Printers · Voltage Disturbance Recorder · Technical Support · Ó 2007, ACR Systems Inc. 2007 ACR Systems Inc.

  • Page 80: Lite-Link Interface Cable

    · Verify that your serial port is functioning properly. Use any standard Windows communications program to ensure the port is functioning. Examples include: ProComm, Windows 3.1 Terminal or Windows 95 Hyperterminal. Exit all programs (including PowerWatch) and connect the Lite-Link to the 2007 ACR Systems Inc.
  • Page 81 If the Lite-Link does not flash during typing, the Lite-Link may need repair. If the Lite-Link flashes during typing, it should also work with PowerWatch software. Exit the communications program, and re-start PowerWatch. If Lite- Link does not flash when running PowerWatch, re-install PowerWatch software.

  • Page 82: Printers

    Windows 3.1 Guide under Printers/Setup; in Windows 95, click Help, and choose Troubleshooting Printers. · Try printing from another program to eliminate the possibility of a hardware conflict. ACR Systems Inc. Ó 2007, 2007 ACR Systems Inc.

  • Page 83: Voltage Disturbance Recorder

    24-hour or AM/PM, not both. · PowerWatch time stamps are invalid after a prolonged period of time. To eliminate this issue, ensure that the PowerWatch VDR is cleared of data a minimum of once every four years. · Two PowerWatchs have different impulse readings on the same circuit.

  • Page 84: Technical Support

    PowerWatch© Technical Support Technical Support If you are experiencing problems with your PowerWatch system, please contact: ACR Systems Inc. Unit 210-12960 84th Ave. Surrey, B.C. V3W 1K7 Canada Telephone: (604) 591-1128 Fax: (604) 591-2252 Toll Free Canada & U.S.: 1-800-663-7845 Website: www.acrsystems.com...

  • Page 85: Index

    About ACR Systems Inc. 1 - I - About PowerWatch 5 Impulse Events 50 About Window 30 Impulse Graph 22 ACR and the World Wide Web 3 - L - - C - Line Frequency Events 55 Calibration Utility 28 Logger Info 39...
  • Page 86 Viewing a Single Impulse as a Graph 57 Viewing Events as a Bar Graph 55 Viewing Events as an Event Distribution Graph 59 - W - Warranty 10 Hardware Warranty 10 Software Disclaimer 12 Window Menu 29 2007 ACR Systems Inc.
