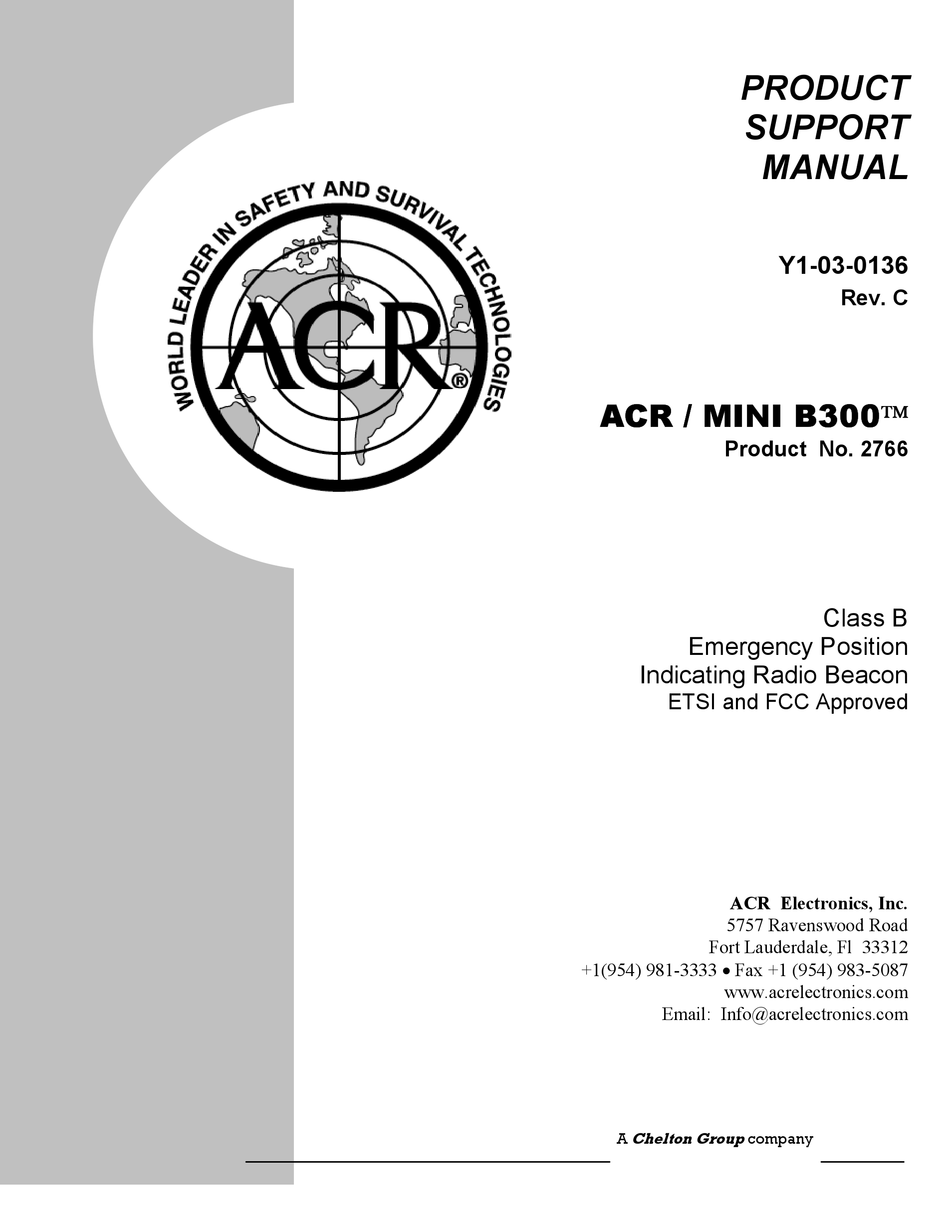

- Page 1 ACR / MINI B300Ô Product No. 2766 Class B Emergency Position Indicating Radio Beacon ETSI and FCC Approved ACR Electronics, Inc. 5757 Ravenswood Road Fort Lauderdale, Fl 33312 +1(954) 981-3333 · Fax +1 (954) 983-5087 www.acrelectronics.com Email: Info@acrelectronics.com A Chelton Group company...
- Page 2 EPIRB and leave it “On”. Do not turn it Off and On in the misguided belief that you are saving battery power. · NEVER set off a false alarm. Please call or write for answers to questions or for information on other safety products manufactured by ACR Electronics, Inc. Y1-03-0136 Rev. C...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1 — INTRODUCTION General Purpose Authorizations Characteristics Technical Data SECTION 2 — INSTALLATION General Battery Installation Battery Date Code Battery Expiry Date SECTION 3 — OPERATION General Manual Deployment SECTION 4 — MAINTENANCE General Battery Check Inspection Check Y1-03-0136 Rev. - Page 4 Flexible Antenna (Factory Replaceable) Transmitting Waterproof Indicator Light (LED) ON-OFF Switch Wrist Lanyard Hanked Lanyard Figure 1: ACR MINI B 300 ™ EPIRB Y1-03-0136 Rev. C...
-
Page 5: Section 1 - Introduction
SECTION 1 — INTRODUCTION General This manual provides installation, operation and maintenance instructions for the ACR/MINI B 300 Emergency Position Indicating Radio Beacon (EPIRB), hereinafter referred to as the Beacon. This section describes the characteristics and details of the Beacon (See Figure 1). A Cognizant Authority Station License may be required to carry this unit. -
Page 6: Section 2 - Installation
Modulation Downward sweeping tone between 1600 and 300 Hz at 2 to 4 sweeps per second Frequency ± 3.5 kHz (Crystal controlled) Stability Operating -20°C to +55°C (-14°F to +131°F) Temperatures Activation Manual “ON-OFF” switch Size 127mm x 66mm x 41mm (5.0"H x 2.6"W x 1.6"D) excluding antenna Weight 215 g (7.6 ounces) Attachments... -
Page 7: Battery Expiry Date

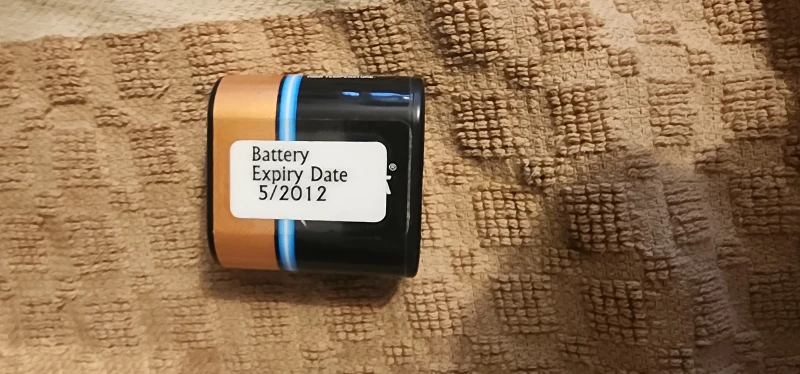

The next two alphanumeric characters of the code represent the day of the month of manufacture. Therefore, the date of manufacture for the date code 6J1313 is October 13, 1996. Battery Expiry Date The battery Expiry Date is obtained by adding the battery manufacturers rated replacement life of 10 years to the date of manufacture. -
Page 8: Battery Check
Battery Check 1. The battery expiry date should always be placed on the battery and the outside of the Beacon case. See 2.2 Battery Installation. Replace the battery immediately after extended use or emergency and always on or before the battery expiry date. Use only a 6 volt Lithium Duracell DL223A (or equivalent) battery. - Page 9 Use this page for recording personal notes and comments: Y1-03-0136 Rev. C...
