Use and Care Manual
Replaceable hardened
steel blades ensure
consistent cuts and long-
term durability
Contour blade
design minimizes
cable distortion
Specifications
Cable Cutter Assembly:
Drill Specifications:
Cutting Capacity:
RPM Specifications:
WARNINGS
1. Do not overreach. Keep proper footing and balance at all times.
2. Keep out of reach of children.
3. Always wear safety glasses when using this tool.
4.
Do not use on live circuits. Always disconnect power before
using this tool.
5. Keep hands away from blades while operating unit.
6. Never operate tool without torque arm installed.
7. Blade is sharp; contact with blade can result in serious personal injury.
8. Disconnect drill from power source before servicing. Always remove drill
from unit before attempting to change blades.
Failure to heed all warnings and precautions outlined
in this manual may lead to serious personal injury.

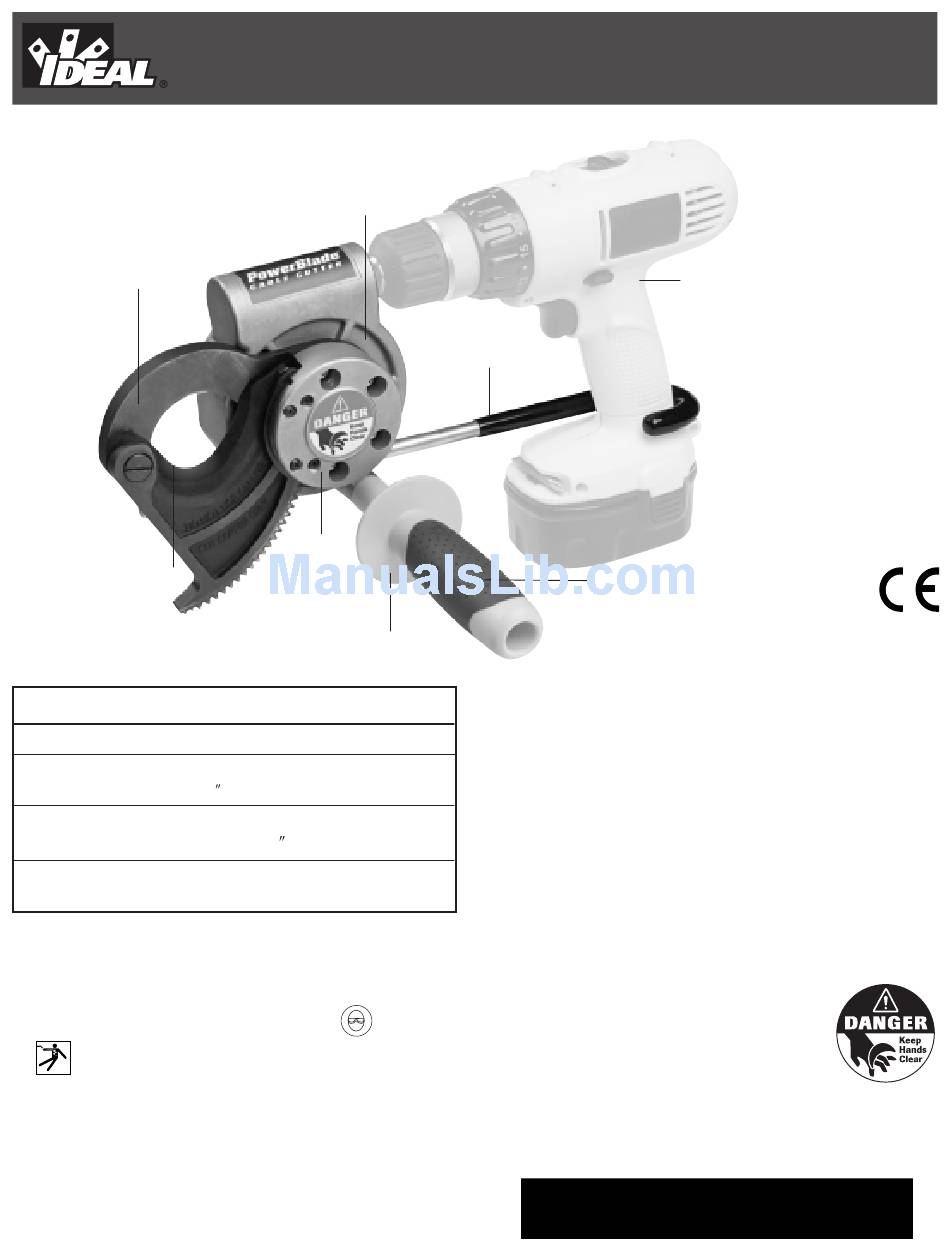

PowerBlade
Rugged metal housing
Durable
gears
Protective
shield
35-078
Any drill 12V or larger that accepts
3
⁄
drive shaft
8
750 MCM Hard Drawn Copper
and up to 2 O.D. Aluminum
Maximum of 2000 RPM
Optimal RPM: 1500
™
Cable Cutter
Adjustable torque
arm holds drill in
place
Operating Precautions
1. Do not drop or abuse the unit.
2. Do not disassemble, repair or modify the assembly, except to
replace parts as shown on page 3.
3. Do not expose the unit to water or solvents.
4. Do not cut cables larger than those listed in the specifications.
5. Set drill to 1500 RPM for best performance. Cutting large cable at
high RPM will damage gears!
6. Do not use tool in the rain to prevent blade wear and malfunction.
7. Store cutter in case provided, in a dry, secure area.
8. We strongly recommend using a reversible drill to enable backing
out of a cut when necessary.
Do not cut steel, ACSR or any other
materials containing steel or damage
to blades will result.
Each unit is tested before shipment.
Copper residue on blades may remain
from the initial quality inspection test cut.
Global Patents Pending
Accepts almost any
cordless or corded drill
Ergonomically designed, textured
Santoprene
®
non-slip grip
#35-078
