7.

Accessories description

7.1. Headset

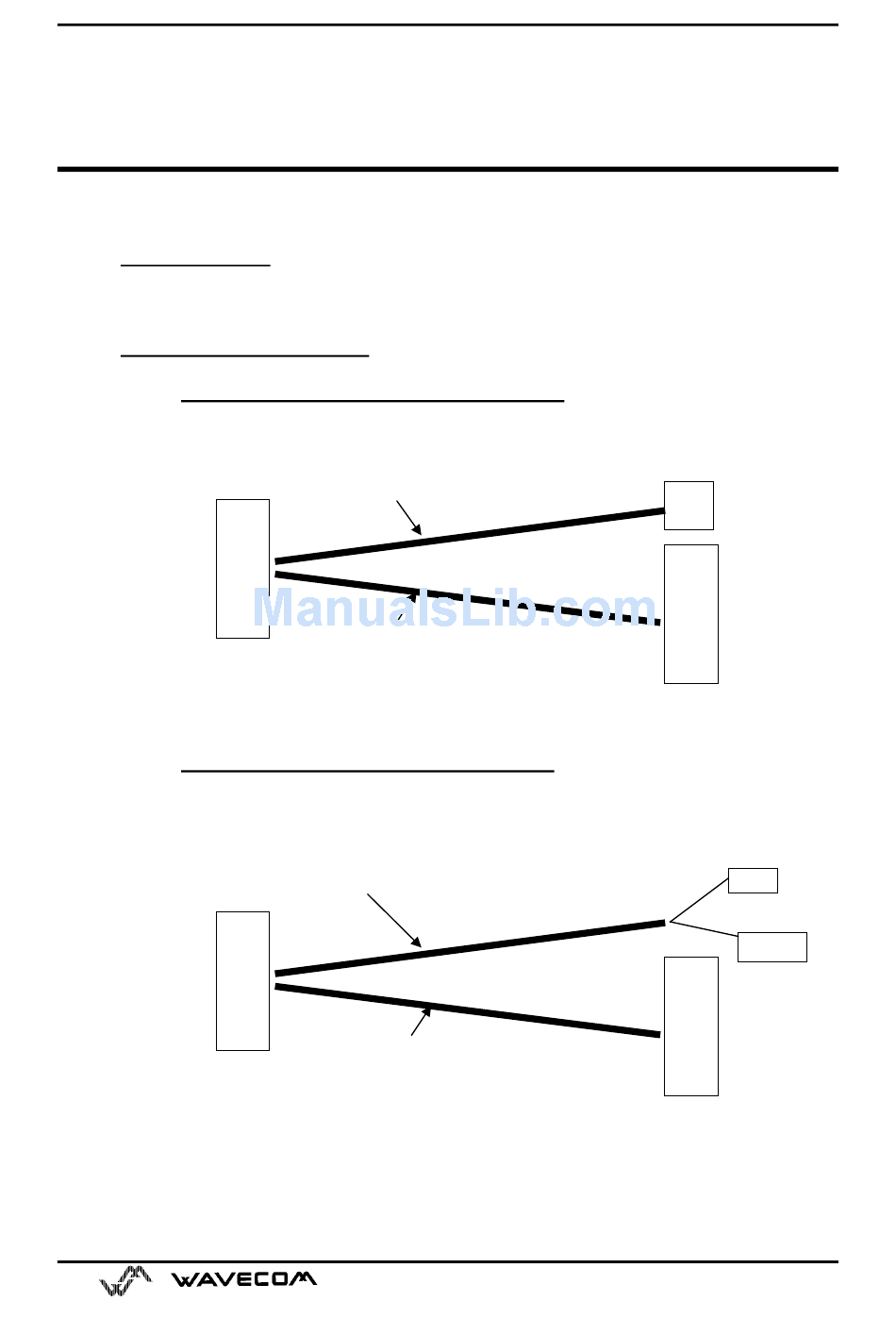

7.2. Cordon examples

7.2.1. Cordon RS232/AUDIO(head set) :

SUB-D High Density 15
pts mâle + braid of
shield soldered on SUB
D body + cover.

7.2.2. Cordon RS232/AUDIO(Car Kit) :

Cable 2x2 wires :
2 Wires constitution (speaker) : tinned copper 7x0.2 mm (24AWG)
1 conductor with shield (microphone)
Maximum operating temperature -20°C/+85°C
SUB-D High Density 15
pts mâle + braid of
shield soldered on SUB
D body + cover.
References of this kit have to be specified.
Flat cable 4 wires :
Wire constitution : tinned copper 7x0.15 mm (26AWG)
Maximum operating temperature -20°C/+85°C
Cable length : 1 m .
Shielded cable 9 wires + braid of shield :
Wire constitution : tinned copper 7x0.2 mm
Wire constitution : 7x 0.15 ( 26AWG)
Maximum operating temperature: -20°C/+85°C.
Cable length : 1 m .
Shielded cable 9 wires + braid of shield :
Wire constitution : tinned copper 7x0.2 mm
Wire constitution : 7x 0.15 ( 26AWG)
Maximum operating temperature: -20°C/+85°C.
Modular Jack
4P/4C
SUB-D 9 pts femelle
+ braid of
soldered on SUB D
body + cover.
Jack audio mono 2,5 mm
female (microphone)
phono connector RCA
female (speaker)
SUB-D 9 pts femelle
+ braid of
soldered on SUB D
body + cover.
shield
shield
