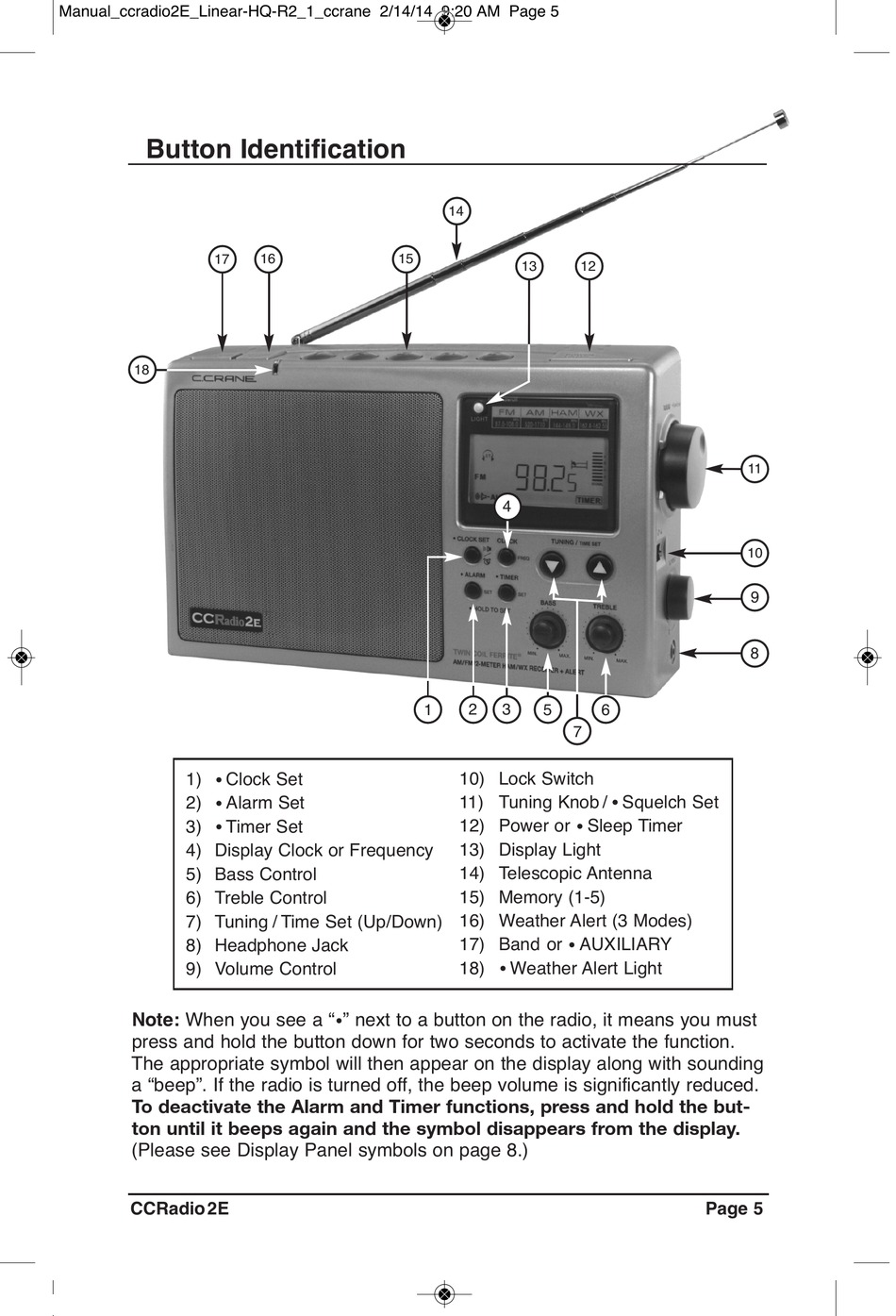

Button Identification

17
18
•
1) Clock Set
•
2) Alarm Set
•
3) Timer Set
4) Display Clock or Frequency
5) Bass Control
6) Treble Control
7) Tuning / Time Set (Up/Down)
8) Headphone Jack
9) Volume Control
Note: When you see a "
press and hold the button down for two seconds to activate the function.
The appropriate symbol will then appear on the display along with sounding
a "beep". If the radio is turned off, the beep volume is significantly reduced.
To deactivate the Alarm and Timer functions, press and hold the but-
(Please see Display Panel symbols on page 8.)
ton until it beeps again and the symbol disappears from the display.
CCRadio 2E
16 15
1
•
" next to a button on the radio, it means you must
14
13 12
4
2 3
5 6
7
10) Lock Switch
•
11) Tuning Knob /
•
12) Power or Sleep Timer
13) Display Light
14) Telescopic Antenna
15) Memory (1-5)
16) Weather Alert (3 Modes)
•
17) Band or AUXILIARY
•
18) Weather Alert Light
11
10
9
8
Squelch Set
