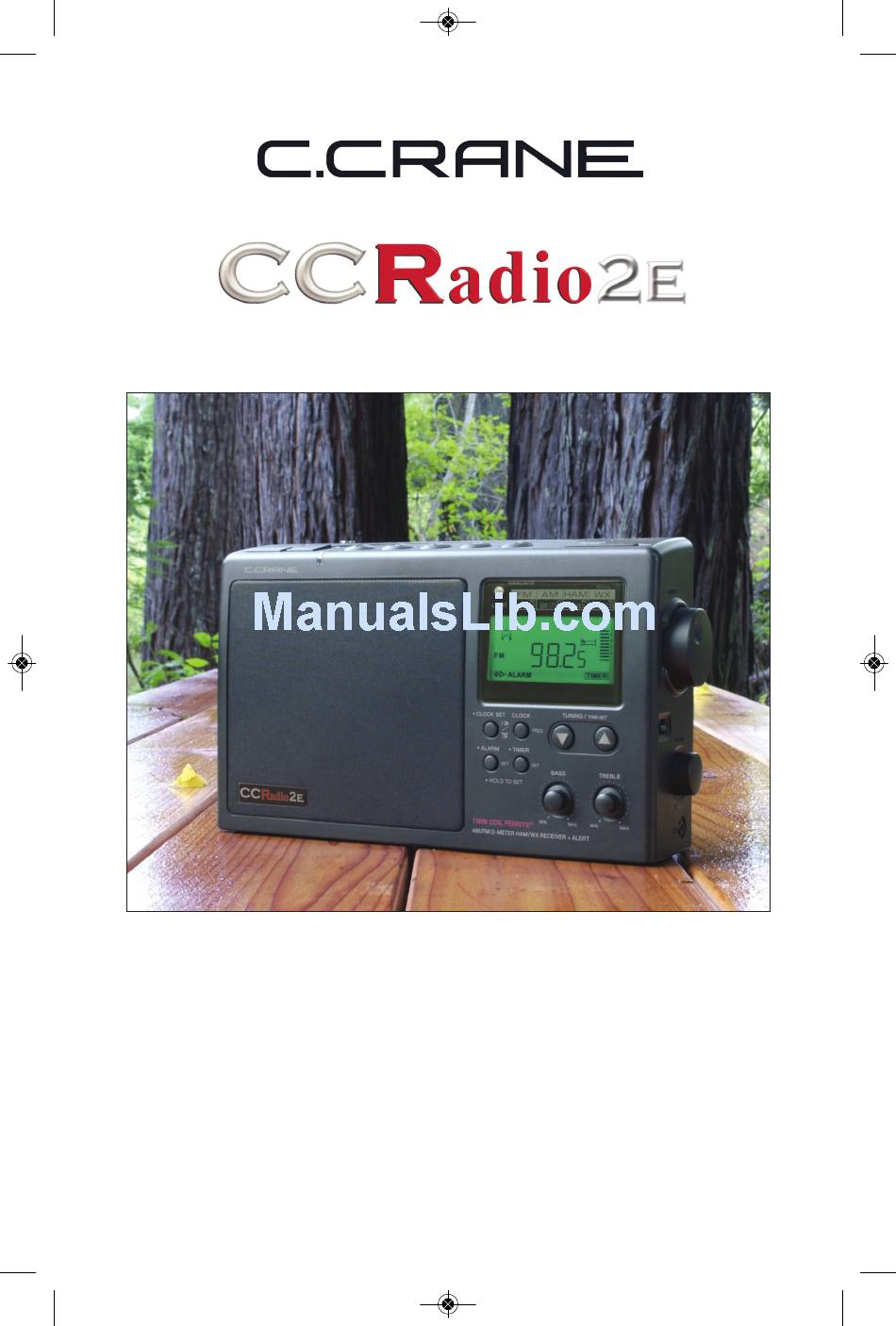

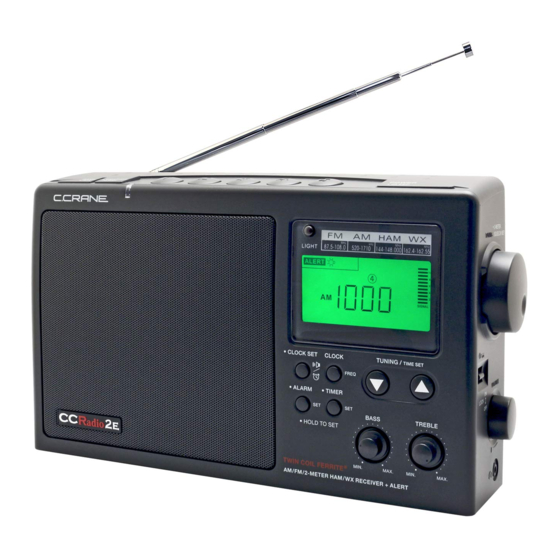

Page 1: Instruction Manual
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 1 INSTRUCTION MANUAL PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE Ver. 2.1... - Page 2 Also, If you have a problem and you purchased the CC Radio 2E from another company, call us and C. Crane may be able to help you faster. Thanks! From all of us at C. Crane Copyright © 2008-2013 by C. Crane Company, Inc., Fortuna, CA 95540 Phone: 1-800-522-8863 Web: ccrane.com...
-
Page 3: Table Of Contents
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 3 Table of Contents Unpacking ................. Button Identification ............... Getting Started Powering Your Radio ..........Installing The Batteries ..........Display Panel ............. Setting The Clock ............Setting The Alarm 9-10 ..........Snooze Feature ............Sleep Timer ............... -
Page 4: Unpacking
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 4 Before Use Please read IMPORTANT SAFETY INSTRUCTIONS on pages 27 - 28 before use. It is important to read and understand all instructions. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. -
Page 5: Button Identification
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 5 Button Identification • 10) Lock Switch Clock Set • • 11) Tuning Knob / Squelch Set Alarm Set • • 12) Power or Sleep Timer Timer Set 13) Display Light 4) Display Clock or Frequency 14) Telescopic Antenna 5) Bass Control 15) Memory (1-5) -
Page 6: Getting Started
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 6 Getting Started POWERING YOUR RADIO Before powering your radio be sure to read the Safety Instructions on pages 27 and 28. The CCRadio 2E will run on (4) “D” size NiMH or alkaline batteries or on 120V AC house current using the included power cord. -
Page 7: Installing The Batteries
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 7 Getting Started INSTALLING THE BATTERIES 1) Position the radio face down on a soft surface to protect it. 2) Remove the battery compartment cover. 3) Insert the (4) “D” cell batteries into the compartment as indicated in the drawing below. -
Page 8: Display Panel
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 8 Getting Started DISPLAY PANEL 1) Weather Alert Modes 8) Timer Active Indicator 9) Clock Seconds 2) Memory Location (1 - 5) 10) Frequency / Clock Display 3) Key Lock On/Off 11) Alarm Status and Type 4) Sleep Timer/Snooze Status 12) AM/PM Indicator 5) Battery Symbol... -
Page 9: Setting The Clock
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 9 Getting Started SETTING THE CLOCK Please read this entire section carefully before you start. Set the time with the radio off. You must go through the steps listed below without stopping for more than 15 seconds at any given time or you will have to start over. -
Page 10: Snooze Feature
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 10 Getting Started Notes on the Alarm You can also set the alarm time immediately after selecting the radio or buzzer alarm as described on page 9. To stop the alarm from going off every day, press and hold the Alarm Button until ALARM disappears from the display. -
Page 11: Radio Operation
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 11 Radio Operation TUNING The CCRadio 2E features four bands: AM / FM / 2-Meter Ham (VHF) and Weather. Manual Tuning 1) Press the Power Button to turn on the radio. 2) Select the band by pressing the Band Button. 3) A single press of the Up or Down Tuning Buttons will change the frequency up or down for AM, FM and Ham (VHF) bands, and channel up or down for Weather. -
Page 12: Weather Alert System
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 12 Radio Operation WEATHER ALERT SYSTEM The WEATHER ALERT modes on the CCRadio 2E can alert you to special weather related emergencies. During an emergency or weather- related hazard, NOAA issues an emergency tone that will set off an audible and/or visual alarm on the radio. - Page 13 Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 13 Radio Operation This is WEATHER ALERT mode with flashing light only (no Alarm). If NOAA issues a weather related emergency, the radio will automatically alert you with a small flashing light near the top of the radio. The Alert light continues to flash until any button is pushed.
-
Page 14: 2-Meter Ham (Vhf)
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 14 Radio Operation 2-METER HAM (VHF) BAND (144 TO 148 MHZ) The 2-Meter Ham Band is a popular radio band used by amateur radio operators for civil defense. After a hurricane, earthquake or other calamity, 90% of emergency coordination at the local level takes place on this band. - Page 15 League (ARRL) toll free at 888-277-5289 or at arrl.org to find out what you need to learn and the nearest testing location. C. Crane salutes every Ham who has volunteered to be a part of emergency radio operations. CCRadio 2E...
-
Page 16: Display Light
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 16 Radio Operation DISPLAY LIGHT Display Light on AC Power When the radio is plugged into AC power, the display light will always be on unless you turn it off. The special green LED bulbs last about 100,000 hours and use very little electrical energy. -
Page 17: Audio & Recording Jacks
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 17 Radio Operation AUDIO & RECORDING JACKS The jacks on the back left side of the radio are for audio input (AUX IN), audio output (LINE OUT) and a timer activation switch AUX IN Jack Timer Activation Switch LINE OUT Jack AUX IN Jack... -
Page 18: Setting The Timer
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 18 Radio Operation LINE OUT Jack The red jack, labeled LINE OUT, is used to output the audio from the CCRadio 2E to another device such as a recorder, your home stereo, or some other unit. To do this, you will need an 1/8" stereo patch cord. Note: The LINE OUT jack differs from a headphone jack because the volume level of a headphone jack varies depending on the volume of the radio. - Page 19 Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 19 Radio Operation 2: T OFF TIME ET THE 1) Press the Timer/Set Button again until the word OFF, the hour digit and TIMER flash on the display. 2) Use the Tuning Up/Down Buttons to set the hour. Again, verify that the time is set correctly for AM or PM.
-
Page 20: Specifications
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 20 Specifications FREQUENCY COVERAGE FM Band: 87.5 - 108 MHz Stereo AM Band: 520 - 1710 kHz Ham (VHF): 144 - 148 MHz WEATHER BAND Channel 1: 162.400 MHz Channel 5: 162.500 MHz Channel 2: 162.425 MHz Channel 6: 162.525 MHz Channel 3: 162.450 MHz Channel 7: 162.550 MHz... - Page 21 Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 21 Specifications AUX IN JACK 300 - 1000mV RMS (line level) input from external audio source. Do not overload. LINE OUT JACK 300 - 1000mV RMS (line output) TIMER ACTIVATION SWITCH Low impedance, transistor driven switch. Used for operation of external recording devices.
-
Page 22: Accessories
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 22 Accessories Check with your dealer for the following accessories: RECORDING DEVICES CC Witness Plus MP3 RECORDER-Player with built-in AM/FM Radio. Record radio shows from CCRadio 2E or use the AUX IN jack to use the CCRadio 2 as an external speaker. Item #CWTPL AM ANTENNAS Twin Coil Ferrite... -
Page 23: Troubleshooting Guide
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 23 Troubleshooting Guide The CCRadio 2E will not turn on and none of the buttons work: The Lock Switch, located on the right side of the radio between the tuning and the volume knobs, is in the up position. Push the switch down to release the lock and resume normal operation of the radio. -
Page 24: Troubleshooting Guide
If you want an antenna that is pre-made, we recommend the FM Reflect Antenna by C. Crane on page 22 for details. Battery Power Level Indicator doesn’t show full charge when using rechargeable batteries: Rechargeable batteries will never show a full charge on your radio’s... -
Page 25: Radio Noise Troubleshooting
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 25 Radio Noise Troubleshooting AM RADIO NOISE PROBLEMS AND POSSIBLE SOLUTIONS If you hear an annoying buzz when listening to AM radio, it’s most likely radio noise. Here are some of the usual culprits: • Dimmer switch (even in an adjacent room). •... -
Page 26: Listening Tips
Where an outdoor antenna is not pos- sible, try the Twin Coil Ferrite AM Antenna by C. Crane. The antenna ® element can be placed on a window sill or mounted where a better sig- nal is avail able. -
Page 27: Safety Instructions
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 27 Safety Instructions READ BEFORE OPERATING EQUIPMENT SAVE THESE INSTRUCTIONS 1) Read and understand all safety and operating instructions before the radio is operated. 2) Retain Instructions: The safety and operating instructions should be retained for future reference. 3) Heed Warnings: All warnings on the appliance and in the operating instructions should be followed. - Page 28 Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 28 Safety Instructions points or short out parts. This could cause a fire or electrical shock. 11) If the radio is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage caused by lightning or power line surges.
-
Page 29: Personal Station Log
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 29 P ERSONAL S TATION L OG Station Time City Frequency Date Call Letters Please feel free to copy this page. CCRadio 2E Page 29... -
Page 30: 2-Meter Ham Frequency Log
Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 30 2-METER HAM FREQUENCY L OG Frequency Location/Call Sign Date Time Please feel free to copy this page. Page 30 CCRadio 2E... - Page 31 All of C. Crane’s products must pass extensive testing to main- tain high quality standards. And as for the mysterious letter “C” in C. Crane, well, Bob and Sue’s middle names both begin with the letter “C”, thus the name C. Crane.
- Page 32 Manual_ccradio2E_Linear-HQ-R2_1_ccrane 2/14/14 9:20 AM Page 32 Model: CCRadio FCC ID: BYG 014 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
