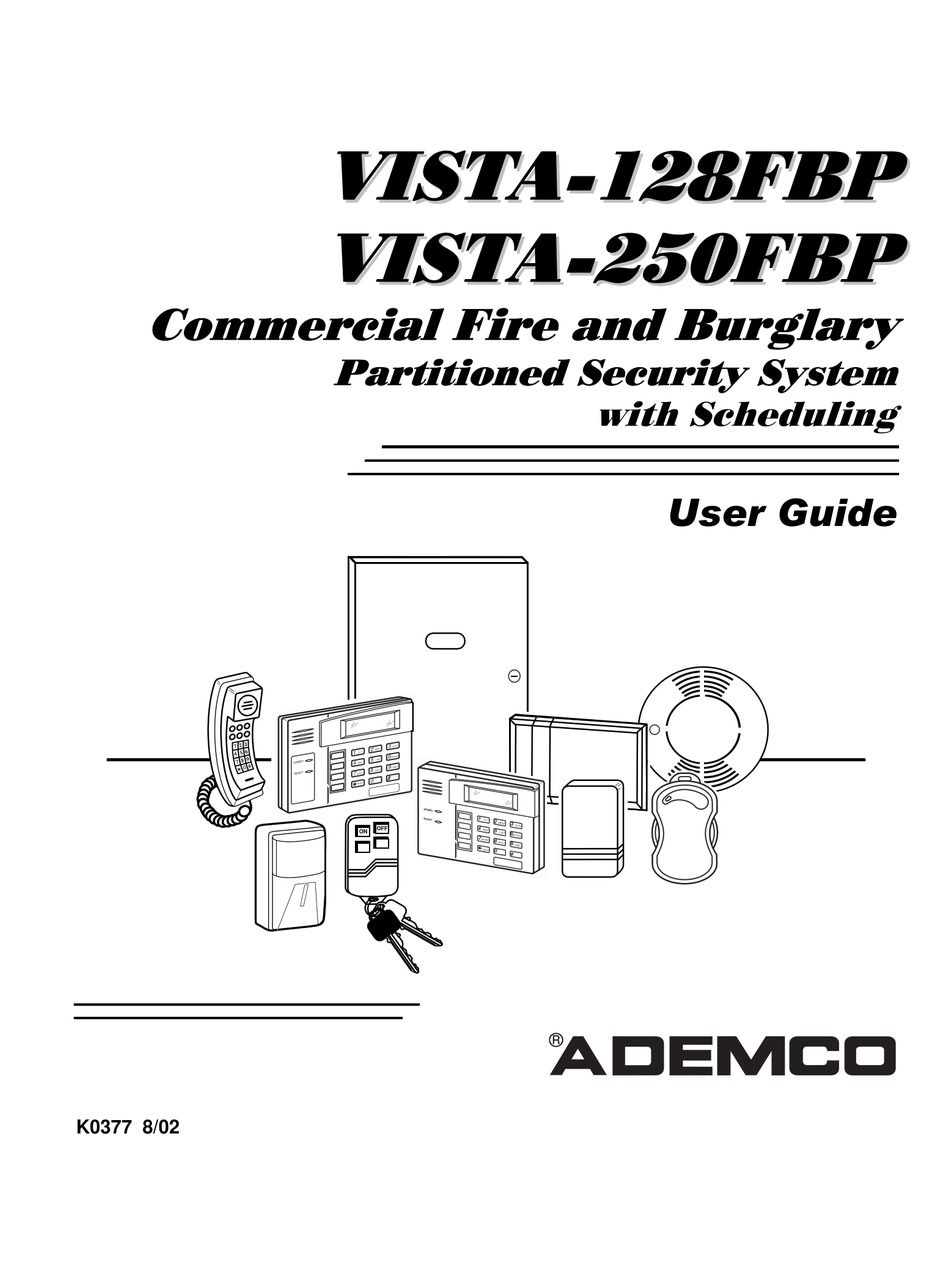

- Page 1 &RPPHUFLDO)LUHDQG%XUJODU\ 3DUWLWLRQHG6HFXULW\6\VWHP ZLWK6FKHGXOLQJ 8VHU*XLGH AR ME RE AD Y ® K0377 8/02...
- Page 2 – 2 –...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Common Lobby Operation .......25 SYSTEM OVERVIEW ......5 How User Codes Affect the Common General ............5 Lobby ............26 A Partitioned System ........6 ACCESSING OTHER PANELS ....27 Panel Linking ..........6 Zones ............6 Single-Partition Single-Panel Mode ..27 Fire Protection ..........6 Multi-Partition Multi-Panel Mode ....28 Burglary Protection ........7 Multi-Panel View Mode ......29... - Page 4 USING THE KEYSWITCH ....43 USING #77 INSTANT ACTIVATION General ............. 43 MODE ..........57 Arming ............43 EVENT LOG PROCEDURES ....60 Disarming ..........43 General Information ........60 CHIME MODE........44 To Display The Event Log ......60 TESTING THE SYSTEM (TO BE Using the 9 Key ........
-
Page 5: System Overview
Congratulations on your ownership of an ADEMCO Partitioned Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today. ADEMCO is the world's largest manufacturer of security systems and millions of premises are protected by ADEMCO systems. -
Page 6: A Partitioned System
ACCESSING OTHER PARTITIONS section for additional information. Panel Linking Panel Linking networks up to eight VISTA-128FBP/VISTA-250FBP control panels, enabling a user to control the features of all control panels from a single location. The Panel Linking is ideal for multi-building environments (e.g. -
Page 7: Burglary Protection
System Overview (cont’d) Burglary Protection The burglary protection portion of your system must be turned on or "armed" before it will sense burglary alarm conditions. Your system provides four modes of burglary protection: STAY, AWAY, INSTANT and MAXIMUM, and even allows you to BYPASS selected zones of protection while leaving the rest of the system armed. -
Page 8: Speed Key (Macros)
System Overview (cont’d) Speed Key (Macros) The system can store a string of up to 32 keystrokes, which can be activated anytime by simply pressing the “A, B, C, or D” keys. This feature can be used to make it easy to perform multiple functions at once (such as going to another partition to bypass a zone), or it can be used to simplify an everyday, repeated procedure. -
Page 9: Master Keypad Operation
System Overview (cont’d) Master Keypad Operation A "Master" keypad is one on which the status of all 8 partitions is displayed simultaneously. A user can get more information about a certain partition by simply entering [ ] + the desired partition number (1-8). To log on to the "Master"... -
Page 10: About The Keypads
About The Keypads General IMPORTANT: If the keypad beeps rapidly upon entering the premises, it indicates that an alarm has occurred during your absence. LEAVE IMMEDIATELY and CONTACT THE POLICE from a safe location nearby. NOTE: If you have a Symphony (Advanced User Interface) connected to your system, refer to the Symphony User Guide for operating instructions. -
Page 11: Functions Of The Keypad
Functions Of The Keypad DISPLAY SPEAKER ARMED AWAY STAY READY TEST BYPASS LEDS SUPER INSTANT CODE CHIME TROUBLE READY FUNCTION KEYS IMPORTANT! When using the keypad to enter codes and commands, sequential key depressions must be made within 3 seconds of one another. - Page 12 Functions Of The Keypad (cont’d) ALPHA DISPLAY WINDOW: A 2-line, 4 MAXIMUM : Arms in manner similar 32-character Liquid Crystal Display (LCD). to AWAY mode, but eliminates the entry Displays protection point identification and delay period, thus providing maximum system status, messages, user...
- Page 13 Functions Of The Keypad (cont’d) LED SUPER INDICATOR: (GREEN) Lit READY : When depressed prior to when a supervisory condition exists in the arming the system, the keypad will display system. all open protection zones within the LED TROUBLE INDICATOR: (RED) Lit keypad's home partition.
-
Page 14: Entry/Exit Delays
Entry/Exit Delays General Information Your system has installer-programmed time delays, known as exit delay and entry delay. Whenever you arm your system, exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after entering any arming command, and applies to all modes of arming protection. -
Page 15: Security Codes & Authority Levels
Security Codes & Authority Levels General Information At the time of installation, you were assigned an authority level and a personal four-digit security code, known only to you and yours. The security code must be entered when arming and disarming the system. The authority level defines the system functions that you can perform. -
Page 16: Authority Levels
Security Codes & Authority Levels (cont’d) Authority Levels Authority levels define the system functions a particular user can perform. Depending on the authority assigned to you, there are certain system functions you may be prohibited from performing. In summary, there are six authority levels, each having certain system restrictions as shown below. -
Page 17: General Rules On Authority Levels And Changes
Security Codes & Authority Levels (cont’d) General Rules on Authority Levels and Changes • A user may not delete or change the user code of the SAME or HIGHER authority than which he is assigned. • A user may only ADD users to a LOWER authority level. •... -
Page 18: To Add A User
Security Codes & Authority Levels (cont’d) To Add a User IMPORTANT: Temporary users should not be shown how to use any system function they do not need to know (e.g. bypassing protection zones). CODE 1. Enter Master or Manager code and press the key. - Page 19 Security Codes & Authority Levels (cont’d) If you as a user have access to other partitions, the MULTI-ACCESS ? keypad will prompt for ability of this new user to 0 = NO , 1 = YES access (GOTO) those partitions. Press 0 (NO) or 1 (YES).
-
Page 20: To Change A User's Code
Security Codes & Authority Levels (cont’d) When all partitions have been displayed, the PART. 1 A0* WHSE keypad will scroll through the partition(s) to which USER 003 AUTH=3G. access has been assigned, and will display the user number, authority level and global arm option for each. -
Page 21: To Delete A User
Security Codes & Authority Levels (cont’d) To Delete a User CODE 1. Enter Master or Manager code and press the key + user number to be deleted. 2. Enter Master or Manager code first entered. The system will recognize that the User number OK TO DELETE is already in use and will prompt to confirm that 0 = NO , 1 = YES... -
Page 22: Accessing Other Partitions
Accessing Other Partitions To Access Another Partition Each keypad is assigned a default partition for display purposes, and will show only that partition's information. But, if the user is authorized, a keypad in one partition can be used to perform system functions in other partitions by using the GOTO command. -
Page 23: Master Keypad Operation
Accessing Other Partitions (cont’d) Global Arming Notes: • When performing a Global Arm, if there are faults in any of the selected partitions, the system will enter a Summary Mode. Faulted zones in all the selected partitions will be displayed. These faults must be corrected or bypassed. - Page 24 Accessing Other Partitions (cont’d) The following is an example of what would be displayed for a fault condition on Zone 002 (Loading Dock Window) on Partition 1 (Warehouse) when logging on from a keypad on Partition 9: WHSE DISARMED FOR FAULTS This is the normal display that appears at Partition 1's keypad(s).
-
Page 25: Common Lobby Operation
Accessing Other Partitions (cont’d) Common Lobby Operation When an installation consists of a partition that is shared by users of other partitions in a building, that shared partition may be assigned as a “common lobby” partition for the system. An example of this might be in a medical building where there are two doctors and a common entrance area. -
Page 26: How User Codes Affect The Common Lobby
Accessing Other Partitions (cont’d) How User Codes Affect the Common Lobby Codes with “Global” Arming If your code is given “global arming” when it is defined, the system displays a prompt that allows you to pick and choose the partitions to be armed or disarmed. -
Page 27: Accessing Other Panels
Accessing Other Panels If the user is authorized, a keypad in one panel can be used to perform system functions in other panels by using one of the panel linking methods described below. Note that only users 001 to 050 can be authorized to access other panels. -
Page 28: Multi-Partition Multi-Panel Mode
Accessing Other Panels (cont’d) Multi-Partition Multi-Panel Mode To access the multi-partition multi panel mode, perform the following steps: Enter your security code + # The keypad displays the following: PANELnn 1 2 3 4 5 6 7 8 STATUS x x x x x x x x where “nn”... -
Page 29: Multi-Panel View Mode
Accessing Other Panels (cont’d) NOTES: When performing any of the arming commands, if there are faults in any of the partitions, none of the partitions will arm. These faults must be corrected or bypassed before attempting to arm. When performing either a STAY or INSTANT arm command the system always arm in mode 1 (see page 36 Arming Perimeter Only for a detailed explanation of the STAY arming modes. -
Page 30: Priority Of Displays For Multi-Partition And Multi-Panel Modes
Accessing Other Panels (cont’d) Press 0 to exit mode. After a few seconds, the keypad displays the status of the original partition of the original panel for the keypad. Also, this mode will end in approximately 120 seconds if no keys are pressed. NOTES: When performing any of the arming commands, if there are faults in any of the partitions of a panel, the system will not arm that panel, but will arm all... -
Page 31: Checking For Open Zones
Checking For Open Zones Using the READY Key Before arming your system, all protected doors, windows and other protection zones must be closed or bypassed (see BYPASSING section). Otherwise the keypad will display a "Not Ready" message. Using the READY key will display all zones that are faulted, making it easier for you to secure any open zones. -
Page 32: Displaying All Zone Descriptors
Displaying All Zone Descriptors Using the READY Key The Alpha Keypads can also display all the zone descriptors that are programmed in your system. The abbreviated instructions for the READY key will appear first, followed by the zone descriptors. Displaying all descriptors is useful when you need to know the zone number of a particular zone, as when bypassing zones. -
Page 33: Bypassing Protection Zones
Bypassing Protection Zones Using the 6 BYPASS Key This key is used when you want to arm your system with one or more zones intentionally unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed. All bypasses are removed when an OFF sequence (security code plus OFF) is performed. -
Page 34: Quick Bypass
Bypassing Protection Zones (cont’d) Quick Bypass Your system allows you to easily bypass all open (faulted) zones without having to enter zone numbers individually. Note: All bypasses are removed when an OFF sequence (security code plus OFF) is performed. To use the Quick Bypass feature: BYPASS 1. -
Page 35: Group Bypass
Bypassing Protection Zones (cont’d) Group Bypass Your system allows you to easily bypass a group of zones without having to enter zone numbers individually. The system provides up to 15 groups. There is no limit to the number of zones that may be assigned to any one group. Check with your installer for a list of zones assigned to the group(s). -
Page 36: Arming Perimeter Only
Arming Perimeter Only (With Entry Delay ON) Using the 3 STAY key Use this key when you are staying home, but might expect someone to use the entrance door later. When armed in STAY mode, the system will sound an alarm if a protected door or window is opened, but you may otherwise move freely throughout the premises. -
Page 37: Auto-Stay Arming
Arming Perimeter Only (With Entry Delay ON) (cont’d) Auto-STAY Arming Auto-stay allows the system to automatically bypass certain zones if upon arming none of the entry/exit zones are faulted during the exit delay time (no one exits the premises). The system provides an option to set each burglary zone for Auto-stay. -
Page 38: Arming Perimeter Only
Arming Perimeter Only (With Entry Delay OFF) Using the 7 INSTANT Key Important: If you are using a Symphony (Advanced User Interface), NIGHT mode is the same as INSTANT. Use this key when you are staying home and do not expect anyone to use the entrance door. -
Page 39: Arming All Protection
Arming All Protection (With Entry Delay ON) Using the 2 AWAY Key Use this key when no one will be staying on the premises. When armed in AWAY mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises. You may leave through the entrance door during the exit delay period without causing an alarm. -
Page 40: Arming All Protection
Arming All Protection (With Entry Delay OFF) Using the 4 MAXIMUM Key Use this key when the premises will be vacant for extended periods of time such as vacations, etc., or when no one will be moving through protected interior areas. When armed in MAXIMUM mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises. -
Page 41: Quick Exit
Quick Exit Using the # + 9 Keys The Quick Exit feature allows you to exit the armed partition without having to disarm and then rearm the partition. To Quick Exit the premises: 1. Press the # key and then press the 9 key. 2. -
Page 42: Disarming And Silencing Alarms
Disarming And Silencing Alarms Using the 1 OFF Key The OFF key is used to disarm the system and to silence alarm and trouble sounds. See "SUMMARY OF AUDIBLE NOTIFICATION" section for information which will help you to distinguish between FIRE and BURGLARY alarm sounds. -
Page 43: Using The Keyswitch
Using The Keyswitch General Your system may be equipped with a keyswitch for use when arming and disarming a partition. A red and green light on the keyswitch plate indicate the status of your system as follows: Green Light: Lights when the system is disarmed and ready to be armed (no open zones). -
Page 44: Chime Mode
Chime Mode Using the 9 Key Your system can be set to alert you to the opening of a door or window while it is disarmed by using CHIME mode. When activated, three tones will sound at the Keypad whenever a protected perimeter door or window is opened, and the Not Ready message will be displayed. -
Page 45: Viewing Alarm Company Messages
Viewing Alarm Company Messages General Information Users of the system may periodically receive messages on their display screens from their monitoring agency or installer. When a message is waiting to be viewed, the message shown below will appear. MESSAGE. PRESS 0 FOR 5 SECS. -
Page 46: Panic Keys
Panic Keys (For Manually Activating Silent And/Or Audible Alarms) Using Panic Keys Your system may have been programmed to use special key combinations to manually activate panic functions. The functions that might be programmed are Silent Emergency, Audible Emergency, Personal Emergency, and Fire. See your installer for the function(s) that may have been programmed for your system. -
Page 47: Speed Key (Macros)
Speed Key (Macros) General Information The “A”, “B”, “C”, and/or “D” keys can be used to activate a string of commands up to 32 keystrokes each. These commands are known as a macro and are stored in the system’s memory. Typical Speed Key functions include: •... -
Page 48: Executing
Speed Key (Macros) (cont’d) Executing To execute a Speed Key sequence, do the following: If a lettered key, A-B-C, has been assigned as a Speed Key, press and hold down the appropriate key (about 2 seconds). If a user code is required for any part of the Speed Key sequence, the following prompt appears. -
Page 49: Access Door Control
Access Door Control General Information Your system may be set up such that a locked access door (such as in a lobby) can be unlocked momentarily or for a specific period of time, using a keypad command. Ask your installer if this has been done in our system. Executing There are several entries that can be entered at the keypad to activate this command:... -
Page 50: Using #70 Relay Menu Mode
Using #70 Relay Menu Mode General Information Your system may be set up so that certain lights or other devices can be turned on or off by using the #70 command from either a keypad or a telephone keypad (if 4285 or 4286 VIP module is used). Ask your installer if this has been done in your system. -
Page 51: Using Schedules
Using Schedules Delaying the Closing Time Your system's programmed schedules may automatically arm the system at a predetermined time. In the event a user must stay on the premises later than usual, users with master or manager authority levels can manually delay the automatic arming (closing) time up to 2 hours. -
Page 52: Programming Temporary Schedules
Using Schedules (cont’d) Programming Temporary Schedules Temporary schedules only affect the partition from which it is entered. Temporary schedules can be reused at later dates simply by scrolling (by pressing #) to the DAYS? prompt (described below) and activating the appropriate days. - Page 53 Using Schedules (cont’d) This is the prompt that actually activates the DAYS ? MTWTFSS temporary schedule, and allows the temporary HIT 0-7 X X schedule to be customized to a particular week's needs. To select the days which are to be activated, enter the desired number 1-7 (Monday = 1).
-
Page 54: Programming Device Timers
Programming Device Timers General Information Device timers consist of an ON time & an OFF time, and selected days of the week in which they are active. There are up to 20 timers that can be used to control various devices, such as lights or appliances. Your installer will have programmed the appropriate devices into the system (up to 96 devices can be programmed). - Page 55 Programming Device Timers (cont’d) Enter the time you want the device turned on 00 ON TIME ? using 00:01 - 11:59 format. When the display 00:00 PM shows the desired time, press the * key to move to the AM/PM field. Press any key 0-9 to change the AM/PM indication.
-
Page 56: Randomize Output Device Times
Programming Device Timers (cont’d) Randomize Output Device Times Devices in your system may be set for a random schedule, whereby they will turn on and off at different times each day. This is useful when going on vacation and you desire the turning on and off of the lights to the give the appearance of someone being home. -
Page 57: Using #77 Instant Activation Mode
Using #77 Instant Activation Mode The #77 Instant Activation Mode is used to activate outputs, bypass zones, etc. immediately upon exiting the #77 Mode. The actions that may be activated are relay commands, arm/disarm commands, zone bypassing commands, and open/close access conditions. Relay Commands Action Code Action Specifier... - Page 58 Using #77 Instant Activation Mode (cont’d) Bypass Commands Activation times 1 (Beginning), 2 (End), 3 (During) are the only valid choices for bypass commands. If 3 (During) is selected for auto-bypassing, the system bypasses the zone(s) specified on a particular zone list at the beginning of the window and unbypasses them at the end of the window.
- Page 59 Using #77 Instant Activation Mode (cont’d) Additional Commands Action Code Action Specifier Access Point Group Enable Group # Access Point Group Disable Group # To enter the Instant Activation Mode: Enter your security code, then press the [#] key followed by 77. Enter the code for the desired action.
-
Page 60: Event Log Procedures
Event Log Procedures General Information To Display The Event Log The system has the ability to record 1. Enter CODE + [#] + [6] + [0] various events in a history log wherein 2. Select the display mode. each event is recorded in one of five RECENT: Displays only those events categories (listed below), with the time and occurring since last Event Log Clear... - Page 61 Event Logging Procedures (continued) 4. Use the [3] & [1] keys (for next and ALARM EVENT LOG previous categories respectively) to Displays time and date for zones that display the categories of events. have either caused an alarm or have been Press [8] to select a category and restored in the selected partition.
-
Page 62: Testing The System (To Be Conducted Weekly)
30 minutes on the VISTA-128FBP, 60 minutes on the VISTA-250FBP. The system will beep the keypad(s) twice every 5 seconds during the last 5 minutes as a warning that it is about to exit the Test mode and return to normal operation. -
Page 63: Fire Alarm System
Fire Alarm System Your fire alarm system (if installed) is on 24 hours a day, providing continuous protection. In the event of an emergency, the smoke and heat detectors automatically send signals to your Control, triggering a loud interrupting sound from the keypad and the optional exterior sounders. FIRE appears at your keypad and remains on until you silence the alarm. -
Page 64: Fire Display Lock
Fire Alarm System (cont’d) Fire Display Lock If several zones produce an alarm before any are silenced, the system can be programmed to lock the keypad display with the first zone that produced an alarm. Ask your installer if your system has been activated with this feature. To display the other zone(s), press the [*] key for each zone. -
Page 65: Trouble Conditions
Trouble Conditions Typical Trouble Displays The word CHECK or TRBL on the Keypad's display, accompanied by a rapid "beeping" at the Keypad, indicates there is a trouble condition in the system. To silence the beeping sound for trouble conditions, press any key. •... -
Page 66: Power Failure
CALL FOR SERVICE IMMEDIATELY if AC power cannot be restored. SERVICING INFORMATION Your local ADEMCO dealer is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable. Your local ADEMCO dealer is:... -
Page 67: Emergency Evacuation
Emergency Evacuation Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: 1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants. 2. -
Page 68: Maintaining Your System
Maintaining Your System Taking Care of Your System The components of your security system are designed to be as free of maintenance as possible. However, there are some things you can do to make sure that your system is in reliable working condition. 1. -
Page 69: Silencing Low Battery Warning Tones At The Keypad
Maintaining Your System (cont’d) Silencing Low Battery Warning Tones at the Keypad The keypad’s warning tones can be silenced by performing an OFF sequence (code plus OFF key), but the Keypad's low battery message display will remain on as a reminder that you have a low battery condition in one or more of your sensors. -
Page 70: Quick Guide To System Functions
Quick Guide To System Functions FUNCTION PROCEDURE COMMENTS Check Zones To view faulted zones when is system not ready Press [ ]. Display All Displays all alpha descriptors programmed by Press and hold [ ] for 5 seconds. Descriptors installer. Arm System Enter code. - Page 71 Quick Guide To System Functions (cont’d) FUNCTION PROCEDURE COMMENTS Delete a User Enter master/manager code. Master & Manager level users can delete users. Press CODE [8]. A user can only be deleted by a user with Enter user no. to be deleted. higher authority level.
-
Page 72: Summary Of Audible Notification
Summary Of Audible Notification (Alpha Display Keypads) SOUND CAUSE DISPLAY LOUD, FIRE ALARM FIRE is displayed; descriptor of zone in alarm is INTERRUPTED* displayed. Keypad & External LOUD, BURGLARY/AUDIBLE EMERGENCY ALARM is displayed; descriptor of zone in alarm is CONTINUOUS* ALARM also displayed. - Page 73 UL NOTICE: This is a “GRADE A” system. “FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 15 STATEMENT” This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information: This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.
