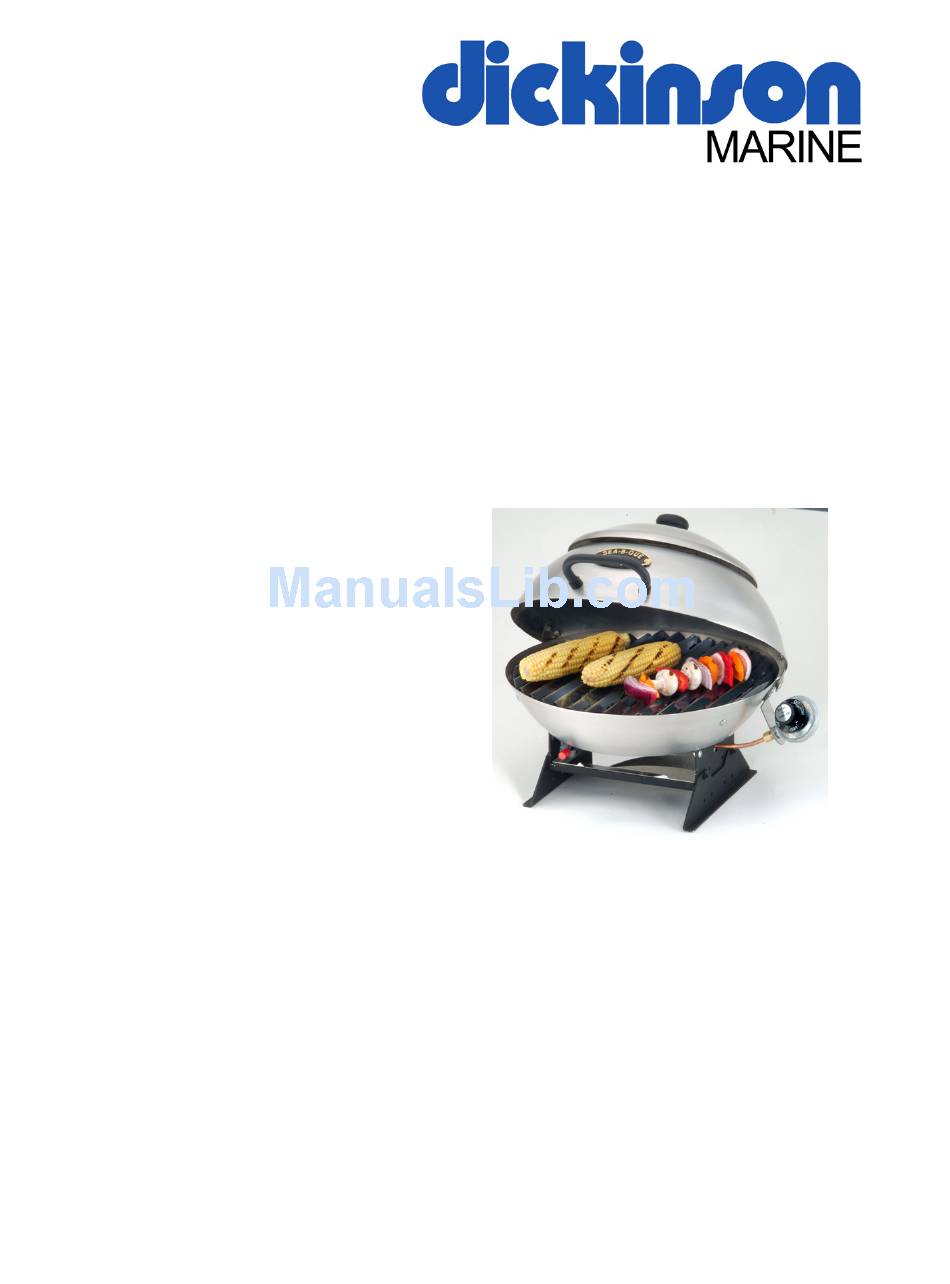

- Page 1 Sea-B-Que Operating and Installation Instruction Manual *KEEP THIS MANUAL FOR FUTURE REFERENCE* Round Sea-B-Que ** Please read from beginning to end before operating. CBQ Serial #: __________________ Quality Controlled by- Doug & Don Form#7.2-243 Issue#1 April 24 2011...
-
Page 2: Table Of Contents
4. Propane Fuel Connection… Pg. 5 5. Low Pressure System Connection… Pg. 5 6. Leak Test… Pg. 6 7. Getting to Know you’re Sea-B-Que… Pg. 7 8. Lighting & Operation… Pg. 8 9. Temperature Adjustment… Pg. 9 10. Cleaning & Maintenance… Pg. 10 11. -
Page 3: Warning & Disclosures
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Close the LPG cylinder valve when Sea-B-Que is not in use. • Close the Sea-B-Que regulator valve before opening the LPG cylinder valve. -
Page 4: Sea-B-Que Packing List
You will need to attach the feet of the BBQ to the rest of the unit. The two feet of the Sea-B-Que slide on to the inserted studs on the base. The flanges are to point outwards. Use the four 10 x 32 nuts and #10 lock-washers to secure the legs to the base. -
Page 5: Propane Fuel Connection
Sea-B-Que. The Sea-B-Que gas control is also the pressure regulator part# 15-110. If your boat has a regulated propane source, the fuel line to the Sea-B-Que must be tee’d off before any regulators on the main fuel supply. A high pressure T type connector is available from Dickinson for this. -
Page 6: Leak Test
Typical Low Pressure Propane Locker Leak Test: 1. Do not use or permit sources of ignition in the area while doing the leak test. This includes smoking. 2. Leak testing solution should be half liquid soap and half water. 3. Apply the solution to the LP gas delivery system at all connections. 4. -
Page 7: Getting To Know You're Sea-B-Que
From time to time, salt or other debris may plug the hole changing the flame and / or the sea-b-que will not get hot, and a blocked orifice may be the reason. To clean the orifice in the burner, remove the grills and unscrew the flame spreader (top of burner) counterclockwise. -
Page 8: Lighting & Operation
Do not leave the control regulator on high with the lid closed for long periods of time or damage may be caused to the body of Sea-B-Que due to overheating. High gas settings are only recommended for a short pre-heat period, barbequing with the lid open, or with the lid closed, but at a moderate setting. -
Page 10: Cleaning And Maintenance
Cooking The removable drip tray must be installed prior to cooking. Do not allow grease to build-up in the grease tray or in the base of the Sea-B-Que. The porcelain enamel cooking surface plates should be pre-heated and sprayed or covered with cooking oil to prevent food from sticking. -
Page 11: Sea-B-Que Accessories & Parts Available
Sea-B Que Accessories & Parts Available #15-150A Universal Rail Mount Kit #15-150F Fishing Rod Holder Mount Kit #15-187 Taff Rail Mount Kit #15-150P Scotty Mount Kit #15-170 Round Black Canvas Cover #15-202 Round Aussie griddle (13” dia) #15-188 6 ft. Propane Hose – High Pressure #15-189 8 ft. -
Page 12: Warranty
Warranty Dickinson Marine warranties all of its products for a period of one year dated from the purchase of the product by the end user with proof of purchase or a registered warranty. We warrant our barbeque burners for a period of 3 years dated from the purchase of the product by the end user with a registered warranty. - Page 13 Customers are responsible for the shipping costs for all returns and exchanges. Dickinson Marine Returns Unit# 407-204 Cayer Street Coquitlam, BC V3K 5B1 Canada 4. Products that are demonstrably older than the warranty period or those that have obviously been misused will not be returned, exchanged, or repaired.
- Page 14 maintenance which you are expected to do yourself or have done for you. It is maintenance, which is necessary to keep your product performing its intended function and operating at a reasonable level of performance. DAMAGE LIMITATION WARNING : IN NO EVENT SHALL Dickinson BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING (BUT NOT LIMITED TO) LOSS OF USE OF THE PRODUCT, LOSS OF TIME, INCONVENIENCE, EXPENSES FOR TRAVEL, LODGING TRANSPORTATION...
-
Page 15: Registering Your Warranty
Register your Warranty….. Please register your warranty with Dickinson Marine. Fill out and send back the warranty registration below. Make sure to include the serial # for our records. No warranty will be extended for improper installations. Use of any unapproved materials, equipment, or installation procedures will result in a voided warranty. - Page 16 All rights reserved. No part of this manual may be reproduced without permission in writing from Dickinson Marine. Dickinson also reserves the right to modify or change without notice, any materials, applications, equipment, accessories, and/or prices. All measurements and weights are approximate.
