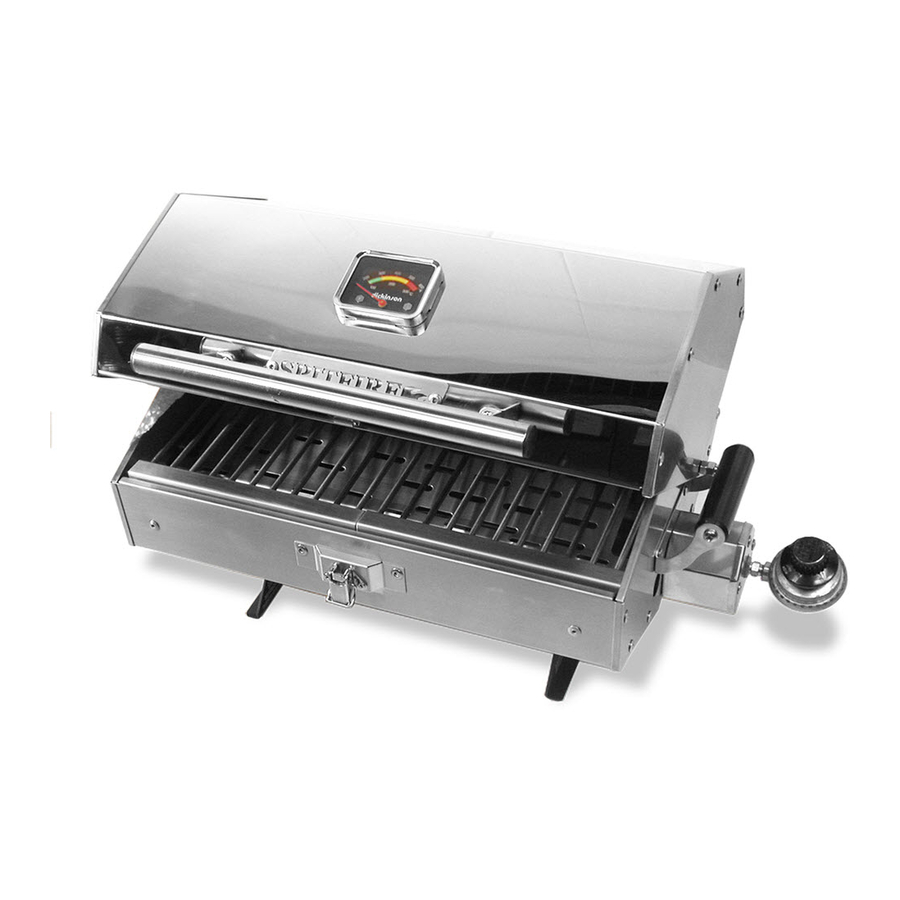

- Page 1 Spitfire180 Operating and Installation Instruction Manual *KEEP THIS MANUAL FOR FUTURE REFERENCE* Spitfire180 ** Please read from beginning to end before operating. Spitfire180 Serial #: __________________ Quality Controlled by- Doug & Don Form#7.2-257 Issue#2 Oct 21, 2011...
-
Page 2: Table Of Contents
Table of Contents Table of Contents… Pg. 2 1. Warning & Disclosures… Pg. 3 2. Spitfire Packing List… Pg. 4 3. Assembly… Pg. 4 4. Propane Fuel Connection… Pg. 5 5. Low Pressure System Connection… Pg. 5 6. Leak Test… Pg. 6 7. -
Page 3: Warning & Disclosures
Warnings & Disclosures • The Spitfire180 barbeque is designed to use only LPG fuel. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this barbeque. • Improper use of this gas appliance can cause serious injury or death from burns, fire, explosion, carbon monoxide poisoning and oxygen depletion. -
Page 4: Spitfire Packing List
Spitfire Packing List *PLEASE KEEP YOUR PROOF OF PURCHASE FOR WARRANTY. Spitfire180 Part# 00-SPT-180 1. Top Lid and Main Body Assembly 2. Thermometer part# 15-120 3. Stainless Grill Section part# 15-195 (2 required) 4. Stainless Burner & Bracket part# 15-060 5. -
Page 5: Propane Fuel Connection
Propane Fuel Connection The most common LPG connection is the 1 lb. disposable bottle that connects directly to the barbeque or a hose straight from the barbeque to a 10lb. or 20 lb. tank. We have 6ft part# 15-188 and 8ft part# 15-189 high pressure propane hoses available. -
Page 6: Leak Test
Typical Low Pressure Propane Locker Leak Test: 1. Do not use or permit sources of ignition in the area while doing the leak test. This includes smoking. 2. Leak testing solution should be half liquid soap and half water. 3. Apply the solution to the LP gas delivery system at all connections. 4. -
Page 7: Getting To Know Your Spitfire
Getting to Know your Spitfire Thermometer: The Spitfire 180 is fitted with a thermometer. If you remove the thermometer for cleaning or replacement, see below for re-assembly diagram. Inspect the thermometer to ensure no small white bits of plastic are around the edge, left over from the protective plastic used in the manufacturing process. -
Page 8: Lighting & Operation
The Burner: Your burner bar is made of stainless steel and is the most rugged, longest lasting marine burner bar around. Salt air, heat and acids in foods however still take their toll on the burner bar. Try to keep the burner clean and free of obstructions. -
Page 9: Temperature Adjustment
www.dickinsonmarine.com info@dickinsonmarine.com Form#7.2-257 Issue#2... -
Page 10: Cleaning And Maintenance
Barbecues will get hot and splash grease, and for safety reasons it is therefore advisable to mount the unit outboard. Spitfire180 Accessories & Parts Available #15-150A Universal Rail Mount Kit... -
Page 11: Warranty
Warranty Dickinson Marine warranties all of its products for a period of one year dated from the purchase of the product by the end user with proof of purchase or a registered warranty. We warrant our barbeque burners for a period of 3 years dated from the purchase of the product by the end user with a registered warranty. - Page 12 3. All products being sent back to Dickinson Marine must have a Return Authorization Number. Contact us at Dickinson Marine toll free 1- 800-659-9768 or e-mail info@dickinsonmarine.com...
- Page 13 WARRANTY PROVISIONS: Dickinson warrants this product to be free of defects in workmanship and materials for a period of one year. This warranty is limited to claims submitted in writing within a one-year period following the date of purchase. If any part of your new product fails because of a manufacturing defect within the warranty period Dickinson offers to replace said parts free of charge, provided, however, that such parts have not been improperly repaired, altered or tampered with or subjected to misuse,...
-
Page 14: Registering Your Warranty
NOT FILL OUT AND MAIL THE CARD AS DIRECTED, YOU WILL NOT HAVE A WARRANTY. Register your Warranty….. Please register your warranty with Dickinson Marine. Fill out and send back the warranty registration below. Make sure to include the serial # for our records. - Page 15 All rights reserved. No part of this manual may be reproduced without permission in writing from Dickinson Marine. Dickinson also reserves the right to modify or change without notice, any materials, applications, equipment, accessories, and/or prices. All measurements and weights are approximate.
