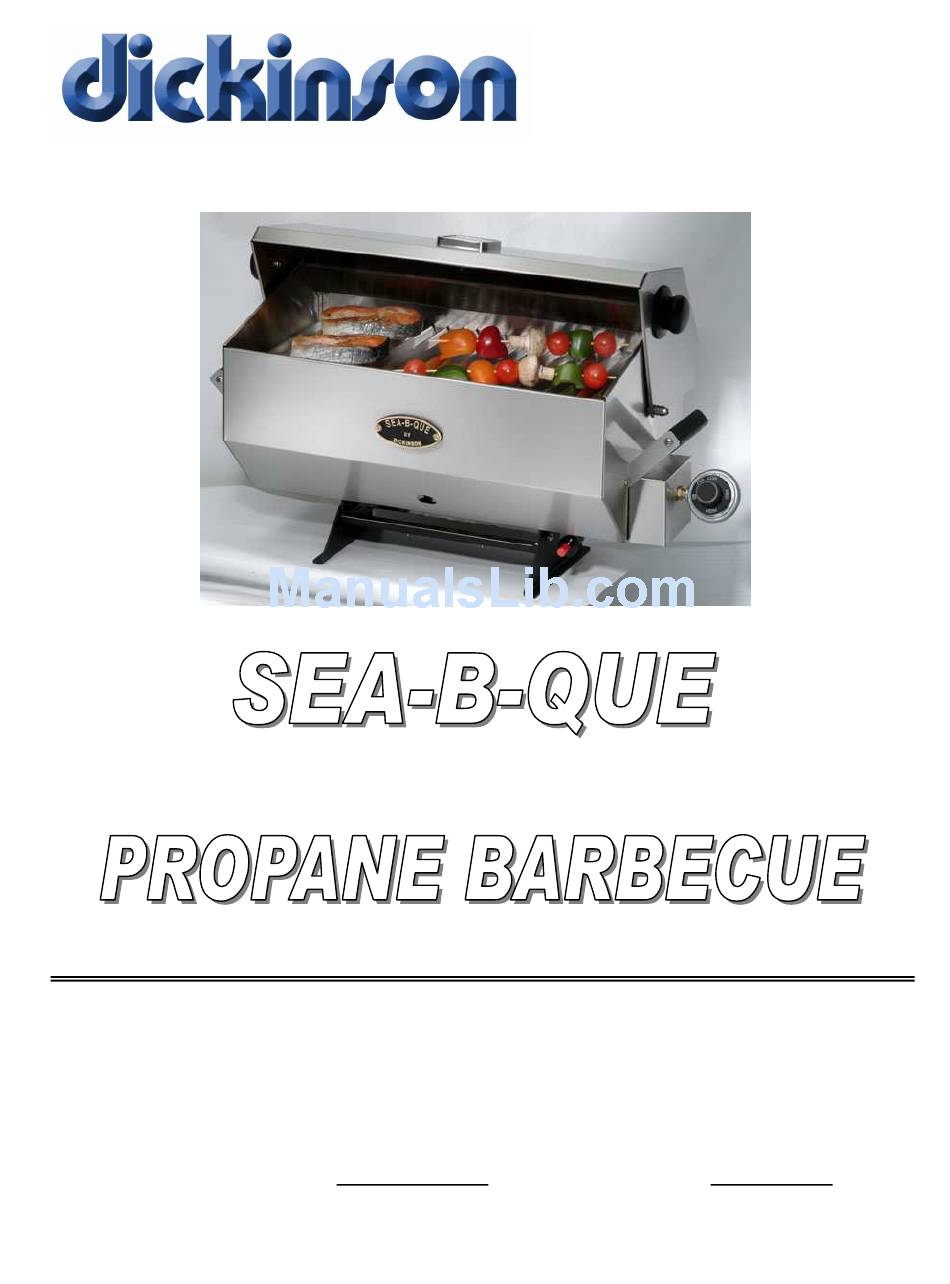

Instruction Manual
SINCE 1932
SINCE 1932
SINCE 1932
SINCE 1932
Large & Small
Operator's Manual
This manual must be read and the requirements carried out
DICKINSON RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS
QUALITY INSPECTED BY-
to ensure satisfactory performance.
OR DOCUMENTS AT ANY TIME
Doug & Don
Dickinson Marine
#407-204 Cayer St Coquitlam
BC Canada V3K 5B1
www.dickinsonmarine.com
info@dickinsonmarine.com
T: 800 659 9768
Nov 5/2008
DATE-
Advertisement
Table of Contents
Related Manuals for Dickinson SEA-B-QUE LARGE
Summary of Contents for Dickinson SEA-B-QUE LARGE
- Page 1 Large & Small Operator’s Manual This manual must be read and the requirements carried out to ensure satisfactory performance. DICKINSON RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCTS OR DOCUMENTS AT ANY TIME Doug & Don Nov 5/2008 QUALITY INSPECTED BY-...
-
Page 2: Warnings And Disclosures
Contents 00-SBQ-L & S SEA-B-QUE LARGE / SMALL - Top Lid and Main Body Assembly - Thermometer, Burner Assy, and Regulator - 4 Porcelain Enamel Grill Sections - Deck Leg Feet - Drip Tray - Manual c/w Warranty Form Warnings and Disclosures Follow all installation and operating procedures. - Page 3 The T type connector is available from Dickinson for this purpose (# 15-178). If replacing the regulator control or the Sea-b- Que is not getting hot enough even after the venturi has been adjusted, the regulator may need to be adjusted.
-
Page 4: Orifice Assembly
Thermometer Both the Large and Small Sea-B-Que are fitted with a thermometer. If you remove the thermometer for cleaning or replacement, refer to Diagram E for re-assembly. Inspect the thermometer to ensure no small white bits of plastic are around the edge, left over from the protective plastic used in the manufacturing process. -
Page 5: Optional Mounting
Optional Mounting #15-150A Rail Kit #15-150F Fishing Rod Holder Mount Kit #15-187 Taff Rail Kit #15-150P Scotty Mount Kit Visit www.dickinsonmarine.com for pics and details Low pressure Retrofit The control on the Sea-b-Que will need to be changed to a low pressure control (#15- 193), and a low pressure (11”... - Page 6 Diagram C #8 x 3/8 screw & nut Burner Igniter Accessories #15-185 Small Cover #15-184 Large Cover #15-180 Small Food & Drink Tray c/w Cutting Board #15-181 Large Food & Drink Tray c/w Cutting Board #15-200 Small Aussie griddle #15-201 Large Aussie griddle #15-182-P Small porcelain Grills...
-
Page 7: Operation
Test all propane lines and connections for leaks with a soapy water solution before lighting. Do not flame test for leaks. Lighting Sea-B-Que control regulator in LOCK-OFF position Open Lid and turn on LPG gas supply at source Turn Control Regulator ON to the medium level. Press Igniter (Large Only) several times, or use a long bbq lighter through the match hole. - Page 8 The marine environment can take a harsh toll on all stainless steel bar-b-ques. The Sea-B-Que is made of high quality #304 stainless steel however the chlorine and sodium chloride in the ocean water mixed with the heat of the Sea-b-que creates a small surface corrosion.
-
Page 9: Limited Warranty
If any part of your new product fails because of a manufacturing defect within the warranty period Dickinson offers to replace said parts free of charge, provided, however, that such parts have not been improperly repaired, altered or tampered with or subjected to misuse, abuse or exposed to corrosive conditions. This warranty, however, is limited by certain exclusions, time limits and exceptions as listed below. - Page 10 Return to: SINCE 1932 #407 – 204 Cayer Street, Coquitlam, B.C. Canada V3K 5B1 WARRANTY FORM I have read and understand the Limited Warranty and the Instruction Manual and agree to the terms and condition (please print) Date…………………………………………………………………………… Purchaser’s Name…………………………………………………………….. Address………………………………………………………………………..
