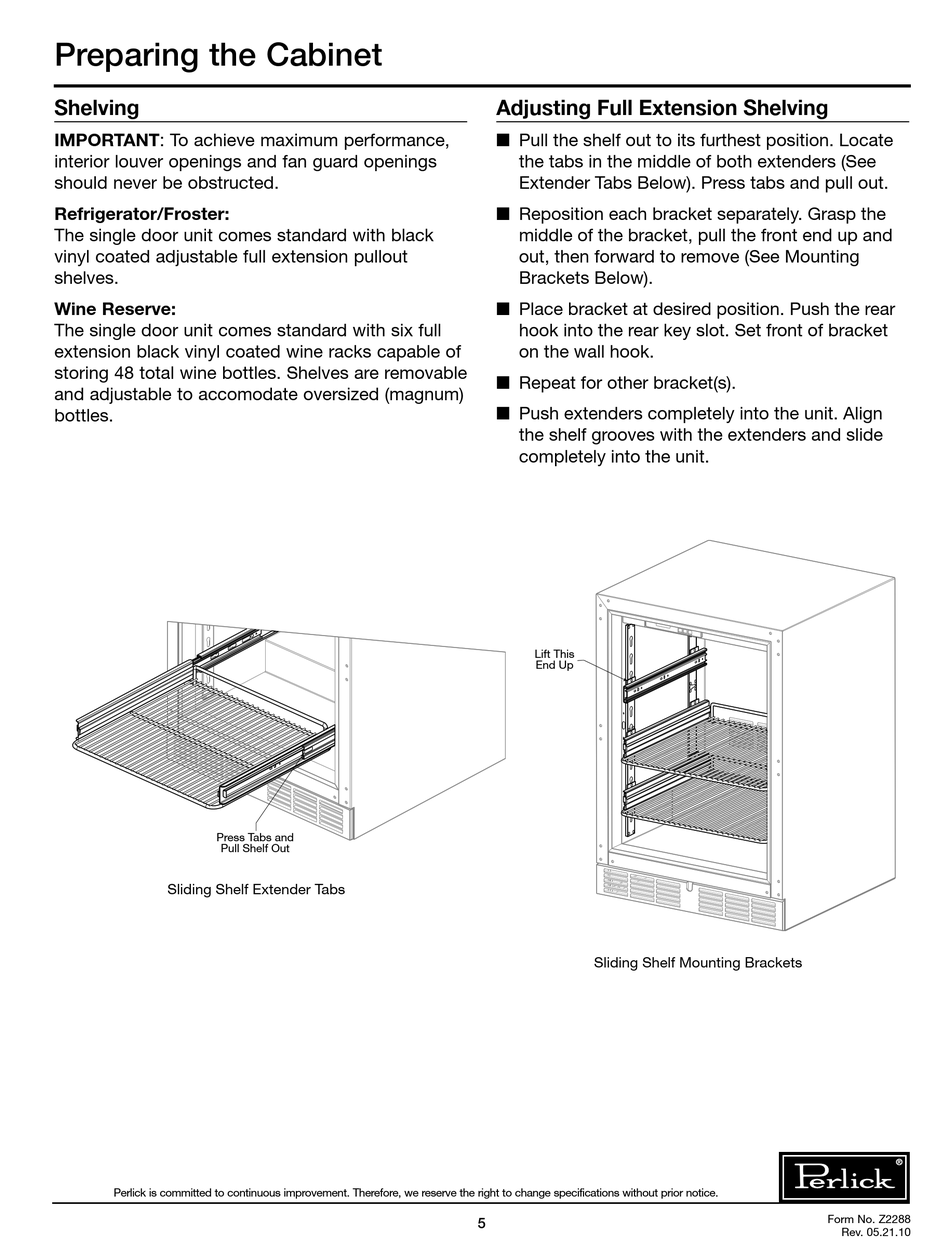

Preparing the Cabinet
Shelving
ImPORTANT: To achieve maximum performance,
interior louver openings and fan guard openings
should never be obstructed.
Refrigerator/Froster:
The single door unit comes standard with black
vinyl coated adjustable full extension pullout
shelves.
Wine Reserve:
The single door unit comes standard with six full
extension black vinyl coated wine racks capable of
storing 48 total wine bottles. Shelves are removable
and adjustable to accomodate oversized (magnum)
bottles.
Press Tabs and
Pull Shelf Out
Sliding Shelf Extender Tabs
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Adjusting Full Extension Shelving
n Pull the shelf out to its furthest position. Locate
the tabs in the middle of both extenders (See
Extender Tabs Below). Press tabs and pull out.
n Reposition each bracket separately. Grasp the
middle of the bracket, pull the front end up and
out, then forward to remove (See Mounting
Brackets Below).
n Place bracket at desired position. Push the rear
hook into the rear key slot. Set front of bracket
on the wall hook.
n Repeat for other bracket(s).
n Push extenders completely into the unit. Align
the shelf grooves with the extenders and slide
completely into the unit.
Lift This
End Up
Sliding Shelf Mounting Brackets
5
Form No. Z2288
Rev. 05.21.10
