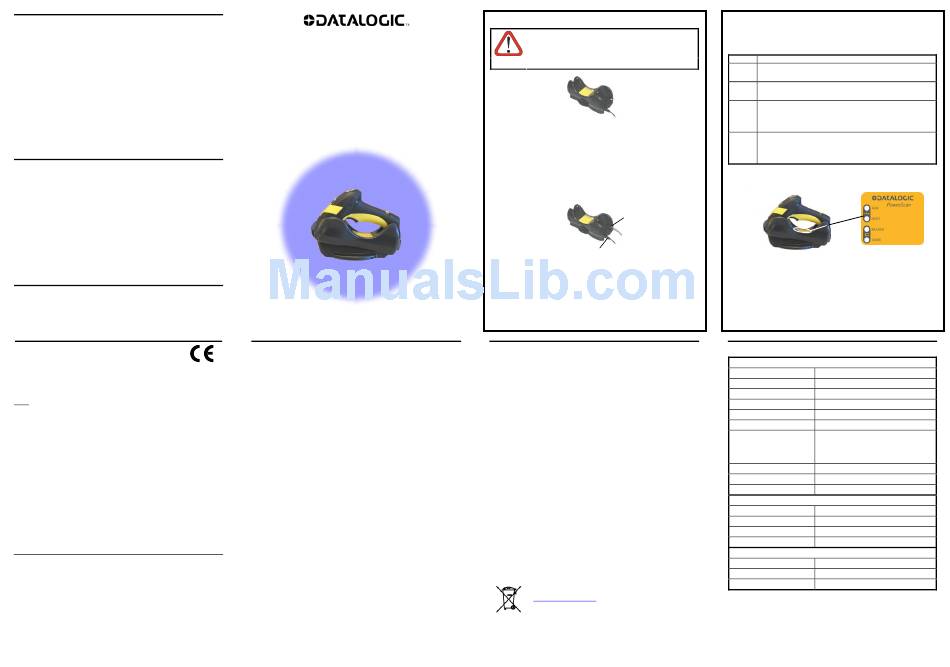

C-8000

BATTERY CHARGER

QUICK REFERENCE GUIDE
820002080 (Rev. A)
UPDATES AND LANGUAGE AVAILABILITY
07
UK/US
The latest drivers and documentation updates for this product are available on
Internet.
Log on to: www.scanning.datalogic.com
I
Su Internet sono disponibili le versioni aggiornate di driver e documentazione di
questo prodotto. Questo manuale è disponibile anche nella versione italiana.
Collegarsi a: www.scanning.datalogic.com
F
Les versions mises à jour de drivers et documentation de ce produit sont
disponibles sur Internet. Ce manuel est aussi disponible en version française.
Cliquez sur : www.scanning.datalogic.com
D
Im Internet finden Sie die aktuellsten Versionen der Treiber und Dokumentation für
dieses Produkt. Die deutschsprachige Version dieses Handbuches ist auch
verfügbar.
Adresse : www.scanning.datalogic.com
E
En Internet están disponibles las versiones actualizadas de los drivers y
documentación de este producto. También está disponible la versión en español
de este manual.
Dirección Internet : www.scanning.datalogic.com
MMUNITY FOR
SYSTEM CONNECTIONS
Connections should always be made with power off!
CAUTION
Apply power to C-8000 by connecting a power supply unit to the connector on the
rear panel of the battery charger. C-8000 is ready to charge PowerScan
laser readers.
SERIAL CONFIGURATION OPTIONS
In addition to the battery charge function, C-8000 can be connected to a PC by
means of an RS-232/USB interface to send new configuration strings from the PC
to the scanner, to upgrade application software onto the PowerScan
reader or optionally when performing the copy configuration procedure.
RS-232/USB
Power Supply
To proceed with these operations, connect an RS-232 or USB cable between
C-8000 and the PC. Connect the power supply to C-8000. Insert the
®
PowerScan M8300 reader into the battery charger.
12/07
COMPLIANCE
This device must be opened by qualified personnel only.
POWER SUPPLY
This device is intended to be supplied by a UL Listed/CSA Certified Power Unit
marked "Class 2" or LPS power source rated 10-30 V DC, minimum 1 A, which
supplies power directly to the device.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval
of Datalogic could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference which
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WEEE COMPLIANCE
For information about the disposal of Waste Electrical and Electronic
Equipment (WEEE), please refer
www.scanning.datalogic.com.
USING C-8000 BATTERY CHARGER
C-8000 is a battery charger for PowerScan
The LEDs signal the C-8000 status, as described in the following table:
LED
Aux Yellow On = C-8000 is powered through an external power supply.
Yellow Blinking = C-8000 transmission occurs over the Host port.
Host Yellow On = C-8000 is powered by the Host.
Yellow Blinking = C-8000 transmission occurs over the Host port.
Reader Green On = the reader battery is completely charged.
Red On = the reader battery is charging.
Orange Blinking = reader battery fault – replace battery.
Red / Green Alternatively Blinking = charging error – see Ref. Manual
®
M8300
Spare* Green On = the spare battery is completely charged.
Red On = the spare battery is charging.
Orange Blinking = spare battery fault – replace battery.
Red / Green Alternatively Blinking = charging error – see Ref. Manual
•
This LED refers to the accessory SBS-8000 Spare Battery Slot when mounted to the
C-8000.
®
M8300
Interface
Connector
Figure 1 – C-8000 Overview
TECHNICAL FEATURES
Electrical Features
Supply voltage
External Power
Host Power
Power consumption
External Power
Host Power
Indicators
Time of recharge
External Power
Host Power
Environmental Features
Working temperature
Storage temperature
Humidity
Protection Class
Mechanical Features
Weight
Dimensions
Material
to the website at
* Having a switching regulator inside, the C-8000 draws the same power,
regardless of the supply voltage. i.e. as the input voltage increases the
current drawn decreases.
®
M8300 laser readers.
STATUS
Figure 2 – C-8000 LEDs
10..30 VDC
5 VDC ±10%
max. 10 W (charging) *
max. 500 mA (charging)
Ext. Power/Data yellow LED
USB power/data yellow LED
Reader batt. state green/red LED
Spare batt. state green/red LED
beeper
max. 4 hours with 2150 mAh Li-Ion battery
max. 10 hours with 2150 mAh Li-Ion battery
0° to +40 °C / +32° to +104 °F
-20° to +70 °C / -4° to +158 °F
90 % non condensing
IP40
about 380 g. / 13.4 oz
204 x 108 x 95 mm / 9.44 x 4.25 x 3.74 in
ABS
