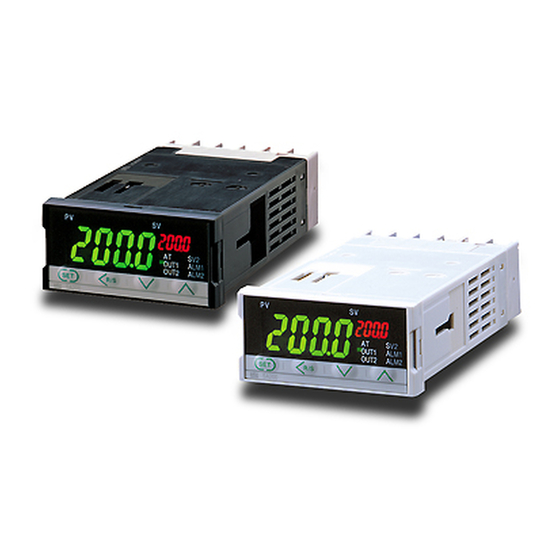

Temperature Controller
SA200
Initial Setting Manual
IMR01D03-E3
RKC INSTRUMENT INC.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RKC INSTRUMENT SA200

Summary of Contents for RKC INSTRUMENT SA200

  • Page 1 Temperature Controller SA200 Initial Setting Manual IMR01D03-E3 RKC INSTRUMENT INC. ®...
  • Page 2 All Rights Reserved, Copyright  1999, RKC INSTRUMENT INC.
  • Page 3 Thank you for purchasing the RKC instrument. In order to achieve maximum performance and ensure proper operation of your new instrument, carefully read all the instructions in this manual. Please place this manual in a convenient location for easy reference.
  • Page 4 CAUTION ! This is a Class A instrument. In a domestic environment, this instrument may cause radio interference, in which case the user may be required to take adequate measures. ! This instrument is protected from electric shock by reinforced insulation. Provide reinforced insulation between the wire for the input signal and the wires for instrument power supply, source of power and loads.

  • Page 5: Table Of Contents

    CONTENTS Page 1. MODE TRANSFER..............1 1. 1 Transfer to Engineering Mode .................1 1.2 End of Engineering Mode ................3 2. SETTING ................4 2.1 Display Flowcharts in Mode................4 2.2 Example of Changing the etting ..............5 2.3 Attention Items in Setting ................7 2.4 Details of Each Function Block..............12 2.4.1 F10 (Setting for display screen)................12 2.4.2 F21 (Setting for input) ..................14 2.4.3 F30 (Setting for output)..................21...
  • Page 6 MEMO IMR01D03-E3...

  • Page 7: Mode Transfer

    2. Press the SET key for two seconds change the instrument to parameter setting mode. For details on parameter setting mode, see SA200 Instruction Manual (IMR01D01-E!). 3. Press the SET key to change to the set data lock function display (LCK).
  • Page 8 OUT1 ALM1 OUT2 ALM2 OUT2 ALM2 SA200 SA200 Set data lock function display AL1 setting display The parameter to be displayed varies depending on the specification. 7. Press the SET key for two seconds to change to the PV/SV display mode.

  • Page 9: End Of Engineering Mode

    6. Press the DOWN key to set the numeric value corresponding to the thousands digit to 0 from 1. ALM1 OUT1 ALM2 OUT2 SA200 Set data lock function display 7. Press the SET key to transfer to the next parameter. As a result, the engineering mode lock state setting becomes effective. OUT1...

  • Page 10: Setting

    2. SETTING 2.1 Display Flowcharts in Mode Display flowcharts in engineering mode are shown in the following. For the details of engineering mode selection, see 1.1 Transfer to Engineering Mode (P. 1). Display flowcharts "# Parameter setting mode PV/SV display mode Press the SET key (Press the <R/S key for 1 second) for 2 seconds...

  • Page 11: Example Of Changing The Setting

    1. Change the instrument to the function block symbol display. See 1.1 Transfer to Engineering Mode (P. 1). OUT1 ALM1 OUT2 ALM2 SA200 Function block symbol display 2. As InP belongs to the F21, press the UP key to change the display from F10 to F21. OUT1 ALM1 OUT1...

  • Page 12: Input Type

    2. SETTING 4. Press the UP key to enter 1 in the units digit of the set value (SV) display. SA200 Input type selection InP (Input type selection) Set value Input type SA200 Input type selection 5. Press the SET key to change to the next parameter. Thus, the set value is registered.

  • Page 13: Attention Items In Setting

    2. SETTING 2.3 Attention Items in Setting If any of the following settings is changed, the relevant set value is initialized or is automatically converted. Before changing the set values, always record all of them (SV setting mode, parameter setting mode and engineering mode). After changing the set values, always check all of them (SV setting mode, parameter setting mode and engineering mode).
  • Page 14 2. SETTING Continued from the previous page. Default value Mode Description Temperature Voltage/current input inputs Analog output scale high (AHS) Maximum settable 100.0 value Analog output scale low (ALS) Minimum settable value Parameter setting 0 °C Setting change rate limiter [up] mode (SVrU) 0 °C...
  • Page 15 2. SETTING !" !" When the setting limiter is changed !" !" If the setting limiter [high limit] (SLH) or setting limiter [low limit] (SLL) is changed as follows, the related set values are changed. (See Table 1) Only for temperature input: •...
  • Page 16 2. SETTING !" When the position of the decimal point is changed The set value is automatically converted. • After the position of the decimal point is changed, conduct automatic conversion so that the following values may not be changed. Engineering mode: Setting limiter [high limit] (SLH) Setting limiter [low limit] (SLL)
  • Page 17 2. SETTING !" !" !" !" When the type of alarm is changed The set value is initialized. Default value Mode Description Temperature Voltage/current input inputs Alarm 1 hold action selection 0 (Without alarm hold action) 2 °C or 2.0 °C Alarm 1 differential gap 0.2 % of span Alarm 1 process abnormality action...

  • Page 18: Details Of Each Function Block

    2. SETTING 2.4 Details of Each Function Block 2.4.1 F10 (Setting for display screen) (1) SPCH (STOP display screen selection) Factory set value: 0000 Set value Description STOP is displayed on the PV display unit. (TYPE 1) STOP is displayed on the SV display unit. (TYPE 2) No selection from RUN to STOP by the front key can be made.
  • Page 19 2. SETTING (3) MVd (MV display selection) For the SA200 Z-1045 specification, always set “1: MV display provided.” Factory set value: 0000 Set value Description MV display not provided MV display provided “000!” Fixed IMR01D03-E3...

  • Page 20: F21 (Setting For Input)

    2. SETTING 2.4.2 F21 (Setting for input) (1) InP (Input type selection) Factory set value varies depending on the input type. Set value Input type Thermocouple (TC) W5Re/W26Re PL II Pt100 JPt100 0 to 5 V DC 1 to 5 V DC Voltage input 0 to 10 V DC 1, 2...
  • Page 21 2. SETTING (2) UnIT (Display Unit selection) Factory set value: 0000 Set value Description °C °F “000!” Fixed The invalidity in case of the voltage/current inputs. See 2.3 Attention Items in Setting (P. 7). (3) PGdP (Decimal point position setting) Factory set value varies depending on the instrument specification.
  • Page 22 2. SETTING (4) SLH (Setting limiter [high limit]) Factory set value varies depending on the instrument specification. Input type Setting range -199 to +1372 °C (-326 to +2502 °F) -199.9 to +999.9 °C (-199.9 to +999.9 °F) -199 to +1200 °C (-326 to +2192 °F) -199.9 to +999.9 °C (-199.9 to +999.9 °F) 0 to 1769 °C (0 to 3216 °F) 0 to 1769 °C (0 to 3216 °F)
  • Page 23 2. SETTING (5) SLL (Setting limiter [low limit]) Factory set value varies depending on the instrument specification. Input type Setting range -199 to +1372 °C (-326 to +2502 °F) -199.9 to +999.9 °C (-199.9 to +999.9 °F) -199 to +1200 °C (-326 to +2192 °F) -199.9 to +999.9 °C (-199.9 to +999.9 °F) 0 to 1769 °C (0 to 3216 °F) 0 to 1769 °C (0 to 3216 °F)
  • Page 24 2. SETTING "# "# Input range table "# "# Type Input range Code Type Input range Code 0 to 200 °C 0.0 to 200.0 °C 0 to 400 °C 0.0 to 600.0 °C 0 to 600 °C -199.9 to +600.0 °C 0 to 800 °C 0 to 800 °F 0 to 1000 °C...
  • Page 25 2. SETTING Continued from the previous page. Type Input range Code Type Input range Code -199.9 to +400.0 °C * -199.9 to +600.0 °C * -199.9 to +100.0 °C * -199.9 to +100.0 °C * -100.0 to +200.0 °C 0.0 to 400.0 °C 0.0 to 350.0 °C -199.9 to +999.9 °F * -199.9 to +752.0 °F *...
  • Page 26 2. SETTING Type Input range Code -199.9 to +649.0 °C -199.9 to +200.0 °C -100.0 to +50.0 °C -100.0 to +100.0 °C -100.0 to +200.0 °C 0.0 to 50.0 °C 0.0 to 100.0 °C 0.0 to 200.0 °C 0.0 to 300.0 °C 0.0 to 500.0 °C Pt100 (JIS/IEC) -199.9 to +999.9 °F...

  • Page 27: F30 (Setting For Output)

    2. SETTING 2.4.3 F30 (Setting for output) (1) LoGC (Output logic operation selection) Match the setting with the instrument specification. Otherwise malfunction may result. No heat-side or cool-side proportional cycle (T or t) corresponding to a parameter setting mode made may not be displayed depending on the selected output allocation code. •...
  • Page 28 2. SETTING Continued from the previous page. Factory set value varies depending on the instrument specification. Logic circuit OUT1 OUT2 Remarks number Alarm 1 output Alarm 2 output Alarm 1+Alarm 2 (Energized) (Energized) (The PID operation can choose Alarm 1 Alarm 2 output only F type.) (Energized)

  • Page 29: F41 (Setting For Alarm 1)

    2. SETTING 2.4.4 F41 (Setting for alarm 1) (1) AS1 (Alarm 1 type selection) Factory set value varies depending on the instrument specification. Set value Description Alarm not provided SV high alarm SV low alarm Process high alarm Process low alarm Deviation high alarm Deviation low alarm Deviation high/low alarm...
  • Page 30 2. SETTING (3) AH1 (Alarm 1 differential gap setting) Setting range: TC and RTD inputs, Voltage/current inputs: 0 (0.0) to span Factory set value: 2 °C [°F] or 2.0 °C [°F] TC and RTD inputs: Voltage/current inputs: 0.2 % of span See 2.3 Attention Items in Setting (P.

  • Page 31: F42 (Setting For Alarm 2)

    2. SETTING 2.4.5 F42 (Setting for alarm 2) (1) AS2 (Alarm 2 type selection) Factory set value varies depending on the instrument specification. Set value Description Alarm not provided SV high alarm SV low alarm Process high alarm Process low alarm Deviation high alarm Deviation low alarm Deviation high/low alarm...
  • Page 32 2. SETTING (3) AH2 (Alarm 2 differential gap setting) Setting range: TC and RTD inputs, Voltage/current inputs: 0 (0.0) to span Factory set value: 2 °C [°F] or 2.0 °C [°F] TC and RTD inputs: Voltage/current inputs: 0.2 % of span See 2.3 Attention Items in Setting (P.

  • Page 33: F51 (Setting For Control Action)

    2. SETTING 2.4.6 F51 (Setting for control action) (1) oS1 (Control action type selection) Match the setting with the instrument specification. Otherwise malfunction may result. Factory set value varies depending on the instrument specification. Set value Description D type: PID action with autotuning (Direct action) F type: PID action with autotuning (Reverse action) W type: Heat/cool PID action with autotuning (Water cooling) A type: Heat/cool PID action with autotuning (Air cooling)

  • Page 34: F71 (Setting Change Rate Limiter Setting)

    2. SETTING 2.4.8 F71 (Setting change rate limiter setting) (1) SVrS (Setting change rate limiter Used/Unused) For the SA200 Z-1045 specification, always set “1: Used.” Factory set value: 0000 Set value Description Unused Used “000!” Fixed (2) SVrT (Setting change rate limiter time) If the “Setting change rate limiter time Used”...

  • Page 35: Initialize Communication Data

    INITIALIZE COMMUNICATION DATA !" !" RKC standard protocol !" !" The number of digits for data is 6. For details on the structure of communication data, see SA200 Communication Instruction Manual (IMR01D02-E# # # # ). Name Iden- Description Factory...
  • Page 36 3. INITIALIZE COMMUNICATION DATA Continued from the previous page. Name Iden- Description Factory Attrib tifier set value -ute Alarm 1 hold action (AHo1) 0: Without alarm hold action Note 1 1: To wait only when STOP changes to RUN at power on. 2: To wait again when STOP changes to RUN at power on or set value (SV) is changed.

  • Page 37: Modbus Communication Protocol

    3. INITIALIZE COMMUNICATION DATA !" !" MODBUS communication protocol !" !" For details on the structure of communication data, see SA200 Communication Instruction Manual (IMR01D02-E# # # # ). Name Address Description Factory Attrib set value -ute STOP display screen 0: It makes display “STOP”...
  • Page 38 3. INITIALIZE COMMUNICATION DATA Continued from the previous page. Name Address Description Factory Attrib set value -ute Alarm 1 hold action 0: Without alarm hold action Note 1 (AHo1) 1: To wait only when STOP changes to RUN at power on. 2: To wait again when STOP changes to RUN at power on or set value (SV) is changed.
  • Page 39 The first edition: NOV.1999 The third edition: OCT.2000...
  • Page 40 RKC INSTRUMENT INC. HEADQUARTERS: 16-6, KUGAHARA 5-CHOME, OHTA-KU TOKYO 146-8515 JAPAN PHONE: 03-3751-9799 (+81 3 3751 9799) E-mail: info@rkcinst.co.jp FAX: 03-3751-8585 (+81 3 3751 8585) IMR01D03-E3 OCT.2000...
