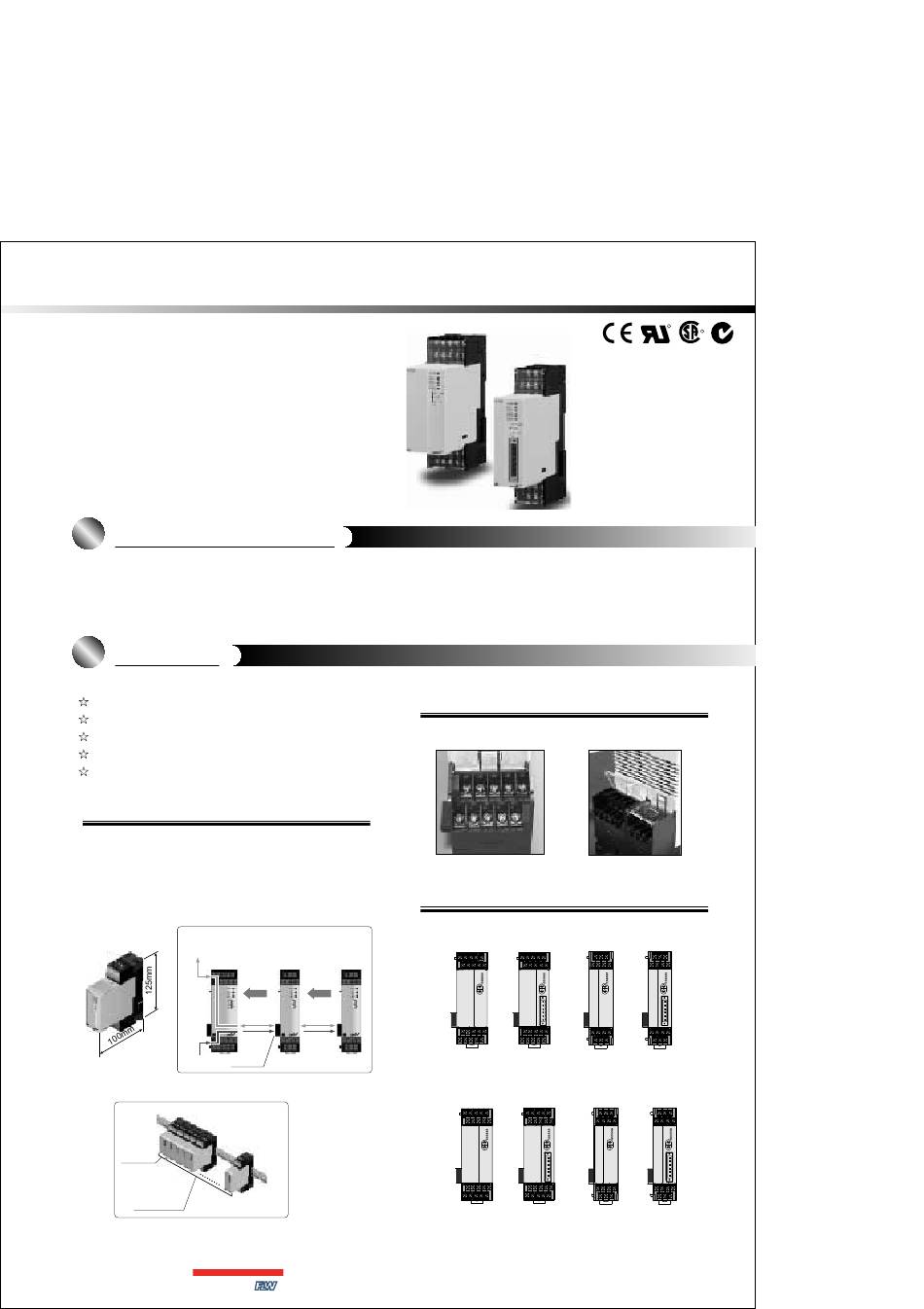

SRV
General Description

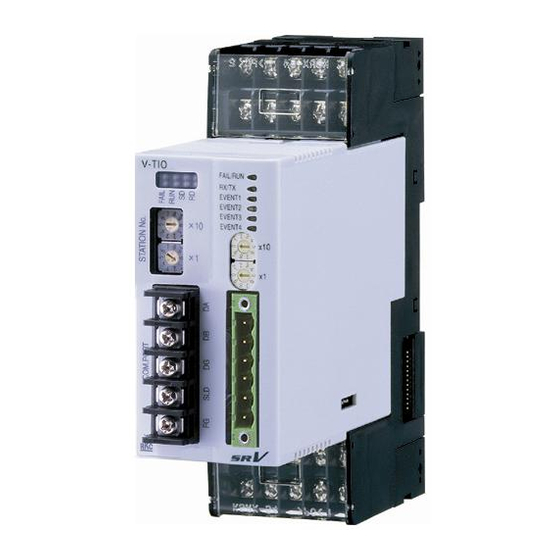

The SRV is a DIN rail mounted module type temperature controller. Dual loop control can be performed with a single compact module. A
maximum of 31 modules can be connected for 62-loop control. Power supply and communication lines are via a connector on the side, no wiring
required. Distributed installation via RS-485 is possible, enabling multi-zone distributed control system in a compact size.
Features
Multi-zone space-saving and less wiring
Safe, and easy to use
Heat / Cool action
Heater/ Loop break alarms
DIN rail mounting
Space-Saving and Less Wiring
Dual loop control can be performed with a single compact
module.
Separated installation by control zones is possible. Wiring to
sensors and output devices is minimized.
Modules can be installed separately inside a control panel or a
machine to reduce the physical size of the housing.
Communication
Power supply
Up to 31 modules can be connected
Basic type
Extension type
www.rkc-usa.com
Distributed By
SRV_01E
Module type Digital Temperature Controller
Connection of extension can be connected.
(RS-485)
Basic type
Extension type
Extension type
X-TIO
V-TIO
V-TIO
Communication
Communication
(RS-485)
(RS-485)
Power supply
Power supply
(DC 24V)
(DC 24V)
Connector
(DC 24V)
K
R
C
(800) 576 - 6308
Inc,
Safe, and Easy to Use
Interleave terminal arrangement
Hinged terminal cover is supplied
as standard.
for easy wiring.
Module Configuration
Temperature Control Module
Temperature Control Module
(Basic Type)
V-TIO-A
(With Digital input/output)
Heat/Cool type
Heat/Cool type
Temperature Control Module
Temperature Control Module
(Basic Type)
V-TIO-C
(With Digital input/output)
V-TIO-A and V-TIO-B (or V-TIO-C and V-TIO-D) have similar control functions and
specifications.
V-TIO-A and V-TIO-B can accept maximum of two inputs.
(A single input only for V-TIO-C and V-TIO-D).
SRV
R
R
(Extension Type)
V-TIO-B
(With Digital input/output)
(Extension Type)
V-TIO-D
(With Digital input/output)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RKC INSTRUMENT SRV Series

Summary of Contents for RKC INSTRUMENT SRV Series

  • Page 1 Module type Digital Temperature Controller General Description The SRV is a DIN rail mounted module type temperature controller. Dual loop control can be performed with a single compact module. A maximum of 31 modules can be connected for 62-loop control. Power supply and communication lines are via a connector on the side, no wiring required.

  • Page 2: Specifications

    Module type Digital Temperature Controller Specifications Output limiter : -5.0 to +105.0% (High/Low individual setting) Input Proportional cycle time : 1 to 100 sec. (Heat/Cool individual setting) Other setting : Auto/Manual selectable Number of inputs Control Output 2 points (V-TIO-A/B) Relay output : Form A contact, 250V AC 3A (resistive load) 1 point (V-TIO-C/D)

  • Page 3: General Specifications

    Module type Digital Temperature Controller Specifications General Specifications Net Weight V-TIO-A/C, With event input/output : 210g V-TIO-A/C, Without event input/output : 180g Supply Voltage V-TIO-B/D, With event input/output : 200g 21.6 to 26.4V DC (Ripple rate 10% p-p or less) [ Rating : 24V DC ] V-TIO-B/D, Without event input/output : 170g Power Consumption External Dimensions...
  • Page 4 Module type Digital Temperature Controller Model and Suffix Code Temperature Control Module Specifications Model and Suffix Code Model V-TIO Basic type Type Extension type PID control with AT (reverse action) Control method PID control with AT (direct action) See Range and Input Code Table (Common to CH1 and CH2) Measured input Relay output Voltage pulse...
  • Page 5 Module type Digital Temperature Controller Model and Suffix Code Range and Input Code Table Thermocouple and Low voltage group (Field-programmable) RTD group (Field-programmable) Input Code Range Input Code Range Input Code Range 400°C 1800°C 400°C 800°C 3272°F 850°C -200 1372°C 800°C 400.0°C 400.0°C...
  • Page 6 Module type Digital Temperature Controller External Dimensions and Rear Terminals (Unit:mm) Mounting brackets Extension Module Basic Module : KSRX-55 (*) ± ± 3.5 (M3) 35.25 ø V-TIO-A,V-TIO-C V-TIO-B,V-TIO-D 40.5 * Each module is supplied with one mounting bracket as a joint. Additional mounting brackets (KSRX-55) must be ordered separately.
