CHAT

150 Group Speaker Phone

™

QUICK START GUIDE

Need help?

Do you have a question about the CHAT 150 and is the answer not in the manual?

Questions and answers

Summary of Contents for ClearOne CHAT 150

Page 1: Quick Start Guide
QUICK START GUIDE Caution: Read the Safety Information in the instruction manual TECHNICAL SUPPORT 1.800.283.5936 TELEPHONE 1.801.974.3760 1.801.974.3669 tech.support@clearone.com EMAIL © 2007 ClearOne Communications, Inc. All rights reserved. Information in this document is subject to change without notice. 800-156-202 Rev. 1.2.
Page 2 To use your Chat 150 with telephone or video conferencing device and a Connecting Chat 150 to a PC ......28 computer at the same time, use the following procedure: 1.

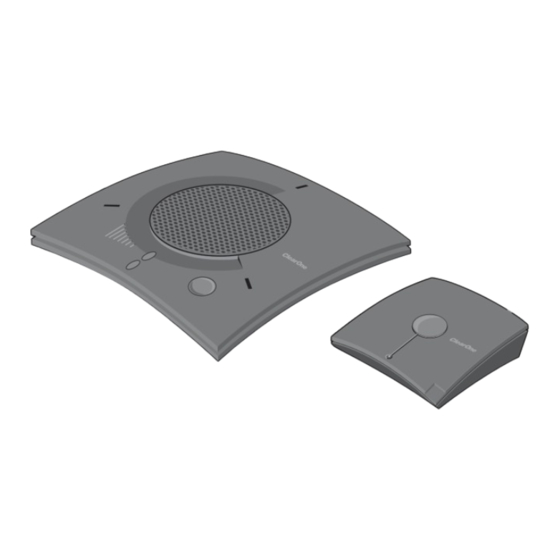

Page 3 QUICK START GUIDE CONNECTING CHAT 150 TO A TELEPHONE Perform the following steps to connect your Chat 150 to a telephone: 1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable, connect the Chat 150 Phone Breakout Box to your Chat 150 as...
Page 4 DO NOT plug the cable into the telephone’s line jack, handset jack, or to phones other than those listed on your Chat 150 package labeling. Damage to the telephone and/or Chat 150...
Page 5 150 Group Speaker Phone QUICK START GUIDE 3. If you have a headset that you typically use with your telephone, connect it to the headset jack on the Chat 150 Phone Breakout Box as shown in the picture to the right.
Page 6 CHAT 150 Group Speaker Phone QUICK START GUIDE 4. Slide the correct power supply clip for your country into the included power supply as shown in the picture to the right. The power supply may contain a plastic shield that must be removed before inserting the clip.
Page 7 6. The blue LED indicators on the Chat 150 illuminate, indicating that the Chat 150 has power. 7. Install the Chat software and configure the Chat 150 for use with your telephone by clicking on Device Setup. See the Connecting Chat 150 to a PC section of this manual for quick instructions.
Page 8 Use the Mute button to mute the Chat 150’s microphone until the Mute 150 microphone mute function is active. button is pressed again. If you are using the Chat 150 with a PC, you can The seven volume LED indicators illuminate blue to indicate the current also use the Volume Control in Windows, as well as the Chat 150 software volume setting--more lights indicate higher volume.
Page 9 Chat 150 Breakout Box. device settings, which allows you to instantly select and apply optimal This will also disable audio going from the Breakout Box to the Chat 150 - audio settings for supported devices. It also allows you to create cus- it is only routed to the headset.
Page 10 Perform the following steps to connect your Chat 150 to a video conferencing device: 1. Using the included 25’ ClearOne RJ-45 Chat 150 connection cable, connect the Chat 150 VC Breakout Box to your Chat 150 as shown in the picture to the right.
Page 11 2. Using the included 6’ ClearOne RCA audio cables, connect the Chat 150 VC Breakout Box’s audio in port to your video conferencing device’s audio out port, and the Chat 150 VC Breakout Box’s audio out port to your video conferencing device’s audio in port. For more detailed instructions, refer to the Chat 150 User’s Manual.
Page 12 CHAT 150 Group Speaker Phone QUICK START GUIDE 3. Slide the correct power supply clip for your country into the included power supply as shown in the picture to the right. The power supply may contain a plastic shield that must be removed before inserting the clip.
Page 13 5. The blue LED indicators on the Chat 150 illuminate, indicating that the Chat 150 has power. 6. Install the Chat software and configure the Chat 150 for use with your video conferencing device by clicking on Device Setup. See the Connecting Chat 150 to a PC section of this manual for quick instruc- tions.
Page 14 Use the Mute button to mute the Chat 150’s microphone until the Mute 150 microphone mute function is active. button is pressed again. If you are using the Chat 150 with a PC, you can The seven volume LED indicators illuminate blue to indicate the current also use the Speaker Volume Control in Windows, as well as the Chat 150 volume setting--more lights indicate higher volume.
Page 15 CHAT 150 VC BREAKOUT BOX CHAT 150 SOFTWARE Once you have properly connected the Chat 150 VC Breakout Box to your The Chat 150 includes software that has a database of pre-configured video conferencing device and TV using the included RCA Connection...
Page 16 Chat 150 from the product drop-down list. Select the Chat 50/150 Software from the list and download the most current version of the Chat 150 software. For detailed installa- tion instructions, refer to your Chat 150 User’s Manual.
Page 17 CHAT 150 Group Speaker Phone QUICK START GUIDE 2. Using the included USB 2.0 cable, connect the Chat 150 to your PC as shown in the picture to the right.
Page 18 CHAT 150 Group Speaker Phone QUICK START GUIDE 3. Start the Chat 150 configuration software by 4. Click the Device Setup button. double-clicking the ClearOne Chat icon on your desktop.
Page 19 CHAT 150 Group Speaker Phone QUICK START GUIDE 5. Select the type of device you are using with your Chat 150 (see the picture to the right).
Page 20 150 Group Speaker Phone QUICK START GUIDE 6. Select the manufacturer of the device connected to your Chat 150 as shown in the picture to the right. If the manufacturer of your device is not listed, select Generic. (Note that Generic is not an available manu-...
Page 21 CHAT 150 Group Speaker Phone QUICK START GUIDE 7. Select the model for the device as shown in the picture to the right. If the model for the device is not listed, select Generic. (Note that Generic is not an available model under Phone Breakout Box.) Once you select a model, the Add to My Devices and Apply to Chat buttons become active.
Page 22 10. You can now adjust the preconfigured audio settings and save the apply the audio settings for the selected customized device settings using My Devices. Refer to the Chat 150 device to your Chat 150. User’s Manual for more information.
