Outdoor Air Conditioner
User's Information and Installation Instructions
13 SEER High Efficiency Split System
These units have been designed and tested for
capacity and efficiency in accordance with A.R.I.
Standards. Split System Heat Pump units are
designed for use with a wide variety of fossil fuel
furnaces, electric furnaces, air handlers, and
evaporator coil combinations.
These instructions are primarily intended to
assist qualified individuals experienced in the
proper installation of heating and/or air
conditioning appliances. Some local codes
require licensed installation/service personnel
for this type of equipment. Read all instructions
carefully before starting the installation.
USER'S INFORMATION
IMPORTANT
Read this owner information to become familiar
with the capabilities and use of your appliance.
Keep this with literature on other appliances
where you have easy access to it in the future.
If a problem occurs, check the instructions and
follow recommendations given.
suggestions don't eliminate your problem, call
your servicing contractor .

OPERATING INSTRUCTIONS

To Operate Your Air Conditioner for
Cooling —
1. Set the thermostat system switch to COOL
or AUTO and the thermostat fan switch to
AUTO. (See Figure 1)
2. Set the thermostat temperature to the
desired temperature level by pressing the
WARMER or COOLER button. Please
refer to the separate detailed thermostat
user's manual for complete instructions
regarding thermostat programming. The
outdoor unit and indoor blower will both
cycle on and off to maintain the indoor
temperature at the desired cooling level.
To Operate Your Furnace for
Heating —
1. Set the thermostat system switch to HEAT
or AUTO and the thermostat fan switch to
AUTO. (See Figure 1)
2. Set the thermostat temperature to the
desired temperature level by pressing the
WARMER or COOLER button. Please
refer to the separate detailed user's manual
for complete thermostat programming
instructions. The furnace and indoor blower
will cycle on and off to maintain the indoor
temperature at the desired heating level.
To Shut Off Your Air Conditioner —
Set the thermostat system switch to OFF and the
thermostat fan switch to AUTO. (See Figure 1)
The system will not operate, regardless of the
thermostat temperature setting.
If these
To Operate the Indoor Blower
Continuously —
Set the thermostat fan switch to ON
Figure 1)
The indoor blower will start immediately, and
will run continually until the fan switch is reset to
AUTO.
FAN SWITCH
TEMPERATURE SCALES

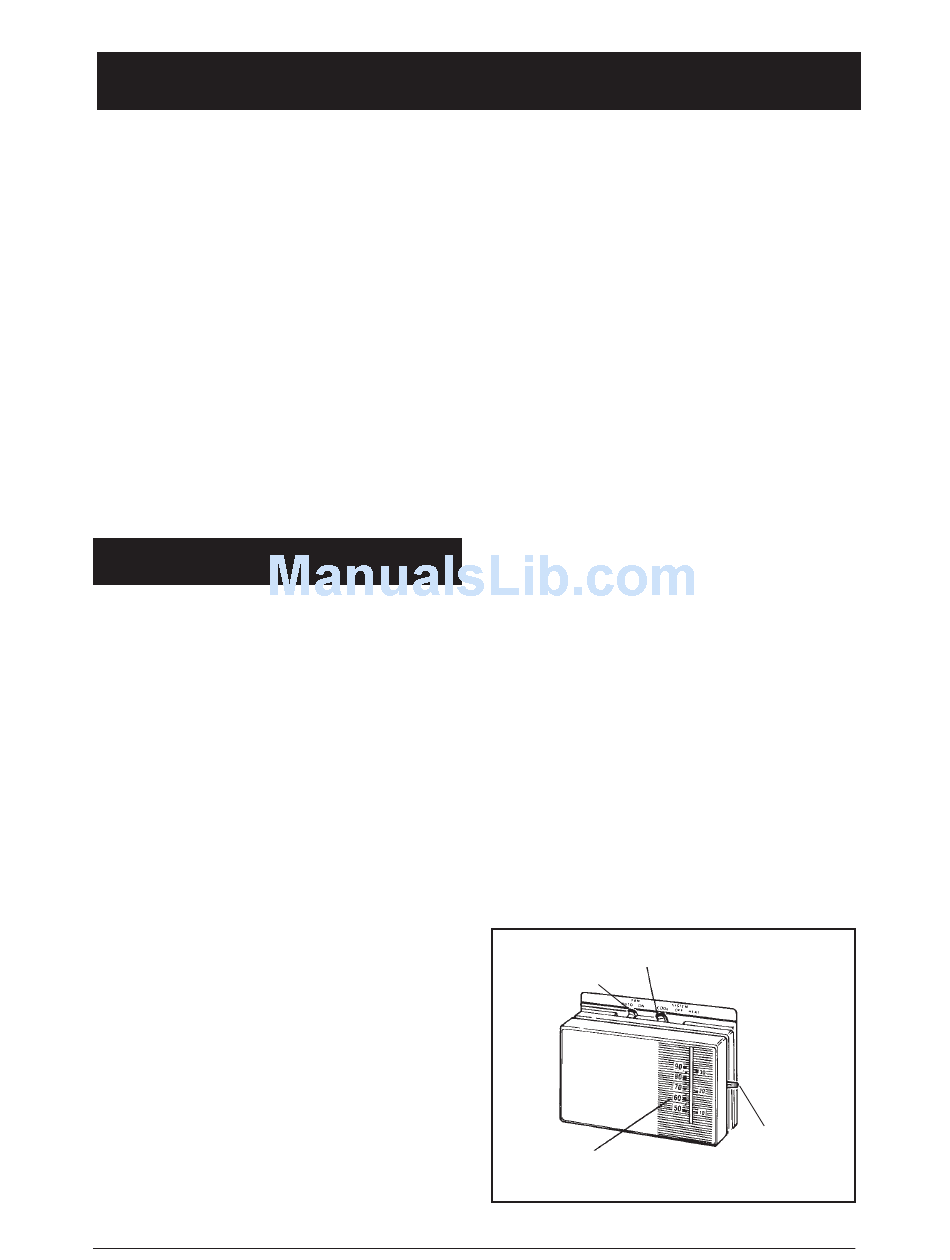

Figure 1. Typical Thermostat
(See
SYSTEM SWITCH
TEMPERATURE
SELECTOR
