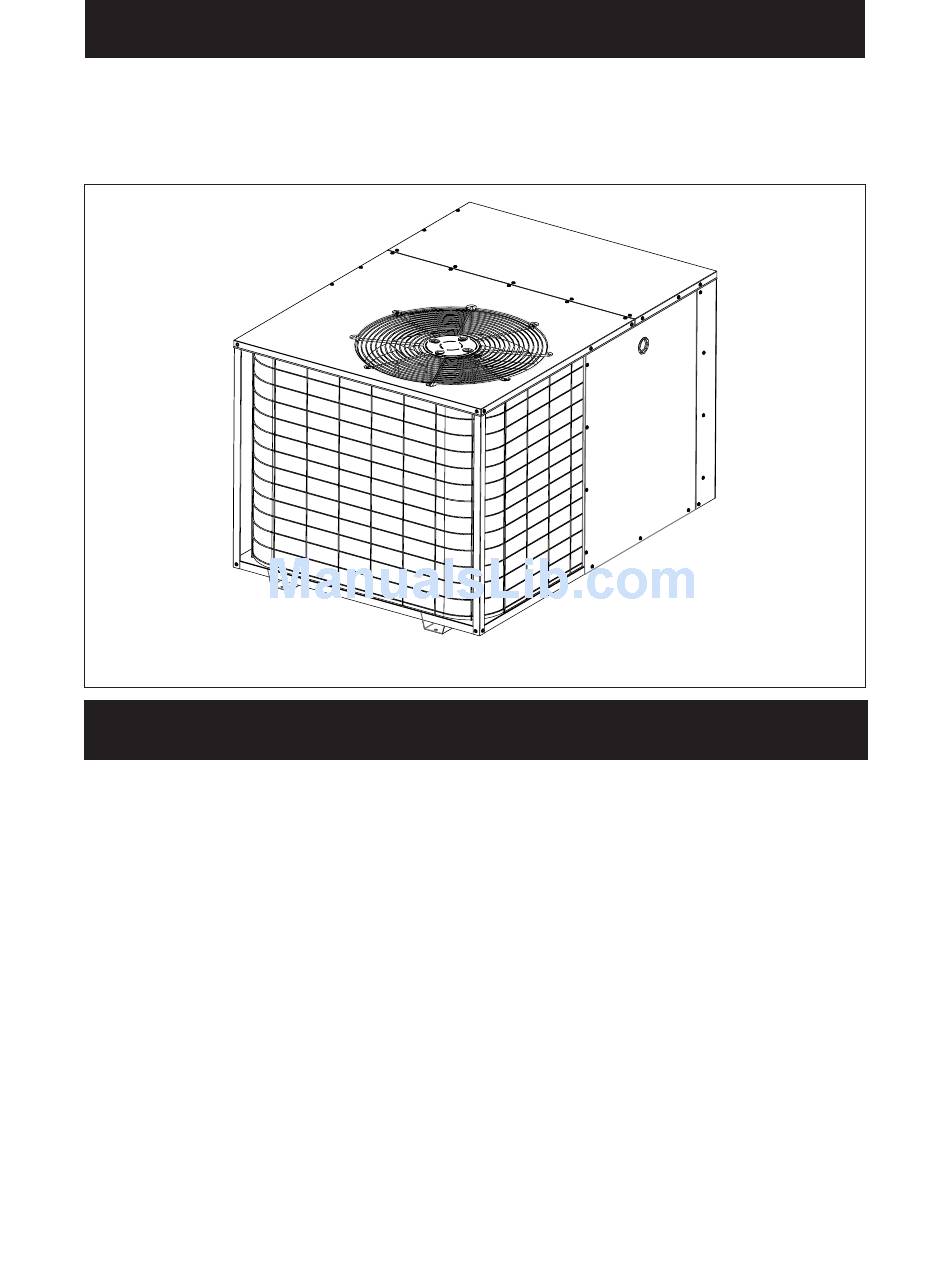

USER'S MANUAL AND INSTALLATION
INSTRUCTIONS
13 SEER
Single Package Air Conditioner
Read this owner information to become familiar with the capabilities and use
of your appliance. Keep this with literature on other appliances where you
have easy access to it in the future. If a problem occurs, check the instructions
and follow recommendations given. If these suggestions don't eliminate your
problem, call your installing contractor or distributor in your area.
INTRODUCTION
Most any air conditioner will keep you cool. Our air conditioner was designed to do
it effi ciently. Effi ciency means less cost to you while keeping you comfortable.
WHY YOUR AIR CONDITIONER WORKS SO WELL, SO QUIETLY
1.
Air is cooled by a large evaporator coil. Moisture is also removed from the air by
this same coil.
2.
Air is then delivered through the main duct, via registers, into your home.
3.
Return air is drawn through the return register.
4.
This air enters the unit, passes through the evaporator coil, is cooled and dehumidi-
fi ed. Then the cycle begins again.
Single Package Air Conditioner
IMPORTANT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13 Seer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nordyne 13 Seer

Summary of Contents for Nordyne 13 Seer

  • Page 1 USER’S MANUAL AND INSTALLATION INSTRUCTIONS 13 SEER Single Package Air Conditioner Single Package Air Conditioner IMPORTANT Read this owner information to become familiar with the capabilities and use of your appliance. Keep this with literature on other appliances where you have easy access to it in the future.

  • Page 2: Section 1. Owner Information

    SECTION 1. make sure it’s working right, clean or change fi lters and make any needed adjustments. OWNER INFORMATION In addition, follow these simple rules: OPERATING INSTRUCTIONS Never run your system without fi lter. If you do, the cooling coils will get dirty and may To Turn On Air Conditioner become clogged.

  • Page 3: Section 2. Installer Information

    SECTION 2. Inspecting Equipment: All units are securely packed at the time of shipment and, upon arrival, INSTALLER INFORMATION should be carefully inspected for damage. Claims for damage (apparent or concealed) should be GENERAL fi led immediately with the carrier. Read the following instructions completely before performing the installation.

  • Page 4: Duct Requirements

    DUCT REQUIREMENTS 6 ft. The supply duct system, including the number and type of registers, will have much more ef- 24" fect on the performance of an air conditioning system then any other factor. The duct must be suffi ciently large to conduct an adequate amount of air to each register.

  • Page 5: Ducting System

    collar over the opening and align the four notches in the collar with the four dimples in the panel. Using self-drilling screws (10-16x.5) attach the collar to the rear panel. LOCATING AND INSTALLING THE RE- TURN AIR ASSEMBLY To avoid complications, locate and install the return air assembly fi...

  • Page 6: Typical Applications

    TYPICAL APPLICATIONS SINGLE DUCT APPLICATION MULTIPLE DUCT APPLICATION Ref. No. Description 12” x 20” Return Air 16” x 20” Air Filter 12” x 20” Grille Supply Damper 14” Diameter Flex Return Duct 12” Diameter Flex Supply Duct 12” x 12” x 12” “Y” Fitting Figure 6.
  • Page 7 CONNECTING THE RETURN AND SUPPLY AIR FLEXIBLE DUCTS The supply duct for all units is 12” in diam- Elbow eter. The return duct is 14” diameter for all air conditioning units. The fl exible ducts can be connected to the corresponding fi...

  • Page 8: Condensate Drain

    Low Voltage Route 24v control wires through the sealing grommet near the power entrance. Connect the control wires to the leads in the low voltage area. (See Figure 10). OVERCURRENT PROTECTION High Voltage In general, the best fuse or breaker for any air conditioner is the smallest size that will permit Low Voltage the equipment to run under normal use and...

  • Page 9: System Operation

    4 Wire Heat/Cool Thermostat 2 Wire Cooling Thermostat Control Wire Legend Single Stage Electric Heat Green - Blower Relay Red - Transformer Yellow - Cooling 1st Stage YELLOW YELLOW Brown - Heating 1st Stage GREEN GREEN Orange - Heating 2nd Stage BROWN BROWN...

  • Page 10: Start-Up Procedure

    Turn on power supply at the disconnect Is the unit installed with the proper clear- switch. ances (See Figure 2)? Set the system switch to ON or COOL. Set the temperature setting to below room Is the wiring correct according to the wiring temperature.
  • Page 11 13 SEER - Charging Charts OUTDOOR TEMPERATURE (°F) Suct. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Press. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.
  • Page 12 13 SEER - Charging Charts - Continued OUTDOOR TEMPERATURE (°F) Suct. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Press. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.
  • Page 13 13 SEER - Charging Charts - Continued OUTDOOR TEMPERATURE (°F) Suct. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Press. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.
  • Page 14 NOTES: 1. Disconnect all power before servicing. 1. Couper le courant avant de faire letretien. 2. For supply connections use copper conductors only. 2. Employez uniquement des conducteurs en cuivre 3. Not suitable on systems that exceed 150 V to ground. 3.
  • Page 15 Packaged Air Conditioner - Single Phase NOTES: 1. Disconnect all power before servicing. 1. Couper le courant avant de faire letretien. Legend 2. For supply connections use copper conductors only. 2. Employez uniquement des conducteurs en cuivre 3. Not suitable on systems that exceed 150 V to ground. 3.

  • Page 16: Installation Instructions

    INSTALLER PLEASE LEAVE THESE INSTALLATION INSTRUCTIONS WITH THE HOMEOWNER. 708548B (Replaces 708548A) ¢708548L¤ Specifi cations and illustrations subject to change without notice and without incurring obligations. O'Fallon, MO 708548B Printed in U.S.A. (01/07)
