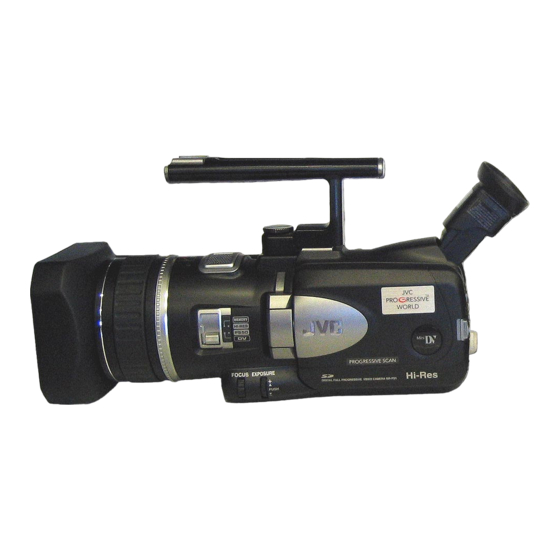

Digital progressive video camera
Table of Contents

Advertisement

DIGITAL PROGRESSIVE
VIDEO CAMERA
GR-PD1
Please visit our Homepage on the World Wide
Web for Digital Video Camera:
http://www.jvc-victor.co.jp/english/cyber/
For Accessories:
http://www.jvc-victor.co.jp/english/accessory/
INSTRUCTIONS
GETTING STARTED
VIDEO RECORDING &
PLAYBACK
DIGITAL STILL CAMERA
(D.S.C.) RECORDING &
PLAYBACK
ADVANCED FEATURES
REFERENCES
TERMS
LYT1193-001A
ENGLISH
10
18
26
33
67
86
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR-PD1 and is the answer not in the manual?

Questions and answers

Summary of Contents for JVC GR-PD1

  • Page 1 DIGITAL PROGRESSIVE VIDEO CAMERA GR-PD1 Please visit our Homepage on the World Wide Web for Digital Video Camera: http://www.jvc-victor.co.jp/english/cyber/ For Accessories: http://www.jvc-victor.co.jp/english/accessory/ INSTRUCTIONS GETTING STARTED VIDEO RECORDING & PLAYBACK DIGITAL STILL CAMERA (D.S.C.) RECORDING & PLAYBACK ADVANCED FEATURES REFERENCES TERMS...
  • Page 2: Safety Precautions

    Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual All major sections are listed in the Table Of Contents on the cover page. Notes appear after most subsections.
  • Page 3: Some Do's And Don'ts On The Safe Use Of Equipment

    However, live recording and LCD monitor/viewfinder playback are possible anywhere. Use the JVC BN-V416U/V428U battery packs and, to recharge them or supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
  • Page 4 When carrying, be sure to always securely attach and use the provided strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.
  • Page 5: Provided Accessories

    NOTES: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.
  • Page 6: How To Attach The Core Filter

    DC cord Small Audio cable Optional (If you have an optional JVC i.LINK cable VC-VDV206U or VC-VDV204U with core filters, it is not necessary to attach the provided core filter. If you are going to use any other i.LINK cable, attach the provided core filter.) ** Attach two core filters to both ends of the cable.
  • Page 7: How To Attach The Lens Cap

    How To Attach The Lens Cap To protect the lens, attach the provided lens cap to the lens hood when camcorder is not in use. NOTE: You cannot attach the lens cap directly to the camcorder.
  • Page 8 How To Use The Audio Cable When using optional headphones or external microphone, connect to the provided audio cable (with a core filter attached), then connect the audio cable to the camcorder. The core filter reduces interference. Headphones Core filter (headphones) Open the connector cover.
  • Page 9: Table Of Contents

    Insert Editing (DV only) ... 59 Random Assemble Editing [R.A.Edit] (DV only) ... 60 SYSTEM CONNECTIONS ... 65 Connection To A Personal Computer ... 65 Using The Camcorder As A WebCam ... 66 REFERENCES DETAILS ... 67 TROUBLESHOOTING ... 68 CAUTIONS ...
  • Page 10: Getting Started

    VU-V856 KIT: BN-V856U battery pack & AA- V80EG or AA-V80EK AC Power Adapter/Charger Read the kit’s instruction manual before using. Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BN-V856U battery packs to the camcorder and supply power directly to the camcorder.
  • Page 11: About Batteries

    If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.
  • Page 12: Grip Adjustment

    Some tripods are not equipped with studs. CAUTION: When attaching the camcorder to a tripod, extend its legs to stabilise the camcorder. It is not advised to use small sized tripods. This may cause damage to the unit by falling over.
  • Page 13: Viewfinder Adjustment

    NOTES: When the viewfinder is pulled out while the LCD monitor is opened, you can select whether you use the LCD monitor and the viewfinder simultaneously or individually. Set “PRIORITY” to the desired mode in SYSTEM Menu. pg. 33, 36) The image on the LCD monitor (or viewfinder) and the image on the TV screen may look differently in terms of the brightness and colour.
  • Page 14: Operation Mode

    Operation Mode To turn on the camcorder, turn the Power Switch to align any operation mode except “OFF” to the Power Lamp while pressing down the Lock Button located on the switch. Power Lamp Power Switch MEMORY Playback Mode Switch...
  • Page 15: Built-In Clock's Rechargeable Lithium Battery

    However, if the camcorder is not used for approx. 3 months, the clock’s lithium battery will become discharged and the date/time stored in memory will be lost. When...
  • Page 16: Loading A Cassette /Unloading A Cassette

    Loading A Cassette /Unloading A Cassette The camcorder needs to be powered up to load or eject a cassette. Erase protection tab PUSH HERE OPEN/EJECT Switch Loosen the grip strap. Slide and hold OPEN/EJECT in the direction of the arrow, then pull the cassette holder cover open until it locks.
  • Page 17: Loading A Memory Card /Unloading A Memory Card

    To load a memory card, firmly insert it with its clipped edge first. To unload a memory card, push it once. After the memory card comes out of the camcorder, pull it out. Do not touch the terminal on the reverse side of the label.
  • Page 18: Video Recording & Playback

    Mode” ( Set the Power Switch to “A” or “M” while pressing down the Lock Button located on the switch. The power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed. To start recording, press the Recording Start/Stop Button.
  • Page 19: Recording Mode

    “MEMORY”. Features for Video Recording Mode Allows you to record on a tape in DV format (576i). The camcorder records signals in the interlace scan mode (half of 625 scanning lines at 1/50th of a second). The image will be recorded in an aspect ratio of 4:3.
  • Page 20: Tape Remaining Time

    Tape Remaining Time Approximate tape remaining time appears on the display. “– h – – m” means the camcorder is calculating the remaining time. When the remaining time reaches 2 minutes, the indication starts blinking. 0h 25 m – h– – m...
  • Page 21: Time Code

    When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The Middle Of A Tape”...
  • Page 22: Video Playback

    • Blocks of noise appear during playback. For details, If Stop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “P”.
  • Page 23: Shuttle Search

    To cancel Blank Search midway, press 8. NOTES: Before starting Blank Search, if the current position is at a blank portion, the camcorder searches in the reverse direction. If the current position is at a recorded portion, the camcorder searches in the forward direction.
  • Page 24: Connections To A Tv Or Vcr

    Connections To A TV Or VCR To Connect A Conventional TV or VCR Connector Cover**** To S/AV S/AV/Editing cable (provided) “Y/C”/“CVBS” Video Out Select Switch To TV or VCR A Not required for connection. B Black to S-VIDEO IN** C Yellow to VIDEO IN D White to AUDIO L IN*** E Red to AUDIO R IN*** If your VCR has a SCART connector, use the...
  • Page 25 Make sure all units are turned off. Connect the camcorder to a TV or VCR as shown in the illustration. If using a VCR, go to step 3. If not, go to step 4. Connect the VCR output to the TV input, referring to your VCR’s instruction manual.
  • Page 26: D.s.c. Recording

    Basic Shooting (D.S.C. Snapshot) You can use your camcorder as a Digital Still Camera for taking snapshots. Still images are stored in the memory card. NOTE: Before continuing, perform the procedures listed below: Power ( pg. 10) Loading A Memory Card (...
  • Page 27: D.s.c. Playback

    These Lock Button thumbnail images cannot be transferred to a PC. Power Switch Images shot with devices (such as JVC GR-DVX7) that are not compatible with DCF cannot be viewed with this camcorder; “UNSUPPORTED FILE!” will be displayed.
  • Page 28: Index Playback Of Files

    Index Playback Of Files You can view several different files stored in the memory card at a time. This browsing capability makes it easy to locate a particular file you want. Perform steps 1 – 4 in “Normal Playback Of Images”...
  • Page 29: Protecting Files

    Protecting Files The Protect mode helps prevent the accidental erasure of files. Rewind Button (3) Playback Mode Switch MENU Wheel Fast-Forward Button (5) Load a memory card. ( pg. 17) Set the Playback Mode Switch to “MEMORY”. Set the Power Switch to “P” while pressing down the Lock Button located on the switch.
  • Page 30: Deleting Files

    CAUTION: Do not remove the memory card or perform any other operation (such as turning off the camcorder) during deletion. Also, be sure to use the provided AC Power Adapter/Charger, as the memory card may be corrupted if the battery becomes exhausted during deletion.
  • Page 31: Resetting The File Name

    DVC00001. Setting Print Information (DPOF Setting) This camcorder is compatible with the DPOF (Digital Print Order Format) standard in order to support future systems such as automatic printing. You can select one of the 2 print information settings for images stored in the memory card: “To Print All...
  • Page 32: Initialising A Memory Card

    EXECUTE CANCEL CAUTION: Do not perform any other operation (such as turning off the camcorder) during initialisation. Also, be sure to use the provided AC Power Adapter/Charger, as the memory card may be corrupted if the battery becomes exhausted during initialisation.
  • Page 33: Advanced Features

    MENUS FOR DETAILED ADJUSTMENT Changing The Menu Settings This camcorder is equipped with an easy-to-use, on- screen menu system that simplifies many of the more detailed camcorder settings. ( Power Switch Playback Mode Switch MENU Wheel For Video and D.S.C. Recording Menus: Set the Power Switch to “M”...
  • Page 34: Aspect Ratio

    It is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder. During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.
  • Page 35: Manual Menu

    To take a snapshot in the 5-second recording mode… Instead of pressing the Recording Start/Stop Button in step 2, press SNAPSHOT. The camcorder records a 5-second still. When “5S” is set to “Anim.”, this function is not available. OFF: Disables 5-Second Recording.
  • Page 36: System Menu

    Wide mode DV WIDE OFF: Records with no change in the screen ratio. For playback on a TV with a normal screen ratio. SQUEEZE* : For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fit the screen without distortion. The indicator appears.
  • Page 37: Camera Display

    Component video output setting When connecting the camcorder to a TV or video unit equipped with component video inputs pg. 24), select the output picture size depending on the connected TV or video unit. Y/Pb/Pr (Factory-preset: 576/50P) 576/50P: Signals are output in progressive scan mode.
  • Page 38: Image Size

    DSC Menu Picture quality The Picture Quality mode can be selected to best match your needs. Two Picture Quality modes are available: FINE ( ) and STANDARD ( of quality). QUALITY FINE / STANDARD NOTE: The number of storable images depends on the selected picture quality as well as the composition of the subjects in the images and the type of memory card being used.
  • Page 39: Playback Menus

    12-bit and 16-bit sound. (In previous models’ functions, “12-bit” is called “32 kHz” and “16-bit” is called “48 kHz”.) The camcorder cannot detect the sound mode in which the recording was made during fast-forward or rewind. During playback the sound mode is displayed in the upper left corner.
  • Page 40: Video Display

    For details, refer to “Brightness Adjustment Of The Display” ( pg. 13). ON SCREEN OFF / LCD / LCD/TV When set to “OFF”, the camcorder’s display disappears. DATE/TIME OFF / AUTO / ON When set to “AUTO”, the date/time are displayed in the following cases: •...
  • Page 41: Features For Recording

    Self-Timer Power Switch Lock Button Once the camcorder is set, the camcorder operator can become part of the scene in a more natural way, adding the final touch to a memorable picture. Set the Power Switch to “M” while pressing down the Lock Button located on the switch.
  • Page 42: Motor Drive Mode

    Press SNAPSHOT. The “O” indication appears and a still image will be recorded for approx. 6 seconds, then the camcorder re-enters the Record- Standby mode. You can perform Snapshot also during recording. A still image will be recorded for approx.
  • Page 43: Iris Lock

    Iris Lock Like the pupil of the human eye, the iris contracts in well-lit environments to keep too much light from entering, and dilates in dim environments to allow in more light. Use this function in the following situations: When shooting a moving subject. When the distance to the subject changes (so its size in the LCD monitor or the viewfinder changes), such as when the subject is backing...
  • Page 44: Manual Shutter Speed Adjustment

    When shooting a subject close to the lens, zoom out first. ( mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This will not occur when “TELE MACRO” is set to “ON”. ( Focus detection zone pg. 79) pg.
  • Page 45: Manual Focus

    Lock Button Power Switch Zoom Ring Manual Focus Ring Manual Focus NOTE: If you are using the viewfinder, you should already have performed “Viewfinder Adjustment” pg. 13). Set the Power Switch to “M” while pressing down the Lock Button located on the switch. Press FOCUS.
  • Page 46: White Balance Adjustment

    The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve a more professional colour/tint reproduction. AUTO: White balance is adjusted automatically.
  • Page 47: Manual White Balance Adjustment

    Manual White Balance Adjustment Adjust the white balance manually when shooting under various types of lighting. Power Switch White paper W.B Button Set the Power Switch to “M” while pressing down the Lock Button located on the switch. Open the LCD monitor fully, or pull out the viewfinder fully.
  • Page 48: Wipe Or Fader Effects

    Wipe Or Fader Effects Wipe/Fader effects let you make pro-style scene transitions. Use them to spice up the transition from one scene to the next. Wipe or Fader works when video recording is started or stopped. Power Switch P.AE Button FADE/WIPE Button MENU Wheel There are 9 types of Fader/Wipe Effects for scene...
  • Page 49: Special Effects

    46) is automatically set to “ ”, but can be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually.
  • Page 50: Navigation Function

    Rotate the MENU Wheel to select the desired image, and press it. The “NAVIGATION SEARCH” indication appears blinking and the camcorder starts searching the tape for the relevant point of the selected thumbnail image. To cancel NAVIGATION search midway...
  • Page 51 CAUTION: Do not remove the memory card or perform any other operation (such as turning off the camcorder) during deletion. Also, be sure to use the provided AC Power Adapter/Charger, as the memory card may be corrupted if the battery becomes exhausted during deletion.
  • Page 52: Dubbing

    It is recommended to use the AC Power Adapter/ Charger as the power supply instead of the battery pack. ( As the camcorder starts to play your footage, it will appear on your TV. This will confirm the connections and the AUX channel for dubbing purposes.
  • Page 53: Dubbing To Or From A Video Unit Equipped With An I.link Connector (Digital Dubbing)

    When using an i.LINK cable, be sure to use the optional JVC VC-VDV204U i.LINK cable. If the remote control is used when both the player and recorder are JVC video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units.
  • Page 54 Dubbing from other devices in MPEG2 format is possible if the connected device is another same model of this unit. Perform step 1 to 4 of “To use this camcorder as a player” ( pg. 53). Set “REC MODE” to “SP” or “LP”. ( Turn on the video unit’s power.
  • Page 55: Dubbing Still Images Recorded On A Tape To A Memory Card

    Dubbing Still Images Recorded On A Tape To A Memory Card Still images can be dubbed from a tape to a memory card. SNAPSHOT Button Playback Mode Switch MENU Wheel Play/Pause Button ( Load a cassette. ( Load a memory card. ( Set the Playback Mode Switch to “VIDEO”.
  • Page 56: Using The Remote Control Unit

    The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. It also makes additional playback functions possible. ( Installing The Batteries The remote control uses two “AAA (R03)” size batteries.
  • Page 57 Zoom Buttons SHIFT Left or SLOW Rewind Button Right or SLOW Forward Button Slow-Motion Playback (DV only) Allows slow-speed search in either direction during video playback. During normal video playback, press SLOW (YI or IU) more than approx. 2 seconds. ●...
  • Page 58: Audio Dubbing (Dv Only)

    Playback Special Effects (DV only) Allows you to add creative effects to the video playback image that was recorded in DV mode. The effects that can be used during playback are CLASSIC FILM, MONOTONE, SEPIA and STROBE. The effects work the same in playback as they did in recording.
  • Page 59: Insert Editing (Dv Only)

    Make sure you only edit recorded areas. If feedback or howling occurs during TV playback, move the camcorder’s microphone away from the TV, or turn down the TV’s volume. If you change from 12-bit to 16-bit in mid-...
  • Page 60: Random Assemble Editing [R.a.edit] (Dv Only)

    SHIFT for this one). You are now ready to try Random Assemble Editing. IMPORTANT: Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions. NOTES: If the VCR’s power does not come on in step 1, try...
  • Page 61: Make Connections

    Y/C signals and uses an S-Video cable. CVBS: When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable. A A JVC VCR equipped with a Remote PAUSE connector… …Connect the editing cable to the Remote PAUSE connector.
  • Page 62 ON/OFF match the total program time exactly. Turning off the camcorder’s power erases all registered Edit-In and Edit-Out points. If you select Sepia or Monotone mode from Special Effects, you cannot use the Dissolve or Black &...
  • Page 63: Automatic Editing To Vcr

    Automatic Editing To VCR VCR REC STBY Rewind the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE (9). Press VCR REC STBY (79), or manually engage the VCR’s Record-Pause mode.
  • Page 64: Adjustment Of Vcr/Camcorder Timing

    Some VCRs make the transition from Record-Pause to Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you have recorded scenes you did not want. For a cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR.
  • Page 65: System Connections

    Charger as the power supply instead of the battery pack. ( pg. 11) Never connect the USB cable and the i.LINK cable simultaneously to the camcorder. Connect only the cable you wish to use to the camcorder. To USB connector USB cable (provided) i.LINK cable (optional) When using an i.LINK cable, be sure to use the...
  • Page 66: Using The Camcorder As A Webcam

    Using The Camcorder As A WebCam This camcorder can be used as a WebCam via USB connection. Connector Cover* To USB USB cable (provided) To USB connector USB-equipped PC When connecting the cable, open the cover. SYSTEM CONNECTIONS (cont.) Make sure all necessary software (provided) are installed in your PC.
  • Page 67: References

    When the Recording Start/Stop button is pressed, it may take a few seconds before actual recording starts. The “T” indicator starts rotating when the camcorder actually starts recording. The time required to calculate and display the remaining tape length, and the accuracy of the calculation, may vary according to the type of tape used.
  • Page 68: Troubleshooting

    If, after following the steps in the chart below, the problem still exists, please consult your nearest JVC dealer. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Charger, etc.) and wait a few minutes;...
  • Page 69 7. The LCD monitor or viewfinder indications blink. 8. Digital Zoom does not work. Video and D.S.C. Playback SYMPTOM 9. Play, Rewind and Fast-Forward functions do not work. 10. The tape is moving, but there is no picture. 11. Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue.
  • Page 70 24. • The Power Switch is set to “A”. 25. • The connected device is not compatible with this camcorder. TROUBLESHOOTING (cont.) CORRECTIVE ACTION 15. • Set Focus to the Auto mode. pg. 44) • Clean the lens and check the focus again.
  • Page 71 27. • The built-in clock’s rechargeable lithium battery is discharged. • The previously set date/time is erased. 28. • The camcorder is not getting power, or some other malfunction exists. 29. • The Power Switch is set to “A”. 30. • Files stored in the memory card are protected.
  • Page 72 41. • Wipe them gently with soft cloth. Wiping strongly can cause damage. ( pg. 79) To clean the viewfinder, please consult your nearest JVC dealer. 42. • Set “TIME CODE” to “ON”. pg. 33, 37, 40) 43. • pg. 75.
  • Page 73 CAN NOT CHANGE RECORDING MODE RECORDING IS STOPPED Appears when you attempt to record signals which are copyguarded or not INVALID DATA! compatible with this camcorder. CAN NOT RECORD COPY PROTECTED CAN NOT RECORD Meaning CONTINUED ON NEXT PAGE pg. 16) pg.
  • Page 74 DISCONNECT i.LINK CABLE, FIRST INVALID DATA! Appears when you attempt to dub signals which are copyguarded or not CAN NOT INPUT compatible with this camcorder through an i.LINK cable. COPY PROTECTED CAN NOT INPUT CAN NOT DECODE VIDEO OR AUDIO A.
  • Page 75 Remove the power supply (battery, etc.) and wait a few minutes for MODE REMOVE AND the indication to clear. When it does, you can resume using the camcorder. If the REATTACH BATTERY indication remains, consult your nearest JVC dealer.
  • Page 76: General Battery Precautions

    General Battery Precautions If the remote control is not functioning even if it is being operated correctly, the batteries are exhausted. Replace them with fresh ones. Use only the following batteries: AAA (R03) size x 2 Please make note of the following rules for battery use.
  • Page 77: Main Unit

    1. To prevent damage to the LCD monitor, DO NOT… ... push it strongly or apply any shocks..place the camcorder with the LCD monitor on the bottom. 2. To prolong service life… ... avoid rubbing it with coarse cloth.
  • Page 78 Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly.
  • Page 79: Cleaning The Camcorder

    USER MAINTENANCE After Use Turn off the camcorder. Loosen the grip strap. Slide and hold OPEN/EJECT in the direction of the arrow, then pull the cassette holder cover open until it locks. The cassette holder opens automatically. Remove the cassette.
  • Page 80: Specifications

    Storage media Compression system File size Picture quality Approximate number of storable images Camcorder DC 6.3 V (Using AC Power Adapter/Charger) DC 7.2 V (Using battery pack) Approx. 6.8 W (DV)/8.0 W (HI-RES, PS50) Approx. 8.5 W (DV)/9.7 W (HI-RES, PS50) 105.5 mm x 99 mm x 241 mm...
  • Page 81: Ac Power Adapter/Charger

    For Connectors S/AV S-Video input S-Video output Video input Video output Audio input Audio output Headphone output Microphone input i.LINK Input/output Y/Pb/Pr output For General Power requirement Power consumption Output Charge Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice.
  • Page 82: Index

    INDEX Controls, Connectors And Indicators...
  • Page 83: Other Parts

    Shoe pg. 45) Attach the provided Handle, optional Stereo Microphone or Video Light. Make sure to turn off pg. 16) the power of the camcorder and the video light or microphone before attaching and removing pg. 14) them. pg. 45)
  • Page 84: Lcd Monitor/Viewfinder Indications

    LCD Monitor/Viewfinder Indications During Video Recording Only 15:55 a Recording Mode Indicator b Navigation Indicator (Appears when “NAVIGATION” is set to other than “MANUAL”.) c Operation Mode Indicator d Selected Wipe/Fader Effect Indicator e Tape Running Indicator (Rotates while tape is running.) f Selected Wide Mode Indicator g Thumbnail Storing Indicator (Appears while the captured image is being...
  • Page 85 j Self-Timer Recording Indicator k O: (Appears when taking Snapshot.) l BRIGHT: Brightness Control Indicator (LCD monitor/Viewfinder) (The level indicator g moves.) m Battery Indicator n Date/Time o Manual Focus Adjustment Indicator ( During Video Playback BLANK SEARCH PUSH "STOP" BUTTON TO CANCEL 1 0 1 a Video Playback Mode Indicator...
  • Page 86: Terms

    (BRIGHT) ...13 Built-in Clock’s Rechargeable Lithium Battery ...15 Changing The Menu Settings ...33 Channels (Left/Right) ...39 Charging The Battery Pack ...10 Cleaning The Camcorder ...79 Clock adjustment (CLOCK ADJ.) ...15 Component video output setting (Y/Pb/Pr) ...24 Connections Charging ...10 Dubbing ... 52 – 55 Random Assemble Editing ...
  • Page 87 Picture Quality (QUALITY) ...38 Playback Mode Switch Position ...14 Playback sound (SOUND MODE, NARRATION) ...39 Playback Special Effects ...58 Playback Zoom ...57 Power Switch Position ...14 Priority Setting (PRIORITY) ...36 Program AE (PROGRAM AE) Snow (SNOW) ...48 Sports (SPORTS) ...48 Spotlight (SPOTLIGHT) ...48 Twilight (TWILIGHT) ...49 Protecting Files (PROTECT) ...29...
  • Page 88 Printed in Japan COPYRIGHT© 2003 VICTOR COMPANY OF JAPAN, LTD. EK/EX 0803-FO-ID-YP...
  • Page 89: How To Handle A Cd-Rom

    Use only the provided CD-ROM. Never use any other CD-ROM to run this software. Do not attempt to modify this software. Changes or modifications not approved by JVC could void user’s authority to operate the equipment. How to handle a CD-ROM Take care not to soil or scratch the mirror surface (opposite to the printed surface).
  • Page 90: Notice For Users

    Use of this software is authorized according to the terms of the software license. When contacting the nearest JVC office or agency in your country about this software (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/worldmap/index-e.html), please fill out the following and have the appropriate information ready.
  • Page 91: System Requirements

    System Requirements For copying still image files to a PC The following requirements must be satisfied to connect the camcorder to a PC using the USB cable, and to copy still image files from the memory card in the camcorder.
  • Page 92 For holding a video conference over the Internet The following requirements must be satisfied to use a camcorder as a web camera for video conference over the Internet. Hardware : Windows Windows Connector : USB connector Software ® Windows Messenger Ver4.6 or later is required. If an old version is installed, download and install the latest version from the web site of Microsoft Corporation.
  • Page 93: Software Installation

    Follow the procedure described below to install the software. From the [Setup] dialog box in step 3, you can install the following software. MPEG Capture Utility This application is used to import MPEG-format video stream from a camcorder, or to export the edited video clip back to the camcorder. Audio converter This application is used to convert audio files into different format.
  • Page 94 (number) and “O” (upper case alphabet). NOTES: The software instruction manual is included on the CD-ROM in PDF format. Double-click the [JVC] folder and then double-click the [Docs] folder. Open the “Start.pdf” file and click the button of the desired ®...
  • Page 95 For the operation on the camcorder, refer to the camcorder’s instruction manuals. USB connection Enables you to copy still image files in a memory card to a PC or to use the camcorder as a web camera for video conference over the Internet.
  • Page 96 It is recommended to use the AC Power Adapter/Charger as the power supply instead of the battery pack. Do not turn on or off the camcorder or switch the playback mode on the camcorder when the USB cable is connected.
  • Page 97: Driver Installation

    Driver Installation Installing the driver for importing MPEG-format video stream When you connect the camcorder to the PC with an i.LINK cable at first time, the following steps must be required for installing the correct driver. Click [Install from a list or specific location (Advanced)] and then click [Next].
  • Page 98 Installing the drivers for using the camcorder as a web camera When you connect the camcorder to the PC with a USB cable at first time, four drivers are installed in succession. NOTE: Click [Continue Anyway] when the message [Has not passed Windows Logo testing] appears. Be sure not to select [Stop Installation].
  • Page 99 Delete unnecessary files by the operation on the camcorder. If you are using a brand new memory card, you need to initialize the memory card with the camcorder first. You may not be able to copy files from the memory card to the PC without doing so.
  • Page 100: Still Images Playback

    LCD monitor, and the file is copied from the memory card to the PC. NOTE: Never disconnect the USB cable while the message [ACCESSING FILES] is displayed on the camcorder’s LCD monitor. Still Images Playback Double-click the still image file (extension “.jpg”) to view a still image.
  • Page 101: Disconnecting The Usb Cable

    Before replacing memory cards or turning off the PC, first disconnect the USB cable and turn off the camcorder. Confirm that the message [ACCESSING FILES] is not currently displayed on the camcorder’s LCD monitor. If the message [ACCESSING FILES] is currently displayed, wait until it disappears before proceeding.
  • Page 102 Importing MPEG-format Video Stream to a PC Connect the camcorder to the PC with an i.LINK cable. ( Click [Start], go to [All Programs] – [PIXELA] – [MPEG Capture Utility], and then click [MPEG Capture Utility]. You can also double-click the [MPEG Capture Utility 1.0] icon on the desktop.
  • Page 103 Check playback on the camcorder’s LCD monitor, and then click [Start] approximately 2 seconds before the scene from where importing to be started. Check playback on the camcorder’s LCD monitor, and then click [Cancel] after the scene to be imported finishes.
  • Page 104 Reinstalling the driver If the camcorder’s model name does not appear in MPEG Capture Utility in spite of proper settings, the driver may not be correctly installed. In this case, you have to reinstall the driver by performing the following steps.
  • Page 105 LET OP: Wanneer u een cassette plaatst NEDERLANDS Controleer goed de richting van de cassette voordat u een cassette in de camcorder plaatst. Plaats de cassette nooit in de omgekeerde richting erin, daar dit een defect kan veroorzaken. Voor het juist erin plaatsen van een cassette, zie de uitleg in de gebruiksaanwijzing.
  • Page 106 Deksel for kassettholder Крышка держателя кассеты Kryt kazetové schránky Pokrywa kieszeni kasety Kazettatartó fedele 카세트 홀더 커버 XOÝUJë qÄUŠ ¡UDž Kassettholder Держатель кассеты Kazetová schránka Kieszeń kasety Kazettatartó 카세트 홀더 XOÝUJë qÄUŠ OBS: Ved innsetting av kassett NORSK Kontroller at kassetten står i riktig retning ved innsetting i kameraet. Sett ikke inn en kassett i motsatt retning.
