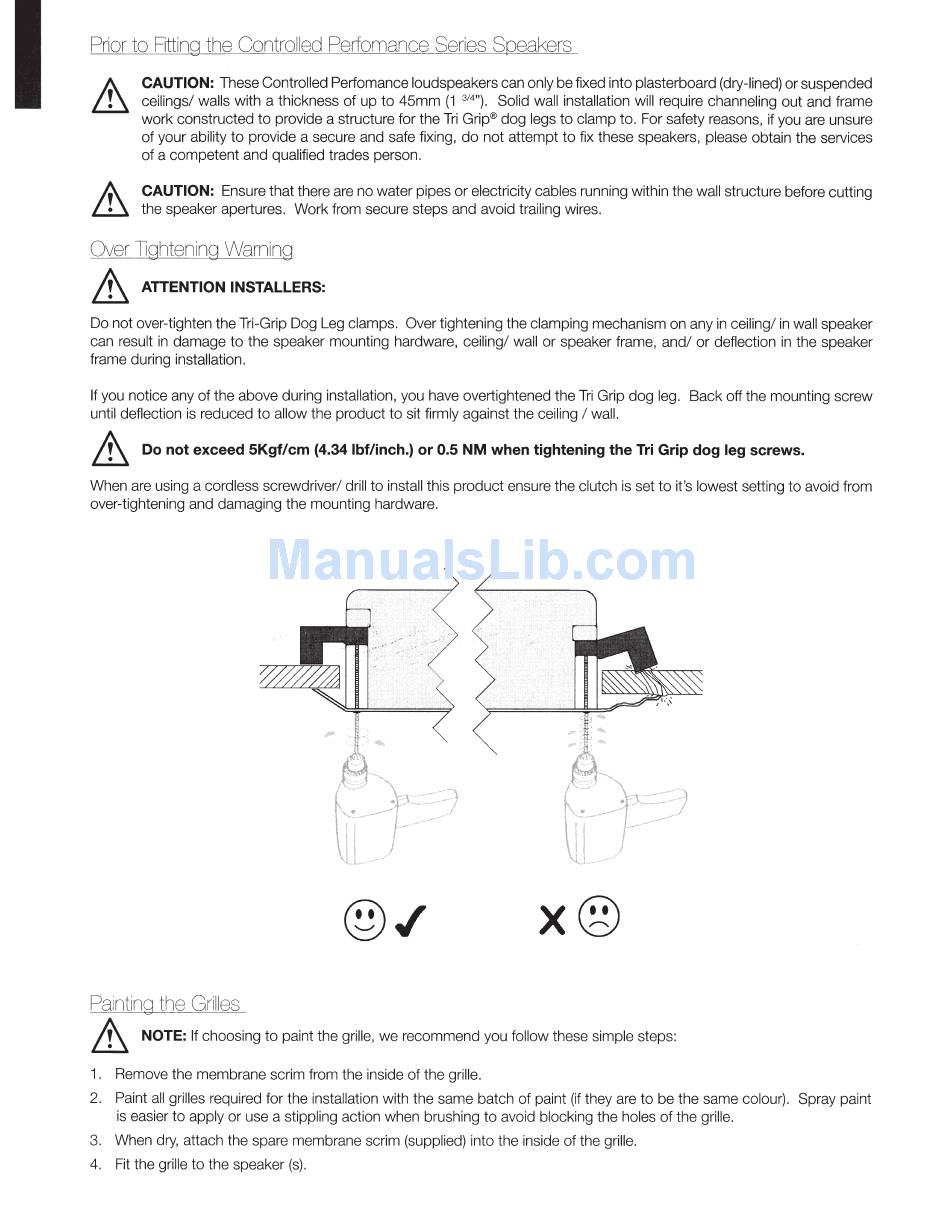

Prior to Fi t ting the Controll e d Perfomance Series Speakers
CAUTION: These Controlled Perfomance loudspeakers can only be fixed into plasterboard (dry-lined) or suspended
ceilings/ walls with a thickness of up to 45mm (1
314 ").
Solid wall installation will require channeling out and frame
work constructed to provide a structure for the Tri Grip® dog legs to clamp to. For safety reasons, if you are unsure
of your ability to provide a secure and safe fixing, do not attempt to fix these speakers, please obtain the services
of a competent and qualified trades person.
CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting
the speaker apertures. Work from secure steps and avoid trailing wires.
Over Tightening Warning
.&.
ATTENTION INSTALLERS:
Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the clamping mechanism on any in ceiling/ in wall speaker
can result in damage to the speaker mounting hardware, ceiling/ wall or speaker frame, and/ or deflection in the speaker
frame during installation.
If you notice any of the above during installation, you have overtightened the Tri Grip dog leg. Back off the mounting screw
until deflection is reduced to allow the product to sit firmly against the ceiling I wall .
.&.
Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening the Tri Grip dog leg screws.
When are using a cordless screwdriver/ drill to install this product ensure the clutch is set to it's lowest setting to avoid from
over-tightening and damaging the mounting hardware.
@J
x®
Painting the Gril l es
.&.
NOTE: If choosing to paint the grille, we recommend you follow these simple steps:
1 . Remove the membrane scrim from the inside of the grille.
2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint
is easier to apply or use a stippling action when brushing to avoid blocking the holes of the grille.
3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.
4. Fit the grille to the speaker (s).
