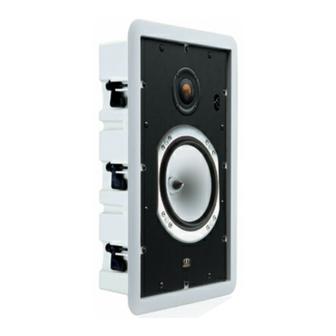

In-ceiling and in-wall
Hide thumbs Also See for CP Series:

Advertisement

Contents
The CP Series In-Ceiling and In-Wall loudspeakers will provide long term satisfaction in terms of
sound quality and reliability provided they are installed correctly, according to the instructions and
conditions contained in this manual. Please read this installation guide carefully before proceeding.
We assume the installer is trained and skilled in the correct and safe use of hand and power tools and
has a working knowledge of local building and fire regulations/codes as well as experience of the
conditions/services behind walls and ceilings into which these speakers will be installed. IF IN DOUBT
ABOUT YOUR ABILITY TO INSTALL THESE PRODUCTS SAFELY AND CORRECTLY PLEASE
CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO DEALER OR CUSTOM INSTALLER.
WARNINGS:
 A minimum depth of 190mm (7½ Inches) is required for the BR, RS & GS In-Ceiling back box to fit into
recess. The BR, RS & GS In-Wall requires 101mm (4 Inches). The Radius In-Ceiling and Stereo In-
Ceiling require a minimum depth of 159mm (6 ¼ Inches) and the Radius In-Wall requires 98mm (3
Inches)
 The fixing clamps require a minimum of 25mm (1 Inch) of surface area around the cut-out hole to ensure
a secure fixing!
 The fixing clamps will operate on ceilings or walls with a minimum thickness of 9mm (
maximum depth of 32mm (1¼Inches)
Do not attempt to fix these speakers to your ceiling or wall if you are unsure of your ability to provide a
secure and safe fixing. IF IN DOUBT CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO
DEALER OR CUSTOM INSTALLER.
Ensure that there are no water pipes, air ducts or electricity cables running immediately behind the cut
out area!
Please work from secure steps or scaffold and avoid trailing wires for your safety and those around you.
Always turn off the amplifier or other devices in the system when connecting these speakers
(German, Italian, Spanish and French)

IMPORTANT INFORMATION

1
2
2
2
2
3
4
5-6
7-8
9
9
10
11
12
12
13-14
7
3
/
Inches) to a
8
/
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Monitor Audio CP Series

  • Page 1: Table Of Contents

    (German, Italian, Spanish and French) IMPORTANT INFORMATION The CP Series In-Ceiling and In-Wall loudspeakers will provide long term satisfaction in terms of sound quality and reliability provided they are installed correctly, according to the instructions and conditions contained in this manual. Please read this installation guide carefully before proceeding.
  • Page 2: Introduction

    Irrespective of architecture o r i n t e r i o r d e s i g n , Mo n i t o r A u d i o ’ s r a n g e g i v e s y o u t h e f r e e d o m t o s u p p l y h i g h quality sound from a versatile mix of floor, stand, wall and flush-mounted speakers. With Monitor Audio, a home can look and sound beautiful.
  • Page 3: Technology

    Technology ® A n a d v a n c e i n d r i v e r t e c h n o l o g y d e v e l o p e d f r o m Mo n i t o r A u d i o ’ s o r i g i n a l Me t a l Ma t r i x P o l y me r c o n ematerial. It uses a high-pressure injection moulding process to achieve different thicknesses at critical points of the cone geometry.
  • Page 4: In-Ceiling & In-Wall Features

    Gold Dome tweeter, derived from the remarkable Radius R45 hi-fi monitor - the smallest speaker Monitor Audio has ever made. Its pivoting action allows for the critical high frequencies (to 25kHz) to be directed toward the listening position for the most accurate imaging. Radius CP delivers added installation versatility by providing this feature from in-wall as well as in-ceiling locations.
  • Page 5: In-Ceiling Installation

    Installation –In-Ceiling Units The CP Series In-Ceiling loudspeakers will provide long term satisfaction in terms of sound quality and reliability provided they are installed correctly, according to the instructions and conditions contained in this manual. Please read this installation guide carefully before proceeding. We assume the installer is trained and skilled in the correct and safe use of hand and power tools, and has a working knowledge of local building and fire regulations/codes as well as experience of the conditions/services behind walls and ceilings into which these speakers will be installed.
  • Page 6 Procedure NOTE: If you are choosing to paint your In-Ceiling loudspeaker, we recommend you do this prior to installation. We would also recommend using the paint mask for the baffle. Remove the mask after paint has completely dried. Fit the grille membrane to the inside of the grille after painting. 1.
  • Page 7: In-Wall Installation

    Installation - In-Wall Units The CP Series In-Wall loudspeakers will provide long term satisfaction in terms of sound quality and reliability provided they are installed correctly, according to the instructions and conditions contained in this manual. Please read this installation guide carefully before proceeding. We assume the installer is trained and skilled in the correct and safe use of hand and power tools, and has a working knowledge of local building and fire regulations/codes as well as experience of the conditions/services behind walls and ceilings into which these speakers will be installed.
  • Page 8 Procedure NOTE: If you are choosing to paint your In-Ceiling loudspeaker, we recommend you do this prior to installation. We would also recommend using the paint mask for the baffle. Remove the mask after paint has completely dried. Fit the grille membrane to the inside of the grille after painting. 1.
  • Page 9: Setting Up In-Ceiling Loudspeakers

    Setting Up CP Loudspeakers The following adjustments can be made to the tweeter on CP models except BR, RS & GS In-Wall, as follows: Pivoting tweeters can be tilted up to 18 degrees in all directions to provide optimum coverage. If the speakers are widely separated such that the music fails to blend into a central image when operated in stereo mode then tilt the tweeter towards the listening area.
  • Page 10: In-Ceiling Technical Specifications

    In-Ceiling Technical Specifications CPC RADIUS CPC GS CPC RS CPC BR RADIUS In-Ceiling Model In-Ceiling In-Ceiling In-Ceiling In-Ceiling STEREO Frequency 55Hz –30KHz 60Hz –30KHz 62Hz –22 KHz 60Hz –25KHz 60Hz –25KHz Response Impedance 8 Ohms 8 Ohms 8 Ohms 6 Ohms 6 + 6 Ohms (nominal) Sensitivity...
  • Page 11: In-Wall Technical Specifications

    In-Wall Technical Specifications CPW GS CPW RS CPW BR CPW RADIUS Model In-Wall In-Wall In-Wall In-wall Frequency 55Hz –30KHz 60Hz –30KHz 62Hz –22 KHz 60Hz –25KHz Response Impedance 8 Ohms 8 Ohms 8 Ohms 6 Ohms (nominal) Sensitivity 89dB 89dB 88dB 88 dB (1W@1M)
  • Page 12: Guarantee & Service

    The equipment should be returned in its packaging to the original supplier where possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent carriage prepaid via a reputable carrier.
  • Page 13: Multi-Lingual Safety Warnings

    Warnungshinweis Die zum Wand/Decken-Einbau vorgesehenen Lautsprecher der CP Serie werden Ihnen auf lange Zeit mit ihrer vorzüglichen Tonqualität und Zuverlässigkeit viel Freude bereiten, vorausgesetzt, dass sie vorschriftsmäßig nach den in diesem Handbuch angegebenen Anleitungen und Bedingungen eingebaut werden. Lesen Sie bitte vor Beginn der Arbeiten diese Installationsanleitungen sorgfältig, da wir voraussetzen, dass der Installateur im vorschriftsmäßigen und sicheren Gebrauch von Elektrowerkzeugen unterwiesen und erfahren ist.
  • Page 14 Advertencias La CP Series de altavoces de empotrado en el techo y en la pared ofrecerán una satisfacción a largo plazo en concepto de calidad del sonido y fiabilidad, siempre y cuando se instalen correctamente, según las instrucciones y condiciones contenidas en este manual. Antes de proceder, lea detenidamente esta guía de instalación en la que se supone que el instalador está...
