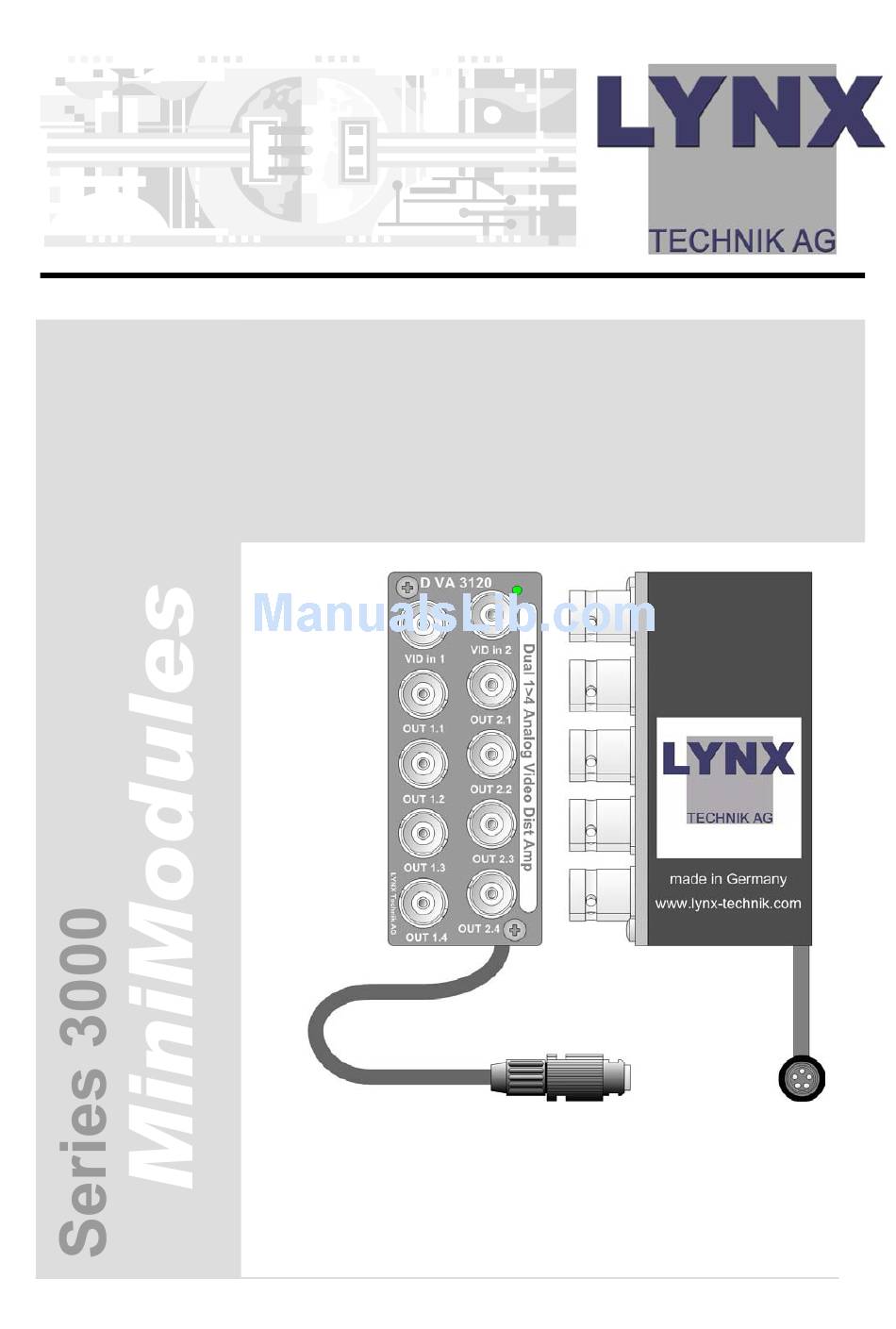

Page 1: Reference Manual
Reference Manual D VA 3120 Dual Analog Video Distribution Amplifier © LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany www.lynx-technik.com... - Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located. -
Page 4: Regulatory Information
Reference Manual D VA 3120 Version1.1 Regulatory information Europe Declaration of Conformity LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany Declare under our sole responsibility that the product TYPE: D VA 3120 To which this declaration relates is in conformity with the following... -
Page 5: Table Of Contents
Reference Manual D VA 3120 Version1.1 Contents Warranty ......................3 Regulatory information ..................4 Europe........................4 Declaration of Conformity ................4 USA ........................4 FCC 47 Part 15.....................4 Contents ......................5 Getting Started....................7 Packaging......................7 Product Description ..................7 Functional Diagram ..................8 Module Layout ....................8 Connections ...................... - Page 6 Reference Manual D VA 3120 Version1.1 This Page is intentionally left blank Page 6...
-
Page 7: Getting Started
LEDs and a front side alarm LED is also provided. The D VA 3120 is part of the 3000 series of MiniModules, which offer high quality, modularity and flexibility in a very small form factor ideal for applications where space is at a premium. -
Page 8: Functional Diagram

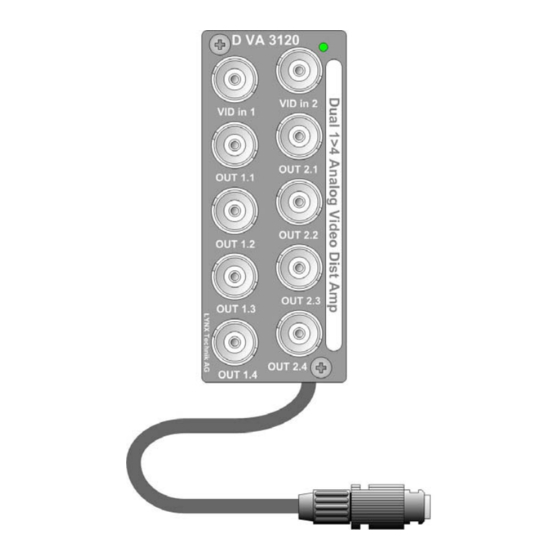

Status Figure 1- D VA 3120 Functional Diagram Module Layout Figure 2 shows the physical layout of the D VA 3120 MiniModule. Video I/O is made through standard BNC video connectors. Module configuration is set via a small dip-switch and push buttons located behind a small access hole in the bottom of the module. - Page 9 Reference Manual D VA 3120 Version1.1 Alarm / Status LED D VA 3120 VID IN 2 VID IN 1 OUT 2.1 OUT 1.1 OUT 2.2 OUT 1.2 OUT 2.3 OUT 1.3 Made In Germany www.lynx-technik.com OUT 2.4 OUT 1.4 Front...
-
Page 10: Connections
Reference Manual D VA 3120 Version1.1 Connections Video Connections The D VA 3120 MiniModule is configured with standard 75 Ohm BNC connectors. Connection is self-explanatory. We recommend the use of high quality video cable to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 11: Power Connections
Data Connection Power Connection i2C-SDA (data) + 5V i2C-SCL (clock) Male Connector (view looking into connector from front) Caution Only use the optional LYNX R PS power modules. Ensure the 5-pin power connector is locked securely in place. Page 11... -
Page 12: Installation
Installation Mechanical Stand Alone Operation The D VA 3120 MiniModule can be used in a stand alone application. There are two options for the use of the module in this way. a) Using the R FR 3005 Rack Frame 1 option. This... -
Page 13: Multiple Units
Reference Manual D VA 3120 Version1.1 Multiple Units Most applications will require more than one MiniModule, which can include any of the available Series 3000 MiniModule product range. There are two options for mounting multiple units. a) Using the R FR 3005 Rack Frame option. This... -
Page 14: Electrical Installation
/ receiving the signals from the module or damage can result. Caution. Only use the optional Lynx R PS 3001 power modules. Ensure the 5-pin power connector is locked securely in place. -
Page 15: Multiple Units
R FR 3010 Rack Frame 2 options. Please refer to the documentation supplied with these options for details on electrical installation. Settings and Control The D VA 3120 is configured via the integral 4- position dip-switch and push buttons. BUTTONS DIP SWITCH... -
Page 16: Switch Function Detail
Dip Switch 4 This switch selects the channel for adjustment. ON selects channel 2, OFF selects channel 1. Factory Preset Condition The D VA 3120 is delivered preset for the following mode of operation: Mode 2 x 1:4 Setting... -
Page 17: Adjustment Procedures
Reference Manual D VA 3120 Version1.1 Adjustment Procedures The modules configuration and gain/EQ settings are set using combinations of the Dip Switch and the two push buttons located on the module edge. BUTTONS DIP SWITCH Setting functionality and calibration is interactive and not an implicit switch setting process. -
Page 18: Set Dual 1:4 Or 1:8 Mode
Reference Manual D VA 3120 Version1.1 Set Dual 1:4 or 1:8 mode The D VA 3120 module can be set to one of two preset modes of operation. Dual 1:4 Mode. This is a simple 2 x 1 to 4 video amplifier. -
Page 19: Set Video Gain
Reference Manual D VA 3120 Version1.1 Set Video Gain Use this procedure to set the video gain of the module. 1. Set Switch 1 to desired mode of operation ON for 1:8 mode or OFF for dual 1:4 mode 2. Set Switch 2... -
Page 20: Set Equalization
Reference Manual D VA 3120 Version1.1 Set Equalization Use this procedure to set the cable equalization for the module 1. Set Switch 1 to desired mode of operation ON for 1:8 mode or OFF for dual 1:4 mode 2. Set Switch 2... -
Page 21: Set Unity Gain
Reference Manual D VA 3120 Version1.1 Set Unity Gain Use the following procedure to set unity gain for the module 1. Set Switch 1 to desired mode of operation ON for 1:8 mode or OFF for dual 1:4 mode 2. Set Switch 2... -
Page 22: Set Unity Equalization
Reference Manual D VA 3120 Version1.1 Set Unity Equalization Use the following procedure to set unity equalization. 1. Set Switch 1 to desired mode of operation ON for 1:8 mode or OFF for dual 1:4 mode 2. Set Switch 2... -
Page 23: Alarm/Led Status Indicators
Reference Manual D VA 3120 Version1.1 Alarm/LED Status Indicators The D VA 3120 module has built in LED indicators, which serve as alarm and status indication for the module. Function is described below. The Indicators are found on the bottom of the module and can be seen through the access hole provided. -
Page 24: Locate Function
Reference Manual D VA 3120 Version1.1 Locate Function For large systems which have many modules in various locations we have added a utility which will help visually identify a module quickly. (When used in conjunction with the optional control system and... -
Page 25: Specifications (D Va 3120)
Size 85.5mm x 35.3mm x 38.7mm + connectors Weight 250g Ambient Temperature 5°C to 35°C Maintaining specifications -20°C to +70°C Storage Humidity Max 80% non condensing Supplied Accessories Documentation D VA 3120 Reference Manual and quick ref guide Page 25... -
Page 26: Available Options
Reference Manual D VA 3120 Version1.1 Available Options Below is a list of available options for the D VA 3120 MiniModule. Please refer to product brochures or our web site for more detailed information. Model Description External brick power supply module for R PS 3001 E Series 3000 MiniModules. -
Page 27: Parts List
Part Number 6.155.002.270 Service If you are experiencing problems, or have questions concerning your D VA 3120 MiniModule please contact your local distributor for assistance. We offer a fixed cost service exchange program for defective Series 3000 MiniModules out of Warranty. -
Page 28: Contact Information
Reference Manual D VA 3120 Version1.1 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3... - Page 29 Reference Manual D VA 3120 Version1.1 Notes Page 29...
