Knots To Use; The Hulls; Crossbars & Trampolines - Hobie Gateway Assembly Manual

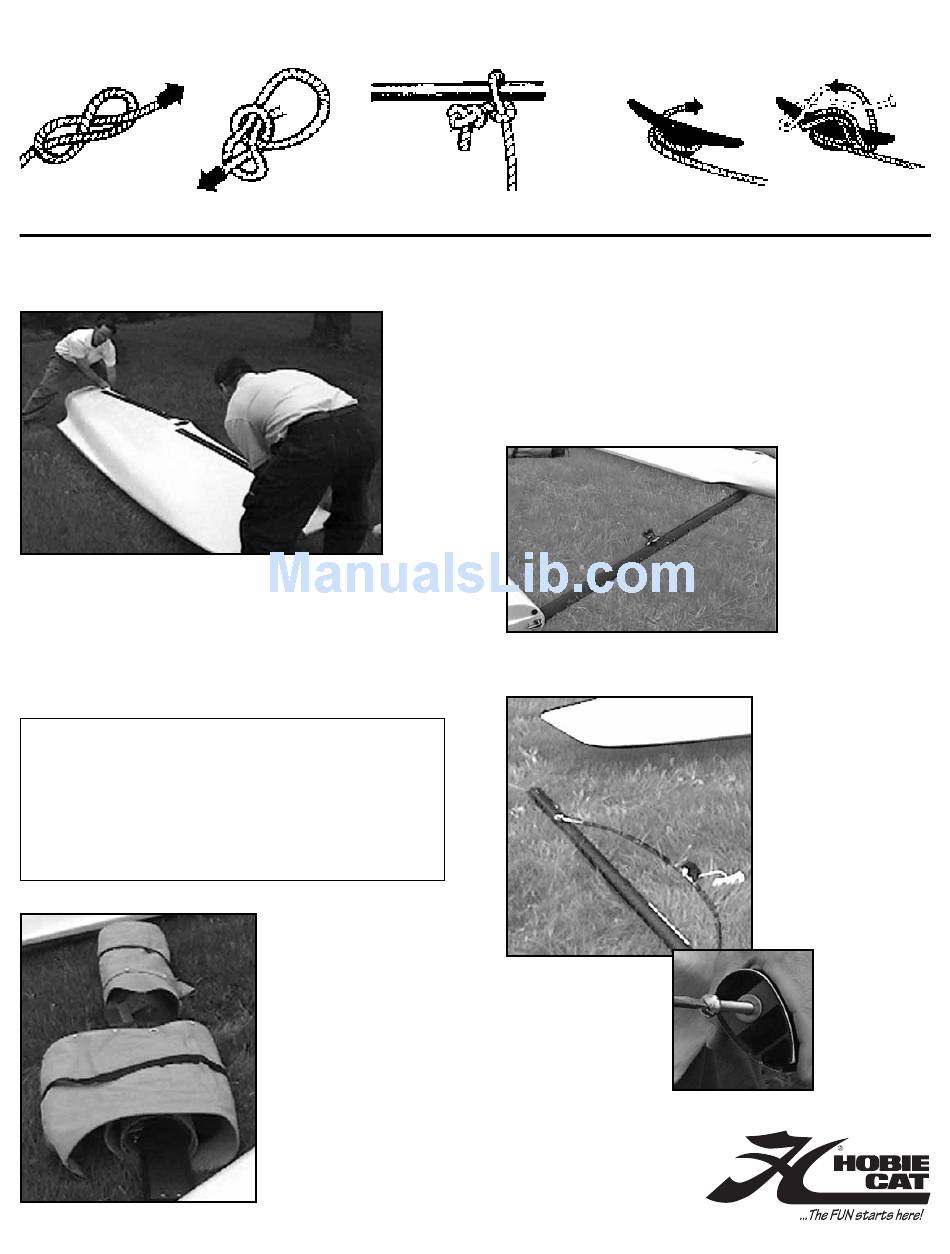

FIGURE 8 KNOT
ASSEMBLY INSTRUCTIONS

THE HULLS

Lay the hulls on the ground, on their sides with bottoms to the
center (graphics down), as shown above. A tarpoline or pads
under the hull may be desirable if the ground surface is rough.
Place the hulls about seven feet apart.
Note: There is one plug in the rear of each hull. These plugs
are used to drain the hulls. The plugs should be in place
before sailing. Remove the plugs after sailing to drain any
water that may have leaked into the hulls. It is best to travel
with and store the boat with the plugs removed to allow for
pressure changes due to heating, cooling and altitude
changes. This will prevent warping of the hull surface.
Main Beam with Trampoline

KNOTS TO USE

BOWLINE KNOT
CROSSBARS AND
TRAMPOLINES
The forward and main
trampolines are rolled
onto the front crossbar.
Position the crossbar
between the hulls near
the forward cross bar
sleeve in each hull.
FIGURE 8 KNOT
AT END OF LINE
HALYARD KNOT
The rear crossbar has the main sheet traveler car and swivel
cam cleat installed. Position it near the aft crossbar sleeve in
each hull.
Remove the bolt that is
threaded
plastic block on each
end of
Spreader Pole.
4
1.
CLEATING OFF A LINE
The Bow Spreader Bar
has slides, eye straps,
bridle wires (2) and the
roller furler installed.
Position it near the
recesses on each bow.
into the
the Bow
2.
