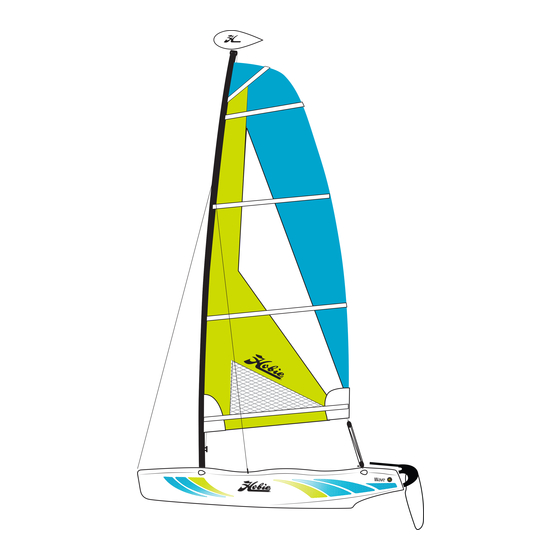

Hobie Wave
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wave and is the answer not in the manual?

Questions and answers

Related Manuals for Hobie Wave

Summary of Contents for Hobie Wave

  • Page 1 Hobie Wave Assembly Manual...
  • Page 3 In 1950, Hobie’s dream was born in his parents’ garage when he decided to apply his love of woodworking to the sport of surfing. Dad backed out the Buick... Hobie carved out his very first surfboard... Hobie’s business of fun had begun.

  • Page 4: Table Of Contents

    Table of Contents Setting Up Your Wave Wave terminology .............................5 Anatomy ................................6 Assembly Required Knots ..................................8 Reeving your Mainsheet Block ........................8 The Hulls .................................8 Crossbar and Trampoline Assembly ......................9 Mast Assembly ..............................11 Mast Wires ................................12 Stepping the Mast ............................14 Installing the Sail Battens ..........................17 Raising the Sail ..............................19...

  • Page 5: Wave Terminology

    Wave Terminology Mast Float Battens Mast Sail Forestay Shroud Sail Clew Main Sheet System Bridle Tiller Arm Downhaul Rudder Castings Rudder Hull hobie.com...

  • Page 6: Anatomy

    Anatomy Large Components (1) Mast float (2) Rudder assemblies (2) Mast pieces (1) Rear crossbar (1) Tiller crossbar, Tramp Rod (2) Hulls with hardware bag (1) Tramp and Main crossbar (1) Main sail (1) Box of small parts hobie.com...
  • Page 7 Hardware box (shackles, pins, etc.) Club Small Parts Tramp Lace Lines Classic Small Hardware a. (2) Shackles b. (1) Downhaul line c. (1) Mast Stepper Pin d. (5) Clevis Pins e. (2) Bow Tangs f. (2) Drain Plugs g. (3) Adjusters hobie.com...

  • Page 8: Assembly Required

    It is best to travel with and store the boats with the drain plugs removed to allow for pressure change due to heating, cooling and altitude change. This will prevent warping of the hull surface. hobie.com...

  • Page 9: Crossbar And Trampoline Assembly

    Assembly Required Club Wave Crossbar and Trampoline Assembly The Club Wave incorporates a Hobie standard three-piece trampoline assembly with lace lines in the center of the rear trampoline. Insert the left and right main sections into the forward crossbar (grommets toward the center and rear of the boat) and the rear lacing strip into the rear crossbar.
  • Page 10 Tension all lace lines and tie off with half hitches at the rear/center of the trampoline. tighten aft end first “follow number for lacing sequence” 10’ line slide into groove 17’ line 10’ line on front bar slide into groove on aft bar slide into tramp track hobie.com...

  • Page 11: Mast Assembly

    Bring the line up to the top of the mast, through the halyard pulley, and back down to the bottom. Tie it off at the cleat on the side of the mast. hobie.com...

  • Page 12: Mast Wires

    1/4” bell shackle shroud headstay 5/8” clevis pin and ring 7 hole stay adjuster 1/4” bell shackle 1/2 clevis pin and ring bridle from bow hull hobie.com...
  • Page 13 Included in the small hardware package are two bow tangs. For the Club Wave, you’ll want to place the bow tangs through the thimble on the bridle wires and screw the tangs to the hull. You’ll NOTE: Bow tang is notice that the tangs have a “slope”...

  • Page 14: Stepping The Mast

    For safety, the pin should remain in the mast base while sailing. WARNING Watch for overhead power lines. Never rig, trailer or sail the boat near overhead power lines. Mast contact with a power line could be fatal. hobie.com...
  • Page 15 Lean your weight against the mast to hold it in this position. Reach down to the halyard cleat and pull the halyard line tight. Fasten the line to the cleat in a secure manner as shown in “knots” page. hobie.com...
  • Page 16 Club Wave The bridles should already be attached to the hulls by this point. Once the mast is stepped, grab the end of the forestay and slide it into the adjuster on the bridles and fasten with a clevis pin.

  • Page 17: Installing The Sail Battens

    NOTE: The batten ends have a “V” jam cleat molded into them. These “V” jam cleats will keep then tension line from slipping in only one direction. Note the hollowed-out side of the cleats. Pull the line from the flush side toward the hollowed side. hobie.com...
  • Page 18 Tension each batten so that the batten is well seated and the wrinkles in the batten pockets are removed. Excessive batten tension will cause the sail to be more difficult to handle. hobie.com...

  • Page 19: Raising The Sail

    Use caution to be sure the sail feeds smoothly into the mast while raising. Hoist the sail all the way to the top of the mast. It will be necessary to help feed the sail into the track while hoisting. hobie.com...
  • Page 20 Release the halyard to en- gage the hook. Repeat the process if the sail does not remain at the top of the mast. The line must be centered with the mast to engage the hook. Tie the halyard line to the mast cleat. hobie.com...

  • Page 21: Downhaul

    Run the line up to and through the “tack” grommet. Run the line back down to the cleat. Tension it and then tie to the cleat. Mainsheet Hook the mainsheet to the “clew” grommet at the rear of the sail. hobie.com...

  • Page 22: Rudder Assembly

    Place the locking key over the groove in the upper pintle. This key will prevent the rudders from falling off the boat in the event of a capsize. hobie.com...
  • Page 23 To raise the rudder, pull up on the tiller arm. If you want to keep the rudder in the “up” position for transport, install the pin through the rudder and housing. Remove the pin before lowering. hobie.com...

  • Page 24: Tiller Crossbar

    Slide the pin on the tiller crossbar through the hole at the end of the rudder tiller arms. Lock the key on the bungee cord onto the groove that is on the stainless steel pin. hobie.com...

  • Page 25: Righting Line

    Tie the line off with a bowline knot. Once the line is securely tied, you can tuck away the excess like in the pocket on the trampoline to help keep your lines organized. hobie.com...

  • Page 26: Sailing Basics

    Sailing Basics Sailing your Wave Safe and sane guidelines for the beginner; and an easy review for the experienced. Balancing the boat When sailing, sit on the upwind side of the boat (wind on your back) just in front of the tiller, facing the sail. Balance your weight further outboard as the boat begins to tip or heel over with the wind in the sails.
  • Page 27 Turn Right Proper Sail Proper Sail Trim Trim Let Sail Out Let Sail O Turn Left Turn Righ Pull Sail In Turn Right WIND Proper Sail Proper Sail Trim Trim Falling Coming Let Sail Out About Turn Left Heading Up hobie.com...
  • Page 28 Attempt to control the speed of the sail while it crosses the deck by maintaining some tension on the mainsheet. Then ease the main- sheet out quickly as the boat turns past the downwind direction onto the new point of sail. Trim the sail according to the desired point of sail. hobie.com...
  • Page 29 Docking Docking the Wave properly will prevent damage. Always dock and rig on the leeward side of a dock (the side the wind reaches last). Come in slowly and always be aware of the wind direction so you can prop- erly de-power the boat when needed.
  • Page 30 Sailing Your Wave Righting the Boat If you tip the boat over, stay with the boat. The boat will not sink and is easy to right. It is not necessary, but it is easier, to right the bow and the mast are pointed into the wind as in the following diagram.
  • Page 31 Sailing Your Wave Beach Landings Landing on a beach is simple. The idea is to reach the beach in the point of sail nearest straight into the wind as possible. This will assure that you can properly de-power the sail once beached.

  • Page 32: Storage And Transport

    Avoid using ratchet straps to prevent overtightening. BOAT, MAST AND OTHER COMPONENTS SHOULD BE ATTACHED TO THE TRAILER WITH ADEQUATE TIE-DOWN STRAPS. FAILURE TO DO SO COULD CAUSE EXTENSIVE DAMAGE OR SERIOUS INJURY! hobie.com...
  • Page 33 The trailer boatman should be familiar with traffic and highway laws relating to the towing of trailers. Towing a Hobie presents particular hazards that should be mentioned. A Hobie is very wide. Obstacles should be given plenty of room when you are passing them. Tie down straps or lashings should be of sufficient size and diameter and placed on all four corners.
  • Page 34 Frame and Rollers Rust should not be allowed to accumulate. Remove rust and repaint with anti-rust paint. Some trailers offer galvanized coating to prevent rust. Rollers should roll freely and should not have checks, breaks or flat spots. hobie.com...

  • Page 35: Maintenance And Care

    Maintenance and Care Rinsing The most effective maintenance tool on your Hobie Cat is a fresh water rinse after every use. Inspection Check the entire boat before and after every use. Key areas to inspect are the rudder mounts, shroud/bridle mounts, and wire thimble (rust build-up and frayed wires.)
  • Page 36 Hobie Cat Company Holding Company Oceanside, California, USA 1-800-HOBIE-49 Hobie Cat Australasia Subsidiary Huskisson, New South Wales, Australia 1-800-4-HOBIE Hobie Cat Europe Subsidiary Toulon, France +33(0)494 08 78 78 Hobie Kayak Europe Independent Distributor Stellendam, The Netherlands +31(0)187 499 440...
