SCSI Connector Pin Definitions
34
68
34
68

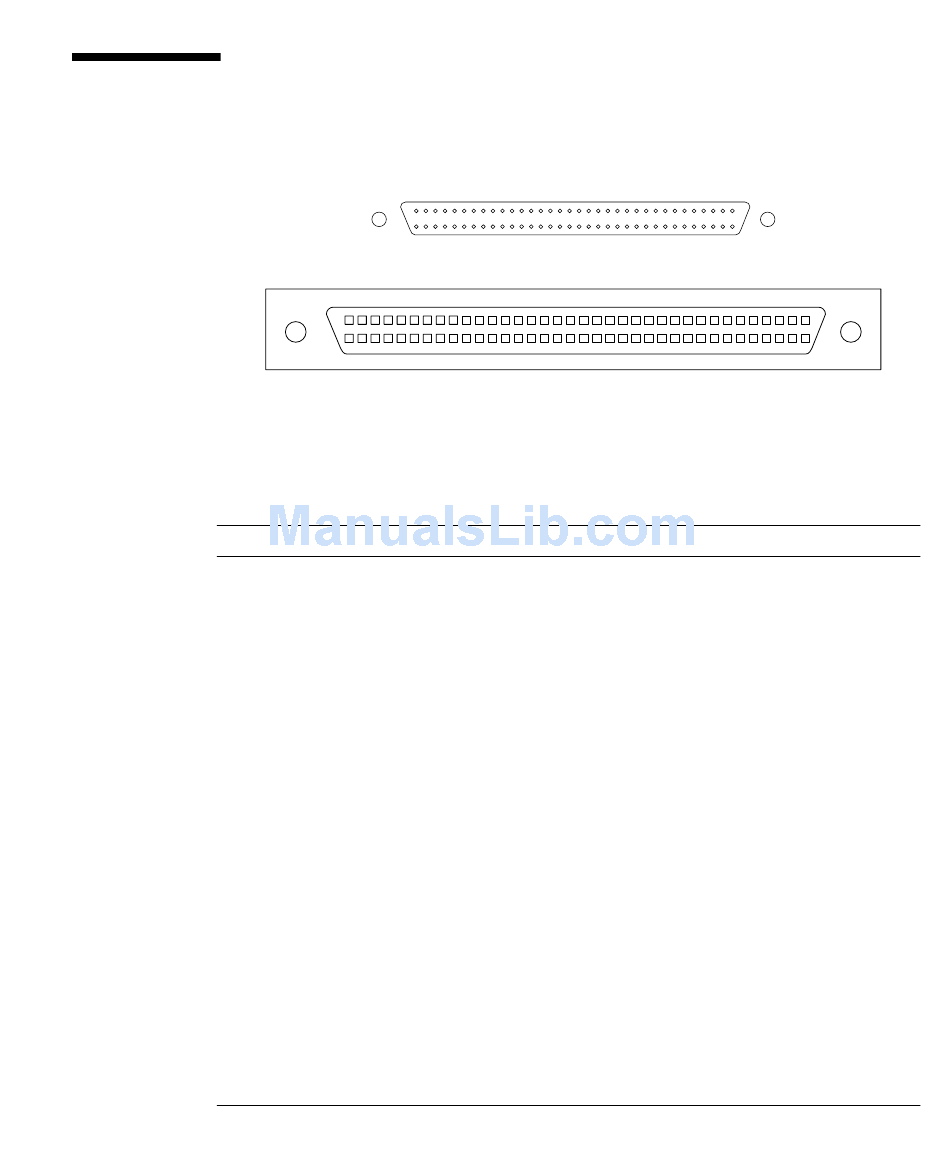

VHDCI and Internal SCSI Connectors
FIGURE B-1
SCSI Connector Pin Definitions
TABLE B-6
Pin Description
1 +SD(12)
2 +SD(13)
3 +SD(14)
4 +SD(15)
5 +SDP(1)
6 GND
7 +SD(0)
8 +SD(1)
9 +SD(2)
10 +SD(3)
11 +SD(4)
12 +SD(5)
13 +SD(6)
14 +SD(7)
15 +SDP
16 DIFFSENS
17 TERMPWR
VHDCI Connector
Internal SCSI Connector
Pin Description
24 +RST
25 +MSG
26 +SEL
27 +C/D
28 +REQ
29 +I/O
30 GND
31 +SD(8)
32 +SD(9)
33 +SD(10)
34 +SD(11)
35 SD(12)-
36 SD(13)-
37 SD(14)-
38 SP(15)-
39 SDP(1)-
40 GND
Appendix B
1
35
1
35
Pin Description
47 SD(6)-
48 SD(7)-
49 SDP-
50 Cable Sense (GND)
51 TERMPWR
52 TERMPWR
53 OPEN
54 ATN-
55 GND
56 BSY-
57 ACK-
58 RST-
59 MSG-
60 SEL-
61 C/D-
62 REQ-
63 I/O-
