  • Page 1 G777,G27 A777,A20 VEHICLE SECURITY SYSTEM PRODUCT MANUAL...
  • Page 2 Limited Lifetime Warranty This vehicle security system is warranted to the original purchaser, to be free from defects in material and workmanship. The manufacturer will repair or replace at its option, and free of charge for the first twelve (12) months, any part that proves defective in material or workmanship under normal installation, use, and service, provided the product is returned to the manufacturer freight prepaid.

  • Page 3: Lcd Transmitter Battery Replacement

    In order to change the battery, first slide the battery door locking pin to the side. Carefully slide the battery cover downward until it is free. While replacing the battery make sure that the positive and negative terminals are positioned correctly, then carefully reassemble the transmitter case. A777, A20, G777, G27 Page 1...

  • Page 4: Remote Transmitter Description

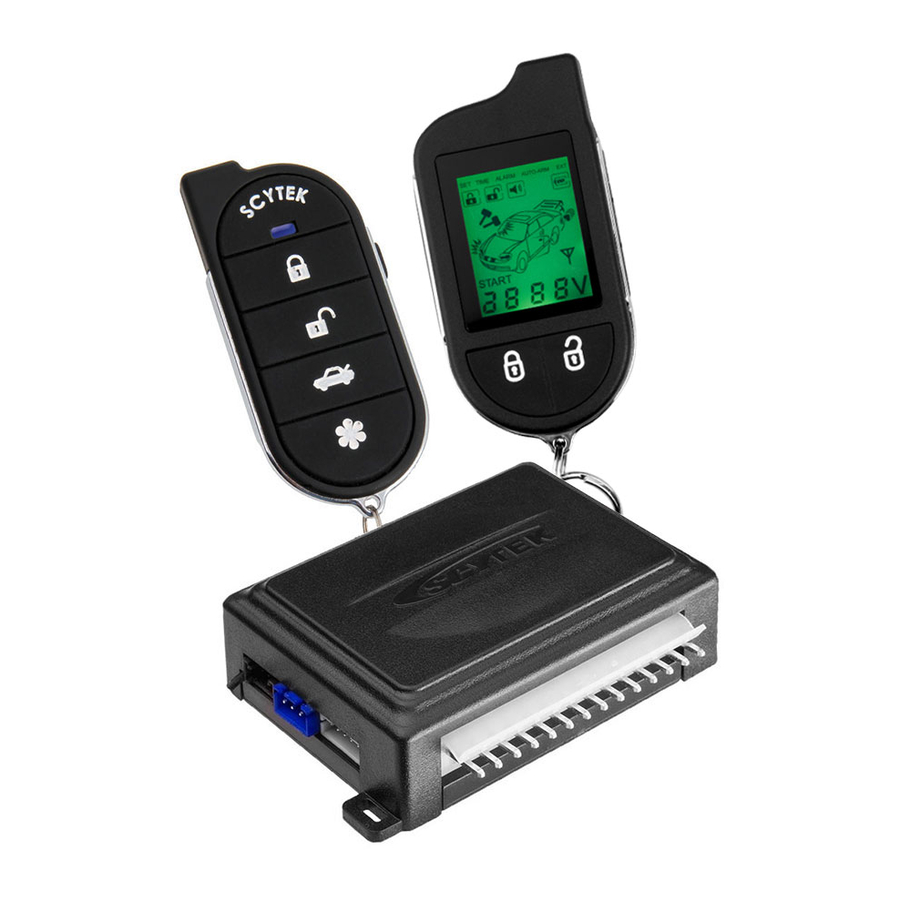

    Button 5 G777,G27 A777,A20 The G777,G27,A777,A20 is supplied with 5-button Remote Transmitter used to control system operations. Button 1 Arms and Locks* the system and when held for 5 seconds, activates the system’s Panic feature. Button 1 also locks the doors when the system is in Valet Mode.

  • Page 5: Adding/Replacing 2-Way Lcd Transmitters

    4. Turn off the ignition key. Battery Replacement Your Remote Transmitter uses battery type 2016 for G777,G27 and 23A for A777,A20 which will require replacement in time. Depending on the amount of use, the battery may last up to 24 months or more before it needs replacement.

  • Page 6: System Operation

    * During Disarming, if the system was triggered while away from the vehicle, the siren will chirp 3 times, the parking lights will flash 3 times, and the LED will flash to indicate triggered zone. See Tamper Alert for zone listing. ** If the optional Dome Light Activation Feature is installed. Page 4 - A777, A20, G777, G27...

  • Page 7: Tamper Alert

    · The siren will chirp. · The parking lights will flash. · The doors will lock.* · The status LED will begin flashing. 4. The system is now armed. * If the Passive Locking feature is selected. A777, A20, G777, G27 Page 5...

  • Page 8: Panic Mode

    · The siren will provide one long chirp, indicating that you have entered Programming. 3. Press the valet switch 4 times. · The siren will chirp each time the valet switch is pressed. 4. Within 5 seconds, press Button 3 on the transmitter. Page 6 - A777, A20, G777, G27...

  • Page 9: Entering System Programming

    The Ignition Door Locking feature may be programmed to unlock all doors or the driver’s door only. If driver’s door only is selected, the optional Passenger Unlock feature must be connected. (See Two Stage Door Lock Diagrams) A777, A20, G777, G27 Page 7...
  • Page 10 18. Auxillary 2 Output Selectable. Selects either Auxillary 2 output, starter output or ignition output. 19. Extended Parking Lights. When selected, the parking lights will remain ON for 30 seconds after disarming the system. Page 8 - A777, A20, G777, G27...
  • Page 11 Enabled with Validation, factory remote will disarm only when the Factory disarm validation input is connected to the horn or parking lights. (this input must be activated within a second upon unlock by the factory remote). A777, A20, G777, G27 Page 9...
  • Page 12 Automatic Start Mode 2 Hours 1 Hour Crank Time Normal Extended Super Extended Engine Sense Mode Monitor Off Data Bus Engine Type Diesel Turbo Mode Factory Alarm Upgrade Disabled Enable with validation Enable Page 10 - A777, A20, G777, G27...

  • Page 13: Door Lock Diagrams

    Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Negative Trigger Positive Trigger Reverse Polarity Vacuum Adding Actuators A777, A20, G777, G27 Page 11...

  • Page 14: Technical Information

    Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Call,Emergency Override,Valet Switch LED Light G777,A777 Page 12 - A777, A20, G777, G27...

  • Page 15: Upgrade Options

    Easy Plug and Play upgrade through the system- Antenna port 2 Way confirmation Arm/Disarm Remote Start On/Off Trunk Release Alert Notification MobiLink GPS GPS upgrade Works with MobiLink 100 Easy Plug and Play GPS Tracking upgrade. A777, A20, G777, G27 Page 13...

  • Page 16: Wiring Diagram

    Violet (+) Door Trigger Input, zone 4 Green (-) Door Trigger Input, zone 4 Receiver Antenna G777/A777 Green Factory Alarm Upgrade Arm Input (+) Harness Optional Factory Alarm Upgrade Disarm Validation Input (+) Blue Factory Alarm Upgrade Disarm Input (+)
