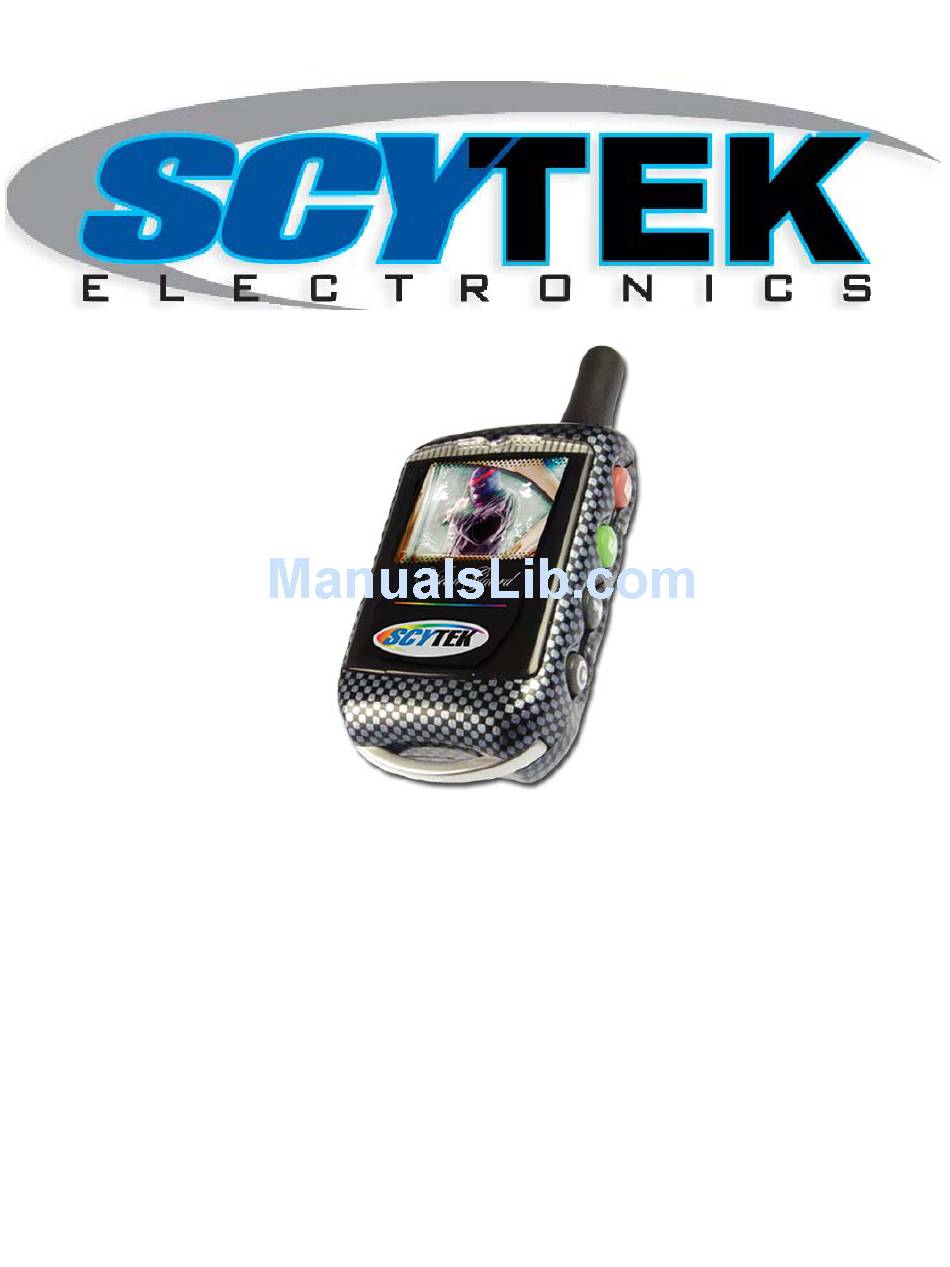

- Page 1 VISIONGUARD 8000 VEHICLE SECURITY SYSTEM WITH BUILT-IN CAMERA AND REMOTE START PRODUCT MANUAL...
-
Page 2: Limited Lifetime Warranty
Limited Lifetime Warranty This vehicle security system is warranted to the original purchaser, to be free from defects in material and workmanship. The manufacturer will repair or replace at its option, and free of charge for the first twelve (12) months, any part that proves defective in material or workmanship under normal installation, use, and service, provided the product is returned to the manufacturer freight prepaid. -
Page 3: Table Of Contents
About Your System ............Page 1 Remote Transmitters . -
Page 5: About Your System
To ensure the safety and security of the system while it is remote started, the VisionGuard 8000 employs several safeguards. In the event the alarm is triggered while the engine is remotely running, the remote start will immediately shutdown to prevent unauthorized users from attempting to drive the vehicle. -
Page 6: Remote Transmitters
Button 4 Button 3 Button 5 The VisionGuard 8000 is compatible with the optional 5-button Remote Transmitters used to control system operations. Note: Using the optional PC or Pocket PC interface with the network software, it is possible to reconfigure the functionality of the transmitter buttons. -
Page 7: Adding/Replacing Transmitters
6. Turn off the ignition key. Two Car Operation If two vehicles are equipped with VisionGuard 8000 systems, for convenience both can be operated using the same remote transmitter. If all four transmitters are to be used with both cars, program transmitters A and B into the first vehicle in the manner described above. -
Page 8: True Color 2-Way Camera Ready Remote Transmitter Description
True Color 2-way Camera Ready Remote Transmitter Description The VisionGuard 8000 True Color 2-way LCD remote transmitter, is offering increased range and confirmation of any activated features. Button 1 Arms the system. Button 1 also locks the doors when the system is in Valet Mode. -
Page 9: System Confirmation
· The transmitter will beep once. LCD Transmitter Battery Replacement Your VISIONGAURD 8000’S Remote Transmitter uses a 1.5 volt AAA alkaline battery, which will require replacement in time. Depending on the amount of use, the battery may last up to two months before it needs replacement. -
Page 10: Programable Functions Using Lcd Transmitter
DRIVER CALLING/PAGE FEATURE The Vision Gaurd 8000 is equipped with a driver calling or paging feature that allows the system to send a page to the LCD transmitter in the event the transmitter has been misplaced or lost (within 1500 feet) To activate the DRIVER CALLING/PAGE feature: 1.Locate the VALET/EMERGENCY OVERRIDE button in your vehicle (Ask your installation shop) -
Page 11: Camera Features
Camera Features VisionGaurd 8000 - Page 7... - Page 12 VisionGuard 8000 - Page 8...
-
Page 13: System Operation
* During Disarming, if the system was triggered while away from the vehicle, the siren will chirp 3 times and the LED will flash to indicate triggered zone. See Tamper Alert for zone listing. System Operation VISIONGAURD 8000 - Page 9... -
Page 14: Tamper Alert
= shock sensor Silent Arming/Disarming The VisionGuard 8000 system can be programmed to operate the system without Arm and Disarm chirp indications. When programmed for full-time silent operation, the siren will sound only when the system is triggered. -
Page 15: Panic Mode
5. The vehicle will now be able to start. Optional Coded Emergency Override As an extra measure of security, the VisionGuard 8000 is equipped with an optional Coded Emergency Override feature. Once an Emergency Override Code is chosen and programmed during installation, the system can no longer be disarmed using the standard override procedure. -
Page 16: Automatic Rearming
· The siren will chirp twice to and the LED light will turn off to confirm the Valet Mode is off. 3. Turn off the ignition. While in Valet Mode the remote transmitters will continue to lock and unlock the doors, and operate the optional auxiliary functions. Page 12- VisionGaurd 8000... -
Page 17: Remote Start Features
Parking lights will flash indicating that the Cold Start mode has been activated. To turn off Auto Cold Starting do one of the following: · Turn ignition On. · Arm and then Disarm the system · Alarm or Panic the system Remote Start Features VisionGaurd 8000 - Page 13... -
Page 18: Turbo Timer Feature
1. Pressing Button 4. · After the engine shuts down the doors will lock (if installed). 2. Pressing the Brake Pedal. 3. Opening the Hood. 4. Remote Start Time-Out (completion of the timed run cycle). 5. Emergency Brake Off. Page 14- VisionGaurd 8000... -
Page 19: Extended Features
Remote Transmitter, and remain on for 30 seconds or until the ignition is turned on. Auxiliary Function Outputs The VisionGuard 8000 system is equipped with 3 Auxiliary Channel Outputs allowing the convenience features of the system to be further expanded. These outputs can be programmed for pulsed, timed, or latched operation, and used to add a number of optional features such as: power trunk release, power window activation, power sunroof control, auxiliary lighting, audio/video system control, and more. -
Page 20: System Installation
6. Verify with the owner, the mounting locations for all visible components, including the LED and Override switch. Verify with the owner, the optional features of the VisionGuard 8000 and the features that must be programmed during installation. 8. Inspect and perform a function test of all vehicle systems before and after the installation. -
Page 21: Mounting The Control Unit
Suggested mounting locations include air conditioning ducts, dashboard braces, or center console supports. During proper operation, the shock sensor will detect impacts to the vehicle only and will not usually be triggered by slow rocking movements of the vehicle like those caused by wind. VisionGaurd 8000 - Page 17... -
Page 22: System Wiring
6-Pin Starter Harness Pin 1 RED WIRE A: Main Power Input A (+). Connect to the battery or constant power wire at the ignition switch with a minimum 25 Amp supply. Remove the fuse until the installation is complete and all wiring is checked. -
Page 23: Plug-In Connectors
· GREEN WIRE - Parking Brake Input (-) For Manual transmission and/or vehicles equipped with a turbo charged engine. Must be connected if using the Turbo Timer feature and/or Manual Transmission remote start feature. · BLUE WIRE - Optional negative start input VisionGaurd 8000- Page 19... -
Page 24: Jumper Settings
Parking Light Output. Selects the polarity (+/-) for the output of the on-board Parking Light relay. Left Pin + Center Pin = positive Right Pin + Center Pin = negative Page-20 VisionGaurd 8000 Jumper Settings default setting shown... -
Page 25: System Programming
Ignition Door Locking. Selects whether or not the system will automatically lock the doors 10 seconds after the ignition key is turned on. Override Code Set. Changes the Emergency Override Code for a higher level of security. System Programming Button 1 Button 2 Button 3 VisionGaurd 8000 - Page 21... -
Page 26: Branch Table
Branch Feature 1. Arm Mode 2. Auto Rearming Mode 3. Arming Chirps 4. Ignition Door Locking 5. Ignition Door Unlocking 6. Door Unlock Pulse 7. Door Lock Pulse Length 8. Passive Door Locking 9. Passive Arming Entry Delay 10. Ignore Open Door Report 11. - Page 27 Tach Monitor mode: monitors the vehicle’s tach wire (or a fuel injection wire) in real-time to determine engine status and adjust starter crank time automatically. Gas Engine. Sets the engine type for Gasoline. VisionGaurd 8000 - Page 23...
- Page 28 27. Factory Rearm Function. Camera Flash Mode- pulses Factory Rearm output for 1 second every time the camera is activated. Factory Rearm Mode - enables the output to operate as a Factory Rearm output. 28. Zoom Mode. Picture Zoom Mode- select zoom 1X, 2X, 4X 29. Picture Orientation. Select Normal or Inverted Page-24 VisionGaurd 8000...
-
Page 29: Wiring Diagrams
(-) ANTIGRIND/ Yellow Wire STARTER DEFEAT (+) IGNITION IGNITION SWITCH Negative Dome Light TO NEGATIVE DOME LIGHT +12V Negative Horn Honk TO NEGATIVE HORN WIRE +12V Yellow Wire (+) IGNITION Violet Wire (+) STARTER TO STARTER VisionGaurd 8000 - Page 25... -
Page 30: Door Lock Diagrams
Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Negative Trigger Positive Trigger (using inverter or relays) Reverse Polarity Vacuum Adding Actuators Page-26 VisionGaurd 8000... -
Page 31: Two Stage Door Lock Diagrams
Two Stage Door Lock Diagrams The VisionGuard 8000 is equipped with a dedicated Passenger Unlock output allowing Two Stage Door Lock operation. When connected as shown below, disarming the system will unlock only the driver’s door. Pressing the disarm button again will unlock all doors. - Page 32 Two Stage Door Lock Diagrams cont’d Two Stage Reverse Polarity Two Stage Adding Actuators Page-28 VisionGaurd 8000...
-
Page 33: Technical Information
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Technical Information VisionGaurd 8000 - Page 29... -
Page 34: Starter Diagnostics
Starter doesn’t start and parking lights flash: 3 Times - Engine RPM not detected Hood Trigger is active 4 Times - Brake Trigger is active 5 Times - Unit is in Valet (service) mode, and start is disabled. Page-30 VisionGaurd 8000 Starter Diagnostics... - Page 35 VisionGaurd 8000 - Page 31...
-
Page 36: Wiring Diagram
Camera Flash Control/Factory Alarm Arm Output (-)500mA Siren Output (+)3A Auxiliary 1 Output (-)500mA Parking Light Output (+/- built-in relay) Horn Output (-)500mA Starter Output Ignition 1 Output Accessory Output Ignition 2 Output +12V Battery Input #1 +12V Battery Input #2 VisionGuard 8000 r1 4/06...
