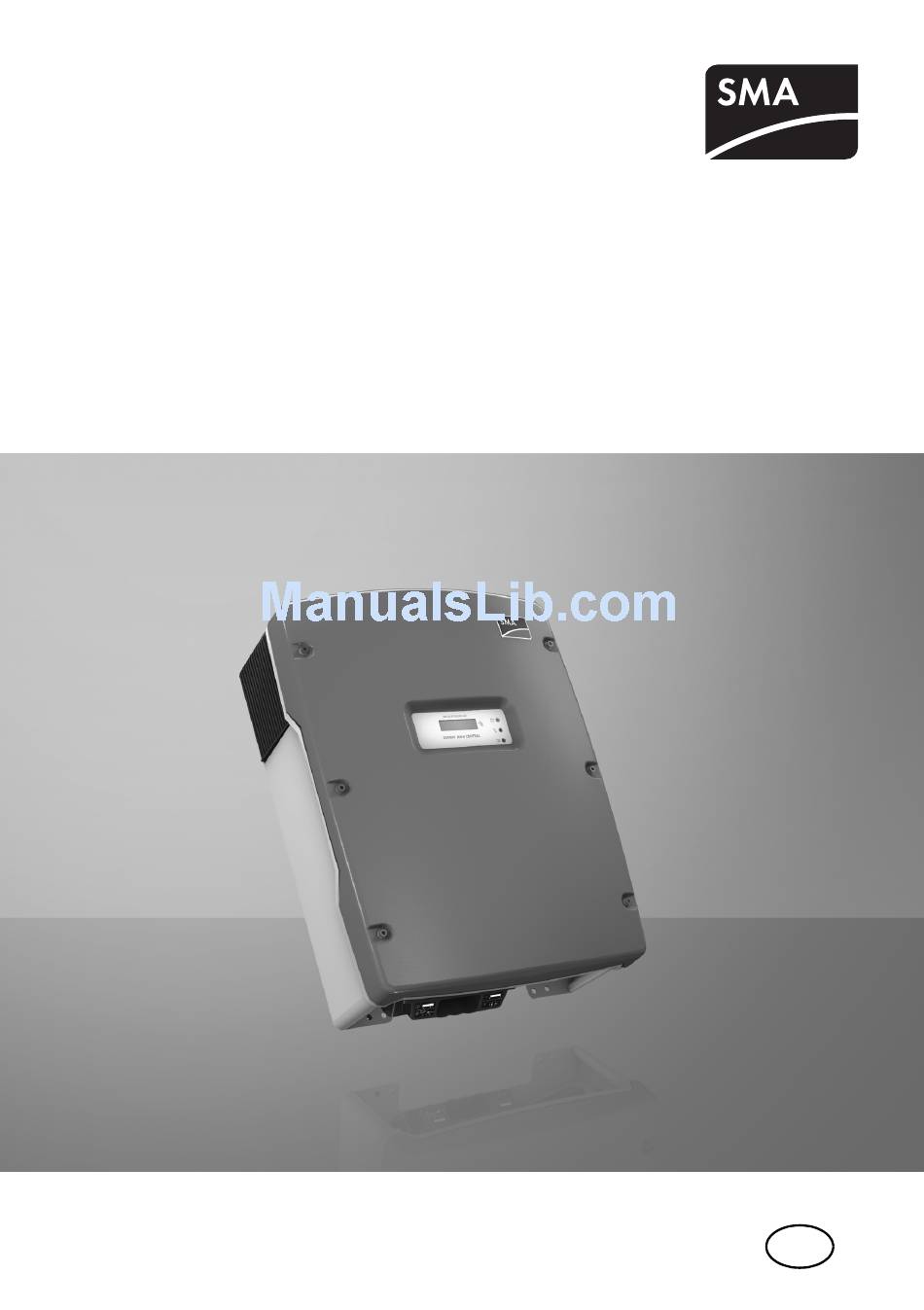

PV Inverter
SUNNY MINI CENTRAL
9000TL / 10000TL / 11000TL
9000TL / 10000TL / 11000TL with Reactive Power Control
Installation Guide
SMC9-11TLRP-IEN100640 | IME-SMCTL_9_10_11 | Version 4.0
EN

Advertisement

Table of Contents
loading

Related Manuals for SMA SUNNY MINI CENTRAL 9000TL

Summary of Contents for SMA SUNNY MINI CENTRAL 9000TL

  • Page 1 PV Inverter SUNNY MINI CENTRAL 9000TL / 10000TL / 11000TL 9000TL / 10000TL / 11000TL with Reactive Power Control Installation Guide SMC9-11TLRP-IEN100640 | IME-SMCTL_9_10_11 | Version 4.0...

  • Page 3: Table Of Contents

    SMA Solar Technology AG Table of Contents Table of Contents Notes on this Manual......7 Validity .
  • Page 4 Connecting the PV Generator (DC) ....... 36 Connection of the SMA Power Balancer ....39 5.6.1...
  • Page 5 Technical Data ........82 11.1 Sunny Mini Central 9000TL / 10000TL / 11000TL ..82 11.2 Sunny Mini Central 9000TL / 10000TL / 11000TL with Reactive Power Control .
  • Page 6 Table of Contents SMA Solar Technology AG SMC9-11TLRP-IEN100640 Installation Guide...

  • Page 7: Notes On This Manual

    • Sunny Mini Central 10000TL (SMC 10000TL-10) • Sunny Mini Central 11000TL (SMC 11000TL-10) • Sunny Mini Central 9000TL with Reactive Power Control (SMC 9000TLRP-10) • Sunny Mini Central 10000TL with Reactive Power Control (SMC 10000TLRP-10) • Sunny Mini Central 11000TL with Reactive Power Control (SMC 11000TLRP-10) Store this manual where it can be accessed at all times.

  • Page 8: Symbols Used

    Notes on this Manual SMA Solar Technology AG 1.4 Symbols Used The following types of safety instructions and general information appear in this document as described below: DANGER! DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 9: Safety

    For further information on this subject, see the technical information "Capacitive Discharge Currents" in the download area at www.SMA.de/en. Installation Guide SMC9-11TLRP-IEN100640...
  • Page 10 Parameters” (page 48)). To change grid-relevant parameters, you need a personal access code - the so-called SMA Grid Guard Code. The application form for the personal access code is located in the download area at www.SMA.de/en, in the "Data sheet" category for each inverter.

  • Page 11: Safety Instructions

    • Securely attach the Electronic Solar Switch again. Grounding the PV Generator Comply with the local requirements for grounding the modules and the PV generator. SMA Solar Technology AG recommends connecting the generator frame and other electricity- conducting surfaces such that there is continuous conduction and to connect them to the ground in order to reach maximum protection for property and persons.

  • Page 12: Explanation Of Symbols

    Safety SMA Solar Technology AG 2.3 Explanation of Symbols This chapter contains an explanation of all symbols found on the inverter and type label. 2.3.1 Symbols on the Inverter Symbol Explanation Operation display. Indicates the operation condition of the inverter. Ground fault, varistor defective or string fuse defective Read section 9 ”Troubleshooting”...
  • Page 13 SMA Solar Technology AG Safety Symbol Explanation The inverter must not be disposed of with the household waste. For more information on disposal, see section 10.4 ”Disposing of the Inverter” (page 81). CE mark. The inverter complies with the requirements of the applicable EC guidelines.

  • Page 14: Unpacking

    Unpacking SMA Solar Technology AG 3 Unpacking 3.1 Packing List Check the delivery for completeness and any visible external damage. Contact your dealer if anything is damaged or missing. Object Number Description Sunny Mini Central Air grills (right / left) Wall mounting bracket...

  • Page 15: Identifying The Inverter

    SMA Solar Technology AG Unpacking 3.2 Identifying the Inverter You can identify the inverter by the type plate. The type label is on the right side of the enclosure. The serial number (Serial No.) and the type (Type / Model) of the inverter, as well as device-specific characteristics, are specified on the type label.

  • Page 16: Installing The Device

    Installing the Device SMA Solar Technology AG 4 Installing the Device 4.1 Safety DANGER! Danger to life due to fire or explosion! Despite careful construction, electrical devices can cause fires. • Do not mount the inverter on flammable construction materials. • Do not mount the inverter in areas where highly flammable materials are stored.
  • Page 17 SMA Solar Technology AG Installing the Device • Vertical installation or tilted backwards by max. 15°. • The connection area must point downwards. • Never install the device with a forward tilt. • Do not install horizontally. • Install at eye level to allow operating status to be read at all times.

  • Page 18: Mounting The Inverter With The Wall Mounting Bracket

    Installing the Device SMA Solar Technology AG 4.3 Mounting the Inverter with the Wall Mounting Bracket 1. Mark the position of the drill holes using the wall mounting bracket and drill the holes. Use at least 2 of the 6 holes, with one hole on the right and one on the left.
  • Page 19 SMA Solar Technology AG Installing the Device CAUTION! Risk of injury due to the heavy weight of the inverter! The inverter weights approx. 35 kg. • Attach the wall mounting bracket with the corresponding mounting material (depending on the surface).
  • Page 20 "links/left" on the interior for proper assignment. The air grills prevent dirt and insects from entering the device and, if necessary, can be reordered from SMA Solar Technology AG (see section 12 ”Accessories” (page 88)). Optional Theft Protection To protect the inverter against theft, the rear panel can be secured to the wall at the bottom using 2 single-use bolts.

  • Page 21: Electrical Connection

    Socket for connecting the Electronic Solar Switch (ESS) DC load disconnection unit Enclosure openings for optional communication via RS485 or radio (PG16) Connection of the SMA Power Balancer Enclosure opening for connecting to grid (AC) (18 mm … 32 mm)

  • Page 22: Interior View

    Electrical Connection SMA Solar Technology AG 5.1.2 Interior View The following illustration shows the various components and connection areas of the open inverter. Object Description Connection area and sockets for communication (Page 48) Display Jumper slot for fan test (Page 62)
  • Page 23 Male connector for grounding the cable shield for communication (Page 48) Screwing device for shield clamp for communication cable (Page 48) Enclosure opening for mains cable (AC) (Page 24) Connection socket for SMA Power Balancer (Page 39) Enclosure openings for communication (Page 48) DC connector (Page 32)

  • Page 24: Connection To The Public Grid (Ac)

    The conductor cross-section should be dimensioned in a way that output losses do not exceed 1 % at nominal power. Use "Sunny Design" (www.SMA.de/en) for this. The maximum cable lengths relative to the conductor cross-section are shown in the following table.
  • Page 25 The maximal permissible rating is located in section 11 ”Technical Data” (page 82). Detailed information and examples for the rating of a line circuit breaker can be found in the Technical Information "Line Circuit Breaker" in the SMA Solar Technology AG download area at www.SMA.de/en. DANGER!

  • Page 26: Connecting The Inverter To The Public Grid (Ac)

    AC nom The exact operating range of the inverter is specified in the operating parameters. The corresponding document is located in the download area at www.SMA.de/en, in the "Technical Description" category of the respective inverter. 2. Disconnect the line circuit breaker and secure against re-connection.
  • Page 27 SMA Solar Technology AG Electrical Connection 9. Secure the lid with all screws and the corresponding tooth lock washers. Tighten the screws with 6 Nm torque in the order shown on the right hand side. The toothing of the tooth lock washers must face toward the lid.

  • Page 28: Additional Grounding Of The Housing

    Electrical Connection SMA Solar Technology AG 5.2.3 Additional Grounding of the Housing If a second protective conductor connection is required in the country of installation, you can also ground the inverter using a second protective conductor on the connection terminal on the enclosure.

  • Page 29: Setting The Display Language

    SMA Solar Technology AG Electrical Connection 5.3 Setting the Display Language You can set the language of the display using the switches on the underside of the display assembly inside the inverter. Procedure 1. Open the inverter as described in section 7.2 ”Opening the Inverter” (page 56).

  • Page 30: Installing The String Fuses

    Sunny Mini Central. If necessary, consult the module manufacturer. The Sunny Mini Central is equipped with factory-installed jumpers. The inputs are thus unprotected. If necessary, the jumpers can be replaced with special string fuses (thermal fuses). At the moment, SMA Solar Technology AG offers the following add-on kits: •...
  • Page 31 SMA Solar Technology AG Electrical Connection Mounting String Fuses 1. Open the Sunny Mini Central as described in section 7.2 ”Opening the Inverter” (page 56). 2. Remove all fuse extractors (for slot see section 5.1.2 ”Interior View” (page 22)). 3. Remove jumpers from the fuse extractors.

  • Page 32: Connection Of The Pv Generator (Dc)

    • The following limit values at the DC input of the inverter may not be exceeded: Inverter Maximum input Maximum input voltage current SMC 9000TL-10 / SMC 9000TLRP-10 700 V (DC) 28.0 A (DC) SMC 10000TL-10 / SMC 10000TLRP-10 700 V (DC) 31.0 A (DC)

  • Page 33: Assembling The Dc Plug Connector

    SMA Solar Technology AG Electrical Connection 5.5.2 Assembling the DC Plug Connector In order to connect to the inverter, all connecting cables of the PV modules must be equipped with the DC plug connectors provided. To assemble the DC plug connectors, proceed as detailed below. Ensure the plug connectors have the correct polarity.
  • Page 34 Electrical Connection SMA Solar Technology AG Result Action ☑ If the conductor is not visible in the hollow • Loosen the clamping clip with the help of a cavity of the clamp, the cable is not in the screwdriver. correct position.

  • Page 35: Opening The Dc Plug Connector

    SMA Solar Technology AG Electrical Connection 5.5.3 Opening the DC Plug Connector 1. Screw the threaded joint off. 2. To release the plug connector, slot a screw driver into the side catch mechanism and lever out. 3. Carefully pull the DC plug connector apart.

  • Page 36: Connecting The Pv Generator (Dc)

    Electrical Connection SMA Solar Technology AG 5.5.4 Connecting the PV Generator (DC) DANGER! Danger to life due to high voltages in the inverter! • Before connecting the PV generator, ensure that the line circuit breaker is switched off. NOTICE! Excessive voltages can destroy the measuring device! •...
  • Page 37 SMA Solar Technology AG Electrical Connection NOTICE! Destruction of the inverter due to overvoltage! If the voltage of the PV modules exceeds the maximum input voltage of the inverter, it can be destroyed by the overvoltage. All warranty claims become void.
  • Page 38 Electrical Connection SMA Solar Technology AG 7. Check the Electronic Solar Switch for wear, as described in section 8.2 ”Checking the Electronic Solar Switch (ESS) for Wear” (page 65) and attach it firmly. NOTICE! Manipulating the connector in the handle can damage the Electronic Solar Switch! The connector inside the handle must remain movable in order to ensure proper contact.

  • Page 39: Connection Of The Sma Power Balancer

    Electrical Connection 5.6 Connection of the SMA Power Balancer The Sunny Mini Central is equipped with the SMA Power Balancer as standard. This enables a circuit connection of three 3 Sunny Mini Central to a three-phase feed-in system. Each of the 3 Sunny Mini Central devices in a group must be connected to a different phase conductor...
  • Page 40 Electrical Connection SMA Solar Technology AG Configuration Options There are 4 different configuration options for the "PowerBalancer" parameter. Local connection requirements Select the respective setting and always observe the local connection requirements and provisions of your utility operator. • FaultGuard This operating mode allows to implement a three-phase grid voltage monitoring that also reacts to device failures.
  • Page 41 SMA Solar Technology AG Electrical Connection • PhaseGuard This operating mode allows to implement a three-phase grid voltage monitoring. – If one of the three inverters indicates a grid voltage fault and stops feeding in, the other two inverters also disconnect from the grid automatically.
  • Page 42 SMA Solar Technology AG • Off The SMA Power Balancer is deactivated (factory setting). – In the event of a device fault or grid voltage fault at an inverter, only this inverter is disconnected from the grid and the other two inverters continue to run at an undiminished power level.
  • Page 43 Unbalanced load limitation in case of SMC 9000TL-10/IT / 10000TL-10/IT / 11000TL-10/IT (applies exclusively to Italy) In the case of the Sunny Mini Central 9000TL-IT /10000TL-IT / 11000TL-IT, the unbalanced load is limited to 6 kVA. – If one of the three inverters indicates a grid voltage fault or device fault and stops feeding in, the other two inverters automatically limit their power to 5 kVA over a 10 minute average.

  • Page 44: Cabling

    Connecting Sunny Mini Central units without an SMA Power Balancer connector system When connecting Sunny Mini Centrals with an SMA Power Balancer but without the SMA Power Balancer connector system, you require a special upgrade kit (order number: PBL-SMC-10-NR) for these Sunny Mini Centrals.
  • Page 45 The markers (1 to 3) must form a line, as illustrated on the right. 3. Tighten the cable screw connection half a turn. ☑ The cable is now securely connected. The SMA Power Balancer can now be activated via a communication device. Installation Guide...
  • Page 46 Electrical Connection SMA Solar Technology AG Extending the Cable If you must bridge large spans between 2 Sunny Mini Centrals, you can extend the SMA Power Balancer cable. Use an "LiYCY" cable for this with the illustrated layout: • Indoors: Li-2YCY 1 x 2 x 0.25 mm²...

  • Page 47: Testing The Functioning

    Electrical Connection 5.6.3 Testing the Functioning To test whether the SMA Power Balancer operates correctly, proceed as follows. 1. Select the "PhaseGuard" setting of the "PowerBalancer" parameter for all three inverters. 2. Check whether all inverters in the group are feeding the grid normally.

  • Page 48: Communication

    Using the Power Reducer Box from SMA Solar Technology AG, it is possible to set a limit for the active power for all inverters. Also, the reactive power specification can be controlled in Sunny Mini Central units with Reactive Power Control.

  • Page 49: Setting Off-Grid Operation

    SMA Solar Technology AG Electrical Connection 5.8.2 Setting Off-Grid Operation To operate the inverter in an off-grid system with Sunny Island, you must set the inverter via the "Default" parameter to off-grid ("OFF-Grid") operation. You have several possibilities to set the inverter to off-grid operation: •...

  • Page 50: Reactive Power And Grid Management

    The configuration parameters are protected by the SMA Grid Guard Code password. However, they can only be accessed at the installer level. To set all parameters you need a personal SMA Grid Guard Code and the installer password. The application form for the SMA Grid Guard Code is located in the download area at www.SMA.de/en, in the "Data sheet"...

  • Page 51: Frequency-Dependent Active Power Limitation P(F)

    SMA Solar Technology AG Electrical Connection 5.9.2 Frequency-dependent Active Power Limitation P(f) Activating this function enables active power limitation P depending on the grid frequency f . The process used complies with the Medium Voltage Regulation valid in Germany. However, the settings can also be adjusted to the requirements of other countries or utility operators by means of software parameters.

  • Page 52: Grid Safety Management Via External Active Power Limitation

    Electrical Connection SMA Solar Technology AG 5.9.3 Grid Safety Management via External Active Power Limitation The "P-WMod" parameter allows you to select the active power process. 3 settings can be selected. The maximum possible AC active power can be set externally for Sunny Mini Central inverters via communication (WebBox with Power Reducer Box) (e.g.

  • Page 53: Soft Start

    SMA Solar Technology AG Electrical Connection 5.9.4 Soft Start Sunny Mini Central units with Reactive Power Control are equipped with a soft start function. After reactivation, for example after a voltage fault or frequency fault, the soft start function increases the output of active power gradually (gradient function).

  • Page 54: Limited Dynamic Grid Support

    Electrical Connection SMA Solar Technology AG 5.9.6 Limited Dynamic Grid Support From firmware version 2.00/2.00, the Sunny Mini Central units with Reactive Power Control feature the function for limited the dynamic grid support. Using this function, the inverter can begin feeding again immediately following the end of a short-term interruption to the voltage.

  • Page 55: Commissioning

    SMA Solar Technology AG Commissioning 6 Commissioning 1. Check the following requirements before commissioning: – The inverter is firmly fastened. – Correct connection of the AC cable (grid) – Full connection of the DC cables (PV strings) – Unnecessary DC inputs are closed with the corresponding DC plug connectors and blank plugs –...

  • Page 56: Opening And Closing

    Opening and Closing SMA Solar Technology AG 7 Opening and Closing 7.1 Safety DANGER! Risk of lethal electric shock! Observe the following before opening the inverter: • Ensure the AC side is not live. • Ensure the DC side is not live.
  • Page 57 SMA Solar Technology AG Opening and Closing 4. Unlock all DC plug connectors using a screwdriver: – insert a screwdriver into one of the slits on the sides (1). – Lever the screwdriver upwards (2) and pull out the plug connector (3).
  • Page 58 Opening and Closing SMA Solar Technology AG 6. Loosen all 6 lid screws and pull the lid forwards to remove it. 7. Verify the absence of voltage L with respect to N at the AC clamp with an appropriate meter.

  • Page 59: Closing The Inverter

    SMA Solar Technology AG Opening and Closing 7.3 Closing the Inverter 1. Secure the lid with the 6 screws and the corresponding tooth lock washers. Tighten the screws with 6 Nm torque in the order shown on the right hand side. The toothing of the tooth lock washers must face toward the lid.
  • Page 60 Opening and Closing SMA Solar Technology AG NOTICE! Manipulating the connector in the handle can damage the Electronic Solar Switch! The connector inside the handle must remain movable in order to ensure proper contact. Tightening the screw voids all warranty claims and creates a fire risk.

  • Page 61: Maintenance And Cleaning

    SMA Solar Technology AG Maintenance and Cleaning 8 Maintenance and Cleaning 8.1 Checking Heat Dissipation 8.1.1 Cleaning the fan If the fan guards are only soiled with loose dust, they can be cleaned using a vacuum cleaner. If you do not achieve satisfactory results with a vacuum cleaner, dismantle the fans for cleaning.

  • Page 62: Checking The Fans

    • Plug the provided jumper into the system control board. Setting Parameters 1. Request the installer password on the SMA Serviceline (contact: see Page 90). 2. Set the "Fan Test" parameter to "1" in the installer mode. 3. Check the fans' air flow.
  • Page 63 SMA Solar Technology AG Maintenance and Cleaning Plugging the Jumper The inverter recognizes the jumper only after the system has been restarted (i.e. all LEDs must have gone out before a restart). 1. Open the inverter as described in section 7.2 ”Opening the Inverter” (page 56).

  • Page 64: Cleaning The Air Grills

    Maintenance and Cleaning SMA Solar Technology AG 8.1.3 Cleaning the Air Grills The inverter sucks air in from underneath via the fan and blows it out again through the air grills on the upper sides. Clean the air grills if they are dirty.

  • Page 65: Checking The Electronic Solar Switch (Ess) For Wear

    SMA Solar Technology AG Maintenance and Cleaning 8.2 Checking the Electronic Solar Switch (ESS) for Wear Check the Electronic Solar Switch for wear before plugging it in. Result Action ☑ The metal tongues inside the connector are 1. Securely attach the Electronic Solar Switch not damaged or discolored.

  • Page 66: Troubleshooting

    In the user manual provided, you will also find a description of the display messages during operation, the status messages and measuring channels. Do not try to carry out repairs other than those described here. Instead, use the SMA Solar Technology AG 24-hour replacement service (the inverter will be ready for dispatch within 24 hours and sent to a forwarding agency) and repair servic e.

  • Page 67: Error Messages

    • If the grid voltage is continually within the acceptable range, and this error is still displayed, contact the SMA Serviceline. Internal communication fault. Corrective measures • If this fault occurs often, contact the SMA Serviceline. Installation Guide SMC9-11TLRP-IEN100640...
  • Page 68 • The disturbance has no effect on the performance of the inverter. EEPROM dBh EEPROM data is defective, the inverter has switched itself off because the loss of data has disabled important functions of the inverter. Corrective measures • Contact the SMA Serviceline. SMC9-11TLRP-IEN100640 Installation Guide...
  • Page 69 Iac-DC_Offs-Srr A grid disturbance has occurred. Corrective measures • Check the grid conditions. • Contact the SMA Serviceline if this problem occurs often or several times in succession. IGBTs The internal hardware monitoring system has detected a fault in the power electronics.
  • Page 70 • If this fault occurs often, contact the SMA Serviceline. PowerBalance The Sunny Mini Central is part of a three-phase system with two further Sunny Mini Centrals. This is equipped with the SMA Power Balancer for preventing asymmetric loads. The operating parameter "PowerBalancer" is set to "PhaseGuard" or "FaultGuard".
  • Page 71 SD-WR-Bruecke The inverter has detected a fault in the power electronics. It disconnects from the grid and then attempts to reconnect to the grid. Corrective measures • If this fault continues to occur, contact the SMA Serviceline. Installation Guide SMC9-11TLRP-IEN100640...
  • Page 72 STM Timeout Internal program run fault. Corrective measures • If this fault occurs often, contact the SMA Serviceline. Vac-Bfr The grid voltage on line 2 is no longer within the permissible range ("Bfr" or "Srr" is an internal message that has no meaning for the user).
  • Page 73 UZWK-Max The internal hardware monitor has detected an overvoltage condition in the intermediate circuit of the inverter. UzwkMax Corrective measures • If this fault occurs often, contact the SMA Serviceline. Watchdog Internal program run fault. Watchdog-Srr Corrective measures • If this fault occurs often, contact the SMA Serviceline.

  • Page 74: The Red Led Glows Continuously (Ground Fault)

    Troubleshooting SMA Solar Technology AG 9.3 The Red LED Glows Continuously (Ground Fault) The inverter has detected a ground fault in the PV generator. Proceed as follows to find it: 1. Disconnect the inverter from both the DC and AC connections as described in section 7.2 ”Opening the Inverter”...

  • Page 75: The Red Led Is Flashing

    SMA Solar Technology AG Troubleshooting 3. Repeat step 2 for each string. 4. The installer of the PV generator must remedy the ground fault in the affected string before you may reconnect the string to the inverter. 5. Restart the inverter as described in section 7.3 ”Closing the Inverter” (page 59), but without reconnecting the faulty string.
  • Page 76 There is probably a different fault in the inverter. connection: • Close the inverter as described in section 7.3 ”Closing the Inverter” (page 59). • Contact the SMA Serviceline (see section 13 ”Contact” (page 90)). ☑ There is no conductive The respective varistor is not working and must be replaced.
  • Page 77 ☑ This releases the terminals. If you do not receive an insertion tool for operating the terminal clamps with your replacement varistors, please contact SMA Solar Technology AG. As an alternative, the terminal contacts can be operated using a 3.5 mm wide screwdriver.

  • Page 78: Replacing The String Fuses ()

    A non-conductive fuse indicates a fault in the affected string. 5. Have the installer of the PV generator check the affected string and order the upgrade kit for the defective string fuse from SMA Solar Technology AG (see section 12 ”Accessories” (page 88)).
  • Page 79 SMA Solar Technology AG Troubleshooting 6. Insert the string fuse from the add-on kit in the fuse extractor provided. 7. Insert the fuse extractors in the slots. 8. Close the inverter as described in section 7.3 ”Closing the Inverter” (page 59). ☑ The defective string fuses have been replaced.

  • Page 80: Decommissioning

    Decommissioning SMA Solar Technology AG 10 Decommissioning 10.1 Dismantling the Inverter 1. Open the inverter as described in section 7.2 ”Opening the Inverter” (page 56). 2. Remove all cables from the inverter. 3. Close the inverter with the 6 screws and the corresponding tooth lock washers.

  • Page 81: Packing The Inverter

    Dispose of the inverter at the end of its service life in accordance with the disposal regulations for electronic waste which apply at the installation location at that time. Alternatively, send it back to SMA Solar Technology AG with shipping paid by sender, and labeled "ZUR ENTSORGUNG" ("for disposal") (contact see section Page 90)

  • Page 82: Technical Data

    Technical Data SMA Solar Technology AG 11 Technical Data 11.1 Sunny Mini Central 9000TL / 10000TL / 11000TL 9000TL-10 10000TL-10 11000TL-10 PV generator connection data Max. PV input voltage 700 V PV 0 (Based on -10 °C cell temperature) Input voltage, MPP range 333 V ...
  • Page 83 SMA Solar Technology AG Technical Data 9000TL-10 10000TL-10 11000TL-10 General data EC Declaration of Conformity Enclosed documentation package Download area www.SMA.de/en Dimensions (W x H x D) 468 mm x 613 mm x 242 mm (approx.) Weight approx. 35 kg...

  • Page 84: Efficiency Curve

    Technical Data SMA Solar Technology AG 9000TL-10 10000TL-10 11000TL-10 All-pole disconnection unit grid side Automatic disconnection device (SMA Grid Guard 2.1) Communication interfaces RS485 (galvanically isolated) optional Radio optional ® Bluetooth Wireless Technology optional Electronic Solar Switch (ESS) Electrical service life Min.

  • Page 85: Sunny Mini Central 9000Tl / 10000Tl / 11000Tl With Reactive Power Control

    SMA Solar Technology AG Technical Data 11.2 Sunny Mini Central 9000TL / 10000TL / 11000TL with Reactive Power Control 9000TLRP-10 10000TLRP-10 11000TLRP-10 PV generator connection data Max. PV input voltage 700 V PV 0 (Based on -10 °C cell temperature) Input voltage, MPP range 333 V ...
  • Page 86 Technical Data SMA Solar Technology AG 9000TLRP-10 10000TLRP-10 11000TLRP-10 General data EC Declaration of Conformity Enclosed documentation package Download area www.SMA.de/en Dimensions (W x H x D) 468 mm x 613 mm x 242 mm (approx.) Weight approx. 35 kg...
  • Page 87 SMA Solar Technology AG Technical Data 9000TLRP-10 10000TLRP-10 11000TLRP-10 Protective function AC side Short circuit proof Current control All-pole disconnection unit grid side Automatic disconnection device (SMA Grid Guard 2.1) Communication interfaces RS485 (galvanically isolated) optional Bluetooth optional Electronic Solar Switch (ESS) Electrical service life (in the event of a short min.

  • Page 88: Accessories

    SMA Solar Technology AG 12 Accessories You will find the corresponding accessories and replacement parts for your product In the following overview. If required, you can order these from SMA Solar Technology AG or your dealer. Description Brief description SMA order number...
  • Page 89 SMA Solar Technology AG Accessories Description Brief description SMA order number SMC 9000TL-10 SMC 9000TLRP-10 SMC 10000TL-10 SMC 10000TLRP-10 SMC 11000TL-10 SMC 11000TLRP-10 Electronic Solar Switch ESS handle replacement part ESS-HANDLE:04 Air grills Air grill set "right and left" as...

  • Page 90: Contact

    Contact SMA Solar Technology AG 13 Contact If you have technical problems concerning our products, contact the SMA Serviceline. We require the following information in order to provide you with the necessary assistance: • Inverter type • Inverter serial number • Type and number of the PV modules connected •...

  • Page 91: Exclusion Of Liability

    The use of supplied software produced by SMA Solar Technology AG is subject to the following conditions: • SMA Solar Technology AG rejects any liability for direct or indirect damages arising from the use of software developed by SMA Solar Technology AG. This also applies to the provision or non-provision of support activities.
