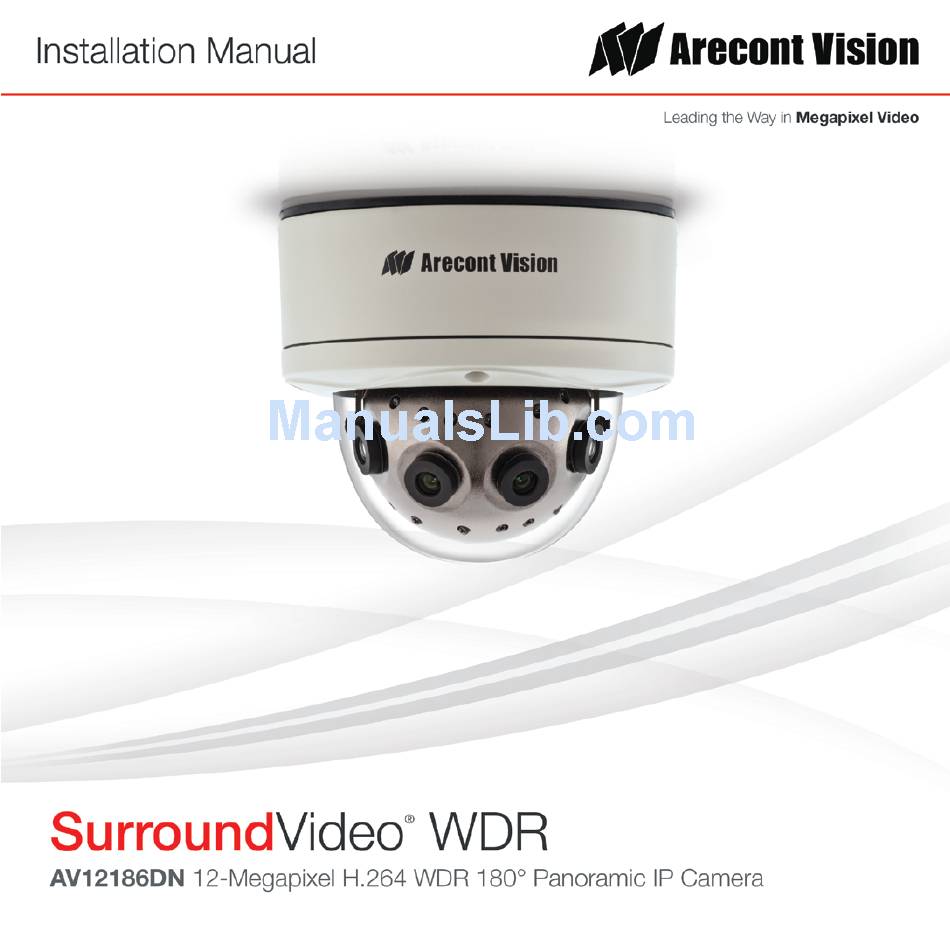

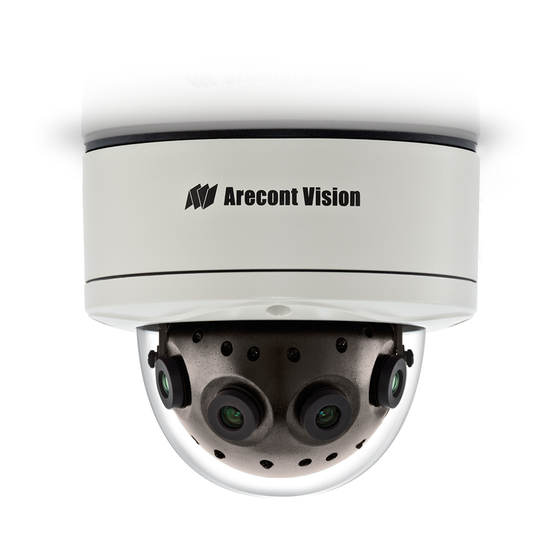

- Page 1 ® Arecont Vision AV12186DN SurroundVideo Installation Manual P a g e...
- Page 2 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® AV12186DN SurroundVideo Installation Manual Inside the box: Arecont Vision AV12186DN camera Mounting template C. Security L-key How to Mount the Camera D. 1.5mm Hex L-key Power cable Remove camera and hardware from the I/O Cable box.
- Page 3 ® Arecont Vision AV12186DN SurroundVideo Installation Manual HOLE POWER RJ-45 Image 3 Image 2 If you are using the side conduit opening, remove the conduit plug by first removing the socket set screw using 1.5mm Hex L-key Run Ethernet cable through the hole on the (Image 4).
- Page 4 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Note, the wave washer underneath the lens prevents it from losing focus in vibration. Remove the protective film from the camera dome. NOTE: be cautious not to scratch the vandal-resistant dome cover. Secure the vandal dome cover to the camera as shown in Image 2.
- Page 5 Vision Camera Installer” window to appear as shown in Image 11. Image 10 17. Click “Mode” tab to select desired install mode on Arecont Vision Camera Installer as shown in Image 11. NOTE 1: Basic Mode (default setting): software Image 7 will automatically discover and change / assign IP address to match PC subnet.
- Page 6 Installation Manual 21. When all cameras appear, select 18. In Basic Mode select “Install Cameras” on “Save/Exit.” The AV100 application will Arecont Vision Camera Installer as shown appear. in Image 11 22. From the “AV100 Application Manager” 19. Confirm all cameras connected to the menu, select “Run”...
- Page 7 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Image equalization (exposure reference) instructions: Launch the camera webpage Click “Setting” and select the desired channel to be the cameras “Exposure Reference Channel” (see Image 13). Setting an Exposure Reference Channel will reduce the color and brightness variations among channels.
- Page 8 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Exposure Reference Channel set as “Auto” Exposure Reference Channel set as Channel “1” Exposure Reference Channel as Channel “2” Image 15 P a g e...
- Page 9 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Since AV12186DN camera utilizes ® the same housing as MegaDome it also shares the same accessories. SV-EBA MD-CMT MD-CRMA MD-WMT2 MD-CAP MD-EBA SV-JBA FOR MD-WMT2 Image 16 MD-PMA P a g e...
- Page 10 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Pendant Mount (MD-CMT) Installation Instructions Inside the box: Top shield Pendant Mount C. Mounting template D. Pack of four (4) machine screws Pack of four (4) small machine screws Pack of four (4) wood screws and four (4)
- Page 11 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Wall Mount (MD-WMT2) Installation Instructions Inside the box: Wall mount Remove Wall Mount and hardware from the Top shield box. C. Mounting template D. One double sided hex key Pack of four (4) machine screws...
- Page 12 ® Arecont Vision AV12186DN SurroundVideo Installation Manual For installation of the camera, please reference “Mounting the Camera”. ® MegaDome Wall Mount Cap (MD-CAP) Installation Instructions Inside the box: Wall Mount Cap (MD-CAP) MD-CAP Pack of four (4) machine screws Not included but needed: 1 ½”...
- Page 13 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Junction Box Adapter (SV-JBA) for MD-WMT2 Installation Instruction Caution: SV-JBA should always be used with a wall mount, MD-WMT2, for outdoor installation. SV-JBA can only be installed with MD-WMT2 wall mount. It does not work with camera dome,...
- Page 14 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Flush Mount Adapter (MD-FMA) Installation Instructions Inside the box: Screw the “lever screws” until the FMA is snuggly installed, as shown in Image 27. The Flush Mount Adapter “Support Arm” will ride down the screw to White Trim Ring compress the mounting surface.
- Page 15 ® Arecont Vision AV12186DN SurroundVideo Installation Manual Electrical Box Adapter (SV-EBA) Installation Instructions Caution: Attach electrical box adapter to electrical box. SV-EBA can only be installed with MD-WMT2 wall mount. It does not workwith camera dome, older MD-WMT mount or MD-CMT!
- Page 16 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Electrical Box Adapter (MD-EBA) Installation Instructions Caution: MD-EBA can only be installed with camera dome, older MD-WMT mount or MD-CMT! MD –EBA doesn’t work with MD-WMT2 wall mount inside the box: C.
- Page 17 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Pole Mount Adapter (MD-PMA) Installation Instructions Inside the box: 65. Run Ethernet Cable and outside power cable (if necessary) through the Compress Fittings ® Pole Mount Adapter and MegaDome Wall Mount.
- Page 18 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome Corner Mount Adapter (MD-CRMA) Installation Instructions Inside the box: Corner Mount Adapter 2x Compression Fittings C. Pack of four (4) machine screws D. 2x Packs of four (4) wood screws and four...
- Page 19 ® Arecont Vision AV12186DN SurroundVideo Installation Manual ® MegaDome I/O Cable Connection Inside the box: Table 1 I/O Cable Not included but needed: Electrical Characteristics: Input voltage (V) • Flat head screw driver (measured between + and – terminals) Output current (mA) (measured between + and –...
- Page 20 ® Arecont Vision AV12186DN SurroundVideo Installation Manual 19 | P a g e...
