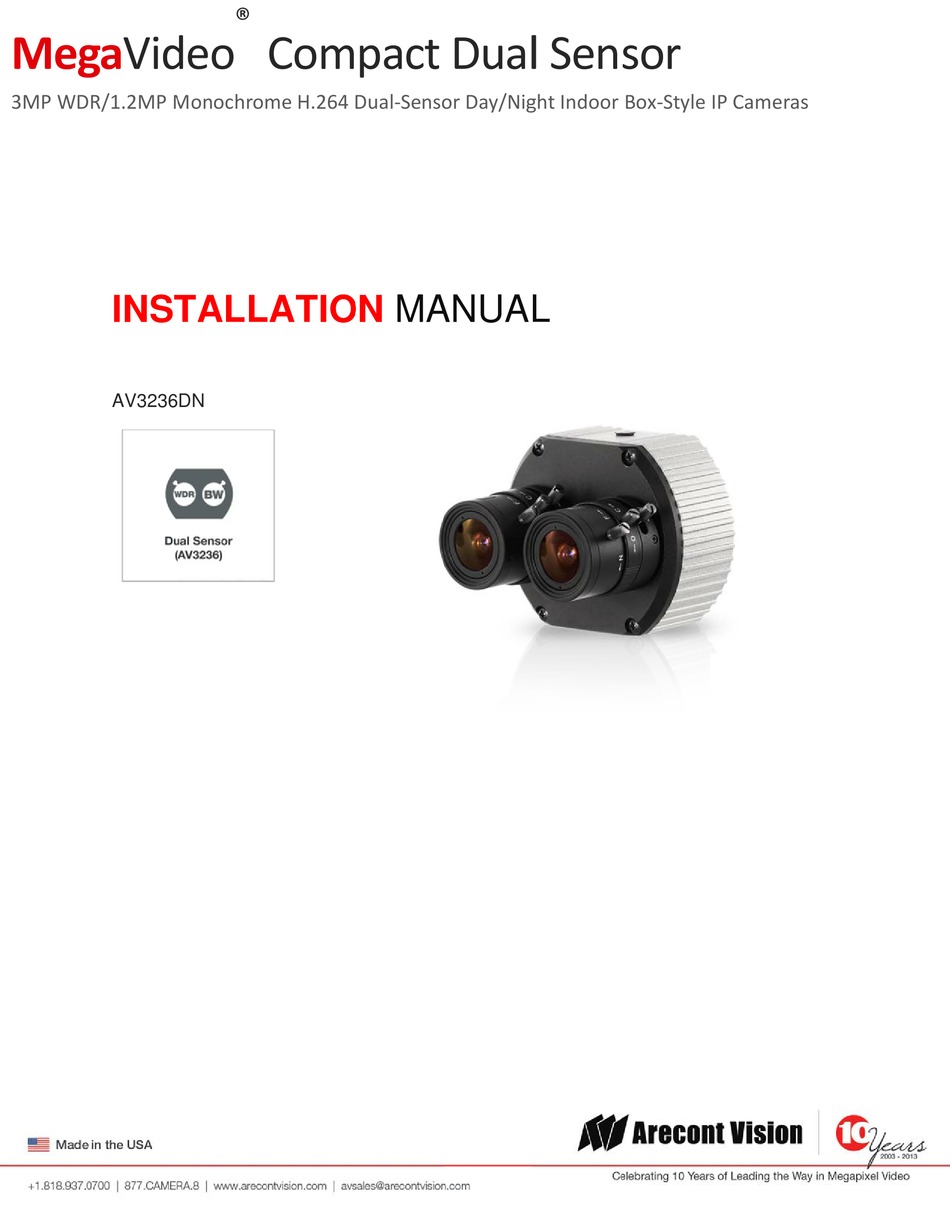

- Page 1 ® gaVid pact Dual l Sen 3MP WD R/1.2MP M Monochrom me H.264 Dual‐Senso or Day/Nig ght Indoor Box‐Style IP Camera a s INST TALL LATIO ANUAL AV3236 ...
-
Page 2: Table Of Contents
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras ® MegaVideo Compact Dual Sensor Contents Package Contents ............................... 3 Warranty Information .............................. 3 Installation Overview .............................. 5 Installation ................................. 6 Lens Selection ................................ 7 Digital Input and Output ............................ 8 Housing Options (Sold Separately) .......................... 9 Unique Features ................................. 9 LED Indicators ................................ 12 Support .................................. 13 Camera Discovery, Setup, and Configuration ...................... 14 Page | 2 support@arecontvision.com... -
Page 3: Package Contents
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Package Contents Item Description ® MegaPixel Camera MegaVideo Compact Dual Sensor I/O Plug 4 Position External Plug Arecont Vision CD Manual, Warranty, Installation Software Notes: 1. Camera Operating Temperature : ‐5°C (23°F) to +45°C (113°F) 2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application. 3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with mounting surface and of sufficient length and construction to insure a secure mount. ... -
Page 4: Warranty Information
3 Year Limited Warranty ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each Product shall be free from material defects in material and workmanship for a period of thirty-six (36) months from the date of shipment (the “Warranty Period”);... -
Page 5: Installation Overview

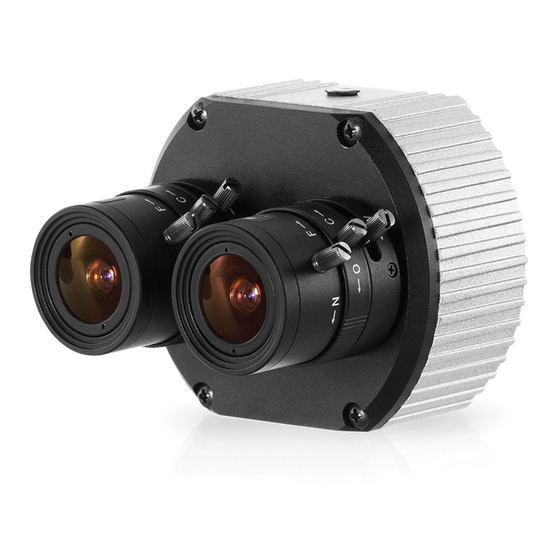

® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Installation Overview (Shown with Arecont Vision MPL33‐12A Lens, Sold Separately) ¼‐20 Thread Mounting Hole Camera Housing RJ‐45 Network Connector with LED indicators I/O Connector (4 Position) Page | 5 support@arecontvision.com... -
Page 6: Installation
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Installation 1. Visit http://www.arecontvision.com/ and check to ensure your camera has the most current firmware. 2. Mount camera to mounting bracket as required. 3. Connect the camera to a PoE port on a 100Mbps network PoE switch. NOTE : Camera is powered by PoE only, no auxiliary power option. 4. Check that the indicator LED’s are indicating the desired conditions (see LED Indicator table). 5. Use Arecont Vision software AV100 or AV200 located on the CD or available for download at our website (www.arecontvision.com) for camera discovery and setup (see Instruction Manual located on CD or available on our website). Page | 6 support@arecontvision.com... -
Page 7: Lens Selection
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Lens Selection Arecont Vision recommends the following two lenses for this product: 1. MPL33‐12A : Arecont Vision 3.3‐12mm, 1/2.5”, f/1.4, CS‐mount - Use for mounting inside DOME4 and DOME5 due to size constraints 2. T3Z0312CS‐MPIR : Computar 3‐8mm, 1/3" f1.2, C - Better performance in low light When selecting a different lens the following camera specifications should be taken into account (see Datasheet for further camera specifications): Image Sensor - 1/3.2” @ 3MP - 1/3 @ 1.2MP Page | 7 support@arecontvision.com... -
Page 8: Digital Input And Output
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Digital Input and Output Use 4 position connector provided in box to interface with Digital I/O on camera housing. Input Output Electrical Characteristics MIN MAX ON 2.9 6.3 Input Voltage (V) (Measured between + and – terminals) OFF 0 1.3 Output Current (mA) ON ‐ 50 (Measured between + ... -
Page 9: Housing Options (Sold Separately)
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Housing Options (Sold Separately) The HSG2 environmental PoE housing provides excellent protection for the entire line of MegaVideo and MegaVideo Compact IP cameras. This housing requires the HSG2‐WMT which is sold separately. It is also compatible with the following parts: SV‐JBA, SV‐EBA, MD‐CRMA and MD‐PMA.* (Outdoor) (Indoor) Excellent indoor and outdoor protection for the entire MegaVideo® Compact line of Arecont Vision cameras. Combining this 4” dome with the superior imaging of an AV camera provides the perfect solution for environments in which cameras need to be less noticeable, or require additional protection from the elements.* *These optional outdoor enclosures are not UL Listed and have not been evaluated by UL for use outdoors or in wet locations. Page | 9 support@arecontvision.com... -
Page 10: Unique Features
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Unique Features The AV3236DN has several unique settings outlined below. Reference the following documents found at arecontvision.com or on your installation CD for more detailed descriptions and instructions on all camera features and settings: Web Interface User Manual AV200 User Manual Figure 1 : Web Interface Example Page | 10 support@arecontvision.com... - Page 11 ® Mega aVideo pact D Dual Se nsor 3MP WDR R/1.2MP Mon nochrome H H.264 Dual‐S ensor Day/N Night Indoor r Box‐Style IP P Cameras Dual C hannel St treaming g and Up‐ ‐Scaling Upsc cale 1.2MP to o 3MP ...
-
Page 12: Led Indicators
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras LED Indicators LED Status Description Yellow Flashing Link has been established. Solid Normal Operation. None No connection. Green Flashing Camera has been accessed. Normal operation. Solid None No Connection. Page | 12 support@arecontvision.com... -
Page 13: Support
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Support 1. Arecont Vision FAQ Page Located at ArecontVision.com 2. Check the following before you call: Restore camera to factory default with AV100, AV200 or the camera webpage. Upgrade to the latest firmware by visiting ArecontVision.com. Isolate the camera on a dedicated network and test with AV100 or AV200. Swap the “troubled” camera with a known good camera to see if the problem follows the camera or stays at the location. 3. Contact Arecont Vision Technical Support one of three ways: 1. Online Portal : Support.ArecontVision.com 2. Phone : 1.818.937.0700 (option #1) 3. Email : support@arecontvision.com Page | 13 support@arecontvision.com... -
Page 14: Camera Discovery, Setup, And Configuration
® MegaVideo Compact Dual Sensor 3MP WDR/1.2MP Monochrome H.264 Dual‐Sensor Day/Night Indoor Box‐Style IP Cameras Camera Discovery, Setup, and Configuration For camera discovery and setup please use Arecont Vision software AV200 which you can find on the CD included with your camera or at: http://www.arecontvision.com/softwares.php The user manual for the AV200 software is included on the CD and is also located on our website. To configure the camera use either the AV200 software or the web interface utility. The web interface can be accessed by typing the camera IP address into your web browser or by clicking on the web interface button in AV200. The user manual for our web interface is included on the CD and is also located on our website. Visit http://www.arecontvision.com/ and check to ensure your camera has the most current firmware. Page | 14 support@arecontvision.com...
