Arecont Vision AV5100M Specifications

A&E Specifications
AV5100M
AV5100-AI
AV5100DN
Bid-Spec

1.0 Description

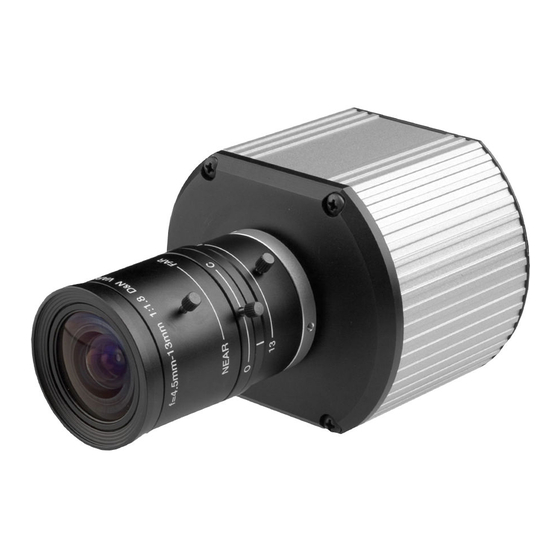

The AV5100 series camera is an MJPEG encoding, 5.0 Megapixel resolution, IP addressable camera,
designed to deliver full motion high definition progressive scan digital video across local area networks.
The AV5100 is a high sensitivity, PoE (IEEE 802.3af) compliant camera with color, Day/Night, DC auto
iris configurations. Built with Arecont Vision's proprietary massively-parallel MegaVideo® technology, the
AV5100 has the ability to output multiple image formats allowing the simultaneous viewing of the full
resolution field of view and regions of interest for high definition forensic zooming. This camera offers
over sixteen times the resolution of standard resolution IP cameras with the ability to output full real time
frame rates.

2.0 Bid Specification

•
The camera shall utilize a high sensitivity 5 Megapixel CMOS sensor with 1/2.5" optical format.
•
The camera shall support MJPEG format.
•
The camera shall output at a maximum resolution of 2592(H) x 1944(V) pixels at a maximum
frame rate of 9 frames per second (FPS).
•
It shall be possible to program the camera to output a variety of lower resolution images. For
example 1280(H) x 1024(V) pixels at 32 FPS, or 1600(H) x 1200(V) pixels at 24 FPS.
•
The camera shall feature streaming of the full field of view (FOV) and simultaneous multiple
regions of interest (ROI) for forensic zooming.
•
The camera shall be equipped with a 100 Mbps LAN connector and can deliver image data at a
maximum data rate of up to 55 Megabits per second (55 Mbps).
•
The camera shall use a wide variety of C/CS mount 1/2" lenses. (Note that some CS lenses and
all C-mount lenses may require an adaptor ring. Megapixel quality lenses are the preferred choice
for our entire camera line.)
•
The camera shall provide 21 levels of compression quality for optimal viewing and archiving.
•
The camera shall support a minimum TFTP and HTTP network protocols.
•
The cameras shall feature precision motion detection with a minimum of 64 detection zones
•
The camera shall feature automatic exposure, automatic multi-matrix white balance, shutter
speed control, 50/60Hz selectable flicker control, programmable brightness, saturation, gamma,
sharpness, windowing and decimation, simultaneous delivery of full-field view and zoomed
images at video frame rate, instantaneous electronic zoom, pan and tilt, and electronic image
rotation by 180 degrees.
•
The camera shall incorporate necessary algorithms and circuits to detect motion in low light with
clarity.
•
The camera shall support a minimum illumination of 0.3 Lux @ F1.4 in color mode.
•
The camera shall support an IR sensitive minimum illumination of 0 Lux in B/W mode (D/N
version only)
•
The camera's primary power source shall be Power over Ethernet (PoE) complying with the IEEE
802.3af standard.
•
The camera shall have the alternative option to be powered from between a 15V DC up to 48V
DC power source providing at least 3W of power.
•
The camera shall support a DC auto-iris lens when equipped with the auto-iris feature (AI version
only). Megapixel resolution optics recommended.
425 E. Colorado Street, 7
Glendale, CA 91205
5 Megapixel Color Camera
5 Megapixel Color Auto Iris Camera
5 Megapixel Day/Night Camera
th
Floor (818) 937-0700
www.arecontvision.com
Rev 123009 AV5100
Page 1
