Back View - Control 4 Multi Channel Amplifier16 Installtion And User Manual

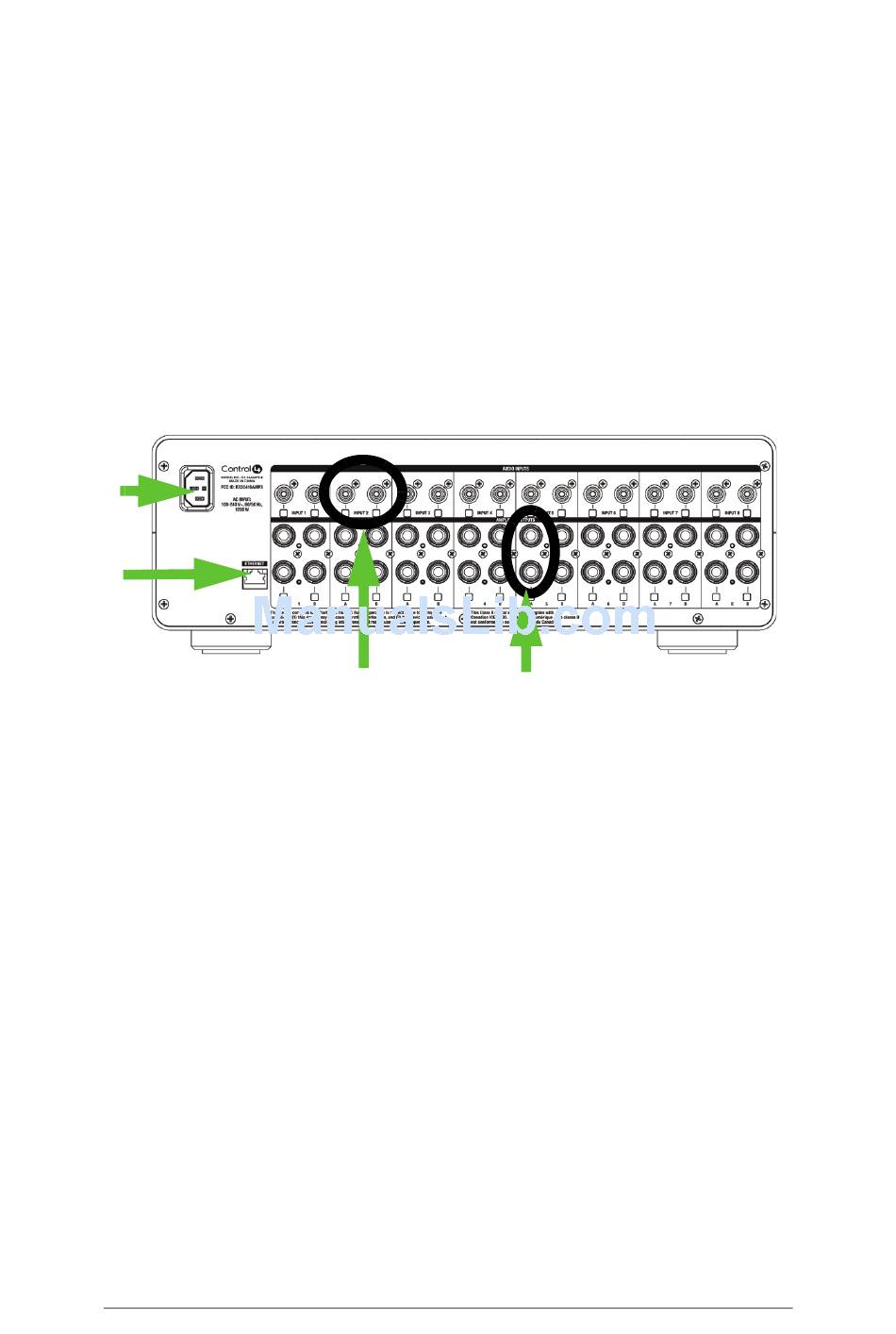

Back View

1
2
routing and zone settings for gain, bass, and
treble. The display also shows zone activity.
2. —Provides access to menu options
Buttons
displayed on the LCD.
3. —Rotate to scroll through list
Select Dial
items and options displayed on the LCD.
Press to make selections.
3
1. Power Plug Port
IEC equipment power cord. Use the supplied
power cord or ensure the power cord you are
using is at least 18 AWG or larger.
2.
Ethernet Port
Ethernet connection
3.
Audio Inputs 1-16
analog sources, and their supporting light
emitting diodes (LEDs) for EZ ID™ during
setup
4.
Amplifier Outputs 1-16
pair for 8 stereo class D amplified channels,
and their supporting LEDs for EZ ID™ during
setup
4
—For use with a standard
—RJ-45 for a 10/100 BaseT
—RCA jacks for 8 stereo
—5-way binding post
7
