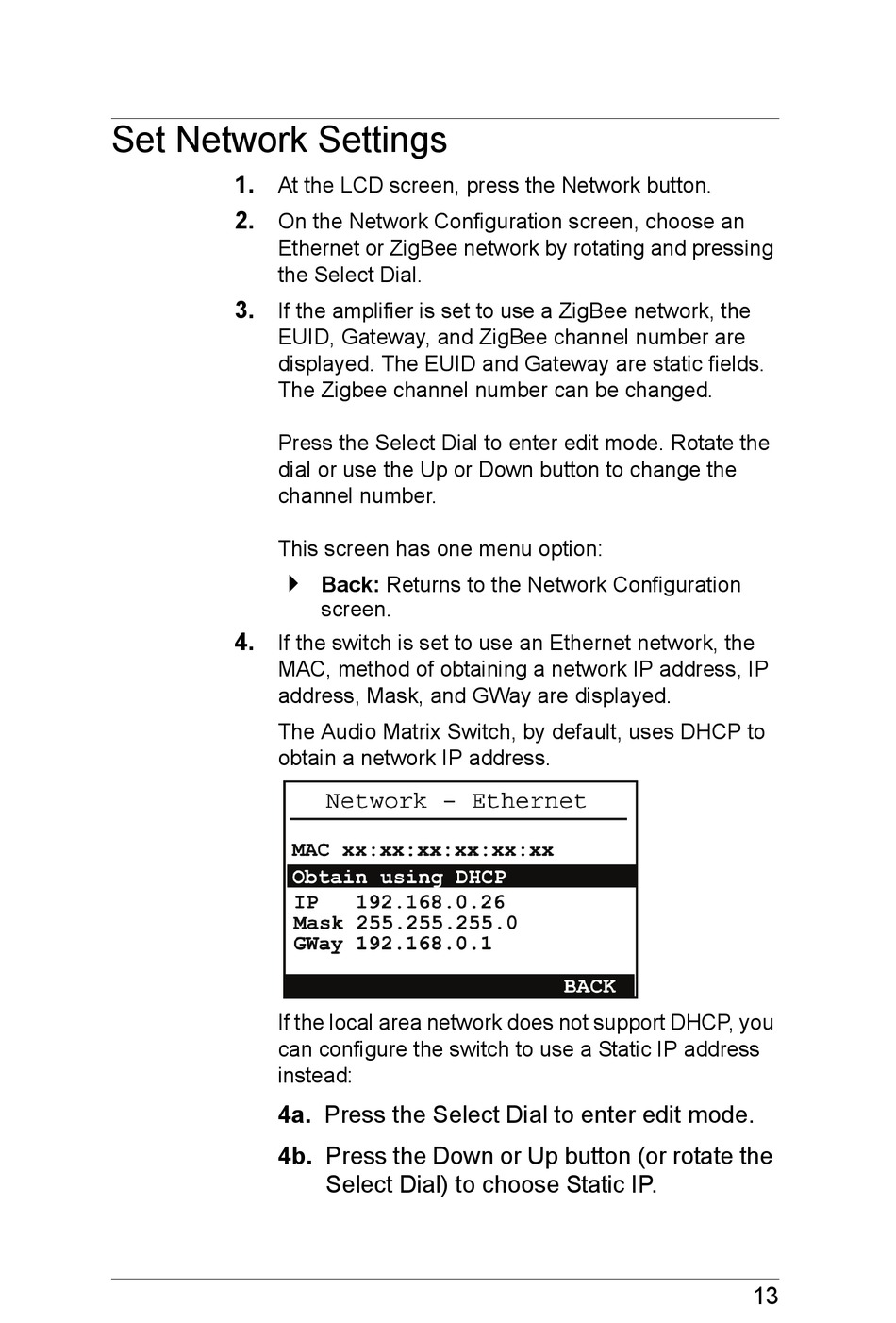

Set Network Settings

1.
At the LCD screen, press the Network button.
2.
On the Network Configuration screen, choose an
Ethernet or ZigBee network by rotating and pressing
the Select Dial.
3.
If the amplifier is set to use a ZigBee network, the
EUID, Gateway, and ZigBee channel number are
displayed. The EUID and Gateway are static fields.
The Zigbee channel number can be changed.
Press the Select Dial to enter edit mode. Rotate the
dial or use the Up or Down button to change the
channel number.
This screen has one menu option:
4.
If the switch is set to use an Ethernet network, the
MAC, method of obtaining a network IP address, IP
address, Mask, and GWay are displayed.
The Audio Matrix Switch, by default, uses DHCP to
obtain a network IP address.
If the local area network does not support DHCP, you
can configure the switch to use a Static IP address
instead:
4a. Press the Select Dial to enter edit mode.
4b. Press the Down or Up button (or rotate the

Back: Returns to the Network Configuration
screen.
Select Dial) to choose Static IP.
13
