Front View

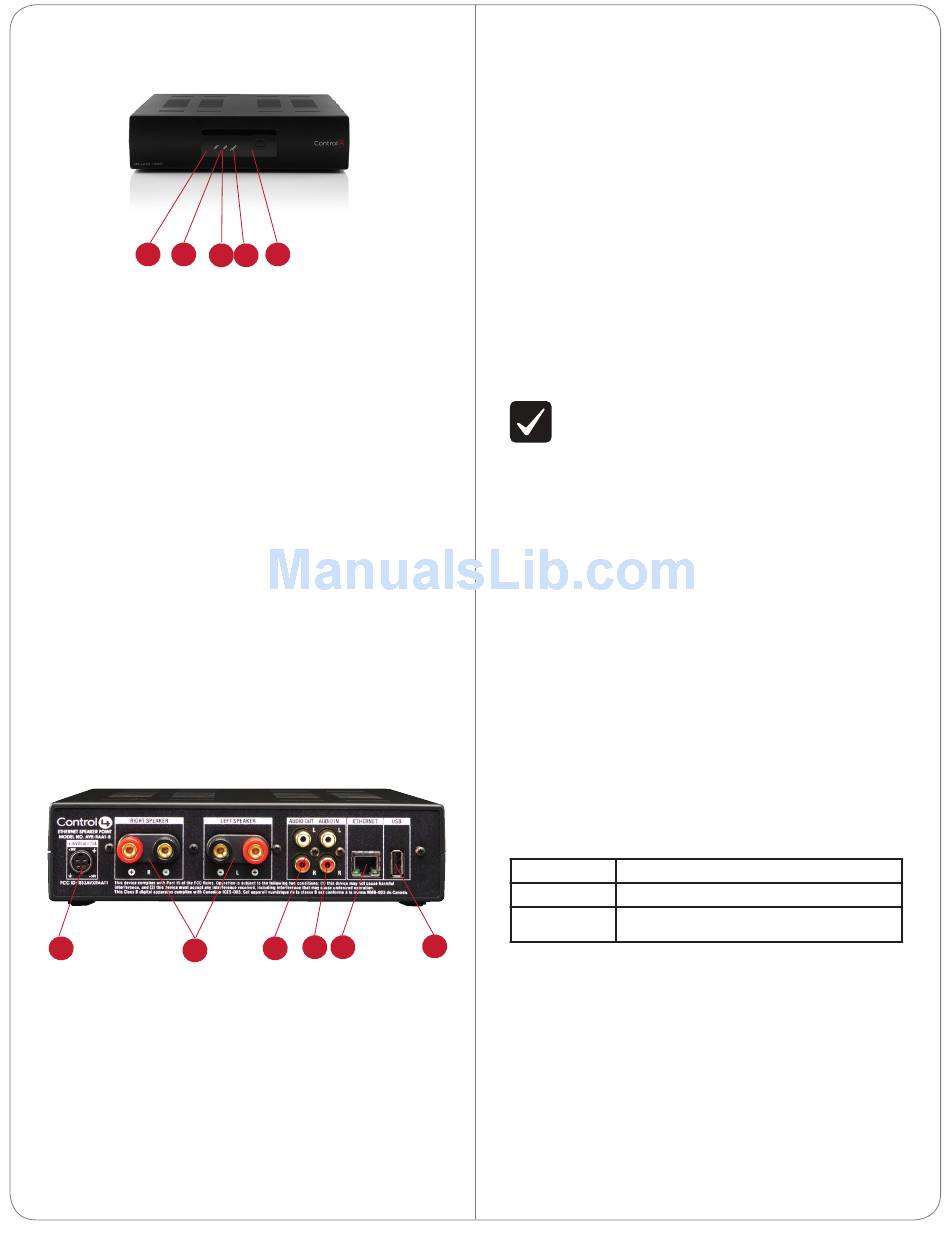

Figure 1. Front View
1 2
3
1 IR window (Future). For capturing third-party IR
codes from hand-held devices (such as Control4
System Remote Control devices).
2 Data LED. Red LED light indicates music is
currently streaming in or out.
3
Link LED. Red LED light indicates a network
connection is present.
4 Power LED. Red LED light indicates when power
is present. LED turns on approximately 30
seconds after the power is applied to the device.
5 Identification/Reset button. For identifying this
device to the system during initial setup and as a
device reset button when pressed for 10 seconds
or more.

Back View

Connect all applicable devices to the HC-800 using
the connection options described next.
Figure 2. Back View
1
2
1
Power plug port. DC power supply port
(+36VDC@3.75A).
2
Right and Left Speakers. Right and left speakers
each with five-way binding post (+Red/-Black)
for passive speakers.
3 Audio Out. Line level Audio Out RCA (pre-amp)
port for another zone of audio.
4
Audio In. Line level Audio In RCA port for analog
5
4
4 5
3
line in for audio source (e.g., a CD player).
5 Ethernet. Ethernet RJ-45 port for device control
and configuration of an audio and digital stream.
6 USB (1 port). (Future) for an external storage
device with USB support (such as FAT32-
formatted devices).

Installation Instructions

1
Connect a left and right speaker to the Left and
Right speaker ports. The speakers should be
rated to handle a minimum of 50 W RMS each to
avoid damaging the speakers.
2 (Optional) Connect an audio source, such as a CD
player, to the Audio port .
IMPORTANT!
audio output to the Audio In port.
IMPORTANT !
amplifiée à l'acoustique dans le port.
WICHTIG!
Audioleistung zum Audio im Tor an.
3 (Optional) Connect the pre-amp Audio Out port
to the inputs of an external power amplifier.
4
Connect the DC connector of the power supply
to the Speaker Point.
5 Plug the AC power cord into the power cord
receptacle on the power supply.
6 Plug the AC power cord into a standard 120 VAC
outlet to power up the Speaker Point.
7 Check the Speaker Point status using its front
panel LEDs.
Data
Link
Power
6
8
Ensure that the installation site is network-ready
with an Ethernet and/or a WiFi network. For
more detail, see the Composer topic, "Guidelines
for Setting up a Wired or Wireless Network."
9 Connect the Speaker Point to an Ethernet
Category 5 cable to set up the Ethernet
connection. Note that for the WiFi Speaker Point
setup, you need to have a temporarily connect
the Speaker Point to Ethernet.
Do not attach any amplified
N'attachez aucune sortie audio
Bringen Sie keine verstärkte
On = Music is streaming to or from this device.
On = Network connection established.
On = Power is Present. This LED will turn on about
30 seconds after the power is applied to the device.
