Control 4 C4-8AMP1-B Installation And Setup Manual

4-Zone Amplifier
Installation and Setup Guide
Supported Models
• C4-8AMP1-B 4-Zone Amplifier

Box Contents

• Control4® 4-Zone Amplifier
• IEC Power Cable
• 4-Zone Amplifier Installation and Setup Guide (this document)

Important Safety Instructions

1. Read and keep these instructions.
2. Heed all warnings and follow all instructions for this product in this and other Con-
trol4® documents included with or related to this product.
3. Improper use of this product may result in potential electric shock.
4. Do not use this product near water.
5. Never spill liquid of any kind on this product.
6. Clean this product only with a damp or dry cloth. Do not use liquid cleaners or aerosol
cleaners to clean the product.
7. Install this product according to the manufacturer's instructions.
8. Install this product according to the National Electrical Code ANSI/NFPA 70 and the
prevailing local codes and requirements.
9. This product is designed for IT power systems with phase-to-phase voltage 120V,
240V, or 277V.
10. This product should be operated with the type of power indicated on the marked label.
If you are not sure of the type of power available, consult your Control4 dealer or local
power company.
11. Slots and openings on a cabinet rack, and components used with this product are pro-
vided for ventilation, reliable operation, and protection from overheating of the product.
These slots and openings must not be blocked or covered.
12. This product should never be placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is provided.
13. Never push objects of any kind into this product through cabinet slots because they
may touch dangerous voltage points or short out parts that could result in a fire or
electric shock.
14. Only use the attachments and accessories included with this product or recommended
by Control4.
15. Do not allow anything to rest on the power cord. Do not install or place this product
where people will walk on the cord.
16. Do not use extension cords with any products in a Control4 system.
17. If applicable, unplug this product during lightning storms or when unused for long
periods of time.
18. This product must be installed by qualified professionals only.
19. Do not attempt to service this product yourself except as noted in this guide. Opening
or removing covers of internal components may expose you to dangerous voltage
points or other risks.
20. Refer all servicing to qualified service personnel. Servicing is required when the ap-
paratus has been damaged or frayed in any way; for example, a power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into this product, this
product has been exposed to rain or moisture, this product does not operate normally,
or this product has been dropped.
Requirements and Specifications
• Ensure that your home network wiring is in place before starting your system
setup. The 4-Zone Amplifier is controlled through 10/100 Ethernet networking.
WARNING! To reduce the risk of fire, do not install this device in a cabinet that is
smaller than 20" wide x 20" deep x 12" high. If you do, the device may overheat.
Product Specifications
Feature Description
C4-4AMP1-B 4-Zone Amplifier
Communications: Ethernet 10/100 networking
Connections: 4 stereo inputs, two of which can be digital; 4 sets of
amplifier outputs
Dimensions: 4" x 17" x 16"
Display: LCD screen
Power requirements: 100-240 VAC, 50-60 Hz
Shipping weight: Approximately 16 lbs.
WARNING! Do not expose the apparatus to dripping or splashing. Do not place
objects filled with liquids near the apparatus.
AVERTISSEMENT ! N'exposez pas l'appareil à l'égoutture ou à l'éclaboussement. Ne
placez pas les objets remplis de liquides près de l'appareil.
WARNING! Setzen Sie den Apparat nicht Bratenfett oder dem Spritzen aus. Setzen
Sie nicht die Gegenstände, die mit Flüssigkeiten nahe dem Apparat gefüllt werden.
WARNING! To reduce the risk of fire or electrical shock, do not expose this apparatus
to rain or moisture.
AVERTISSEMENT ! Pour réduire le risque du feu ou de choc électrique, n'exposez
pas cet appareil à la pluie ou à l'humidité.
WARNING! Um die Gefahr des Feuers oder des elektrischen Schlages zu verringern,
setzen Sie diesen Apparat nicht Regen oder Feuchtigkeit aus.
IMPORTANT! Using this product in a manner other than outlined in this document
voids your warranty. Further, Control4 is NOT liable for any damage incurred with the
misuse of this product. See "Limited 2 Year Warranty."
IMPORTANT ! Employer ce produit en quelque sorte autre que décrit dans ce docu-
ment vide votre garantie. De plus, Control4 n'est pas responsable d'aucun dommage
encouru avec l'abus de ce produit. Voyez que « a limité la garantie de 2 ans. »
WICHTIG! Das Verwenden dieses Produktes in gewissem Sinne anders als umrissen
in diesem Dokument hebt Ihre Garantie auf. Weiter ist Control4 NICHT für irgendeine
Beschädigung verantwortlich, die mit der Fehlanwendung dieses Produktes genom-
men wird. Sehen Sie, daß „begrenzte eine 2 Jahr-Garantie."

Features and Benefits

• Receives up to four (4) stereo inputs with full audio switching on inputs.
• Outputs four (4) stereo class D amplified channels at 60 W per channel at 8 ohms or
at 120 W per channel at 4 ohms (not all channels driven simultaneously).
• Adjustable gain, treble, and bass for each zone.
• Master Volume Control for all outputs.
• Device chassis is two (2) standard rack spaces and rack mountable using three (3)
standard rack spaces configuring to EIA 19" rack standards. The optional Control4
Rack Mount Kit (C4-4URMK-B) provides ½ U spacing above and below the chassis.
If the Control4 Rack Mount Kit is not used, allow ½ rack space above and below the
chassis for ventilation.
• Communicates via Ethernet 10/100 networking.

Front and Rear Panel Descriptions

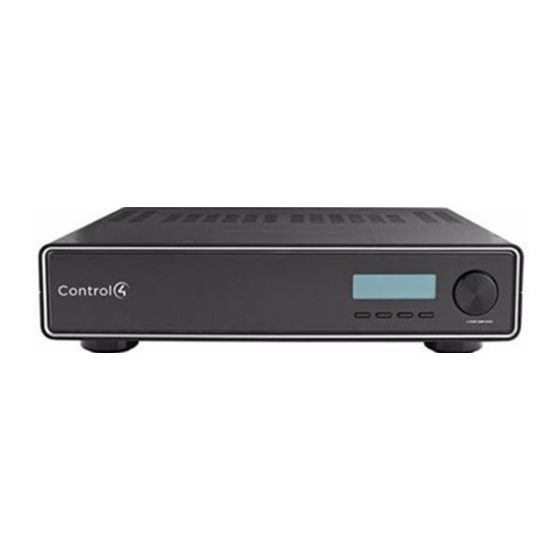

Front Panel

1 Front Display (LCD)— LCD for displaying or setting 4-Zone Amplifier settings and navi-
gating system menus. Used to view or modify audio source routing and zone settings for
gain, bass, and treble. The display also shows zone activity.
2 Select Dial— Rotate to scroll through list items and options displayed on the LCD.
Press to make selections.
3 Buttons—Provides access to menu options displayed on the LCD.
2
1 3
