Philips Domestic Appliances and Personal Care
Service Manual
HR 7638 /A /D /G : Comfort version
HR 7638 /B /E /H : Cucina ivory version
HR 7638 /C /F /I : Cucina white version

PRODUCT INFORMATION

The food processor is equipped with mechanical and
thermal safety switches.
Motor power consumption : 450 W
Kneading capacity
Voltage & frequency
Cordset
Speed setting
Bowl capacity
Blender beaker
Dimensions fancy box
Automatic resetable thermal cut-out
- In order to avoid an hazardous situation due to in
advertent resetting of the thermal cut-out, this appli-
ance must not be supplied through a timer.
- To prevent damage due to overheating, the appliance
has been equipped with an automatic cut-out system.
This system will automatically cut off the power supply
when the appliance overheats.
- If the appliance suddenly stops running:
- Unplug the appliance
- Press the button 'pulse / 0'
- Let the appliance cool down for 60 minutes
- Plug the appliance in again
- Switch the appliance on again
Published by Philips Domestic Appliances and Personal Care
4322 277 00799
02/02
Comfort / Cucina
: max. 400 g of fl our
max. 680 g of dough
: 220-240 V; 50-60 Hz
110-120 V; 50-60 Hz
: 150 cm
: 2 speeds + pulse
: 1,8 l dry ingredients
1,2 l liquids
: 1,5 l total
1,25 l effective
: 433 x 248 x 414
Printed in the Netherlands

Food processor

Service Manual 4322 277 00655 is herewith cancelled

Safety lock

- The motor unit as well as the lid have been provided with
marks. The appliance will only function if the arrow on the
motor unit is placed directly opposite the mark on the lid.
- If both the blender and the bowl have been correctly
mounted, only the blender will function.
- For using the bowl, the blender jar has to be removed
from the appliance and the screwcap has to be attached.
Otherwise only the blender will work.

Cleaning

- The bowl, lid of the bowl, pusher and accessories can also
be washed in the dishwasher.
- The cover with insert storage and the blender jar are not
dishwasher proof.

Important:

- If the appliance is used without the blender jar, the appli-
ance will not function if the screw cap has not been
screwed onto the attaching hole for the blender.
This product meets the requirements regard-
ing interference suppression on radio and TV.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.
© Copyright reserved
HR 7638
/A /B /C /D
/E /F /G /H /I
Subject to modification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR 7638 and is the answer not in the manual?

Questions and answers

saleembhabha
February 12, 2025

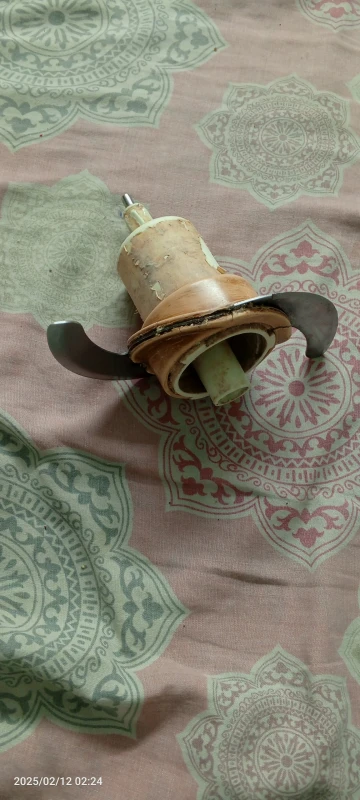

Purshed blade
